EI-15

General Description

EXTERIOR/INTERIOR TRIM

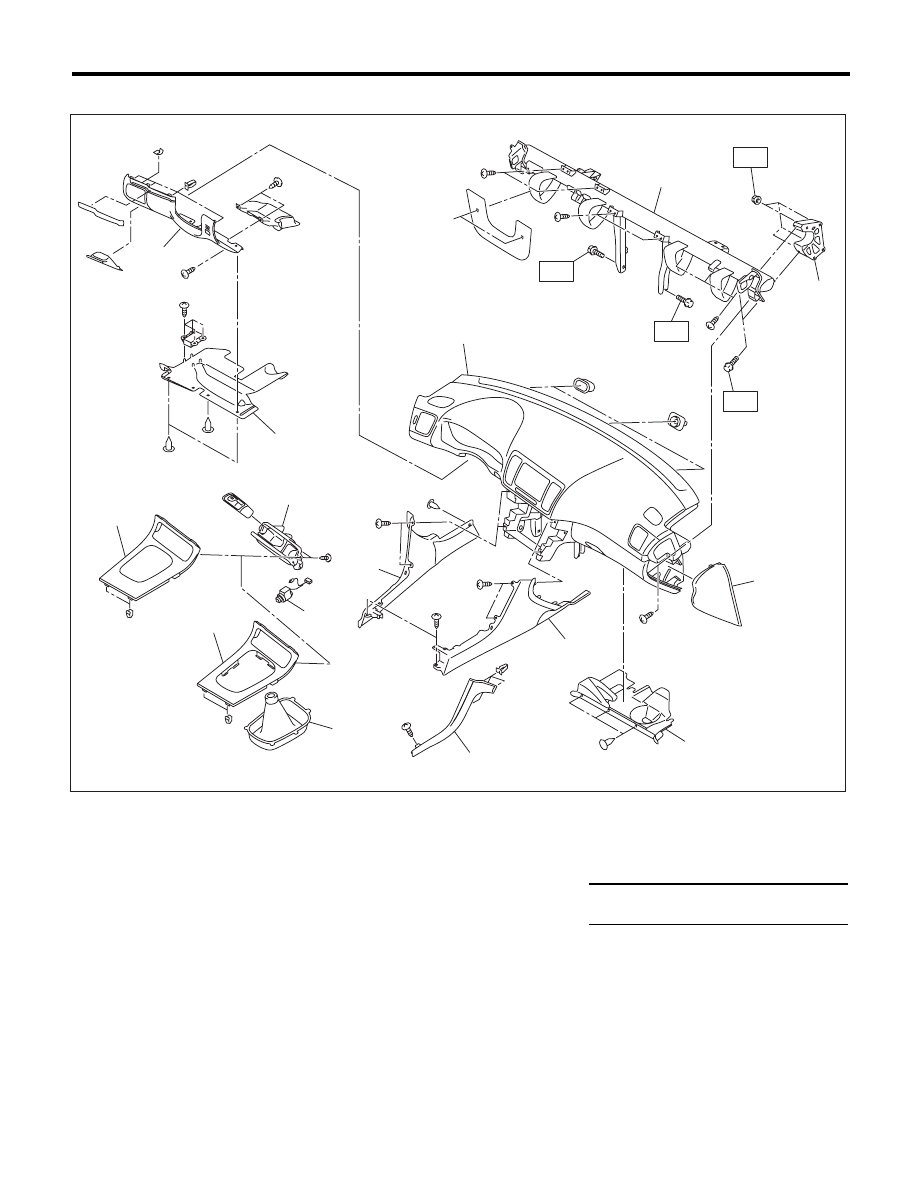

19.INSTRUMENT PANEL

(1)

Steering support beam bracket

(7)

Console side panel LH

(13)

Console front panel (AT model)

(2)

Steering support beam

(8)

Console side garnish

(14)

Console front panel (MT model)

(3)

Instrument panel pad and frame
ASSY

(9)

Instrument panel lower cover upper

(15)

Shift lever boot (MT model)

(10)

Instrument panel lower cover under



(4)

Instrument panel side cover

(11)

Ash tray holder

Tightening torque:N·m (kgf-m, ft-lb)

(5)

Glove box lower cover

(12)

Front accessory power supply
socket

T: 25 (2.55, 18.4)

(6)

Console side panel RH

EI-01719

T

T

T

T

(13)

(14)

(15)

(7)

(6)

(5)

(4)

(3)

(2)

(1)

(12)

(11)

(10)

(9)

(8)

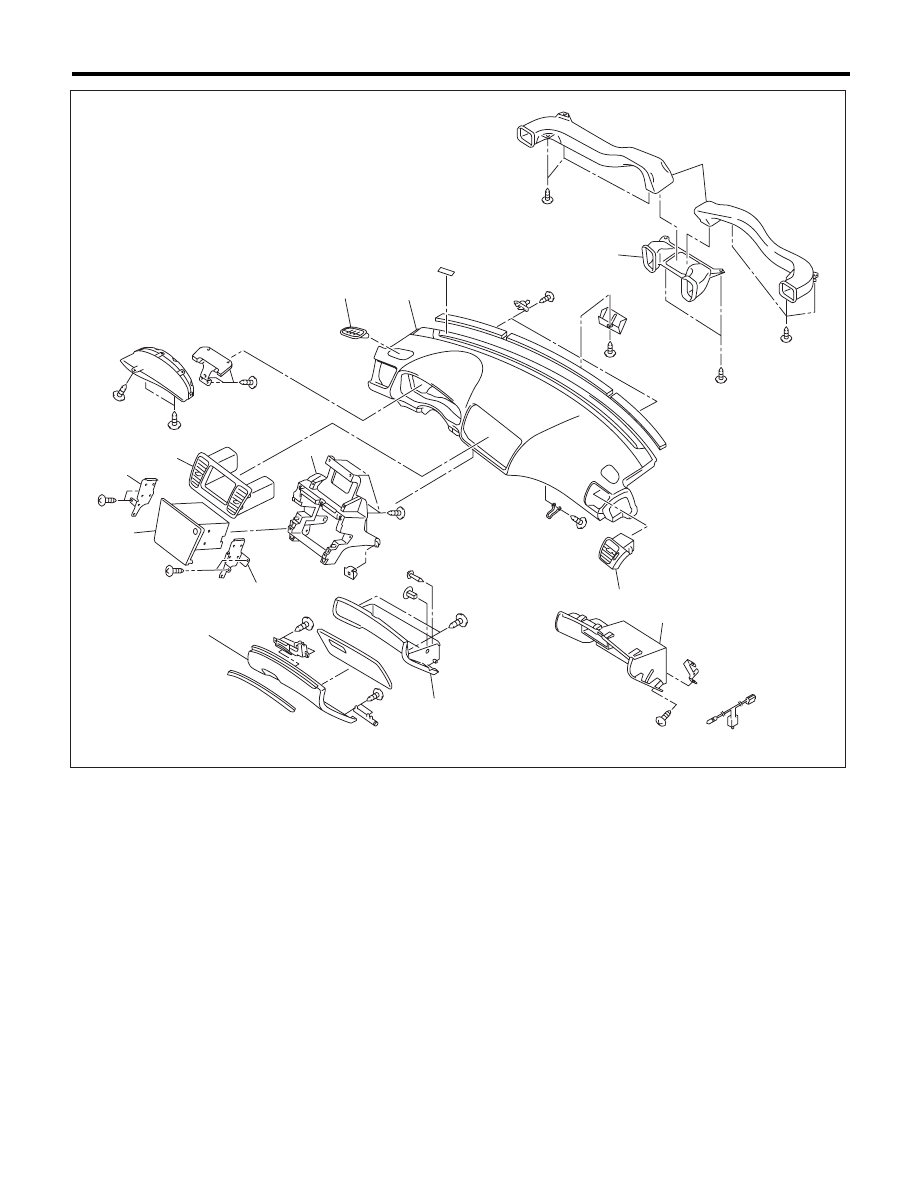

EI-16

General Description

EXTERIOR/INTERIOR TRIM

(1)

Air vent side duct

(6)

Glove box panel

(10)

Center panel

(2)

Air vent center duct

(7)

Center console frame

(11)

Audio bracket (RH)

(3)

Instrument panel pad and frame

(8)

Air vent center grille

(12)

Glove box lid

(4)

Air vent defroster grille

(9)

Audio bracket (LH)

(13)

Glove box

(5)

Air vent side grille





EI-01720

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(11)

(10)

(12)

(13)

EI-17

General Description

EXTERIOR/INTERIOR TRIM

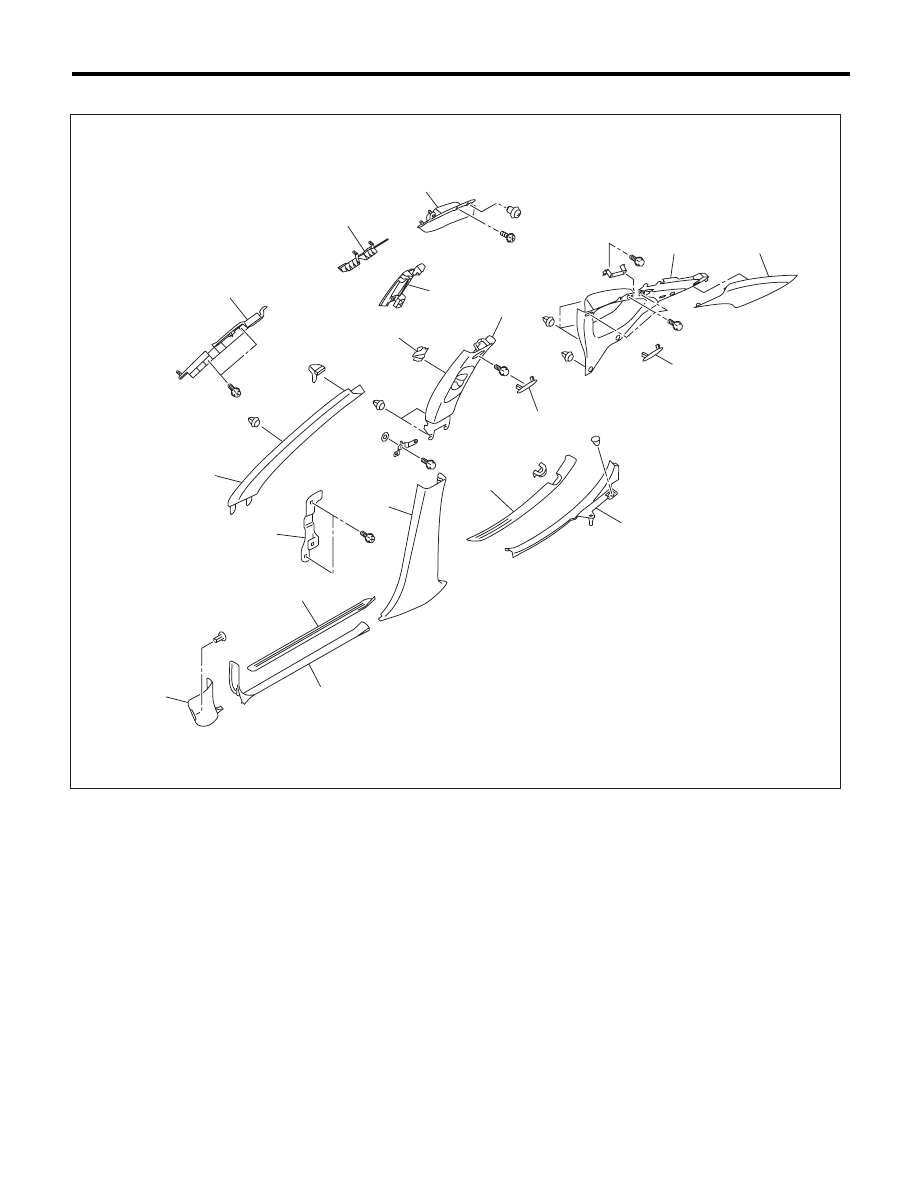

20.INNER TRIM (SEDAN MODEL)

(1)

Front pillar upper trim

(7)

Rear inside scuff plate

(12)

Center pillar inner protector lower

(2)

Front pillar lower trim

(8)

Rear outside scuff plate

(13)

Curtain airbag guide front

(3)

Front outside scuff plate

(9)

Bolt cover

(14)

Curtain airbag guide center

(4)

Front inside scuff plate

(10)

Seat belt shoulder anchor adjuster
button

(15)

Curtain airbag guide rear

(5)

Center pillar upper trim

(16)

Rear quarter trim front

(6)

Center pillar lower trim

(11)

Center pillar inner protector upper

(17)

Rear quarter trim rear

EI-01440

(12)

(14)

(15)

(13)

(11)

(9)

(16)

(17)

(9)

(10)

(1)

(2)

(3)

(4)

(6)

(8)

(5)

(7)

EI-18

General Description

EXTERIOR/INTERIOR TRIM

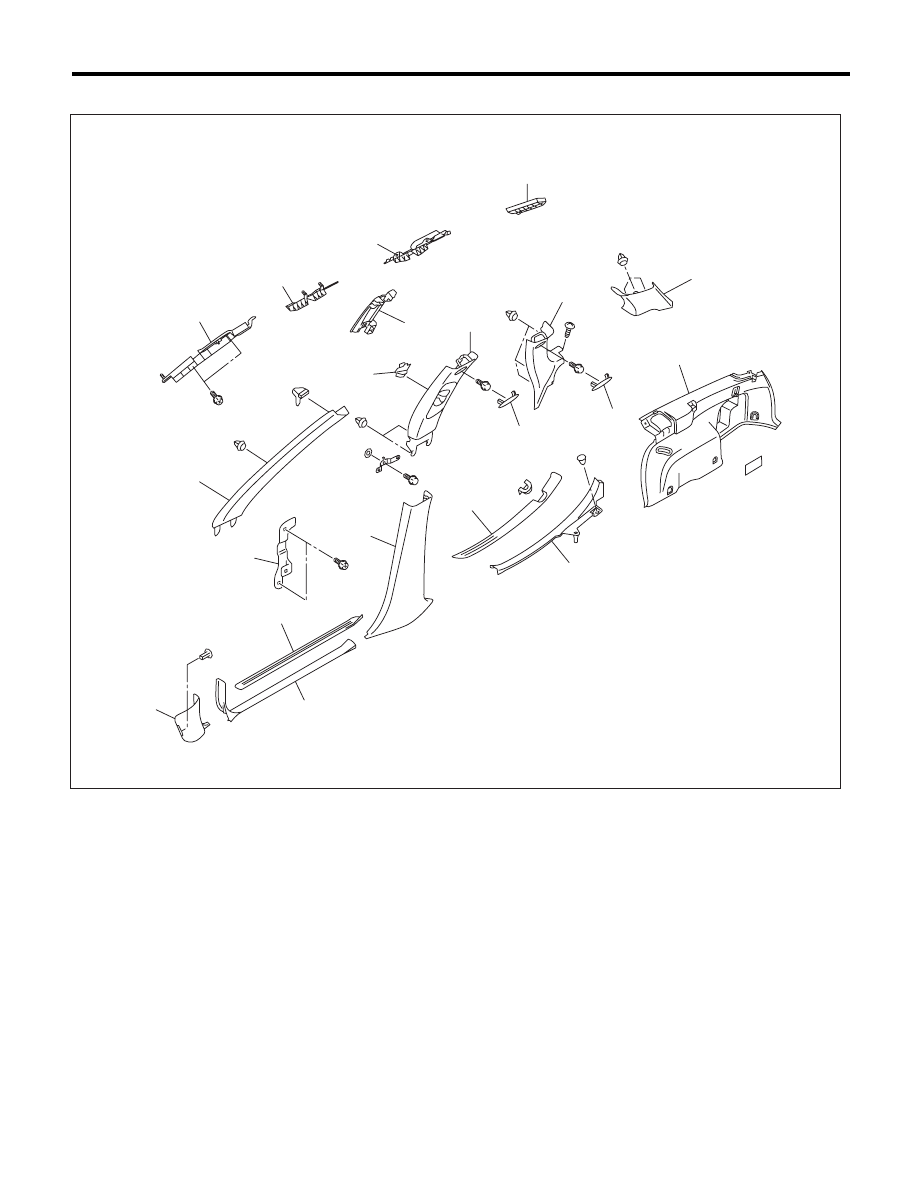

21.INNER TRIM (WAGON MODEL)

(1)

Front pillar upper trim

(8)

Rear outside scuff plate

(14)

Curtain airbag guide center

(2)

Front pillar lower trim

(9)

Bolt cover

(15)

Curtain airbag guide rear

(3)

Front outside scuff plate

(10)

Seat belt shoulder anchor adjuster
button

(16)

Curtain airbag module protector

(4)

Front inside scuff plate

(17)

Rear quarter front pillar trim

(5)

Center pillar upper trim

(11)

Center pillar inner protector upper

(18)

Rear quarter rear pillar trim

(6)

Center pillar lower trim

(12)

Center pillar inner protector lower

(19)

Rear quarter lower trim

(7)

Rear inside scuff plate

(13)

Curtain airbag guide front





EI-01441

(12)

(14)

(17)

(15)

(13)

(11)

(18)

(19)

(10)

(1)

(2)

(3)

(4)

(6)

(8)

(5)

(7)

(16)

(9)

(9)
