SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

6. Sunroof Switch

A: REMOVAL

1) Disconnect the ground cable from the battery.

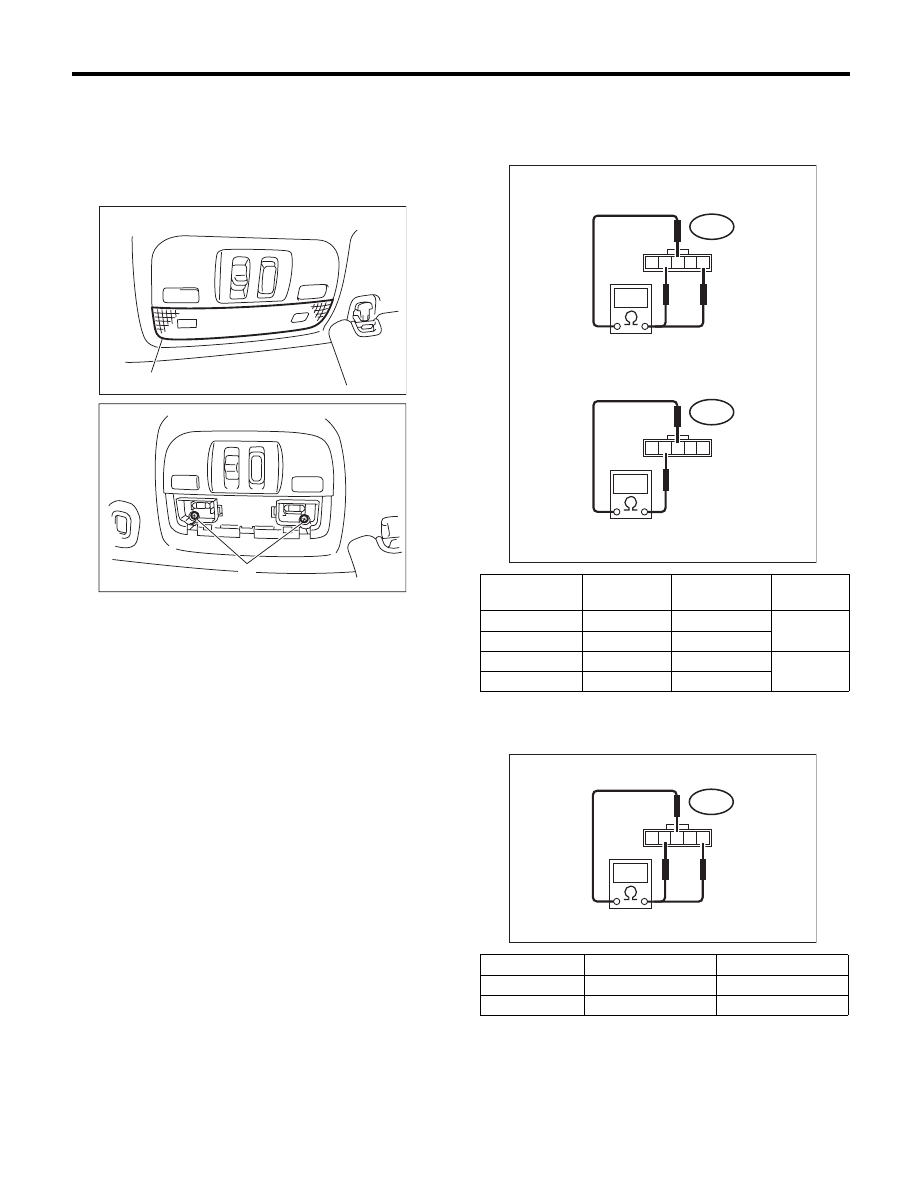

2) Remove the spot map light lens (A) and sunroof
switch mounting screws (B).

3) Disconnect the harness connector, and then re-
move the sunroof switch.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. SEDAN MODEL

Measure the sunroof switch resistance.

2. WAGON MODEL

Measure the sunroof switch resistance.

NOTE:
If the glass lid does not operate or is not supplied
with power, move the glass lid using the hexagon
wrench. <Ref. to SR-8, FORCED DRIVE, Glass
Lid.>

LI-00313

(A)

LI-00314

(B)

Switch position

Terminal No.

Standard

Connector

No.

Open

1 and 3

Less than 1

:

R128

Close

3 and 4

Less than 1

:

Tilt up

1 and 3

Less than 1

:

R187

Tilt down

3 and 4

Less than 1

:

Switch position

Terminal No.

Standard

Open

1 and 3

Less than 1

:

Close

3 and 4

Less than 1

:

R128

3

4

5

1

2

SR-00098

R187

3

4

5

1

2

SR-00041

R128

3

4

5

1

2

SR-15

Sunshade

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

7. Sunshade

A: REMOVAL

1. SEDAN MODEL

1) Remove the glass lid. <Ref. to SR-6, SEDAN
MODEL, REMOVAL, Glass Lid.>
2) Loosen the TORX

®

 bolt to remove the front sun-

shade bracket.

3) Pull the sunshade until the rear sunshade brack-
et comes into the sight, then loosen the TORX

®

bolts to remove the sunshade.

2. WAGON MODEL

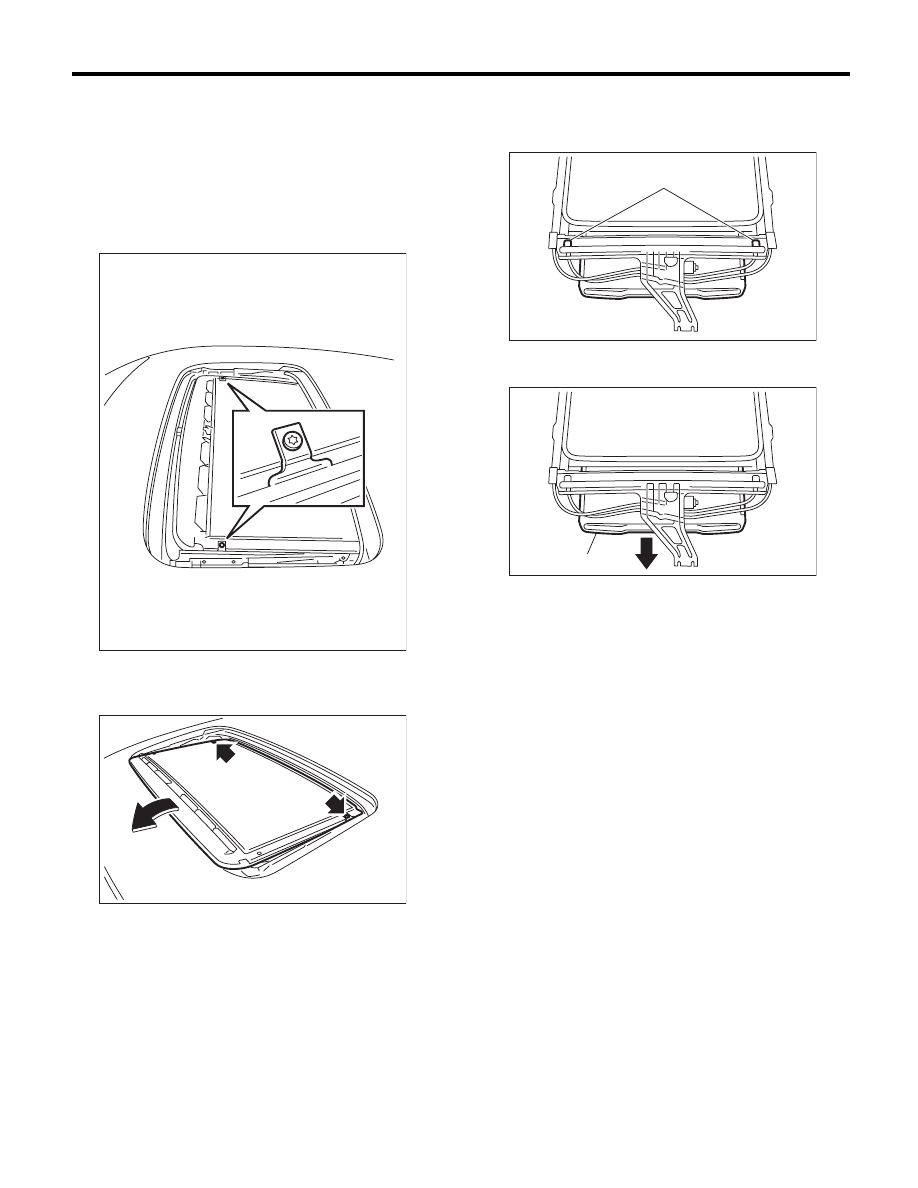

1) Remove the frame assembly.
2) Remove the shade stopper (A) of the sunshade.

3) Pull out the sunshade (A) from the sunroof
frame.

SR-00122

SR-00123

SR-00093

(A)

SR-00086

(A)

SR-16

Sunshade

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. CHECK FOR MOVING LOAD OF
SUNSHADE

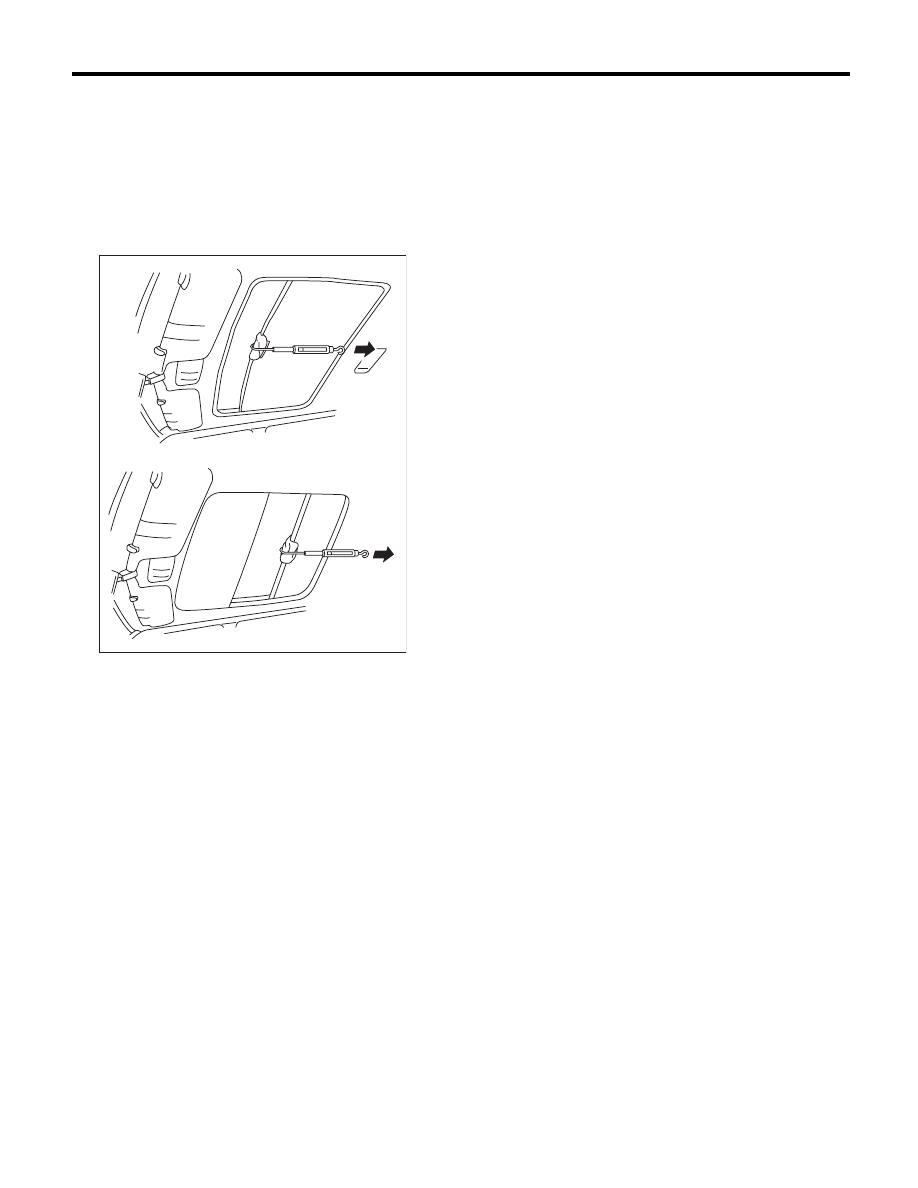

1) Attach a spring scale to sunshade edge using a
cloth.

2) Pull the spring scale to measure moving load of
the sunshade.

Moving load of sunshade:

Standard

18.0

r

5.0 N (1.8

r

0.5 kgf, 13

r

3.7 lbf)

NOTE:
Moving load is larger at the beginning of pulling a
spring scale, so take a spring scale reading while
sunshade sliding smoothly.
3) If moving load exceeds specifications, check the
glass lid, sunshade and frame assembly for im-
proper installation.

SR-00087

EI-2

General Description

EXTERIOR/INTERIOR TRIM

1. General Description

A: COMPONENT

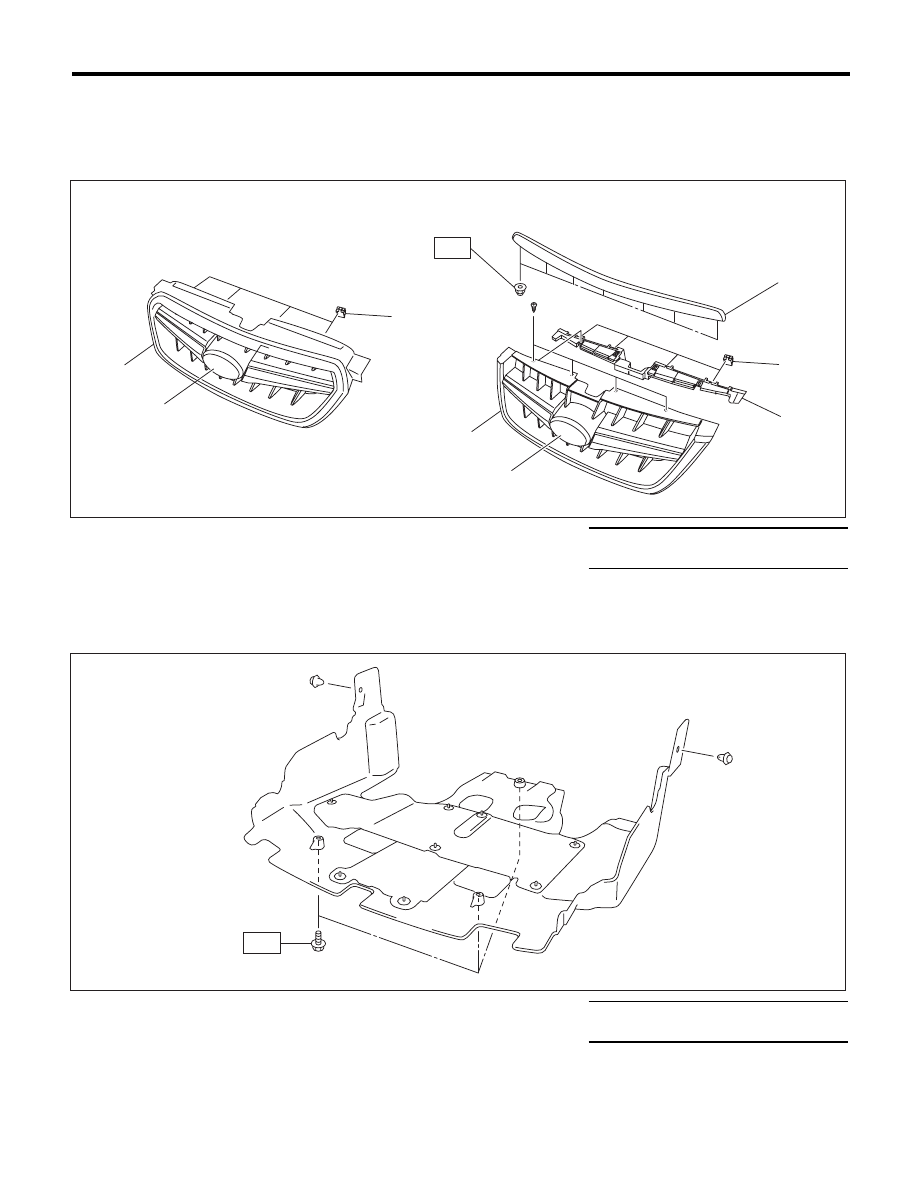

1. FRONT GRILLE

2. UNDER COVER

(1)

Front grille ASSY

(5)

Front grille ASSY (OUTBACK
model)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Front grille emblem

T: 4.5 (0.46, 3.32)

(3)

Front grille bracket

(6)

Front upper grille (OUTBACK
model)

(4)

Front grille clip









Tightening torque:N·m (kgf-m, ft-lb)









T: 17.5 (1.78, 12.9)

EI-01716

(2)

(5)

(4)

(3)

T

(4)

(2)

(1)

(6)

EI-00681

T
