SR-2

General Description

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

1. General Description

A: COMPONENT

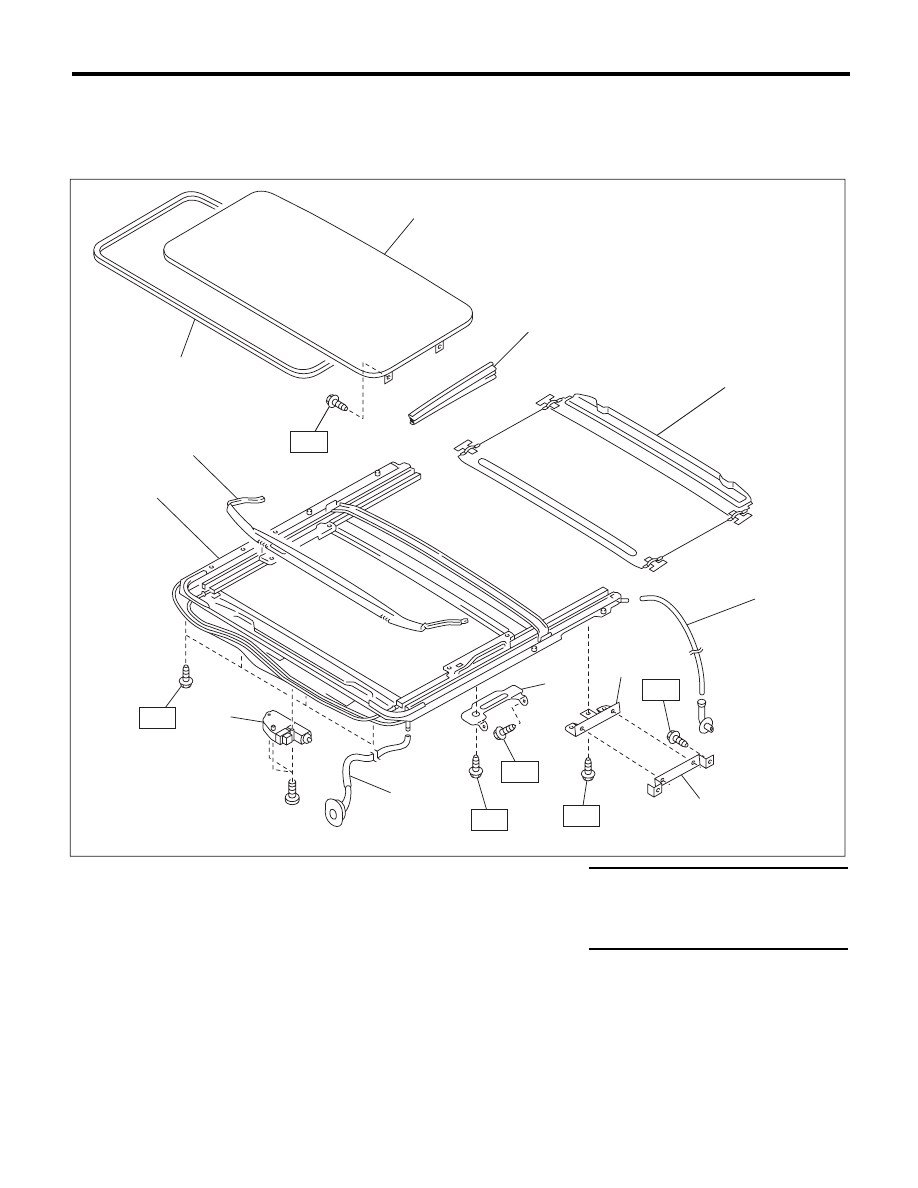

1. SEDAN MODEL

(1)

Glass lid

(7)

Assist rail bracket (Front)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Weather strip

(8)

Sunroof bracket (Rear)

T1: 4.5 (0.46, 3.3)

(3)

Cover

(9)

Motor ASSY

T2: 6.0 (0.61, 4.4)

(4)

Sunshade

(10)

Frame ASSY

T3: 7.5 (0.76, 5.3)

(5)

Drain tube

(11)

Deflector





(6)

Assist rail bracket (Rear)









SR-00116

(1)

(2)

(3)

(4)

(5)

(7)

(8)

(5)

(6)

(9)

(10)

T1

(11)

T2

T3

T3

T2

T2

SR-3

General Description

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

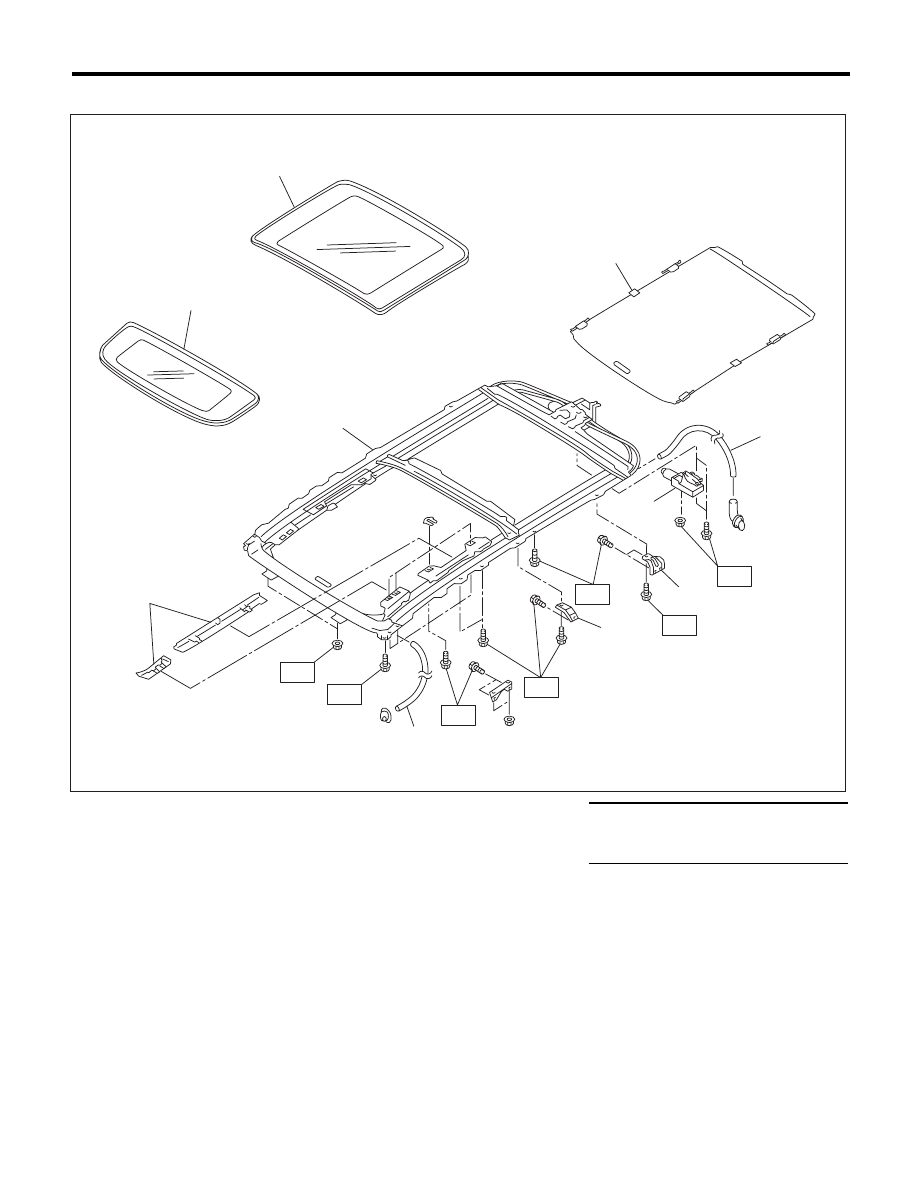

2. WAGON MODEL

(1)

Glass lid (Front)

(5)

Drain tube

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Glass lid (Rear)

(6)

Cover (Front and rear)

T1: 7.5 (0.76, 5.3)

(3)

Sunshade

(7)

Frame bracket

T2: 4.5 (0.46, 3.0)

(4)

Frame ASSY

(8)

Motor ASSY





SR-00102

T1

T1

(3)

(5)

(8)

(7)

(5)

(1)

(6)

(4)

(7)

T2

T1

T1

T1

T1

(2)

SR-4

General Description

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

B: CAUTION

• Before disassembling or reassembling parts, always disconnect the battery ground cable from battery.
When replacing the audio, control unit, and other parts provided with memory functions, record the memory
contents before disconnecting the battery ground cable in order to prevent memory deletion.
• Reassemble the parts in the reverse order of disassembly unless otherwise indicated.
• Adjust parts to the given specifications.
• Connect the connectors securely for reassembly.
• After reassembly, make sure functional parts operate smoothly.

C: PREPARATION TOOL

1. GENERAL TOOL

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

TORX

®

 T20

Used for removing and installing the sunroof motor, glass lid
and sunshade. (Sedan model)

SR-5

Sunroof Control System

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

2. Sunroof Control System

A: WIRING DIAGRAM

1. SUNROOF

<Ref. to WI-184, WIRING DIAGRAM, Sunroof Control System.>

B: INSPECTION

• Failure turn of glass lid while driving rough road.
Glass lid has auto-reverse function. When applied above specified force to the glass lid, the lid turns back
and stops. When operating the glass lid (open or close) while driving the rough road, the lid judges vibration
as a force and may causes failure turns. When the failure turn is occurred, need to perform the initialize op-
eration with following procedure.

1. INITIALIZE OPERATION (SEDAN MODEL)

1) Tilt up the glass lid.
2) Release the switch once, and press the tilt up switch again for 15 seconds.
3) When the glass lid is raised a little and returned to tilt up position, release the switch for the moment. (Ini-
tialization of position detecting function)
4) Keep pressing the tilt up switch within 5 seconds from releasing the switch. The glass lid will tilt down

o

slides open

o slides close automatically. (When 5 seconds pass, the position detecting function is can-

celled.)
5) Initialize operation is completed.

2. INITIALIZE OPERATION (WAGON MODEL)

1) Apply force to the glass lid in the opening direction while the glass lid (rear) is closing, and make it reverse
five times in a row.
However, in the following situation, the initialize operation is canceled.
• When the lid is fully closed once during one of the auto-reverse operations five times in a row.
• When the interval between the auto-reverse operations was 30 seconds or more even once.
2) When the operation of glass lid shifts to inching operation

*

, fully close the lid by switch operation.

3) Initialize operation is completed.
* Inching operation: A condition where the glass lid only operates for only at the moment when the switch is
pressed, even when the switch is held down.

Symptom

Inspection order

Water leakage

1. Check roof panel and glass lid for improper or poor sealing.
2. Check drain tube for clogging.
3. Check sunroof frame seal and body for improper fit.

Booming noise, wind noise and other noise

1. Check glass lid and roof panel for improper clearance.
2. Check sunshade and roof trim for improper clearance.

Abnormal motor noise

1. Check installing part of motor for looseness.
2. Check gears and bearings for wear.
3. Check cable for wear.
4. Check cable pipe for deformities.

Failure of sunroof
(Motor operates properly.)

1. Check guide rail for foreign particles.
2. Check guide rail for improper installation.
3. Check parts for mutual interference.
4. Check cable slider for improper clinching.
5. Check cable for improper installation.

Motor does not rotate or rotate improperly.

1. Check fuse for blown out.
2. Check switch for improper function.
3. Check motor for incorrect terminal voltage.
4. Check the relay for improper operation.
5. Check poor grounding system.
6. Check harness for open or short and terminals for poor connections.

Failure turn of glass lid

Check guide rail for foreign particles.
