SE-4

General Description

SEATS

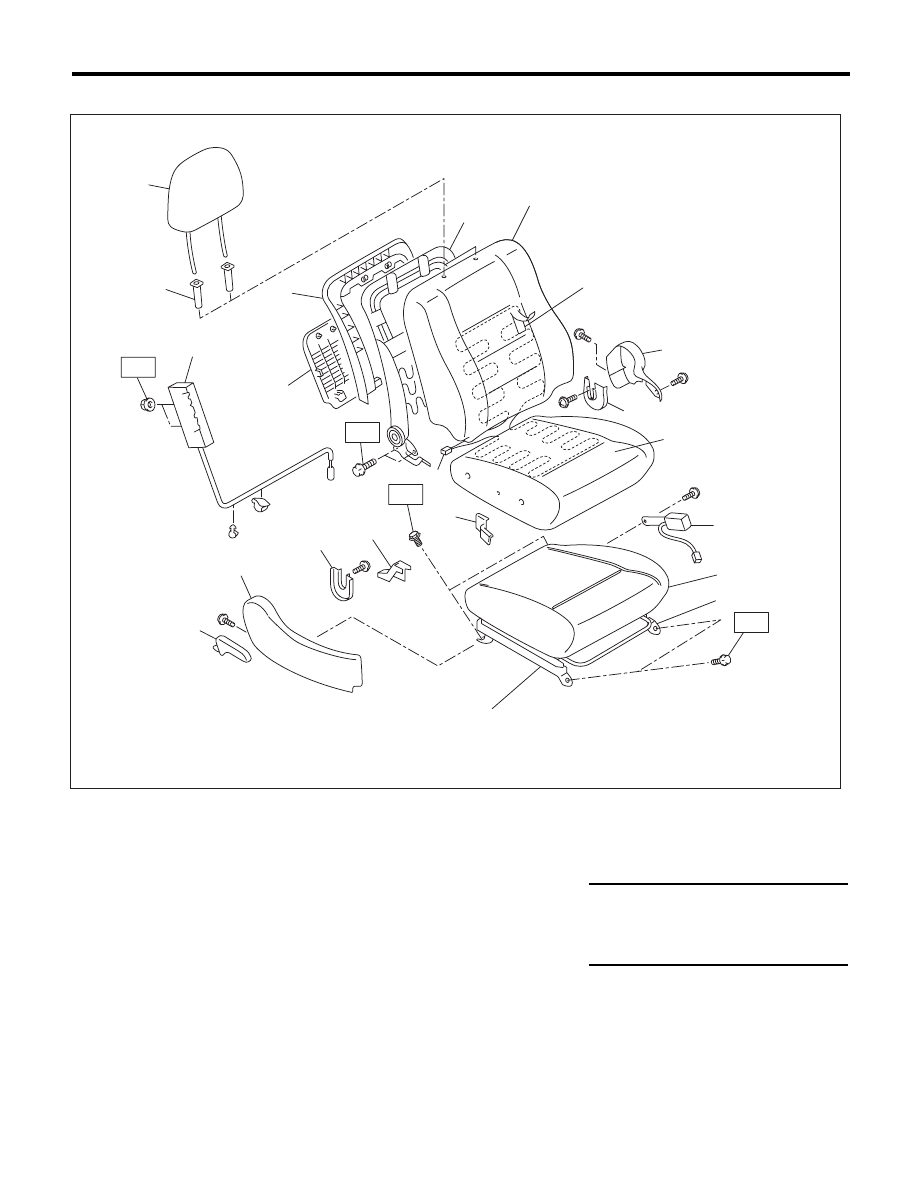

3. FRONT SEAT RH (MANUAL SEAT)

(1)

Backrest cover

(10)

Hinge inner cover LH

(19)

Inner seat belt ASSY

(2)

Backrest pad

(11)

Rear bolt cover inside

(20)

Outer slide rail

(3)

Backrest frame ASSY

(12)

Seat cushion cover

(21)

Inner slide rail

(4)

Headrest ASSY

(13)

Seat cushion pad and frame ASSY



(5)

Headrest lock bushing

(14)

Seat heater unit

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Side airbag module

(15)

Rear bolt cover outside

T1: 6 (0.61, 4.43)

(7)

Cover frame

(16)

Hinge inner cover RH

T2: 52 (5.30, 38.4)

(8)

Backrest back cover

(17)

Seat side cover outside

T3: 53 (5.40, 39.1)

(9)

Seat cover inside

(18)

Reclining lever





SE-00735

(1)

(2)

(3)

(8)

(4)

(5)

(6)

(9)

(10)

(12)

(19)

(14)

T3

T2

T1

(13)

T3

(7)

(11)

(15)

(18)

(17)

(16)

(20)

(21)

SE-5

General Description

SEATS

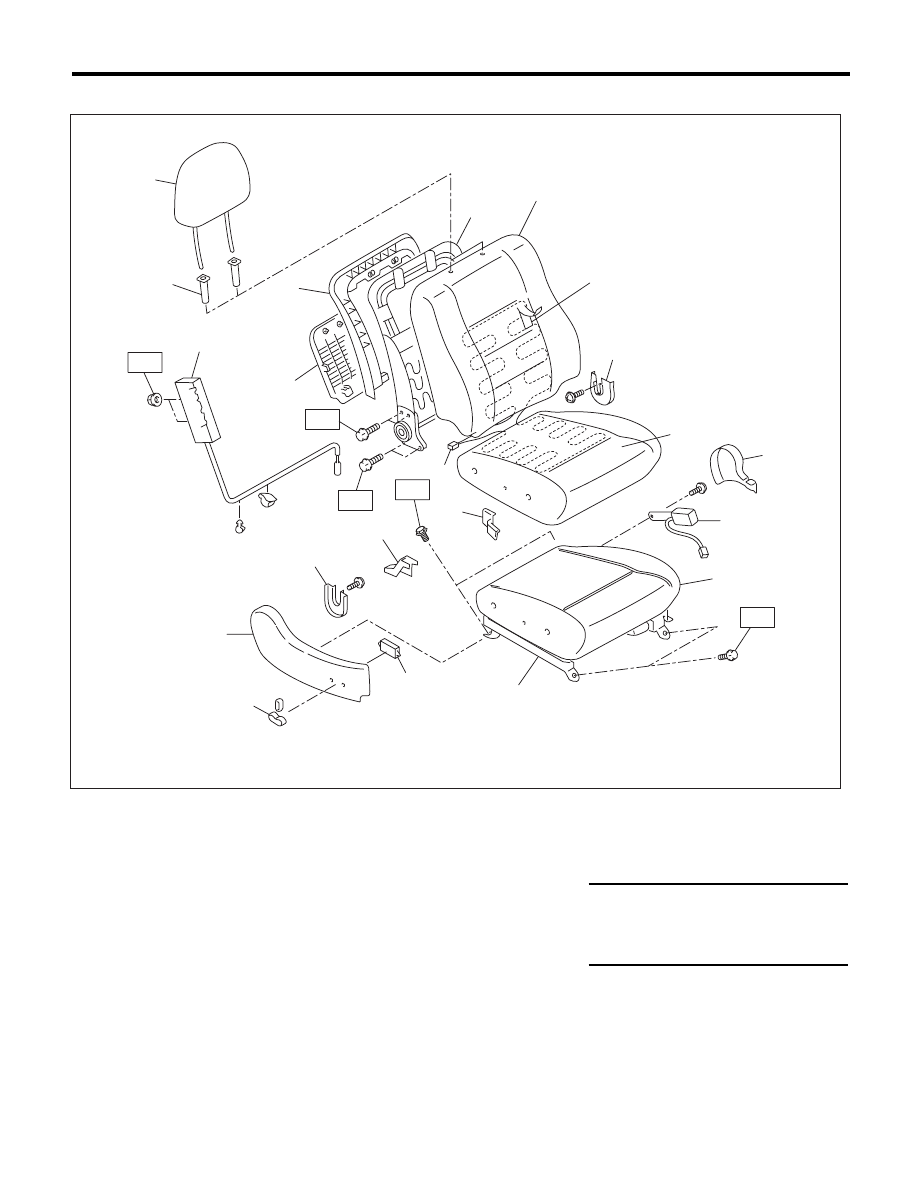

4. FRONT SEAT RH (POWER SEAT)

(1)

Backrest cover

(10)

Hinge inner cover LH

(19)

Power seat switch unit

(2)

Backrest pad

(11)

Rear bolt cover inside

(20)

Inner seat belt ASSY

(3)

Backrest frame ASSY

(12)

Seat cushion cover

(21)

Seat heater unit

(4)

Headrest ASSY

(13)

Seat cushion pad and frame ASSY



(5)

Headrest lock bushing

(14)

Slide rail ASSY

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Side airbag module

(15)

Rear bolt cover outside

T1: 6 (0.61, 4.43)

(7)

Cover frame

(16)

Hinge inner cover RH

T2: 52 (5.30, 38.4)

(8)

Backrest back cover

(17)

Seat side cover outside

T3: 53 (5.40, 39.1)

(9)

Seat side cover inside

(18)

Power seat switch knob





SE-00736

T2

T2

(1)

(2)

(3)

(8)

(4)

(5)

(6)

(9)

(10)

(12)

(20)

T3

T1

T3

(7)

(11)

(15)

(13)

(14)

(16)

(21)

(19)

(18)

(17)

SE-6

General Description

SEATS

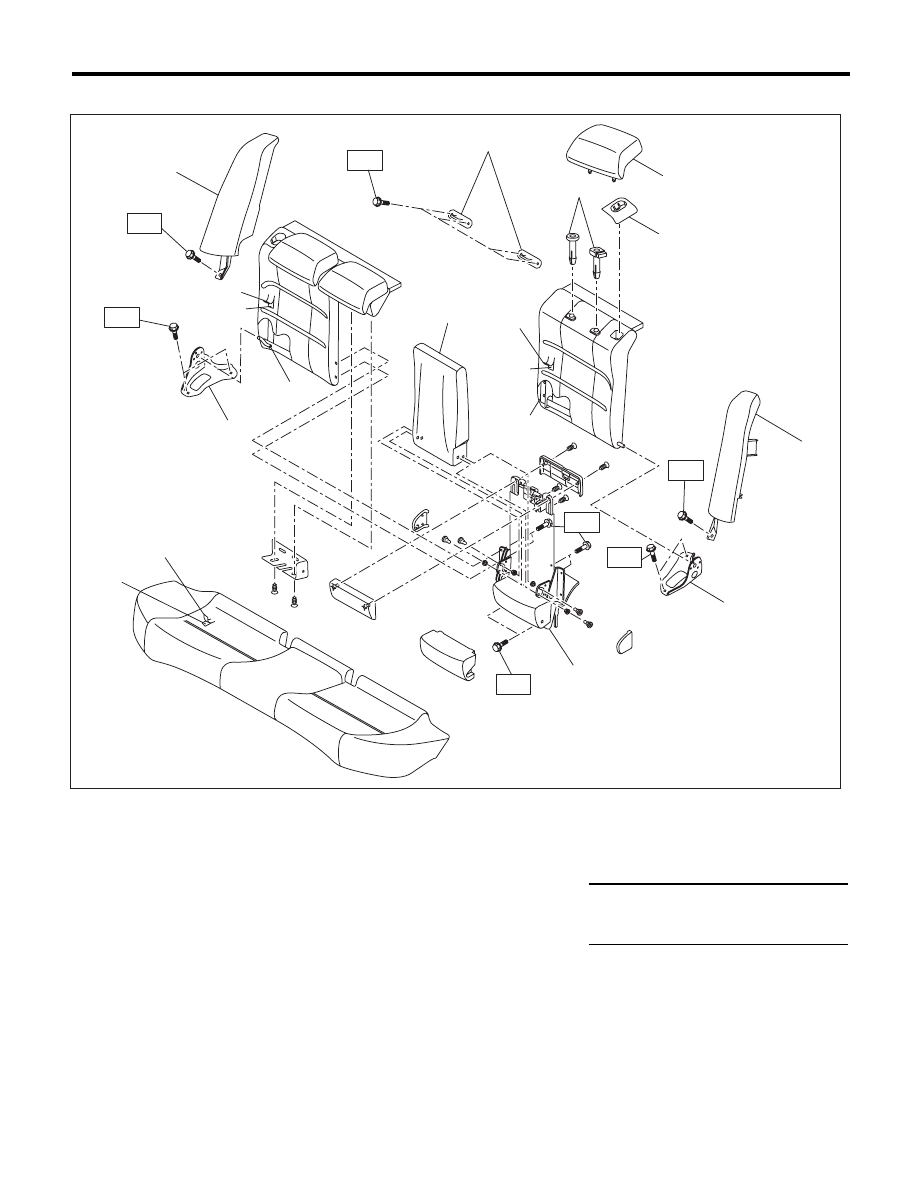

5. REAR SEAT (SEDAN MODEL)

(1)

Backrest shoulder RH

(9)

Holder & button cover

(16)

Trunk through backboard ASSY

(2)

Backrest cover RH

(10)

Backrest cover LH

(17)

Seat cushion cover

(3)

Backrest pad RH

(11)

Backrest pad LH

(18)

Seat cushion pad

(4)

Backrest frame RH ASSY

(12)

Backrest frame LH ASSY





(5)

Hinge ASSY RH

(13)

Armrest

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Backrest striker

(14)

Backrest shoulder LH

T1: 13.7 (1.4, 10.1)

(7)

Headrest

(15)

Hinge ASSY LH

T2: 25 (2.5, 18.4)

(8)

Headrest bushing





SE-00900

(14)

(7)

T2

(5)

(4)

(10)

(11)

(2)

(3)

(9)

(8)

(1)

(13)

(12)

(6)

(15)

(16)

(18)

(17)

T2

T1

T2

T1

T2

T2

SE-7

General Description

SEATS

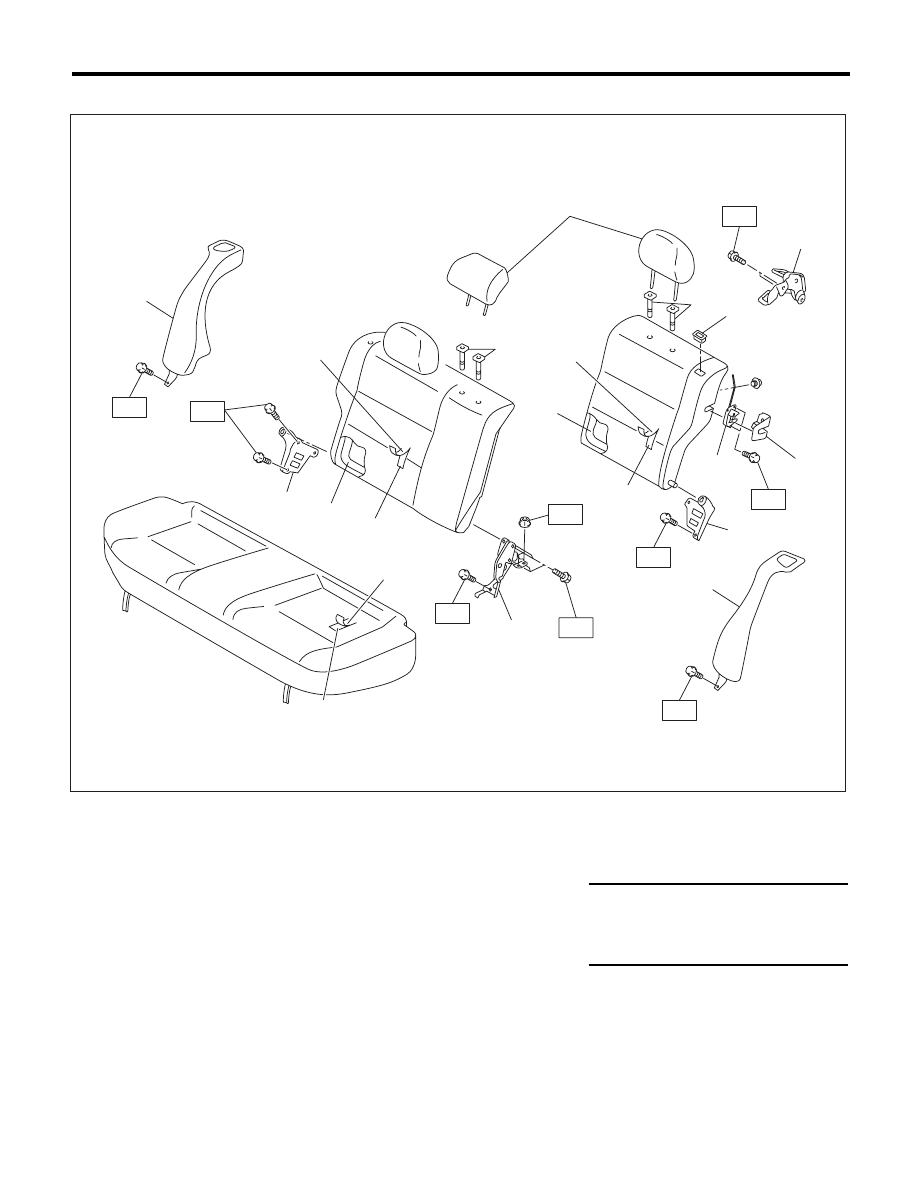

6. REAR SEAT (WAGON MODEL)

(1)

Headrest

(9)

Hinge ASSY center

(17)

Striker

(2)

Headrest bushing

(10)

Hinge ASSY LH

(18)

Backrest shoulder RH

(3)

Backrest cover RH

(11)

Backrest pad LH

(19)

Backrest shoulder LH

(4)

Backrest pad RH

(12)

Backrest cover LH





(5)

Backrest frame RH

(13)

Backrest frame LH

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Hinge ASSY RH

(14)

Seat backrest latch

T1: 13.7 (1.40, 10.1)

(7)

Seat cushion pad

(15)

Seat backrest latch cover

T2: 17 (1.73, 12.3)

(8)

Seat cushion cover

(16)

Holder & button

T3: 25 (2.5, 18.4)

SE-00513

(2)

(16)

(14)

(17)

(15)

(11)

(10)

(12)

(13)

(8)

(7)

(2)

(3)

(6)

(4)

(9)

(5)

(18)

(1)

T3

T3

T3

T3

T3

T2

T1

(19)

T1

T3
