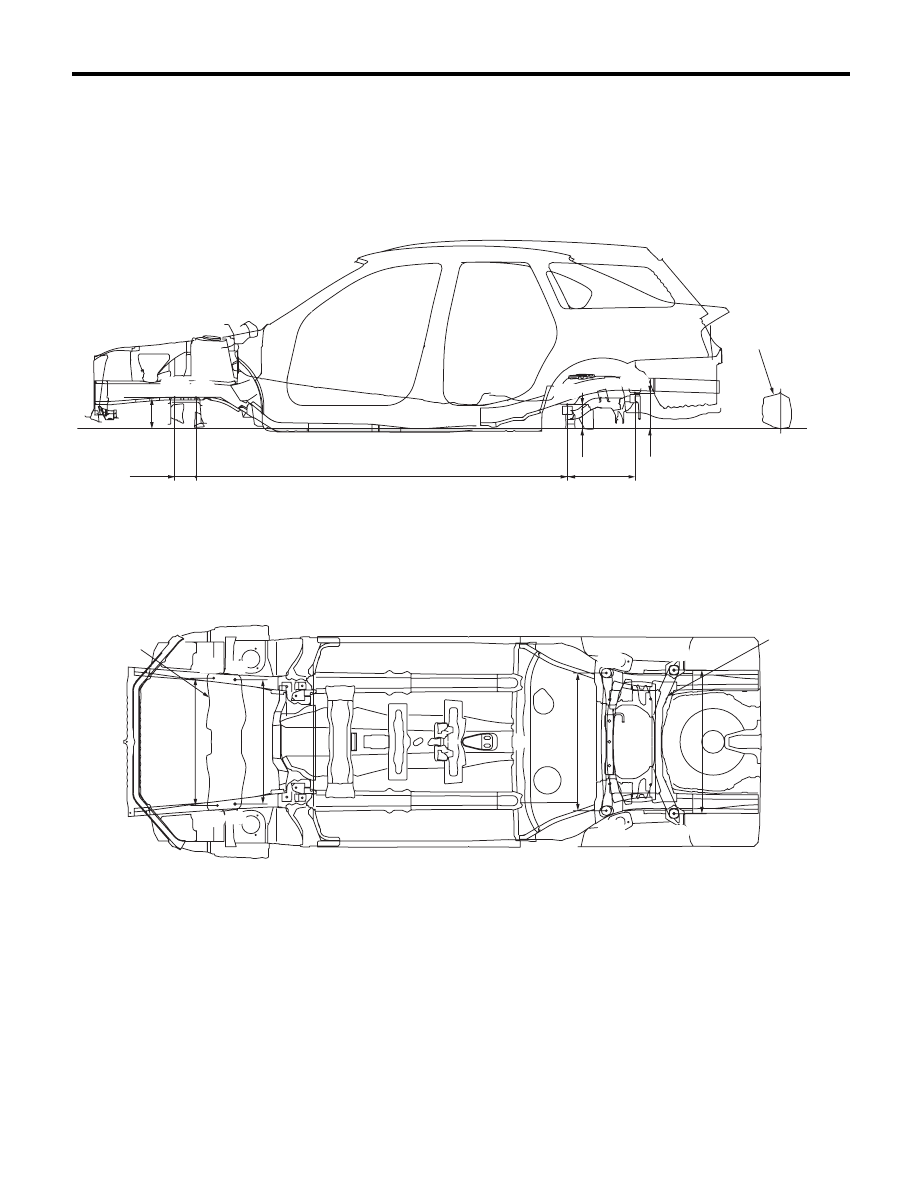

Datum Dimensions

BODY STRUCTURE

• For the reference point positions, refer to “Datum Dimensions”. <Ref. to BS-4, CENTER STRUCTURE,
MEASUREMENT, Datum Dimensions.>

(A)

Standard line

(B)

Side sill

(C)

Crossmember













(81)

Front crossmember mounting hole
(symmetrical), rear

(102) Rear suspension mounting hole

(symmetrical)

(105) Front crossmember mounting hole

(symmetrical), front

(100) Rear suspension mounting hole

(symmetrical)







BS-01418

(B)

(A)

(105) (81)

(100)

(102)

(C)

(C)

(105)

(105)(81)

(81)

(100)

(102)

(100)

(102)

BS-25

Plastic Parts and Materials

BODY STRUCTURE

3. Plastic Parts and Materials

A: SPECIFICATION

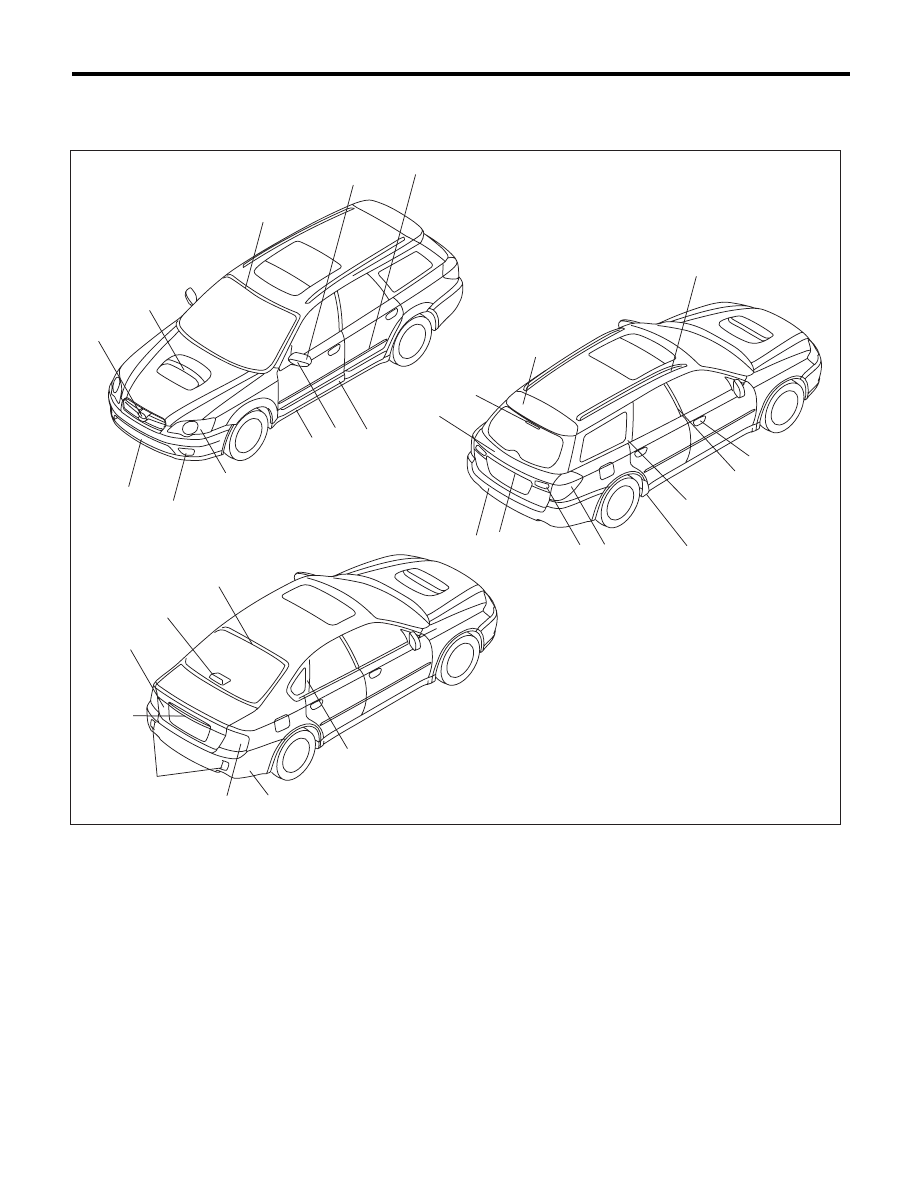

(1)

Headlight

(12)

Side turn light

(23)

Roof rail

(2)

Front fog light

(13)

Side spoiler

(24)

Rear quarter protector

(3)

Front bumper

(14)

Rear spoiler

(25)

Trunk garnish

(4)

Radiator guide

(15)

Rear garnish

(26)

License plate light

(5)

Front grille

(16)

License plate light

(27)

Rear bumper

(6)

Turbo grille

(17)

Rear bumper

(28)

Rear combination light

(7)

Hood duct inner

(18)

Rear gate handle

(29)

Rear window molding

(8)

Front window molding

(19)

Back-up light

(30)

Six light molding

(9)

Door mirror

(20)

Rear combination light

(31)

High-mounted stop light

(10)

Side protector

(21)

Center pillar cover

(32)

Reflex reflector

(11)

Side garnish

(22)

Door handle

(33)

Rear quarter molding

(1)

(2)

(3) (4)

(5)

(6) (7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)(16)

(17) (18)

(20)

(19)

(25)

(21)

(22)

(24)

(23)

(29)

(30)

(26)

(27)

(28)

(33)

(32)

(31)

(31)

BS-03621

BS-26

Plastic Parts and Materials

BODY STRUCTURE

• Wagon model/Common for wagon and sedan model

No.

Part name

Material

(1)

Headlight

Lens

PC

Housing

PP

Extension

PBT + PET

(2)

Front fog light (standard)

Housing

PP - GF40

Front fog light (OUTBACK)

Lens

PC

Reflector

UP - GF10

Bracket

PP - GF30

(3)

Front bumper

Face

PP

EA foam

Foamed PP

Fog light cover

PP

Hook cover

PP

Guide bracket

POM

Corner bracket

PP + GF30

(4)

Air intake cover

PP

(5)

Front grille

ABS

(6)

Turbo grille

PA + PPE

(7)

Hood duct inner

PP + EPDM

(8)

Front window molding

PVC

(9)

Door mirror

Body

ASA

Inner cover

AES

Outer cover

ABS

Mirror holder

PP

(10)

Side protector

PP

(11)

Side garnish

Door body

PC + PET

Other than door body

PP

Side sill end cover

PP + EPDM

(12)

Side turn light

Lens

PMMA + PC

Housing

PC

(13)

Side spoiler

Engine

PP

(14)

Rear spoiler

Engine

PC + PET

High mount lens

PMMA

High mount housing

ABS

(15)

Rear garnish

Engine

PC + PET

Molding

ABS

(16)

License plate light

Lens

PC

Housing

PBT + PET

(17)

Rear bumper

Face

PP

EA foam

Foamed PP

(18)

Rear gate handle

PP - GF 20

(19)

Back-up light

Lens

PMMA

Housing

ASA

(20)

Rear combination light

Lens

PMMA

Inner lens

PC

Housing

ASA

Reflex reflector

PMMA

Cover

ASA

(21)

Center pillar cover

ABS

(22)

Door handle

Handle

PC + PET - GF10

End cover

PP

BS-27

Plastic Parts and Materials

BODY STRUCTURE

• Sedan model

(23)

Roof rail

Front cover

PC + PET

Center cover (OUTBACK)

PC + PET

Rear cover

PC + PET

(24)

Rear quarter protector

PP

(33)

Rear quarter molding

PVC

Front mud guard

Engine

PE

Air flap

PE

 Rear

mud

guard

PE

 Under

cover

PP

 Splash

board

PP

Cowl panel

Body, side

PP

Cover

PP

Rear wiper

Blade

PBT

Arm

PET

Arm cover

PBT

No.

Part name

Material

(25)

Trunk garnish

PC + PET

(26)

License plate light

Lens

PC

Housing

ASA

(27)

Rear bumper

Face

PP

EA foam

Foamed PP

Corner bracket

POM

(28)

Rear combination light

Lens

PMMA

Inner lens

PMMA

Housing

ASA

Reflex reflector

PMMA

Cover

ASA

(29)

Rear window molding

PVC

(30)

Six light molding

ABS

(31)

High-mounted stop light

Lens

PC

Case

PP

Reflector

PBT + PET

(32)

Reflex reflector

Lens

PMMA

Housing

PC

No.

Part name

Material
