GW-23

Rear Door Glass

GLASS/WINDOWS/MIRRORS

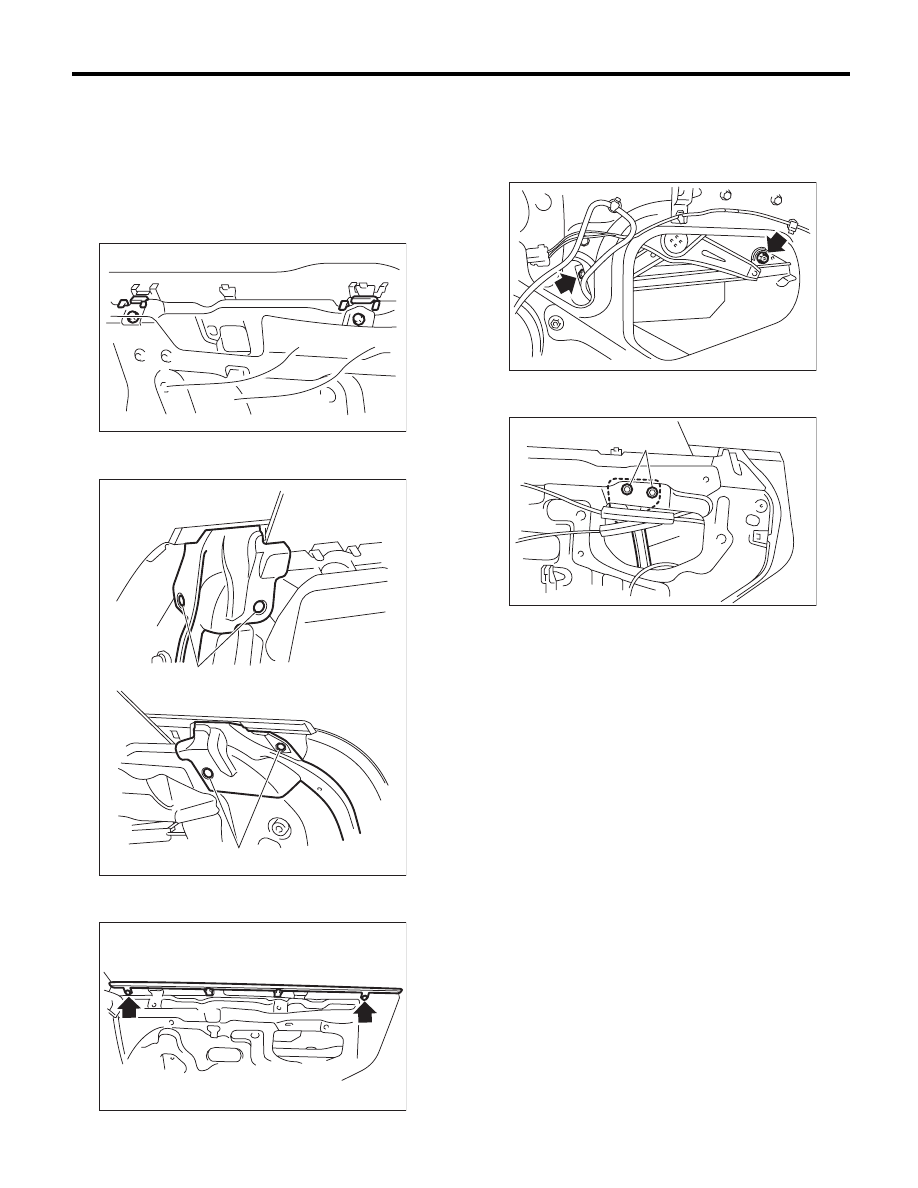

11.Rear Door Glass

A: REMOVAL

1) Remove the rear door trim.
<Ref. to EI-49, REMOVAL, Door Trim.>
2) Remove the sealing cover. <Ref. to EB-23, RE-
MOVAL, Rear Sealing Cover.>
3) Remove the stabilizers.

4) Remove clips (A), and remove the front end and
rear end of the weather strip.

5) Remove the two screws to remove the weather
strip outer.

6) Connect the ground cable to battery and power
window switch connector.
7) Operate the power window switch to move the
glass to the position shown in the figure, then re-
move the two nuts through the service holes.

8) Remove the rear sash retaining nuts (A) and
move the rear sash (B) rearward.

9) Remove the door glass.

CAUTION:
• Since the gear may be disengaged, do not
turn regulator in the closing direction after re-
moving glass.
• Avoid impact and damage to the glass.

B: INSTALLATION

1) Install in the reverse order of removal.

CAUTION:
Make sure that the glass stay is placed securely
in sash.
2) Adjust the rear door glass. <Ref. to GW-24, AD-
JUSTMENT, Rear Door Glass.>

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to GW-5, REAR DOOR GLASS,
COMPONENT, General Description.>

GW-00284

GW-00285

(A)

(A)

GW-00286

GW-00287

(B)

(A)

GW-00288

GW-24

Rear Door Glass

GLASS/WINDOWS/MIRRORS

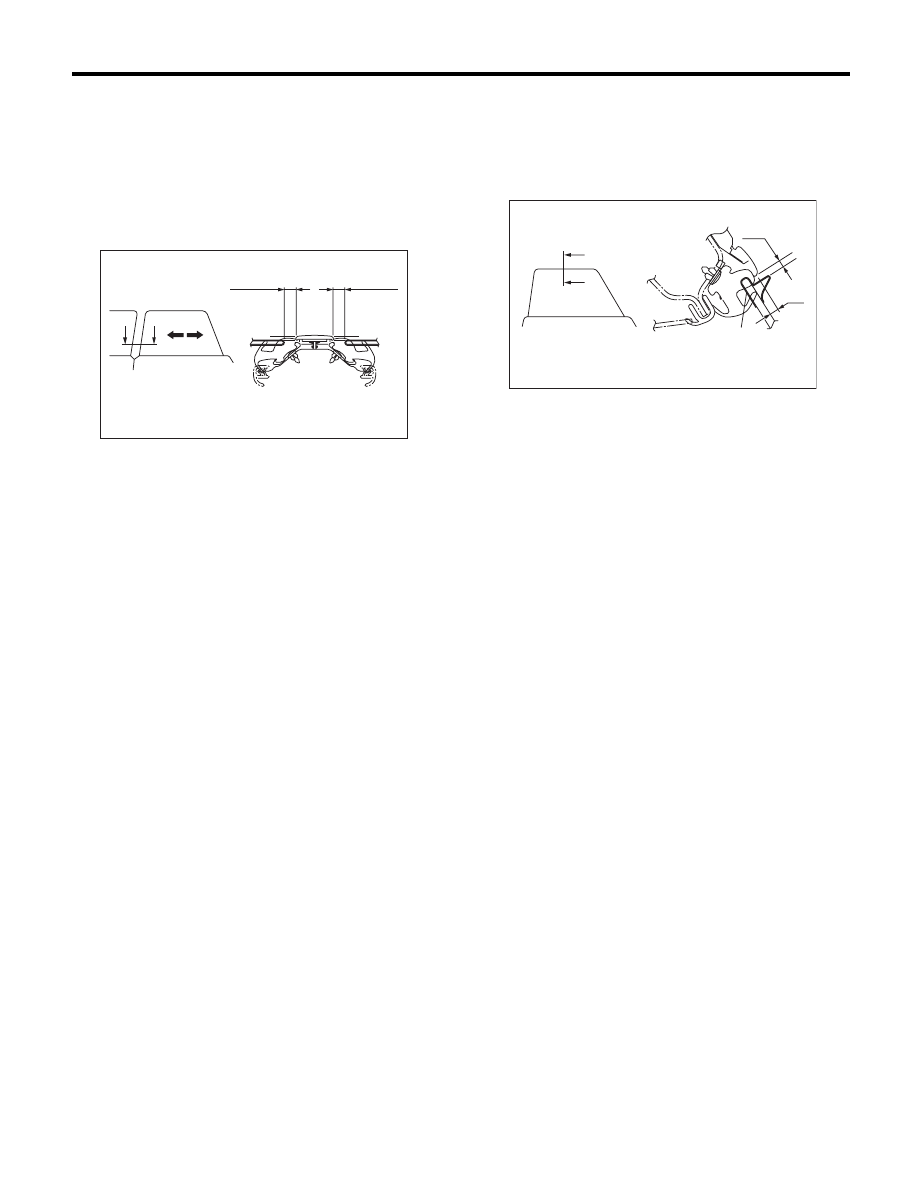

C: ADJUSTMENT

NOTE:
The rear door glass, as a rule, should be adjusted
in the same manner as the front door glass, al-
though they are different in dimension. <Ref. to
GW-12, ADJUSTMENT, Front Door Glass.>
1) Adjust the glass position using the dimensions in
the figure as a guide.

NOTE:
• If dimensions are smaller than the given dimen-
sions, glass may get caught in weather strip during
lifting/lowering operation and may not be fully open.
• After adjustment, move the glass up and down to
check whether it is caught.

2) Attach the special tool to the glass, and adjust
the glass adhesion until the dimensional value be-
comes as shown below.
ST

61299AE010

SPACER
(Glass thickness: 4 mm
(0.157 in) for rear door glass)

NOTE:
• If rear glass adhesion is higher than necessary,
glass may get caught in weather strip of center pil-
lar corner, resulting in early wear of weather strip.
Be careful when adjusting.
• After adjustment, move the glass up and down to
check whether it is caught.

(1) 11 mm (0.433 in)

A

A

A-A

(1)

(1)

GW-00067

(1) 3.2 — 4.8 mm (0.126 — 0.189 in)

(2) When re-using weather strip: 5.5 mm (0.217 in)

When replacing the weather strip: 5.0 mm
(0.179 in)

(3) ST

A

A

GW-00431

A-A

(1)

(2)

(3)

GW-25

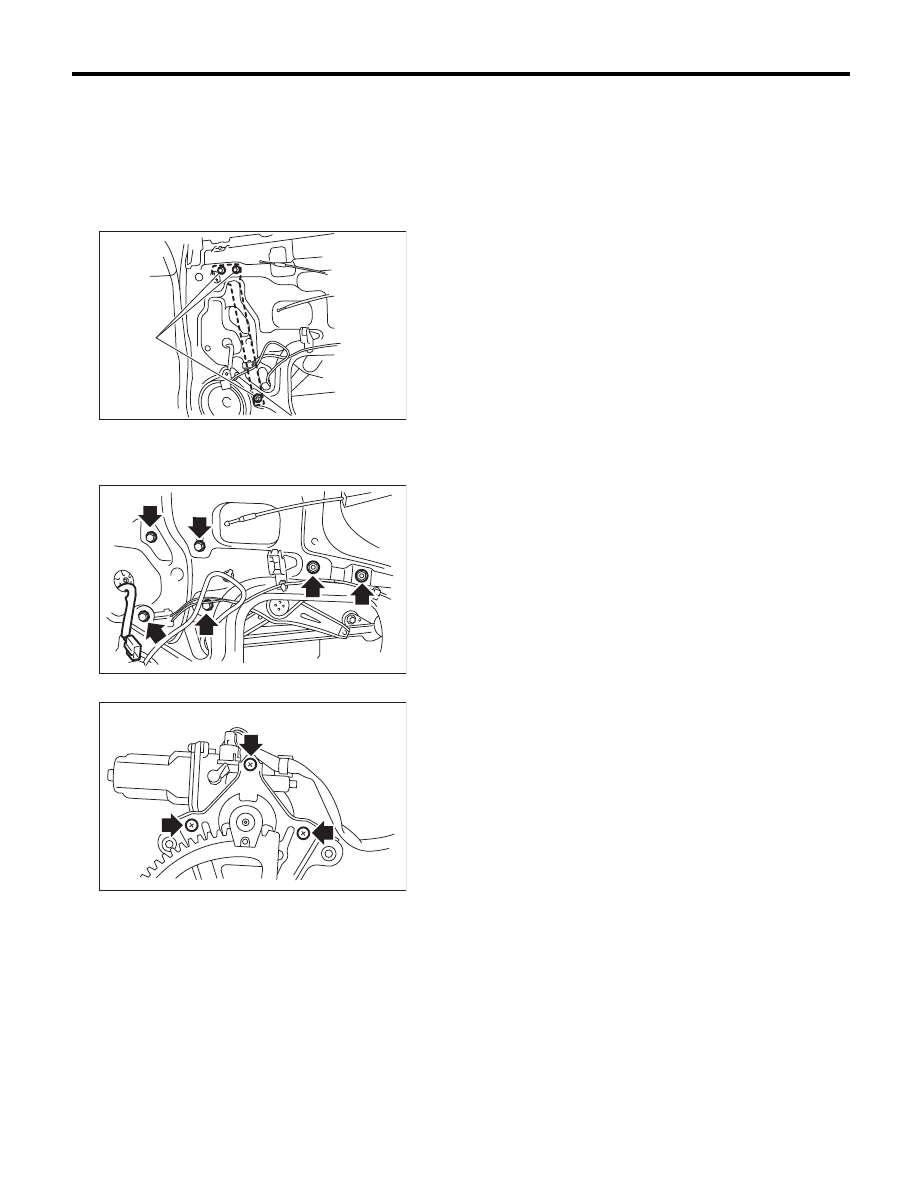

Rear Regulator and Motor Assembly

GLASS/WINDOWS/MIRRORS

12.Rear Regulator and Motor

Assembly

A: REMOVAL

1) Remove the rear door glass. <Ref. to GW-23,
REMOVAL, Rear Door Glass.>
2) Remove the nut (A) to remove the front sash.

3) Disconnect the motor connector.
4) Remove the four bolts and two nuts to remove
regulator assembly.

5) Remove the screws to remove motor assembly.

B: INSTALLATION

1) Install in the reverse order of removal.
2) Adjust the rear door glass. <Ref. to GW-24, AD-
JUSTMENT, Rear Door Glass.>

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to GW-5, REAR DOOR GLASS,
COMPONENT, General Description.>

C: INSPECTION

1) Make sure that the power window motor rotates
properly when the battery voltage is applied to the
terminals of motor connector.
2) Change polarity of battery connection to termi-
nals to ensure that the motor rotates in reverse di-
rection.

GW-00289

(A)

GW-00290

GW-00291

GW-26

Windshield Glass

GLASS/WINDOWS/MIRRORS

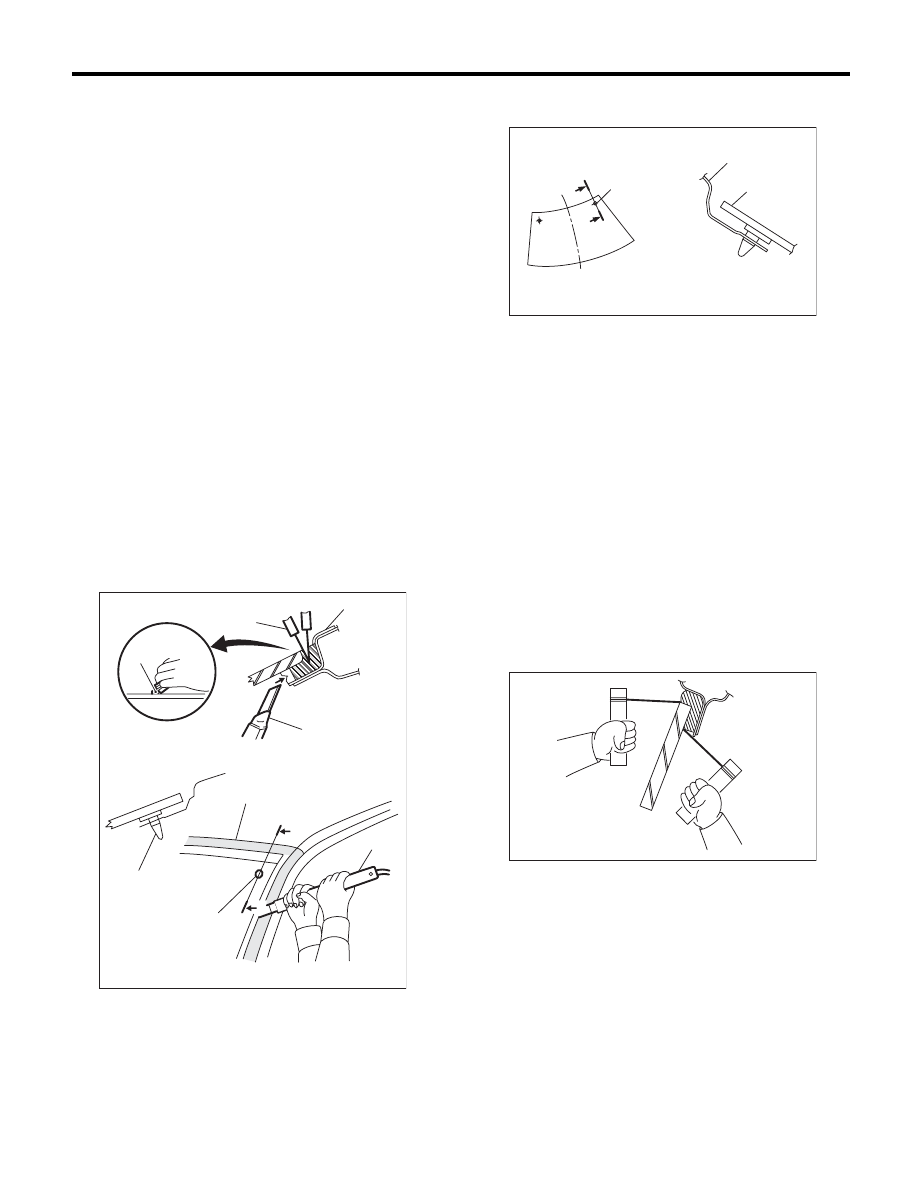

13.Windshield Glass

A: REMOVAL

1. USING WINDSHIELD GLASS KNIFE

1) Disconnect the ground cable from the battery.
2) Remove the passenger side front pillar trim, and
disconnect the wiper deicer connector. (Model with
wiper deicer)
3) Remove the cowl panel.
<Ref. to EI-40, REMOVAL, Cowl Panel.>
4) Remove the molding.
5) Tape the body side of the circumference of wind-
shield glass for protection.
6) Apply sufficient amount of soapy water to the ad-
hesive part.
7) Insert the windshield glass knife into the adhe-
sive.
8) While holding the knife edge and windshield
glass edge at a right angle, move the windshield
glass knife in parallel to the windshield glass edge
along the surface and edge of windshield glass to
cut the adhesive part.

NOTE:
• Do not twist the windshield glass knife.
• Cutting of adhesive part shall be started with wid-
er gap between windshield glass and body.

• The locating pins are bonded to the corners of
glass. Use piano wire to disconnect the pins.

2. USING PIANO WIRE

1) Disconnect the ground cable from the battery.
2) Remove the passenger side front pillar trim, and
disconnect the wiper deicer connector. (Models
with wiper deicer)
3) Remove the cowl panel.
<Ref. to EI-40, REMOVAL, Cowl Panel.>
4) Remove the molding.
5) Tape the body side of the circumference of wind-
shield glass for protection.
6) Make a hole in the adhesive part using drill or
knife.
7) Pass the piano wire through the hole, and attach
both the wire ends securely to pieces of wood.

8) Pull the wire ends alternately to cut off the adhe-
sive part.

CAUTION:
• Do not tightly pull the piano wire against the
windshield glass edge.
• Be careful not to damage interior and exterior
parts.
• When removal is made with area close to in-
strument panel, place a protection plate over it.
Pay particular attention to the removal.
• Do not cross piano wires. Otherwise they
may be cut.

(1) Tape for protection

(2) Locating pin

(3) Cutter knife

(4) Windshield glass knife

GW-00661

(3)

(3)

(3)

(2)

(2)

(1)

(4)

A

A-A

A

(1)

(1) Locating pin

(2) Body panel

(3) Windshield glass

(1)

(2)

(3)

A

A

GW-00070

A-A
