Subaru Legacy IV (2008 year). Manual - part 1065





ET-17

Navigation System

ENTERTAINMENT

12.Navigation System

A: WIRING DIAGRAM

<Ref. to WI-156, WIRING DIAGRAM, Navigation
System.>

B: INSPECTION

1. CHECK THE OPERATION OF THE
NAVIGATION

Start the engine, and then inspect that the opening
screen is displayed.
Standard value: The opening screen should be dis-
played.
OK: Normal
NG: When not displayed, check the signal line con-
nector and the audio connector. If there are no
problems in the connecting lines or the lines were
repaired, check that the opening screen is dis-
played.
At this point, if the display is not viewable, the unit is
defective.

2. CHECK THE DVD-ROM

An opening screen is displayed, then it switches to
the map screen after a while.
When a screen other than the opening screen is
displayed, press the «MAP» key.
Standard value: The map screen should be dis-
played.
OK: Normal
NG: If the map screen is not displayed, check
whether the DVD-ROM is set in the navigation sys-
tem, whether the correct side is set, type of the
DVD-ROM, the existence of any scratches, etc. If
there are no problems on the DVD-ROM, the main
body is defective.

3. CHECK EACH CONNECTION

If no problem is found in inspections 1 and 2 above,
perform inspection using <Ref. to WI-156, WIRING
DIAGRAM, Navigation System.> of the navigation
system.

4. SWITCHING TO CONNECTION
INSPECTION MODE

1) Press the menu key.
2) Select navigation setup from the menu screen.
3) Select the navigation information from the navi-
gation setup screen.
4) Select the vehicle signal from the navigation in-
formation screen.
5) The display will switch to the vehicle signal (for
connection inspection) screen.
6) Check that the display changes according to
each operation
ON: Normal
NG: Check the circuit when the display does not
change.

5. CHECK THE GPS ANTENNA

NOTE:
When checking the GPS antenna, perform the
check operation outdoors to improve the receiver
sensitivity.
Make sure that a value other than “zero” is dis-
played in the GPS item.
OK: Normal
NG: If “No positioning” is displayed, check the GPS
antenna connection.
If the GPS display is red, the main unit could be
faulty.

6. CHECK THE BACK SENSOR

NOTE:
Before starting inspections, inspect the safety
around the rear end of the vehicle.
1) Turn the ignition switch to ON.
2) Pull the parking brake and depress the brake,
then put the gear in reverse.
3) Make sure that “On” is lit in the back sensor item.
Standard Value: “On” should be lit.
OK: Normal
NG: If “On” does not light, check the signal line con-
nection. If there are no problems, the unit could be
faulty.

7. CHECK THE ILLUMINATION

1) Turn the lighting switch to level 1.

NOTE:
Make sure that the bright switch is not turned ON at
this time.
2) Make sure that “On” lights in the illumination
item, then the screen fades out.
Standard Value: “On” should be lit.
OK: Normal
NG: If “On” does not light, check the signal line con-
nection. If there are no problems, the unit could be
faulty.

ET-18

Navigation System

ENTERTAINMENT

8. CHECK THE PARKING SIGNAL

NOTE:
The side brake signal is normally “OFF”, so operat-
ing it will produce no change.

9. CHECK SPEED SENSOR

NOTE:
• Before starting inspections, inspect the safety
around the vehicle.
• Lift up the vehicle as necessary.
• When the diagnostic trouble code is input in the
VDCCM, perform the Clear Memory operation.
1) Move the vehicle 2 to 3 meters (6.6 to 9.8 ft).
2) Check that the numbers from the speed sensor
are displayed.
Standard value: Vehicle speed is to be shown in
numbers.
OK: Normal
NG: If vehicle speed is not displayed, check the sig-
nal line connection. If there are no problems, the
unit could be faulty.

ET-19

Navigation Display

ENTERTAINMENT

13.Navigation Display

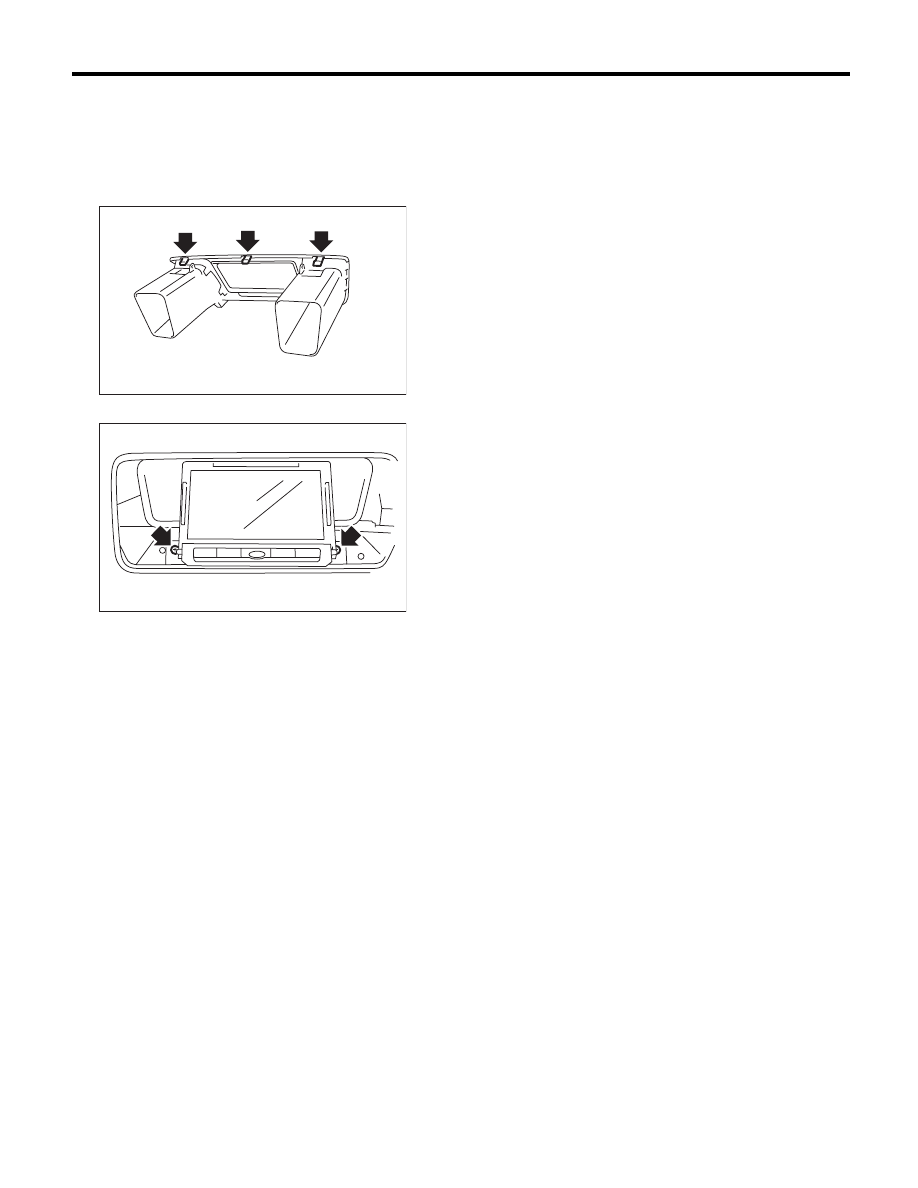

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the clip, and remove the center upper
panel.

3) Remove the display mounting screws.

4) Disconnect the harness connector and remove
the navigation display.

B: INSTALLATION

Install in the reverse order of removal.

ET-00097

ET-00098

ET-20

GPS Antenna

ENTERTAINMENT

14.GPS Antenna

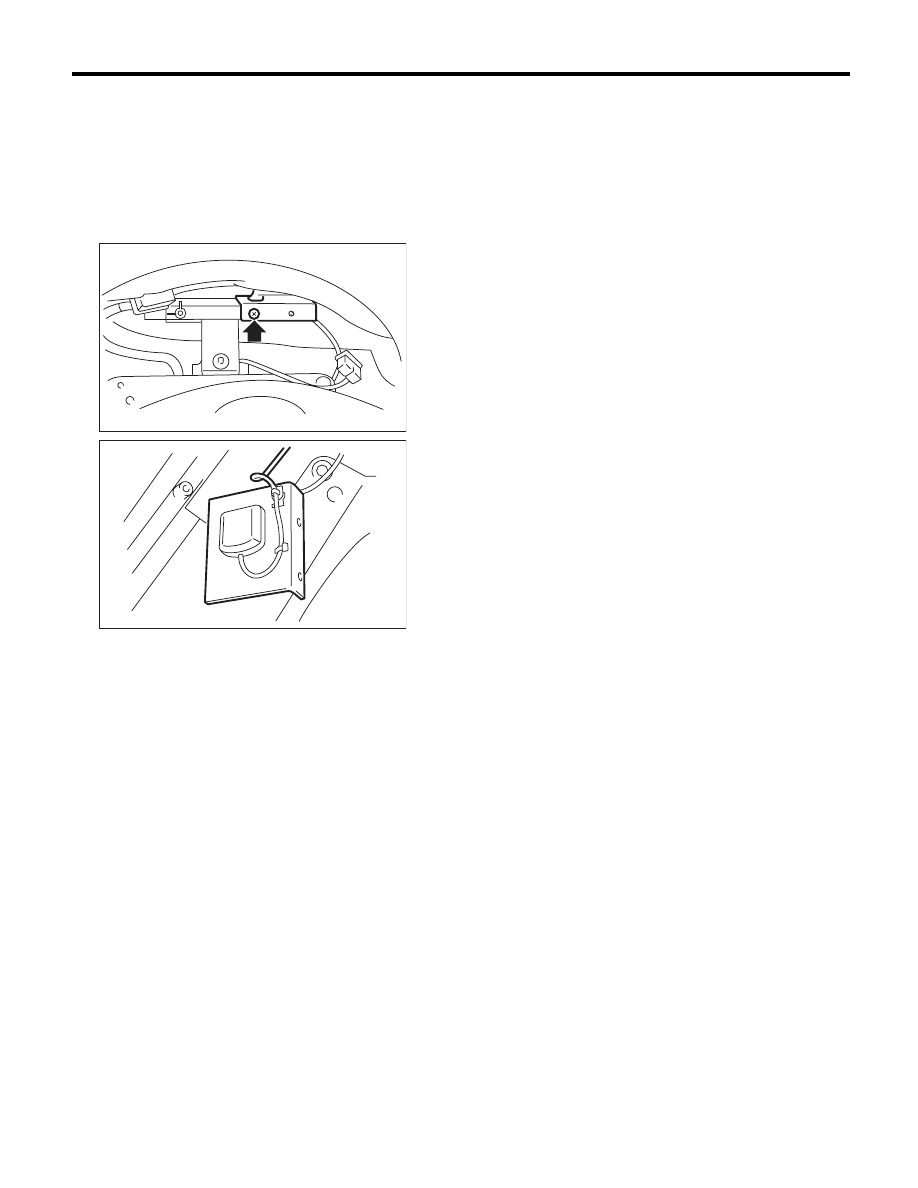

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the combination meter. <Ref. to IDI-22,
REMOVAL, Combination Meter.>
3) Remove the GPS antenna mounting screws to
remove the GPS antenna.

4) Remove the audio. <Ref. to ET-4, REMOVAL,
Audio.>
5) Remove the GPS antenna cord connector from
the steering support beam stay (on the driver’s
side).

B: INSTALLATION

Install in the reverse order of removal.

ET-00099

ET-00100
