SB-2

General Description

SEAT BELT SYSTEM

1. General Description

A: COMPONENT

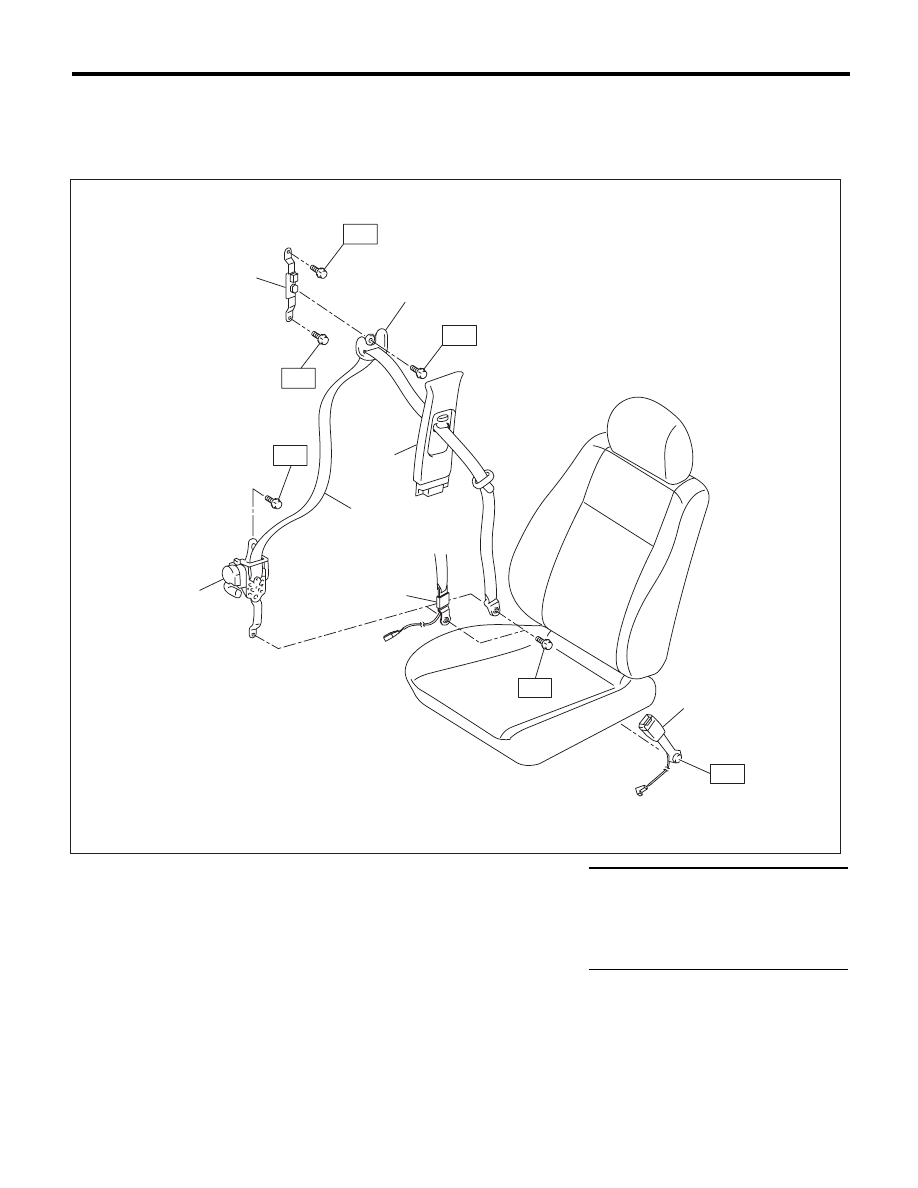

1. FRONT SEAT BELT

(1)

Adjustable anchor ASSY

(5)

Center pillar upper trim

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Shoulder anchor

(6)

Inner seat belt ASSY

T1: 7.5 (0.76, 5.5)

(3)

Outer seat belt ASSY

(7)

Belt tension sensor
(Passenger’s side only)

T2: 30 (3.1, 22)

(4)

Seat belt retractor

T3: 38 (3.9, 28)









T4: 53 (5.4, 39)

SB-00345

(6)

T3

T2

T2

T4

(3)

(7)

(4)

(5)

(2)

(1)

T1

T4

SB-3

General Description

SEAT BELT SYSTEM

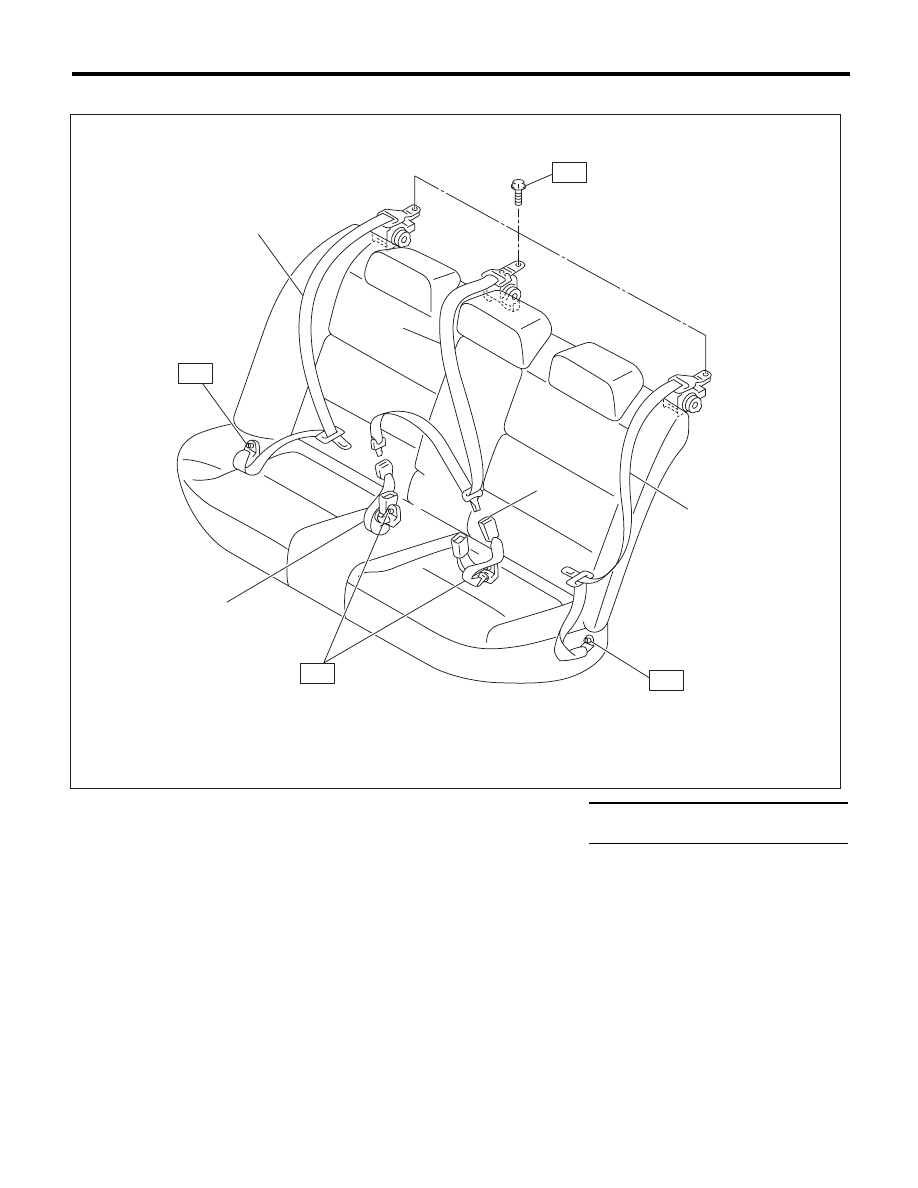

2. REAR SEAT BELT (SEDAN MODEL)

(1)

Outer seat belt RH ASSY

(4)

Center seat belt LH ASSY

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Shoulder seat belt center ASSY

(5)

Center seat belt RH ASSY

T: 30 (3.1, 22)

(3)

Outer seat belt LH ASSY









T

(4)

(2)

(1)

(3)

T

T

(5)

T

SB-00333

SB-4

General Description

SEAT BELT SYSTEM

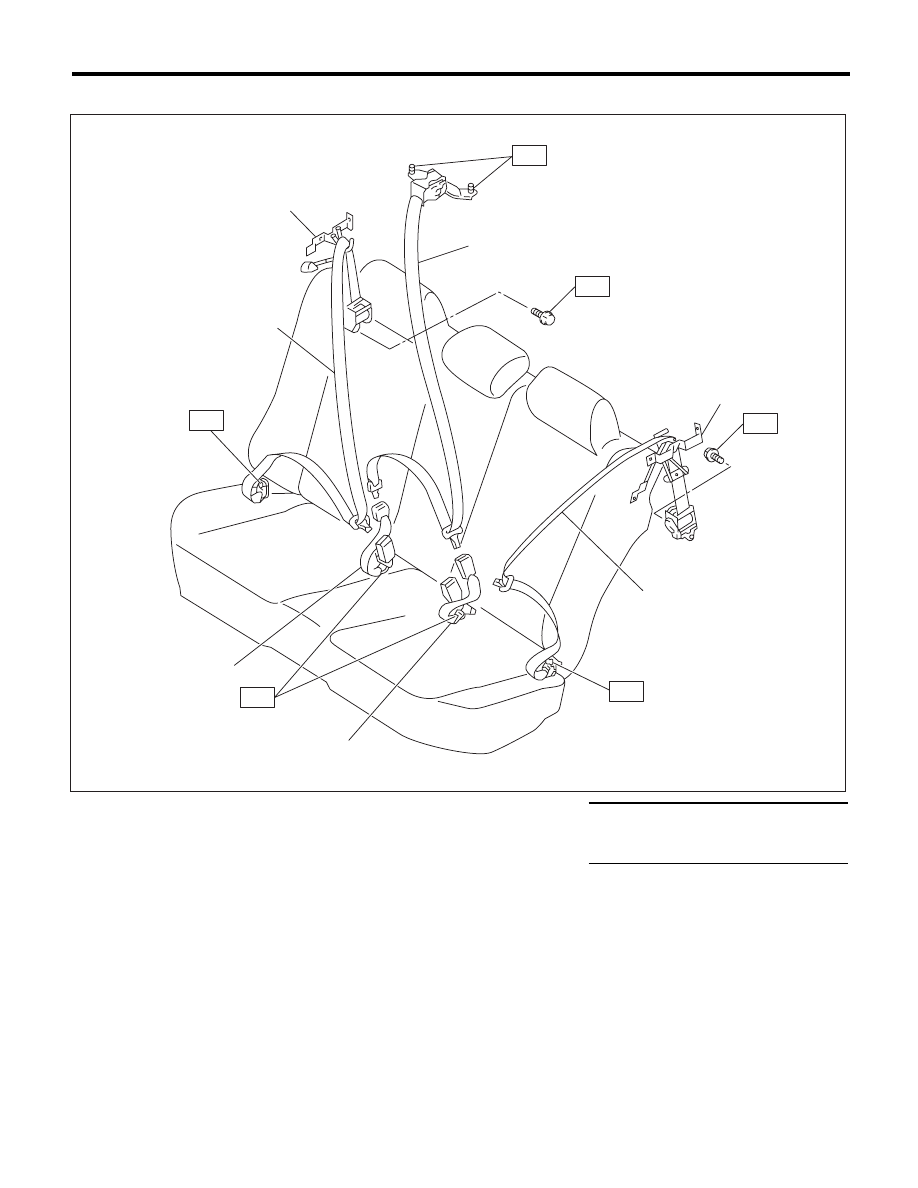

3. REAR SEAT BELT (WAGON MODEL)

(1)

Outer seat belt RH ASSY

(5)

Center seat belt LH ASSY

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Shoulder seat belt center ASSY

(6)

Outer belt guide RH

T1: 30 (3.1, 22)

(3)

Outer seat belt LH ASSY

(7)

Outer belt guide LH

T2: 53 (5.4, 39.1)

(4)

Center seat belt RH ASSY









SB-00148

(2)

(6)

(1)

(4)

(7)

T2

(5)

(3)

T1

T1

T1

T1

T1

SB-5

General Description

SEAT BELT SYSTEM

B: CAUTION

• Before starting the work, turn the ignition switch
to OFF, disconnect the battery ground cable and
wait for 20 seconds or more.
• The pretensioner system has a backup power
source. The pretensioner might deploy if you do not
wait for 20 seconds or more before starting work.
• Do not drop or apply any impact to the preten-
sioner.
• If oil, grease or water gets on the pretensioner,
wipe it off immediately with a dry cloth.
• Do not expose the pretensioner to high tempera-
ture or flame.
• Do not allow current to flow through or voltage to
reach the pretensioner. Do not use a circuit tester
to check resistance of the pretensioner.
• Do not disassemble or attempt to repair the pre-
tensioner. If it is dented, cracked or deformed, re-
place it with a new part.
• Do not use the airbag or pretensioner parts from
other vehicles. Always replace parts with new
parts.
• When handling a seat belt with deployed preten-
sioner, wear gloves and goggles. Wash your hands
afterwards.
• Do not reuse a seat belt with deployed preten-
sioner.
• If material from the airbag enters the eyes or con-
tacts skin during deployment, wash it away with
clean water, and then consult a doctor.
