IG(H4SO)-7

Spark Plug Cord

IGNITION

4. Spark Plug Cord

A: INSPECTION

Check the following items.
• Damage to cords, deformation, burning or rust
formation of terminals

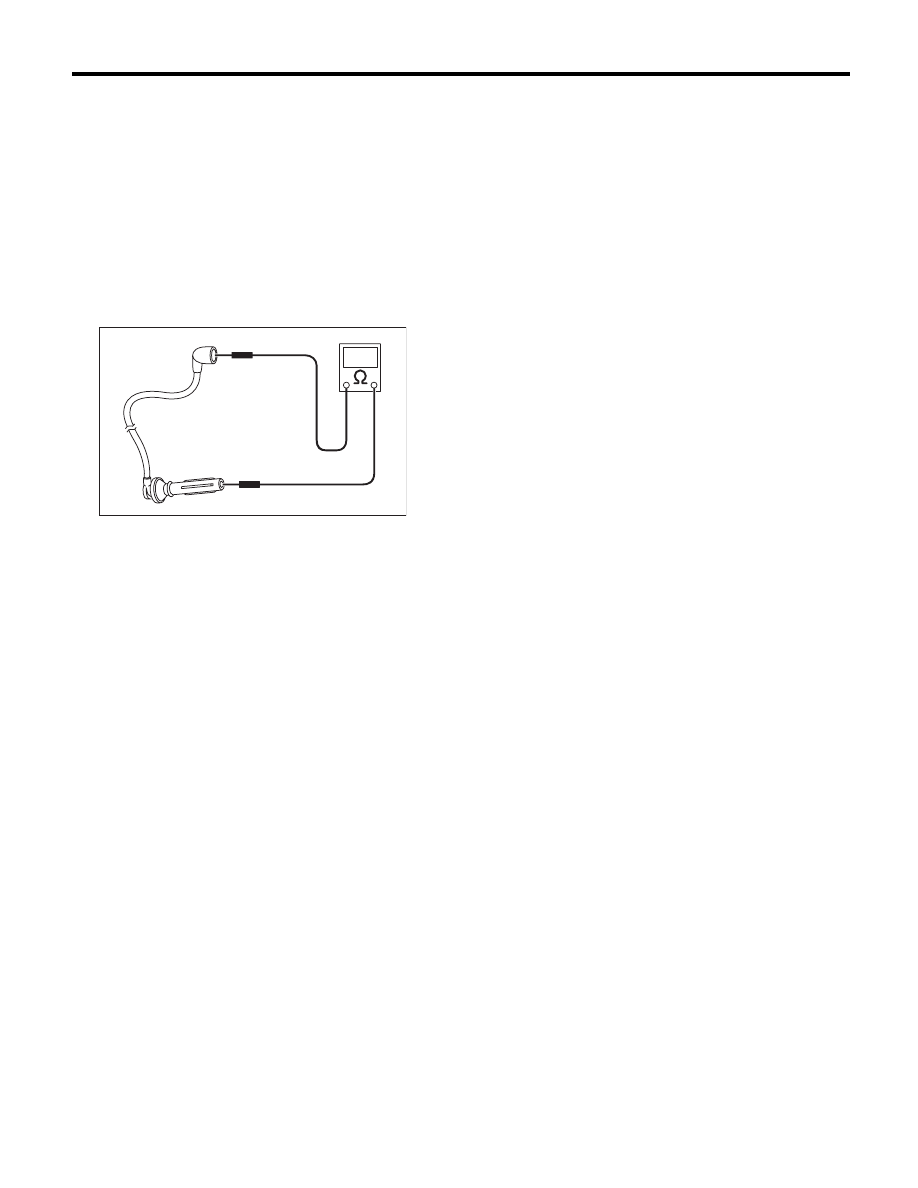

• Resistance value of cords

Specified resistance:

#1 cord: 7.1 — 12.1 k

:

#2 cord: 12.1 — 19.9 k

:

#3 cord: 7.7 — 13.0 k

:

#4 cord: 12.3 — 20.2 k

:

IG-00102

IG(H4SO)-8

Spark Plug Cord

IGNITION

SC(H4SO)-2

General Description

STARTING/CHARGING SYSTEMS

1. General Description

A: SPECIFICATION

Item

Specification

Vehicle model

MT

AT

Starter

Type

Reduction type

Model

428000-4780

428000-4790

Manufacturer

DENSO

Voltage and output

12 V — 1.6 kW

12 V — 1.6 kW

Direction of rotation

Counterclockwise (when observed from pinion)

Number of pinion teeth

9

9

No-load
characteristics

Voltage

11 V

11 V

Current

90 A or less

90 A or less

Rotating speed

1,900 rpm or more

1,900 rpm or more

Load
characteristics

Voltage

8 V

8 V

Current

370 A

370 A

Torque

11.1 N·m (1.1 kgf-m, 8.2 ft-lb) or more

11.1 N·m (1.1 kgf-m, 8.2 ft-lb) or more

Rotating speed

910 rpm or more

910 rpm or more

Lock
characteristics

Voltage

3 V

3 V

Current

750 A or less

750 A or less

Torque

15.5 N·m (1.6 kgf-m, 11.4 ft-lb) or more 15.5 N·m (1.6 kgf-m, 11.4 ft-lb) or more

Generator

Type

Rotating-field three-phase type, voltage regulator built-in type,

with load response control system

Model

2.5 L Non-turbo,
2.5 L Turbo

A3TG2391ZC

3.0 L Non-turbo

A3TG0591

Manufacturer

MITSUBISHI ELECTRIC

Voltage and output

12 V — 110 A

Polarity on ground side

Negative

Direction of rotation

Clockwise (when observed from pulley side)

Stator connection

3-phase Y-type

Output current

1,500 rpm — 50 A or more
2,500 rpm — 91 A or more

5,000 rpm — 105 A or more

Regulated voltage

14.1 — 14.8 V [20°C (68°F)]

Battery

Type and capacity

12 V — 48 AH (55D23L)

12 V — 52 AH (75D23L)

SC(H4SO)-3

General Description

STARTING/CHARGING SYSTEMS

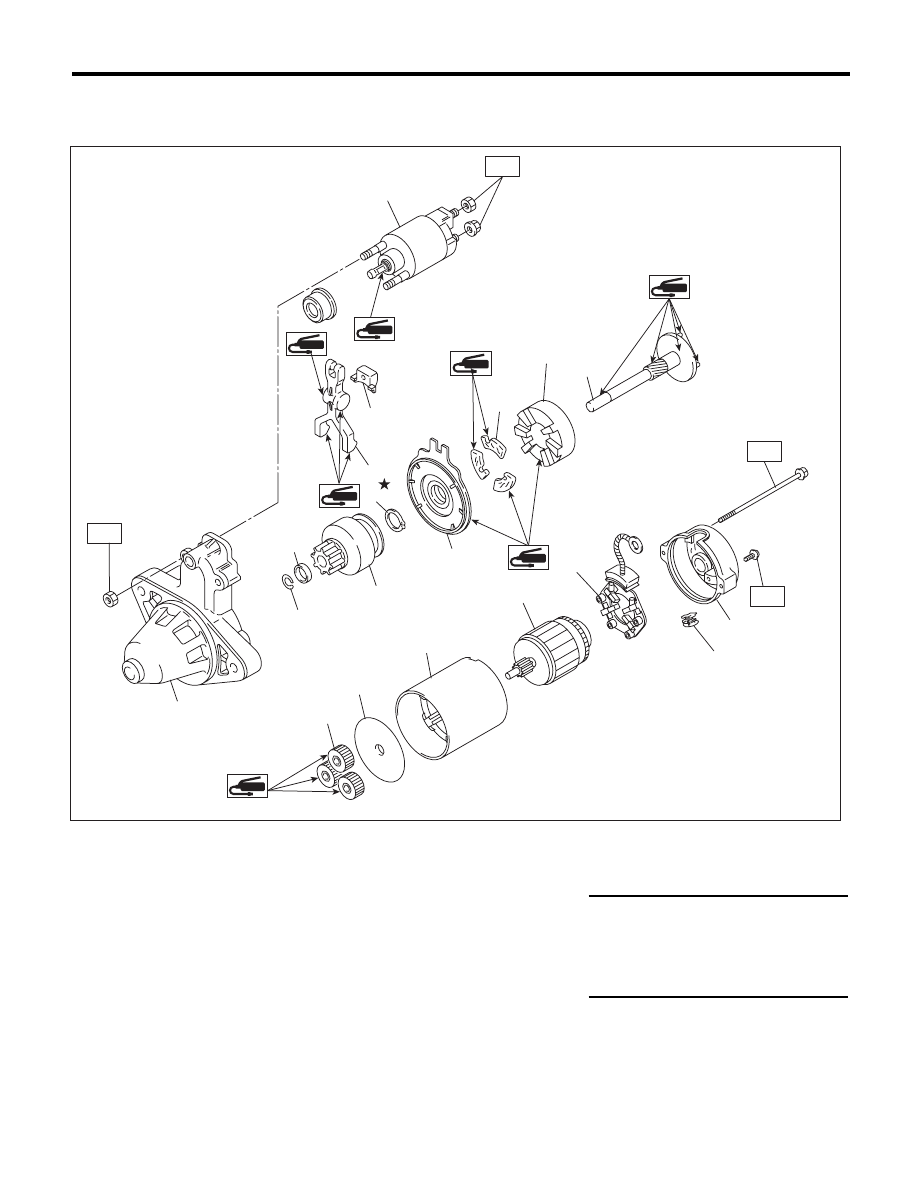

B: COMPONENT

1. STARTER

(1)

Starter housing

(10)

Internal gear

(18)

Magnet switch ASSY

(2)

Snap ring

(11)

Shaft

(19)

Drain duct

(3)

Stopper

(12)

Planetary gear



(4)

Overrunning clutch

(13)

Starter plate

Tightening torque:N·m (kgf-m, ft-lb)

(5)

Snap ring

(14)

Yoke

T1: 1.4 (0.1, 1.0)

(6)

Shift lever

(15)

Armature

T2: 6 (0.6, 4.4)

(7)

Starter seal

(16)

Brush holder ASSY

T3: 7.5 (0.8, 5.5)

(8)

Shock absorber bearing

(17)

Starter cover

T4: 10 (1.0, 7.4)

(9)

Shock absorber





SC-02127

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

T1

T2

T4

T3

(1)

(18)

(19)
