Subaru Legacy IV (2008 year). Manual - part 54

ME(H4SO)-12

General Description

MECHANICAL

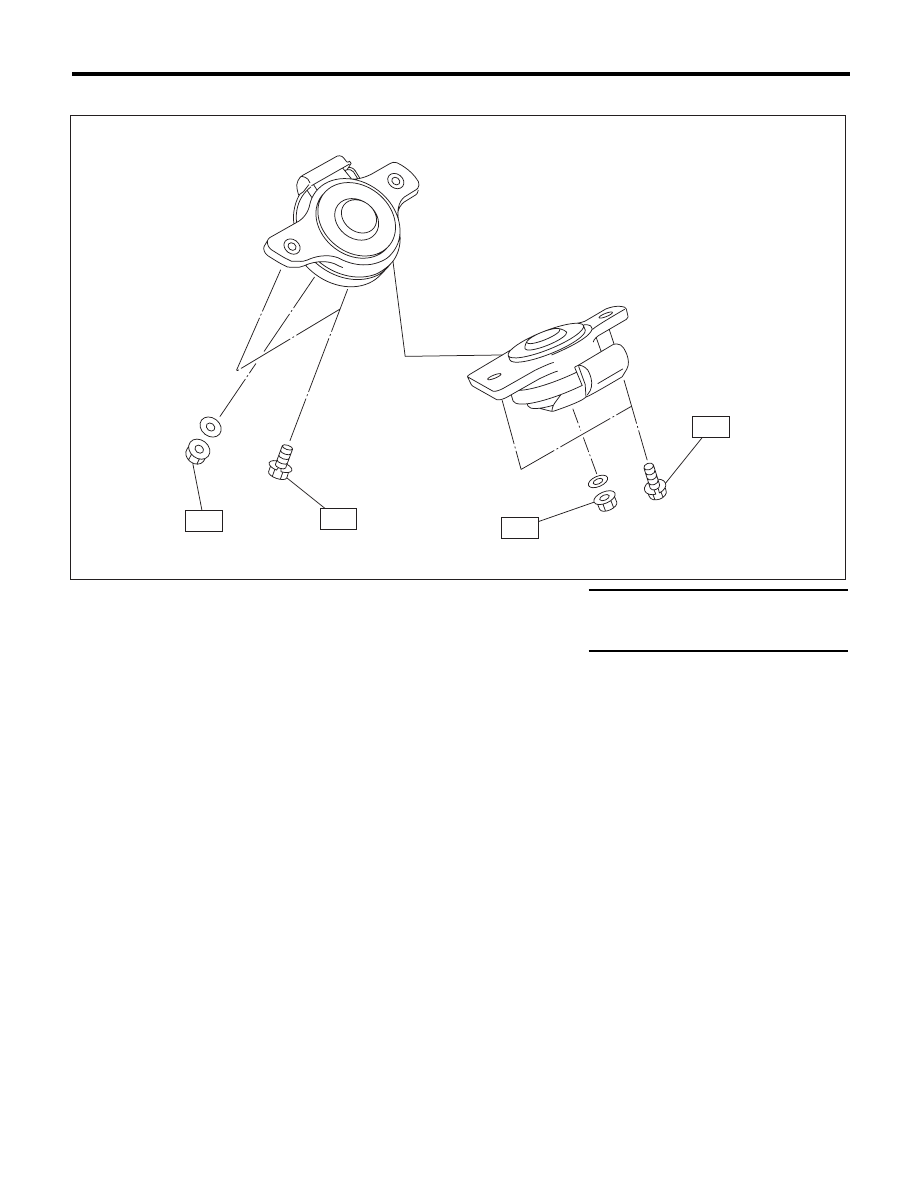

7. ENGINE MOUNTING

(1)

Front cushion rubber





Tightening torque:N·m (kgf-m, ft-lb)









T1: 35 (3.6, 25.8)









T2: 75 (7.6, 55.3)

(1)

T2

T1

T1

T2

ME-02090

ME(H4SO)-13

General Description

MECHANICAL

C: CAUTION

• Wear appropriate work clothing, including a cap, protective goggles and protective shoes when performing
any work.
• Remove contamination including dirt and corrosion before removal, installation or disassembly.
• Keep the disassembled parts in order and protect them from dust and dirt.
• Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, in-
stallation, disassembly and replacement.
• Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
• Be sure to tighten fasteners including bolts and nuts to the specified torque.
• Place shop jacks or rigid racks at the specified points.
• Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from the bat-
tery.
• All parts should be thoroughly cleaned, paying special attention to engine oil passages, pistons and bear-
ings.
• Rotating parts and sliding parts such as piston, bearing and gear should be coated with oil prior to assem-
bly.
• Be careful not to let oil, grease or coolant contact the timing belt, clutch disc and flywheel.
• All removed parts, if to be reused, should be reinstalled in the original positions and directions.
• Bolts, nuts and washers should be replaced with new parts as required.
• Even if necessary inspections have been made in advance, proceed with assembly work while making re-
checks.
• Remove or install the engine in an area where chain hoists, lifting devices, etc. are available for ready use.
• Be sure not to damage coated surfaces of body panels with tools, or not to stain seats and windows with
coolant or oil. Place a cover over fender, as required, for protection.
• Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch coolant and oil, wire ropes, chain hoist, transmission jacks, etc.
• Lift up or lower the vehicle when necessary. Make sure to support the correct positions.

ME(H4SO)-14

General Description

MECHANICAL

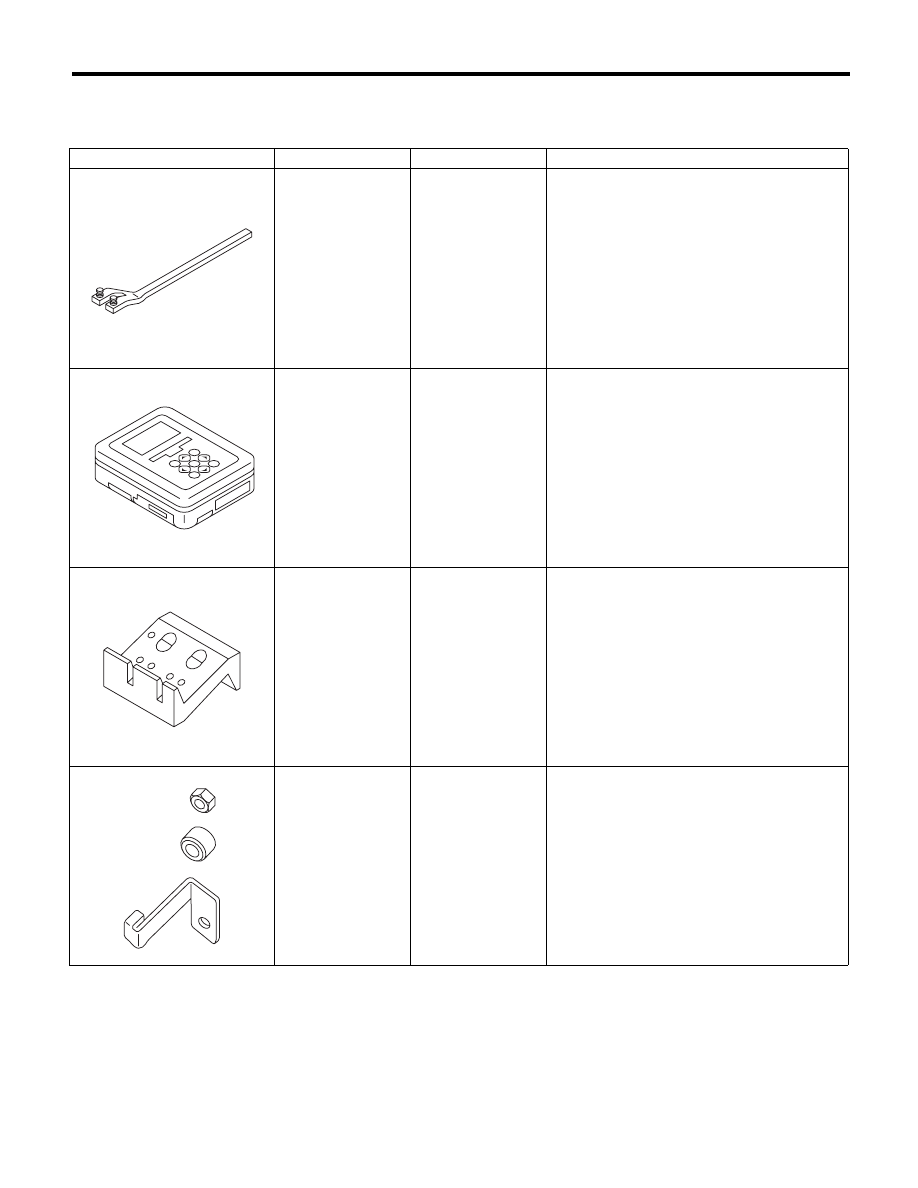

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

18231AA010

CAM SPROCKET
WRENCH

• Used for removing and installing cam sprocket.
• CAM SPROCKET WRENCH (499207100) can
also be used.

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

498267800

CYLINDER HEAD
TABLE

• Used for replacing valve guides.
• Used for removing and installing valve spring.

498277200

STOPPER SET

Used for installing automatic transmission
assembly to engine.

ST18231AA010

ST1B022XU0

ST-498267800

ST-498277200

ME(H4SO)-15

General Description

MECHANICAL

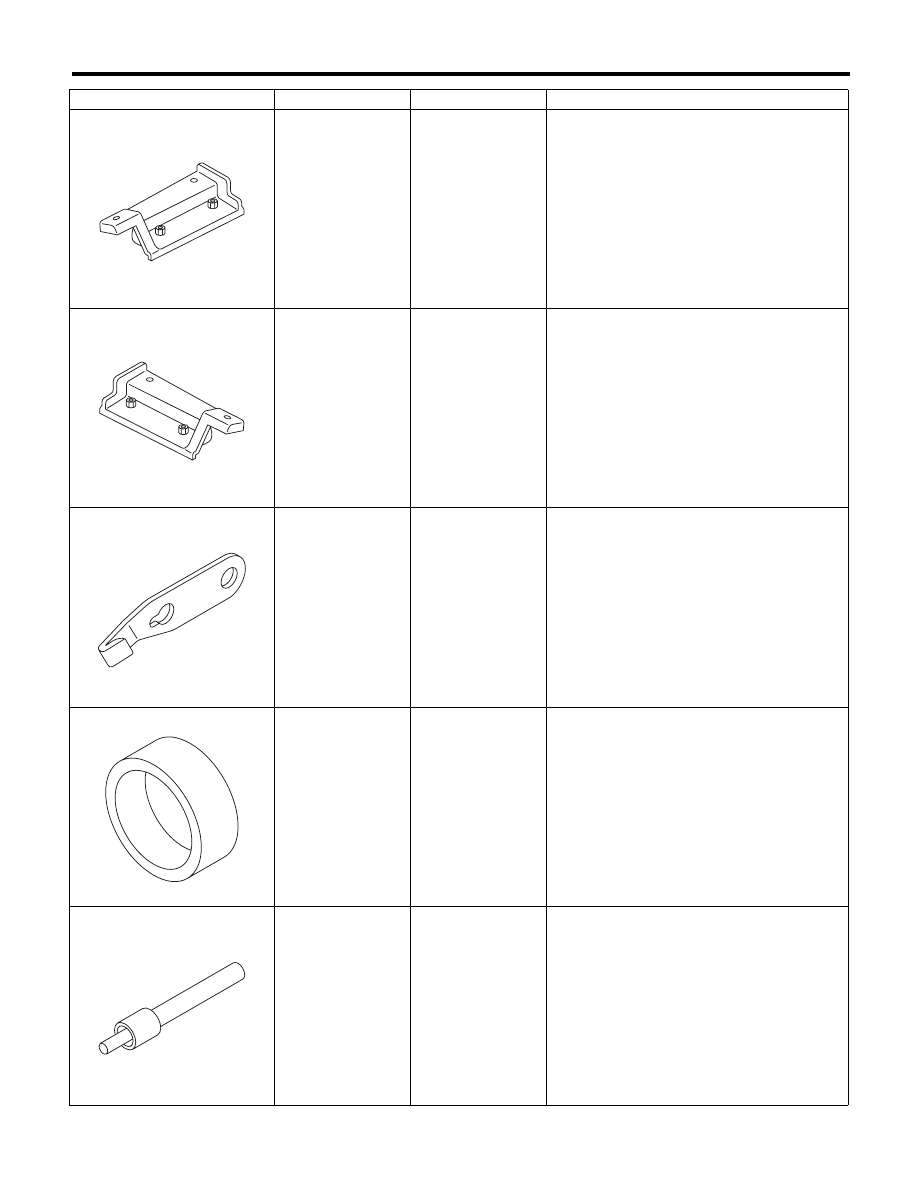

498457000

ENGINE STAND
ADAPTER RH

Used together with the ENGINE STAND
(499817100).

498457100

ENGINE STAND
ADAPTER LH

Used together with the ENGINE STAND
(499817100).

498497100

CRANKSHAFT
STOPPER

Used for removing and installing flywheel and
drive plate.

498747300

PISTON GUIDE

Used for installing piston in cylinder.

498857100

VALVE OIL SEAL
GUIDE

Used for press-fitting of intake and exhaust valve
guide oil seals.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498457000

ST-498457100

ST-498497100

ST-498747300

ST-498857100
