EC(H4SO)-6

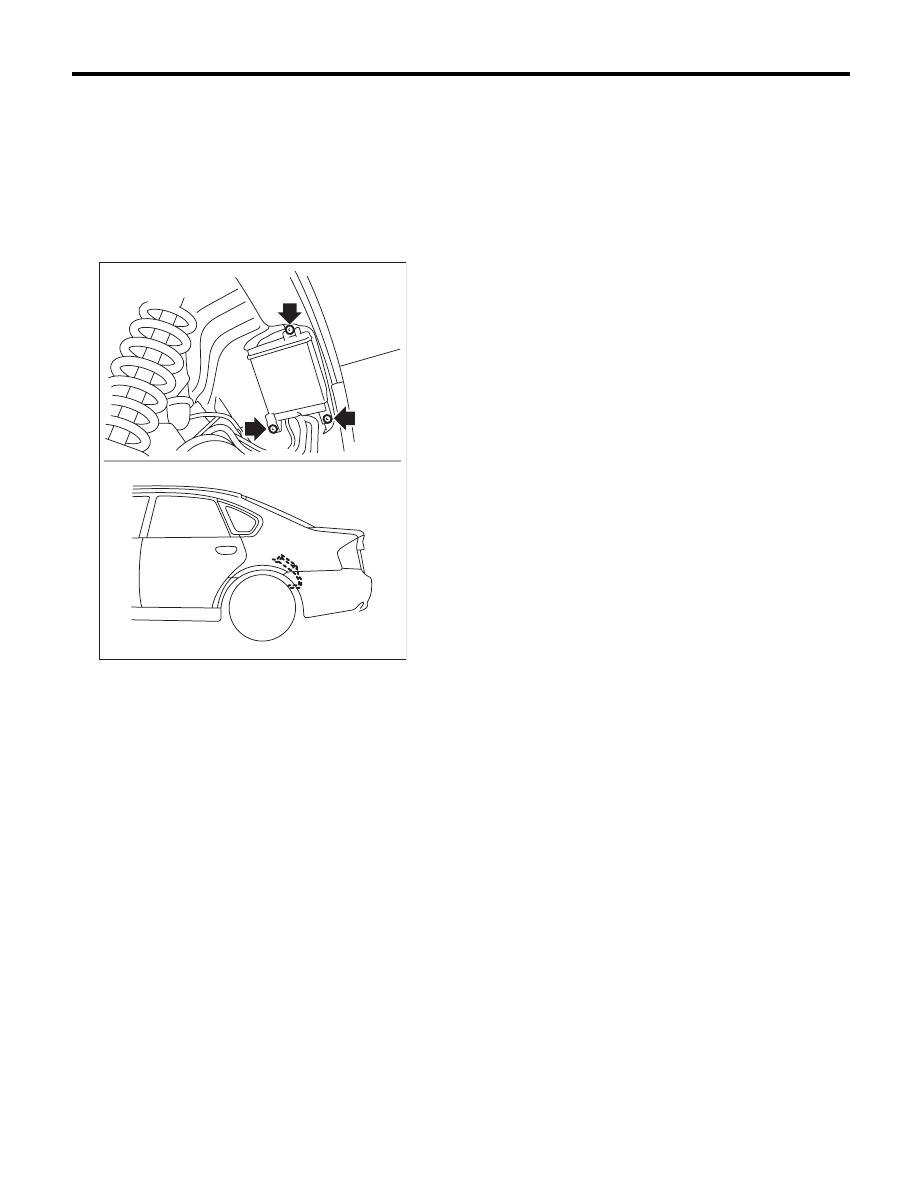

Canister

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Check that there is no damage or dust on the quick
connector. If necessary, clean the seal surface of
the pipe.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

C: INSPECTION

Make sure the canister and canister hoses are not
cracked or loose.

EC-02080

EC(H4SO)-7

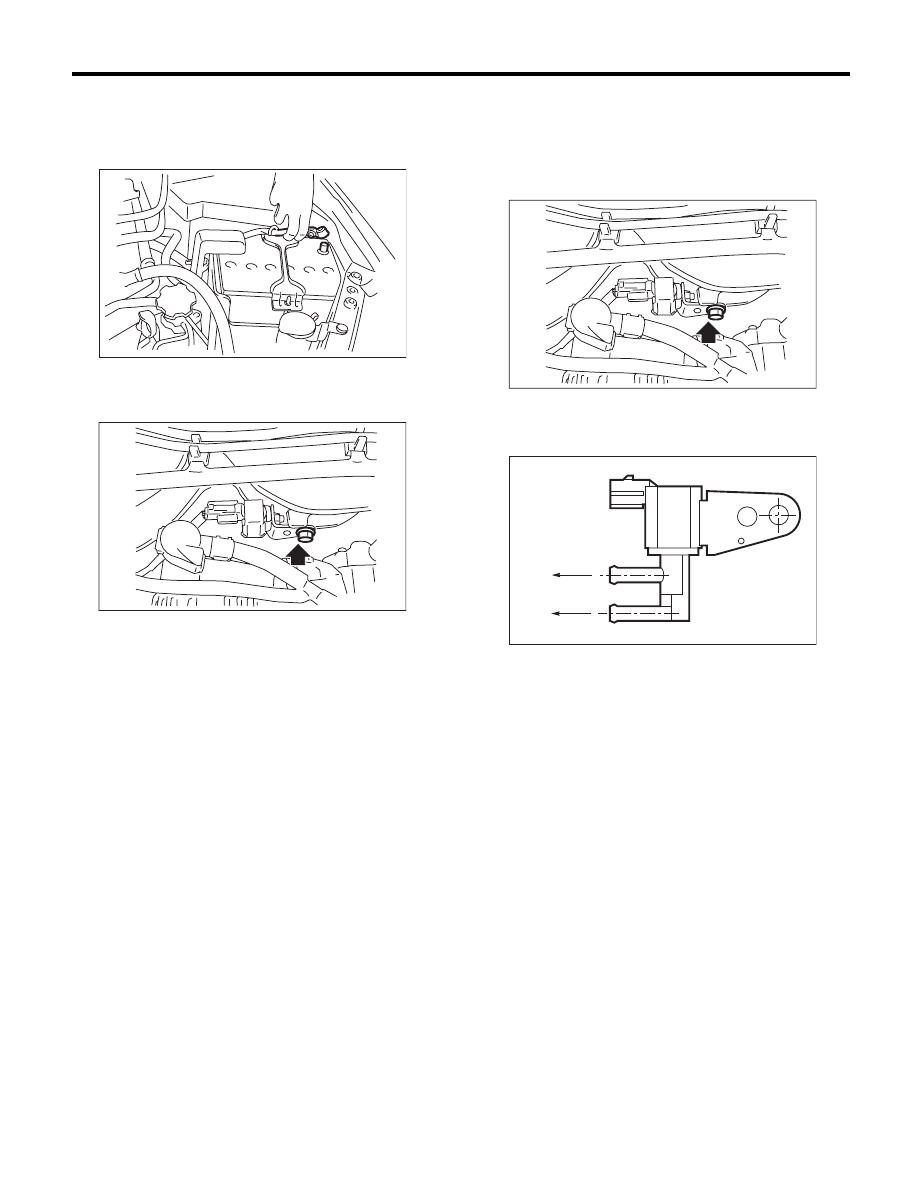

Purge Control Solenoid Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

5. Purge Control Solenoid Valve

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Disconnect the connector and evaporation hos-
es of purge control solenoid valve, and then re-
move the purge control solenoid valve.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque (Purge control solenoid
valve attachment bolt):

19 N·m (1.9 kgf-m, 14.0 ft-lb)

NOTE:
Connect the evaporation hose as shown in the fig-
ure.

C: INSPECTION

Make sure the hoses are not cracked or loose.

IN-00203

EC-02392

(A) To fuel pipe (intake manifold)

(B) To fuel pipe (evaporation line)

EC-02392

(B)

(A)

EC-02289

EC(H4SO)-8

EGR Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

6. EGR Valve

A: REMOVAL

For removal procedures, refer to “FU” section.
<Ref. to FU(H4SO)-29, REMOVAL, EGR Valve.>

B: INSTALLATION

For installation procedures, refer to “FU” section.
<Ref. to FU(H4SO)-29, INSTALLATION, EGR
Valve.>

EC(H4SO)-9

Fuel Level Sensor

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

7. Fuel Level Sensor

A: REMOVAL

For removal procedures, refer to “FU” section.
<Ref. to FU(H4SO)-57, REMOVAL, Fuel Level
Sensor.>

B: INSTALLATION

For installation procedures, refer to “FU” section.
<Ref. to FU(H4SO)-57, INSTALLATION, Fuel Lev-
el Sensor.>
