FU(H4SO)-29

EGR Valve

FUEL INJECTION (FUEL SYSTEMS)

11.EGR Valve

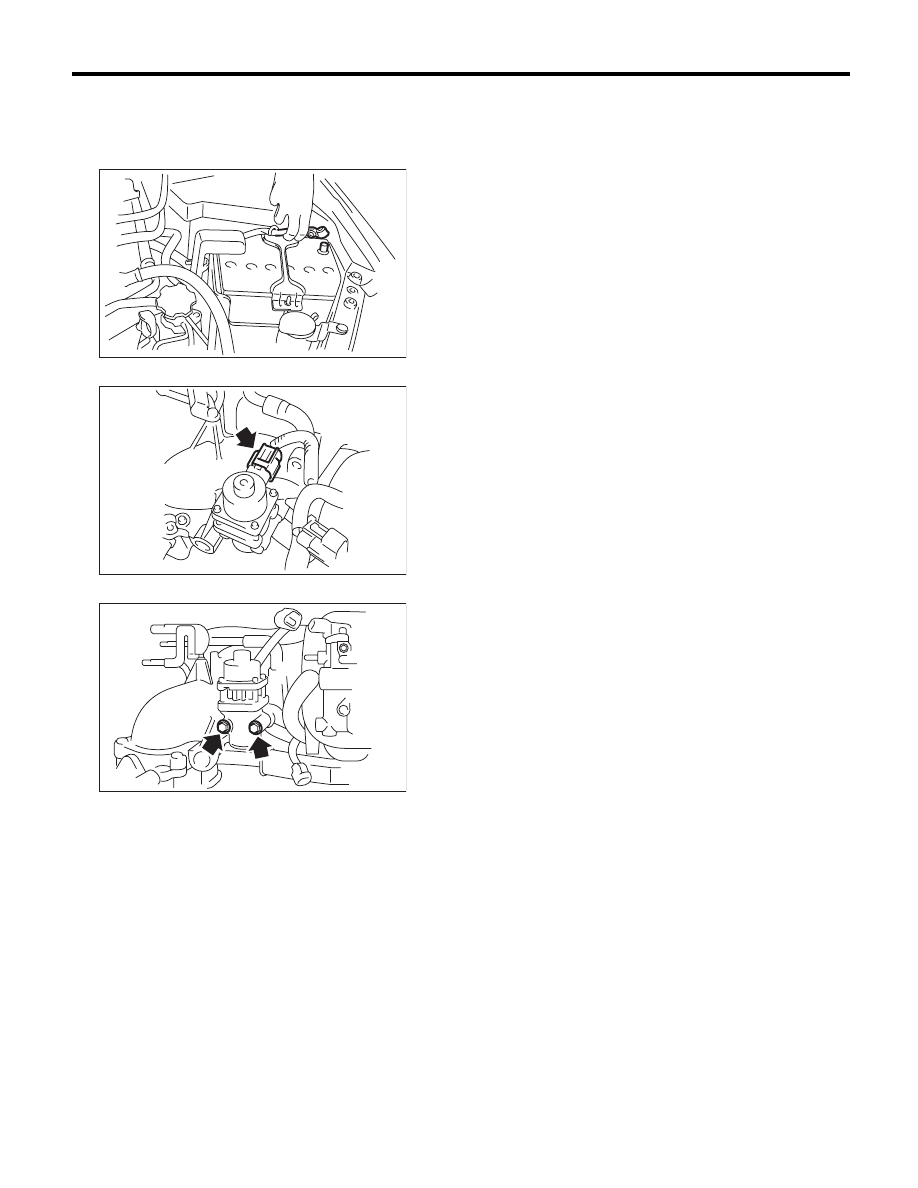

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Disconnect the connector from the EGR valve.

3) Remove the EGR valve from intake manifold.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Use a new gasket.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

IN-00203

FU-01152

FU-01153

FU(H4SO)-30

Fuel Injector

FUEL INJECTION (FUEL SYSTEMS)

12.Fuel Injector

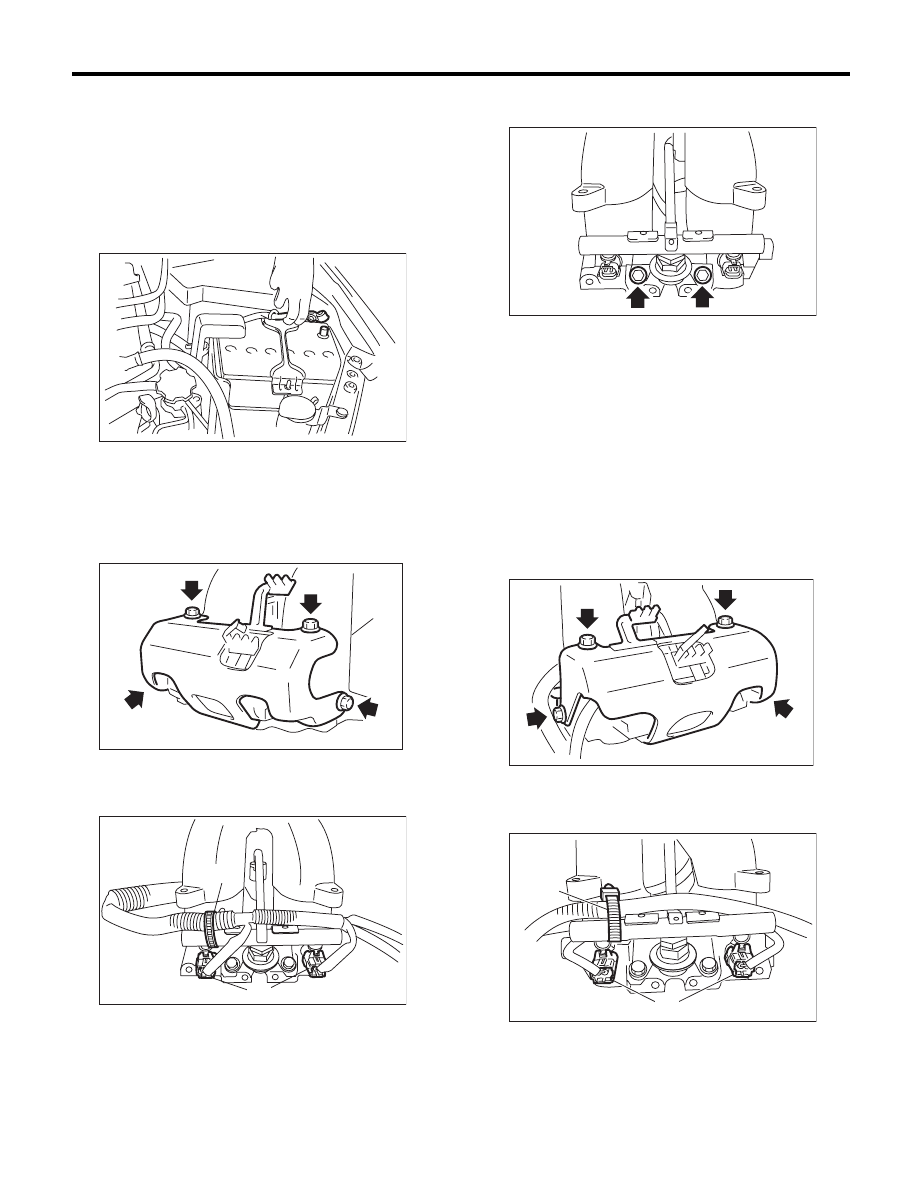

A: REMOVAL

1. RH SIDE

1) Release the fuel pressure. <Ref. to FU(H4SO)-
43, RELEASING OF FUEL PRESSURE, PROCE-
DURE, Fuel.>
2) Disconnect the ground cable from battery.

3) Open the fuel filler lid, and remove the fuel filler
cap.
4) Remove the intake boot.
5) Remove the spark plug cords from spark plugs
(#1 and #3 cylinders).
6) Remove the fuel pipe protector RH.

7) Disconnect the connectors (A) from fuel injector.
8) Remove the harness band (B) which holds the
engine harness to injector pipe.

9) Remove the bolt which holds fuel injector pipe
onto intake manifold.

10) Remove the fuel injector while lifting up the fuel
injector pipe.

2. LH SIDE

1) Release the fuel pressure. <Ref. to FU(H4SO)-
43, RELEASING OF FUEL PRESSURE, PROCE-
DURE, Fuel.>
2) Remove the battery. <Ref. to SC(H4SO)-20,
REMOVAL, Battery.>
3) Open the fuel filler lid, and remove the fuel filler
cap.
4) Remove the spark plug cords from spark plugs
(#2 and #4 cylinders).
5) Remove the fuel pipe protector LH.

6) Disconnect the connectors (A) from fuel injector.
7) Remove the harness band (B) which holds the
engine harness to injector pipe.

IN-00203

FU-02326

(B)

(A)

FU-02730

FU-02717

FU-02325

(A)

(B)

FU-03955

FU(H4SO)-31

Fuel Injector

FUEL INJECTION (FUEL SYSTEMS)

8) Remove the bolt which holds fuel injector pipe
onto intake manifold.

9) Remove the fuel injector while lifting up the fuel
injector pipe.

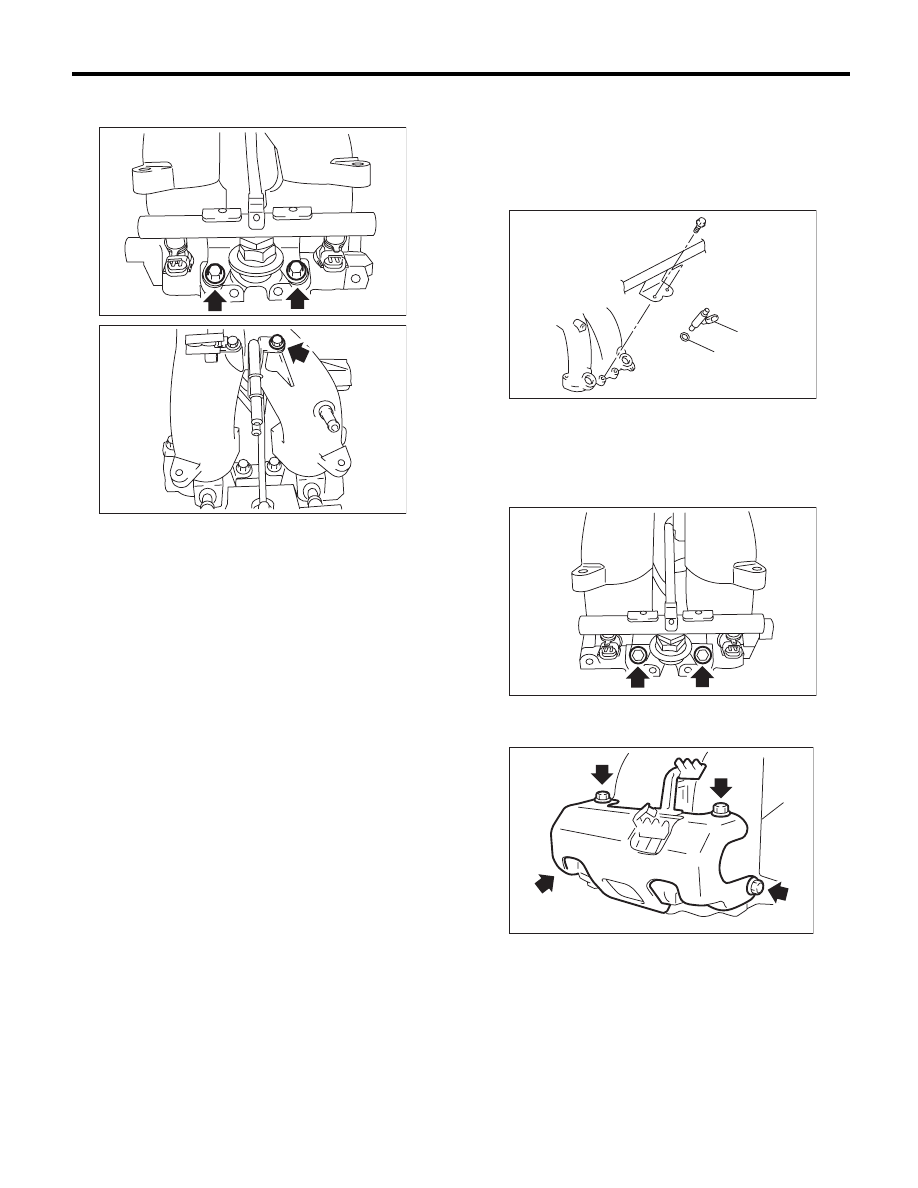

B: INSTALLATION

1. RH SIDE

Install in the reverse order of removal.

NOTE:
Use new O-rings.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

FU-02718

FU-02719

(A) O-ring

(B) Fuel injector

FU-03948

(A)

(B)

FU-02717

FU-02326

FU(H4SO)-32

Fuel Injector

FUEL INJECTION (FUEL SYSTEMS)

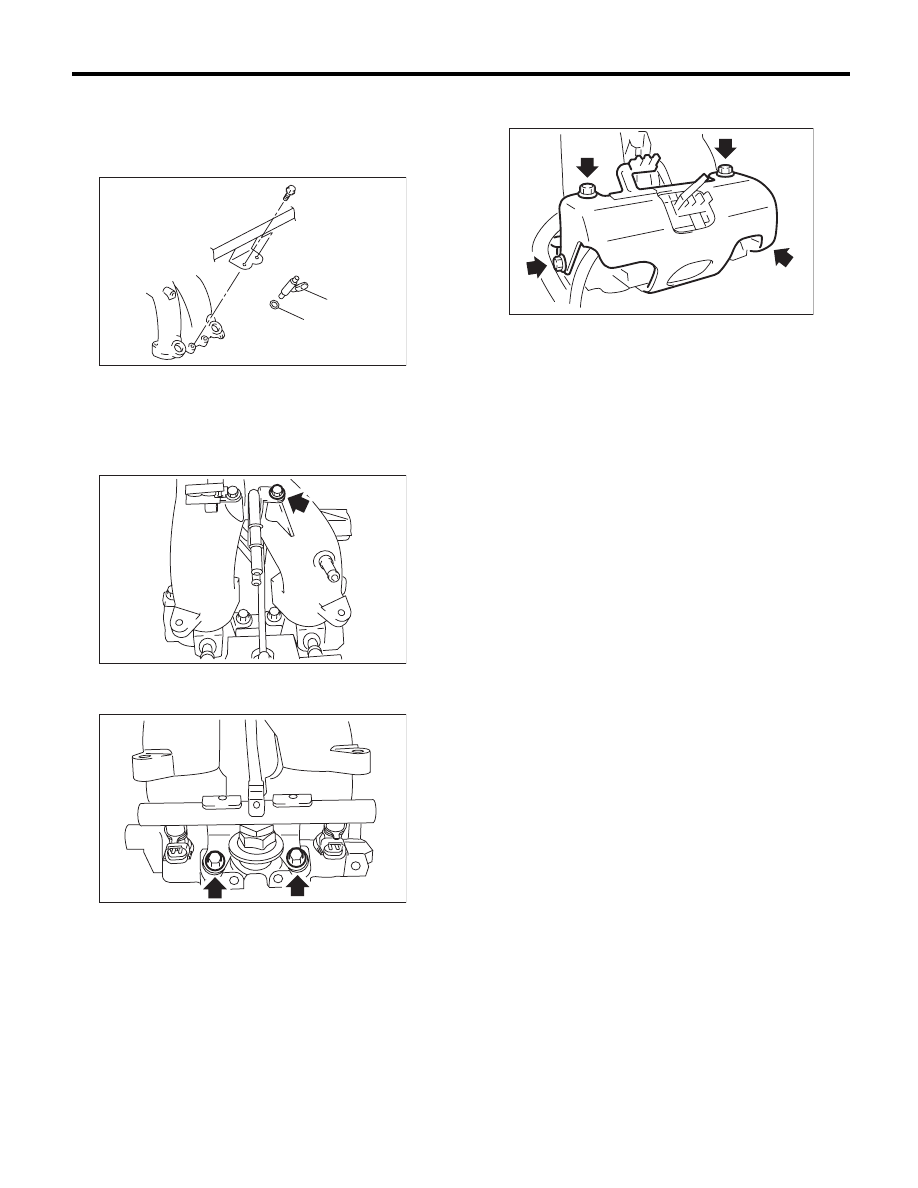

2. LH SIDE

Install in the reverse order of removal.

NOTE:
Use new O-rings.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

(A) O-ring

(B) Fuel injector

FU-03948

(A)

(B)

FU-02719

FU-02718

FU-02325
