FU(H4SO)-9

General Description

FUEL INJECTION (FUEL SYSTEMS)

(1)

Clip

(17)

Drain valve

(33)

Connector B

(2)

Fuel damper

(18)

Drain filter

(34)

Canister hose B

(3)

Evaporation hose A

(19)

Canister protector

(35)

Drain hose

(4)

Fuel delivery hose A

(20)

Pressure control solenoid valve

(36)

Drain hose connector

(5)

Fuel delivery hose B

(21)

Evaporation pipe A

(37)

Evaporation hose C

(6)

Clip

(22)

Evaporation pipe B

(38)

Evaporation hose D

(7)

Bracket

(23)

Clip

(39)

Evaporation hose E

(8)

Evaporation tube

(24)

Fuel filler pipe





(9)

Fuel pipe ASSY A

(25)

Shut valve

Tightening torque:N·m (kgf-m, ft-lb)

(10)

Fuel delivery hose C

(26)

Gasket

T1: 4.4 (0.4, 3.2)

(11)

Retainer

(27)

Filler ring

T2: 7.5 (0.8, 5.5)

(12)

Evaporation hose B

(28)

Fuel filler cap

T3: 8 (0.8, 5.9)

(13)

Clamp

(29)

Fuel tank pressure sensor

T4: 17.6 (1.8, 13)

(14)

Grommet

(30)

Evaporation pipe protector

T5: 1.25 (0.1, 0.9)

(15)

Fuel pipe ASSY B

(31)

Connector A

T6: 1 (0.1, 0.7)

(16)

Canister

(32)

Canister hose A





FU(H4SO)-10

General Description

FUEL INJECTION (FUEL SYSTEMS)

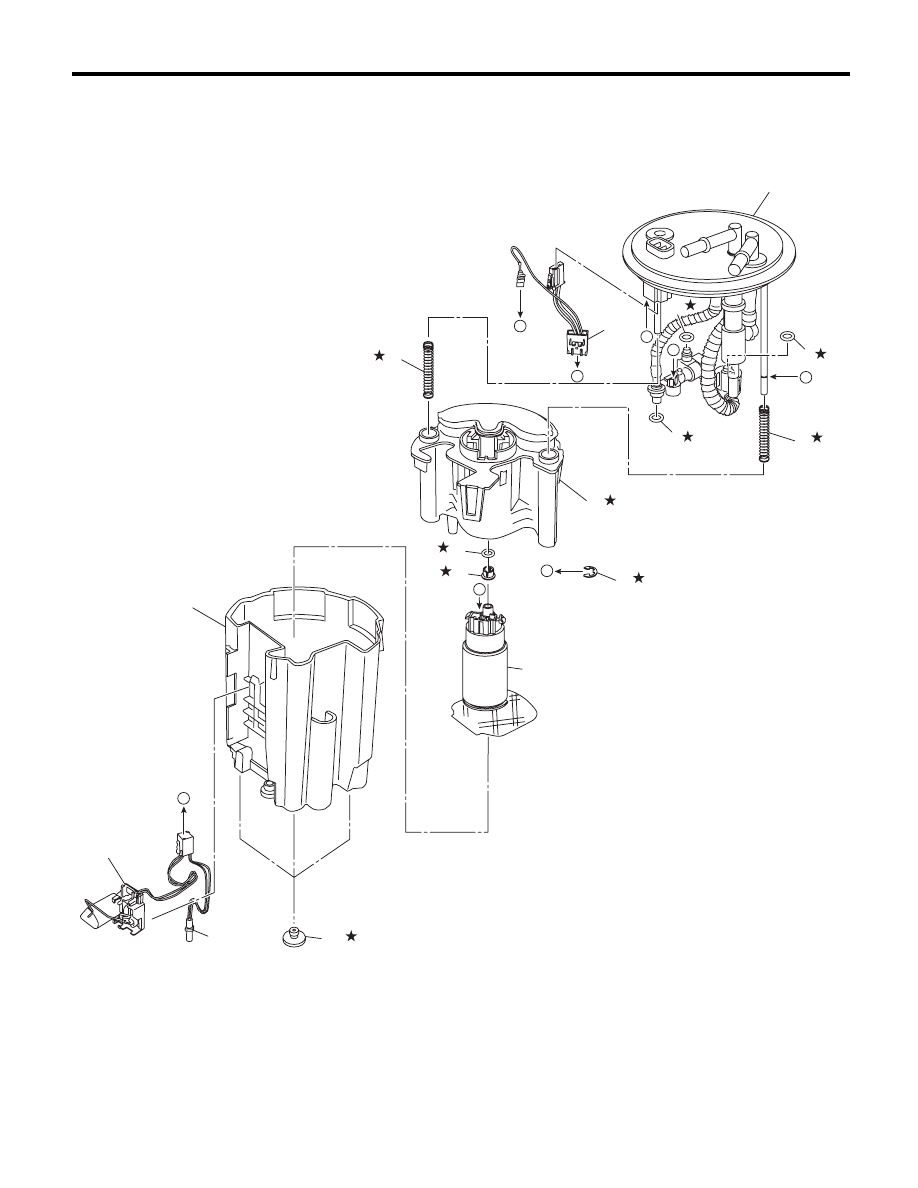

6. FUEL PUMP

(1)

Sub tank bracket ASSY

(6)

Fuel filter

(10)

Sub tank

(2)

O-ring

(7)

Clip

(11)

Cushion

(3)

O-ring

(8)

Spacer

(12)

Fuel level sensor

(4)

Fuel pump harness

(9)

Pump ASSY

(13)

Fuel temperature sensor

(5)

Spring

(1)

(4)

(5)

(6)

(2)

(8)

(9)

(10)

(11)

(7)

FU-04005

b

C

d

d

(2)

(2)

(3)

(5)

a

b

C

(12)

a

(13)

FU(H4SO)-11

General Description

FUEL INJECTION (FUEL SYSTEMS)

C: CAUTION

• Wear appropriate work clothing, including a cap, protective goggles and protective shoes when performing
any work.
• Remove contamination including dirt and corrosion before removal, installation or disassembly.
• Keep the disassembled parts in order and protect them from dust and dirt.
• Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, in-
stallation, disassembly and replacement.
• Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
• Be sure to tighten fasteners including bolts and nuts to the specified torque.
• Place shop jacks or rigid racks at the specified points.
• Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from the bat-
tery.
• Place “NO OPEN FLAMES” signs near the working area.
• Prepare a container and cloth to prevent scattering of fuels when performing work where fuels can be
spilled. If the fuel spills, wipe it off immediately to prevent from penetrating into floor or flowing out for envi-
ronmental protection.
• Follow all government and local regulations concerning disposal of refuse when disposing fuel.

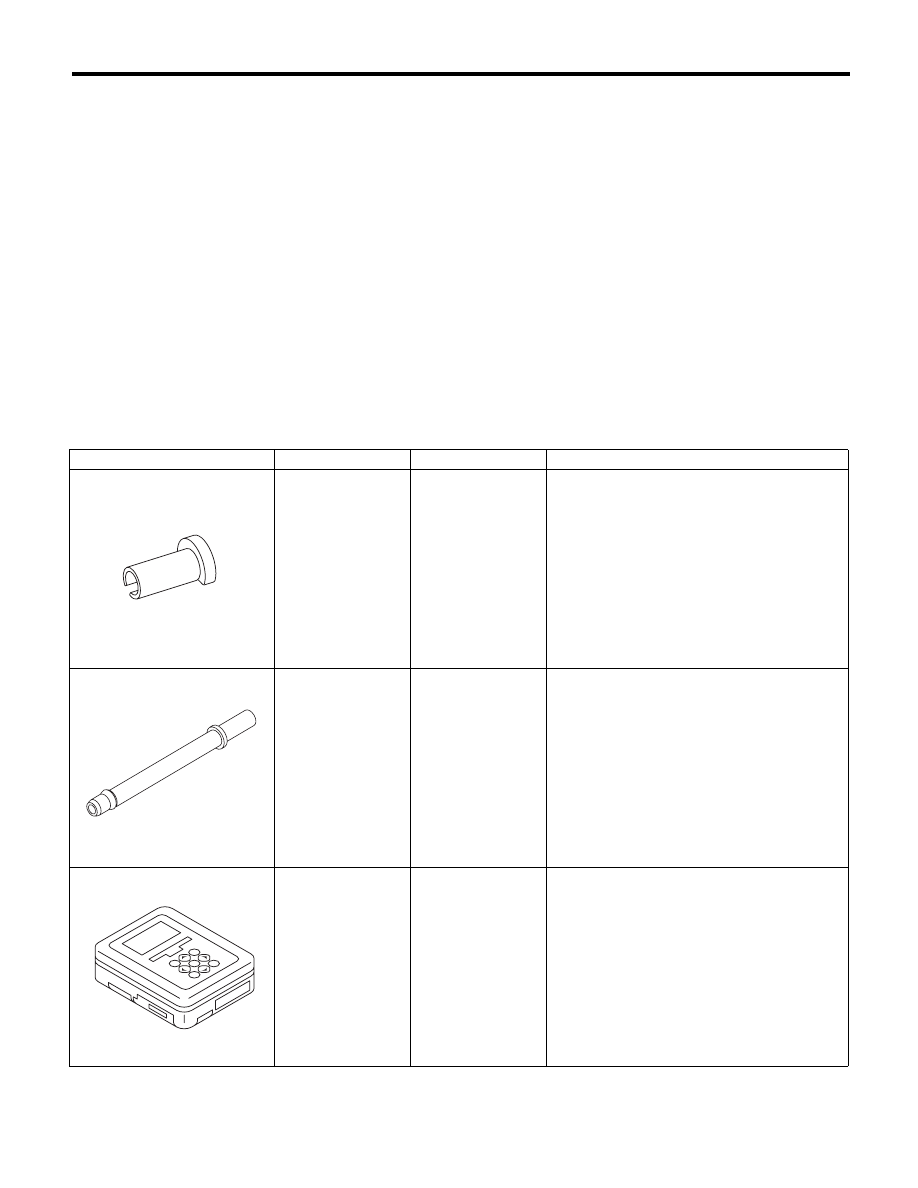

D: PREPARATION TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

42099AE000

QUICK
CONNECTOR
RELEASE

Used for removing the quick connector.

18471AA000

FUEL PIPE
ADAPTER

Used for draining fuel.

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for draining fuel.

ST42099AE000

ST18471AA000

ST1B022XU0

FU(H4SO)-12

Throttle Body

FUEL INJECTION (FUEL SYSTEMS)

2. Throttle Body

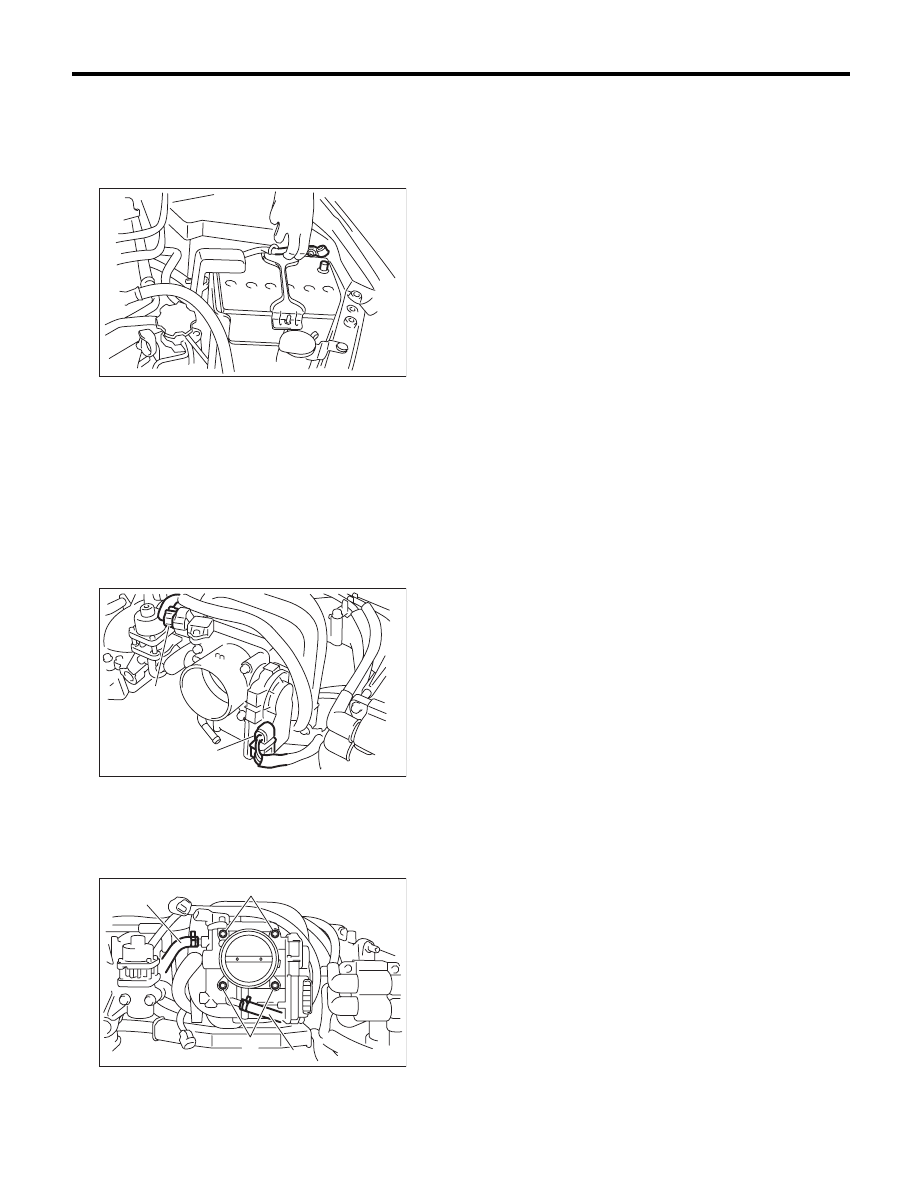

A: REMOVAL

1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.

3) Lift up the vehicle.
4) Remove the under cover.
5) Drain approximately 3.0

2 (3.2 US qt, 2.6 Imp

qt) of coolant. <Ref. to CO(H4SO)-13, DRAINING
OF ENGINE COOLANT, REPLACEMENT, Engine
Coolant.>
6) Remove the air intake chamber. <Ref. to
IN(H4SO)-7, REMOVAL, Air Intake Chamber.>
7) Disconnect the throttle position sensor connec-
tor (A) and manifold absolute pressure sensor con-
nector (B).

8) Disconnect the engine coolant hoses (A) from
the throttle body.
9) Remove the bolts (B) which secure the throttle
body to the intake manifold, and remove the throttle
body.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Use a new gasket.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

IN-00203

FU-03448

(B)

(A)

FU-01084

(B)

(A)

(A)

(B)
