PI-9

Pre-delivery Inspection

PRE-DELIVERY INSPECTION

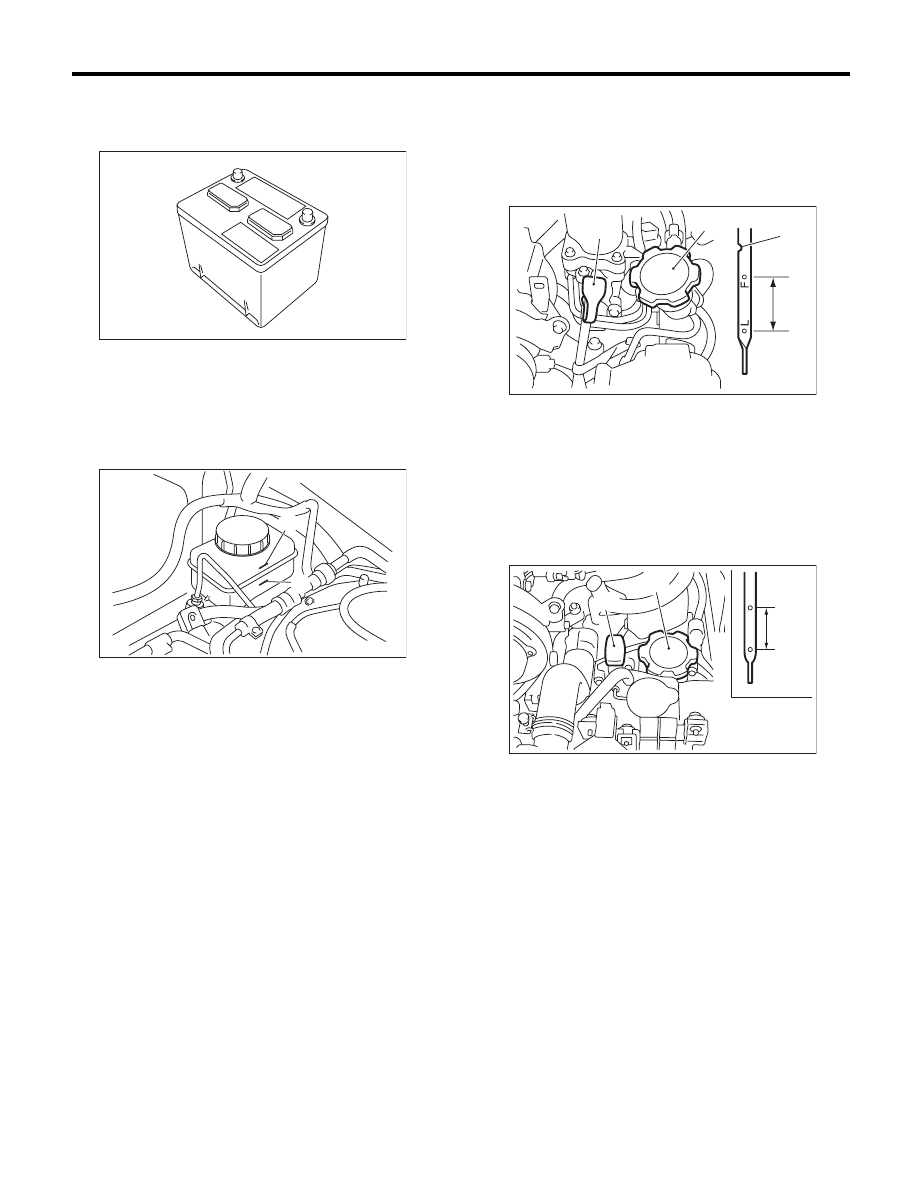

12.BATTERY

Check the battery terminals to make sure that there
are no rust or corrosions due to fluid leaks.

13.BRAKE FLUID

Check that the brake fluid level is normal. If the
amount is insufficient, carry out a brake line test to
identify brake fluid leaks and check the brake oper-
ation. After that, refill the brake fluid tank with the
specified type of fluid.

14.ENGINE OIL

Check the engine oil amount. If the amount of oil is
insufficient, check that no leaks are found. Then,
add the necessary amount of the specified engine
oil.
• Except for 3.0 L model

• 3.0 L model

(A) MAX. level

(B) MIN. level

PI-00250

PI-00251

MIN

MAX

(B)

(A)

(A) Oil level gauge

(B) Engine oil filler cap

(D) Lower level

(E) Approx. 1.0

2 (1.1 US qt, 0.9 Imp qt)

(F) Notch mark

(A) Oil level gauge

(B) Engine oil filler cap

(D) Lower level

(E) Approx. 1.0

2 (1.1 US qt, 0.9 Imp qt)

(C)

(F)

(B)

(A)

(E)

(D)

PM-00362

(A)

(B)

(C)

(E)

(D)

PM-00363

PI-10

Pre-delivery Inspection

PRE-DELIVERY INSPECTION

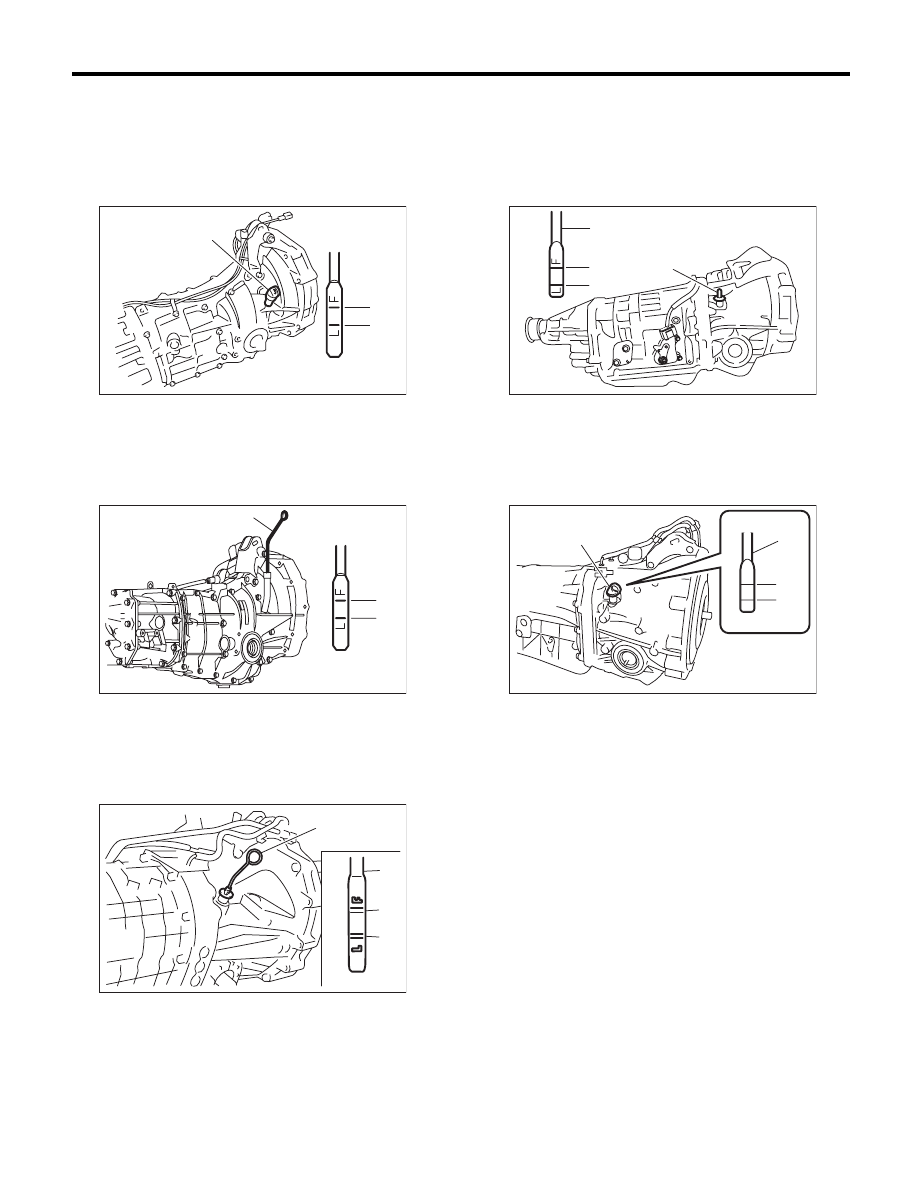

15.TRANSMISSION GEAR OIL

Check that the transmission gear oil level is normal.
If the amount of fluid is insufficient, check that no
leaks are found. Then add the necessary amount of
the specified transmission gear oil.
• 5MT model (Non-turbo model)

• 5MT model (Turbo model)

• 6MT model

16.AT FRONT DIFFERENTIAL GEAR OIL

Check that the AT front differential oil level is nor-
mal. If the amount of oil is insufficient, check that no
leaks are found. Then, add the necessary amount
of the specified AT front differential oil.
• 4AT model

• 5AT model

(A) Oil level gauge

(B) Upper level

(A) Oil level gauge

(B) Upper level

(A) Oil level gauge

(B) Upper level

PM-00030

(B)

(C)

(A)

(B)

(C)

(A)

PI-00391

MT-00449

(A)

(B)

(C)

(A) Oil level gauge

(B) Upper level

(A) Oil level gauge

(B) Upper level

AT-04840

(B)
(C)

(A)

PI-00184

(A)

(C)

(B)

(A)

PI-11

Pre-delivery Inspection

PRE-DELIVERY INSPECTION

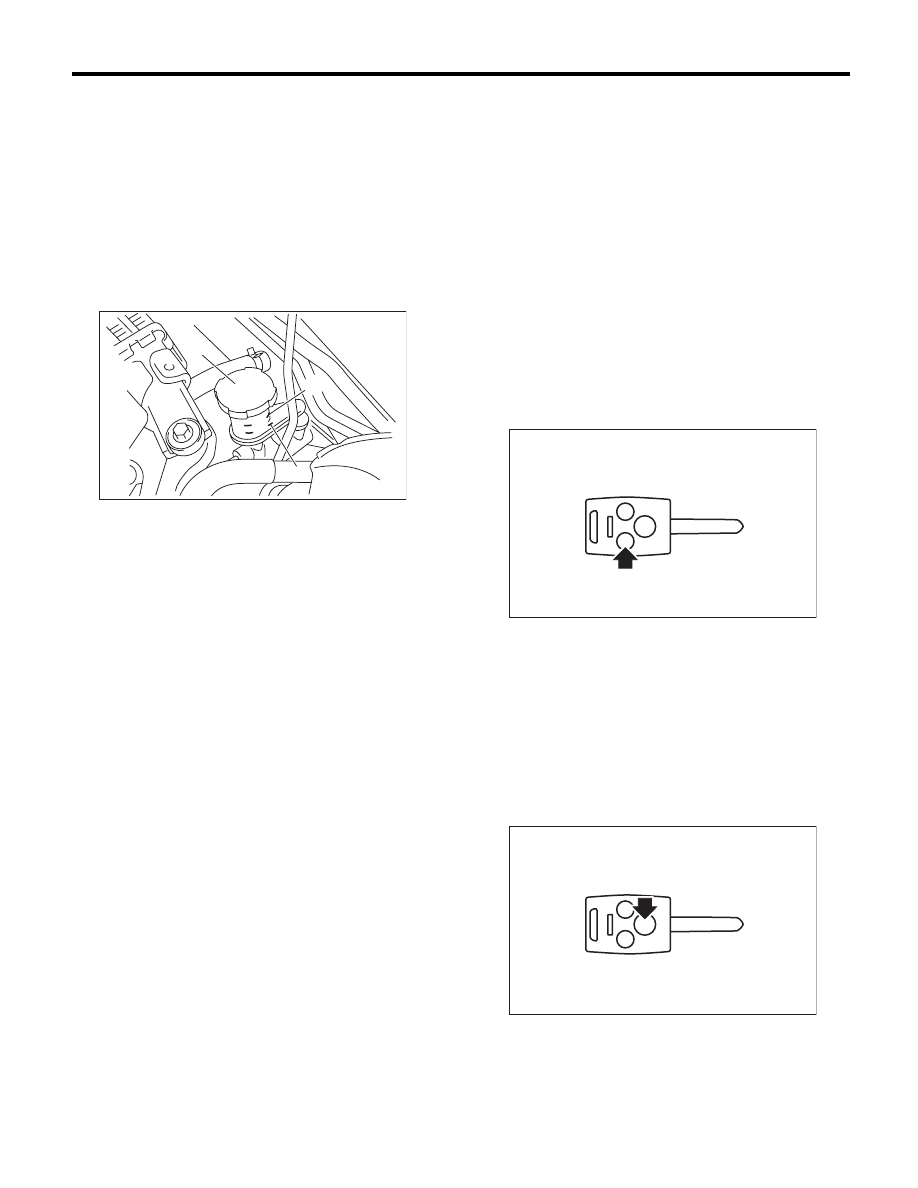

17.ENGINE COOLANT

Check that the engine coolant level on the reservoir
tank is normal. If the amount of engine coolant is in-
sufficient, check that no leaks are found. Then, add
the necessary amount of coolant with the specified
concentration.

18.CLUTCH FLUID

Check that the clutch fluid level is normal. If the
amount of fluid is insufficient, check that no leaks
are found. Then, add the necessary amount of
specified fluid.

19.WINDOW WASHER FLUID

Check that the window washer fluid level is normal.
If the amount is insufficient, check that no leaks are
found. Then, add the necessary amount of washer
fluid.

20.FRONT HOOD LATCH

Retract the front hood stay and close the front
hood. Check that the front hood is securely latched.

21.KEYLESS ENTRY SYSTEM

NOTE:
The following inspections show the initial settings.
When the settings are different from the initial set-
tings, use Subaru Select Monitor to check the de-
tails of each setting for inspections. <Ref. to
LAN(diag)-29, OPERATION, Read Current Data.>
1) Fully open all the door windows.
2) Remove the key from the ignition switch and
close all the doors including rear gate.
3) Press the rear gate and trunk open button for at
least one second.
• Check if the trunk is opened and the hazard light
blinks twice and the buzzer sounds twice. (Sedan
model)
• Check if the rear gate is unlocked and the hazard
light blinks twice and the buzzer sounds twice.
(Wagon model)

4) Press the “LOCK” button on the keyless trans-
mitter with one of the doors (including the rear gate
and trunk) opened. Check if all doors are locked,
hazard light blinks five times and the buzzer
sounds five times and warning shows one of the
doors (including the rear gate and trunk) open.
5) Close all the doors including rear gate and trunk.
Press the “LOCK” button momentarily on the key-
less transmitter. Check that all the doors (including
rear gate and trunk) are locked, hazard light blinks
once and buzzer sounds once.

(A) Reservoir tank

(B) MIN. level

PI-00253

(C)

(B)

(A)

PI-00388

PI-00387

PI-12

Pre-delivery Inspection

PRE-DELIVERY INSPECTION

6) Press the “UNLOCK” button momentarily on the
keyless transmitter. Check that the driver’s door is
unlocked and hazard light blinks twice and the
buzzer sounds twice.
And press the “UNLOCK” button momentarily
again in 5 seconds. Check that all doors (including
rear gate) are unlocked.

7) Within a distance of 10 m (33 ft) from a vehicle,
press keyless transmitter’s “LOCK” button three
times within 5 seconds. Check that the horn honks
once and that the hazard light blinks three times.
8) Move the power door lock switch to the lock po-
sition with one of doors (including the rear gate)
opened. Next, close all the doors including rear
gate. Check if all doors are locked and buzzer
sounds once and the hazard light flashes once.
9) Check buzzer operation.
The buzzer sounds when the doors are locked or
unlocked. The buzzer can be turned off if desired.
Turn the buzzer off or on with following procedure.

(1) Close all the doors including rear gate, then
remove the key from ignition key lock.
(2) Press the power door lock switch to unlock
and hold it until the operation is finished.
(3) Insert the key into ignition key lock, and in-
sert and remove the key in ignition key lock 5
times in 10 seconds.
(4) When finished step (3), open and close the
driver’s door once within 10 seconds.

NOTE:
When opening and closing of the door is not avail-
able within 10 seconds, hazard light blinks once
and the change over operation is cancelled. Retry
from the step (1).

(5) Hazard light blinks 3 times and the buzzer
sound turns ON or OFF.

10) Press the Panic button of the keyless transmit-
ter. Check if the alarm condition happens (horn
sounds continuously, hazard light blinks, security
indicator comes on). Check whether this condition
lasts until any button on the keyless transmitter is
pressed or lasts for 30 seconds.

PI-00388

PI-00389
