ABBREVIATIONS

The following abbreviations are used in this manual.

A/C

= Air Conditioner

A/T

= Automatic Transmission

ABS

= Anti-Lock Brake System

CAN

= Controller Area Network

CPU

= Central Processing Unit

DLC3

= Data Link Connector 3

E.F.I.

= Electronic Fuel Injection

ECM

= Engine Control Module

ECT

= Electronic Control Transmission

ECU

= Electronic Control Unit

EDU

= Electronic Driving Unit

EPS

= Electric Motor Power Steering

J/B

= Junction Block

LED

= Light Emitting Diode

= Left-Hand

LHD

= Left-Hand Drive

M/T

= Manual Transmission

R/B

= Relay Block

= Right-Hand

RHD

= Right-Hand Drive

SRS

= Supplemental Restraint System

TRC

= Traction Control

U.K.

= United Kingdom

VSC

= Vehicle Stability Control

VSV

= Vacuum Switching Valve

VVT

= Variable Valve Timing

= With

w/o

= Without

* The titles given inside the components are the names of the terminals (terminal codes) and are not treated as being

abbreviations.

ABBREVIATIONS D

BRZ (G4400GE)

E GLOSSARY OF TERMS AND SYMBOLS

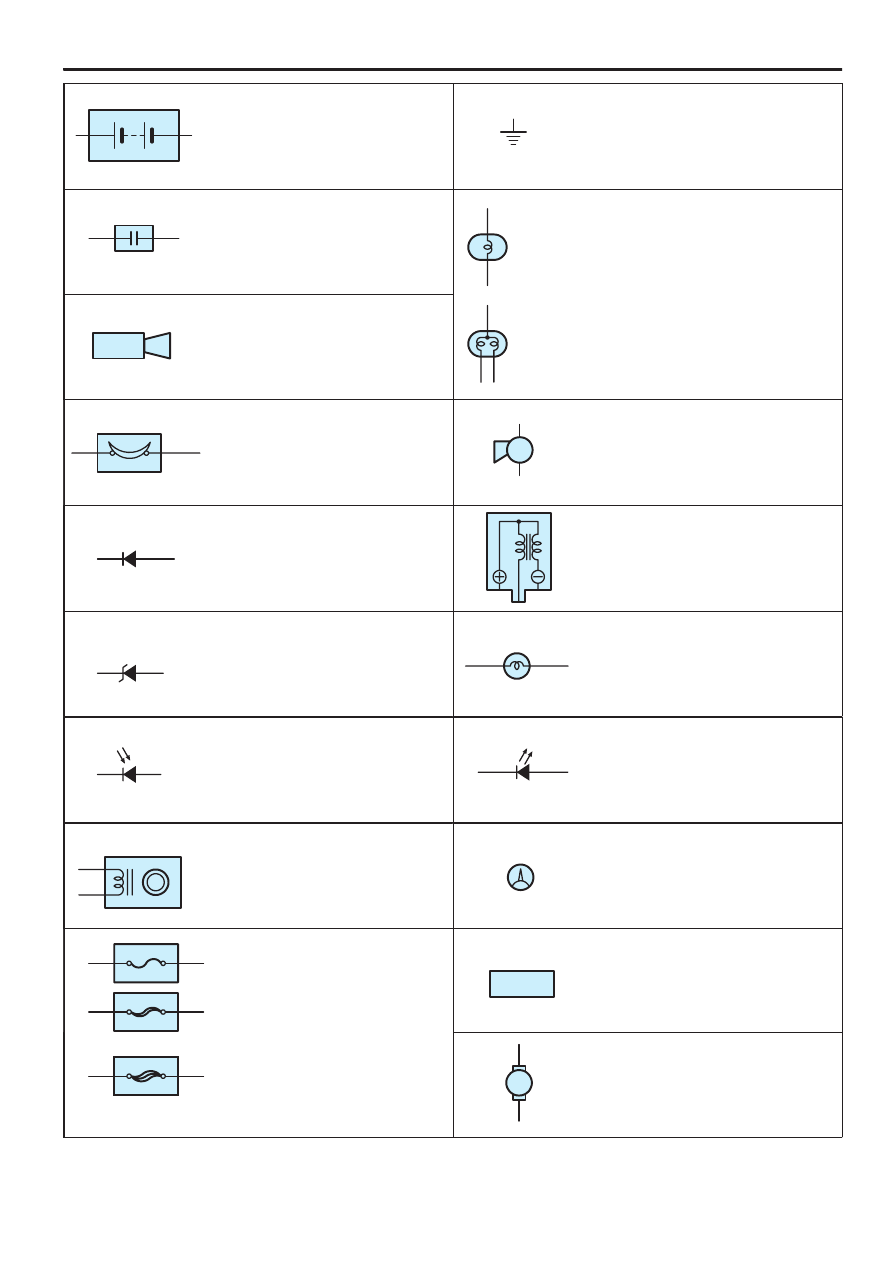

BATTERY

Stores chemical energy and
converts it into electrical energy.
Provides DC current for the auto’s
various electrical circuits.

GROUND

The point at which wiring attaches to
the Body, thereby providing a return
path for an electrical circuit; without a
ground, current cannot flow.

CAPACITOR (Condenser)

A small holding unit for temporary
storage of electrical voltage.

HEADLIGHTS

Current flow causes a headlight
filament to heat up and emit light. A
headlight may have either a single
(1) filament or a double (2) filament

1. SINGLE
FILAMENT

CIGARETTE LIGHTER

An electric resistance heating
element.

2. DOUBLE
FILAMENT

CIRCUIT BREAKER

Basically a reusable fuse, a circuit
breaker will heat and open if too
much current flows through it.
Some units automatically reset when
cool, others must be manually reset.

HORN

An electric device which sounds a
loud audible signal.

DIODE

A semiconductor which allows
current flow in only one direction.

IGNITION COIL

Converts low–voltage DC current
into high–voltage ignition current for
firing the spark plugs.

DIODE, ZENER

A diode which allows current flow in one
direction but blocks reverse flow only up
to a specific voltage. Above that potential,
it passes the excess voltage. This acts as
a simple voltage regulator.

LIGHT

Current flow through a filament
causes the filament to heat up and
emit light.

PHOTODIODE

The photodiode is a semiconductor
which controls the current flow
according to the amount of light.

LED (LIGHT EMITTING DIODE)

Upon current flow, these diodes emit
light without producing the heat of a
comparable light.

DISTRIBUTOR, IIA

Channels high–voltage current from
the ignition coil to the individual
spark plugs.

METER, ANALOG

Current flow activates a magnetic
coil which causes a needle to move,
thereby providing a relative display
against a background calibration.

FUSE

A thin metal strip which burns through
when too much current flows through it,
thereby stopping current flow and
protecting a circuit from damage.

FUSIBLE LINK

METER, DIGITAL

Current flow activates one or many
LED’s, LCD’s, or fluorescent
displays, which provide a relative or
digital display.

FUEL

A heavy–gauge wire placed in high
amperage circuits which burns through on
overloads, thereby protecting the circuit.
The numbers indicate the crosssection
surface area of the wires.

(for Medium Current Fuse)

(for High Current Fuse or
Fusible Link)

MOTOR

A power unit which converts
electrical energy into mechanical
energy, especially rotary motion.

BRZ (G4400GE)

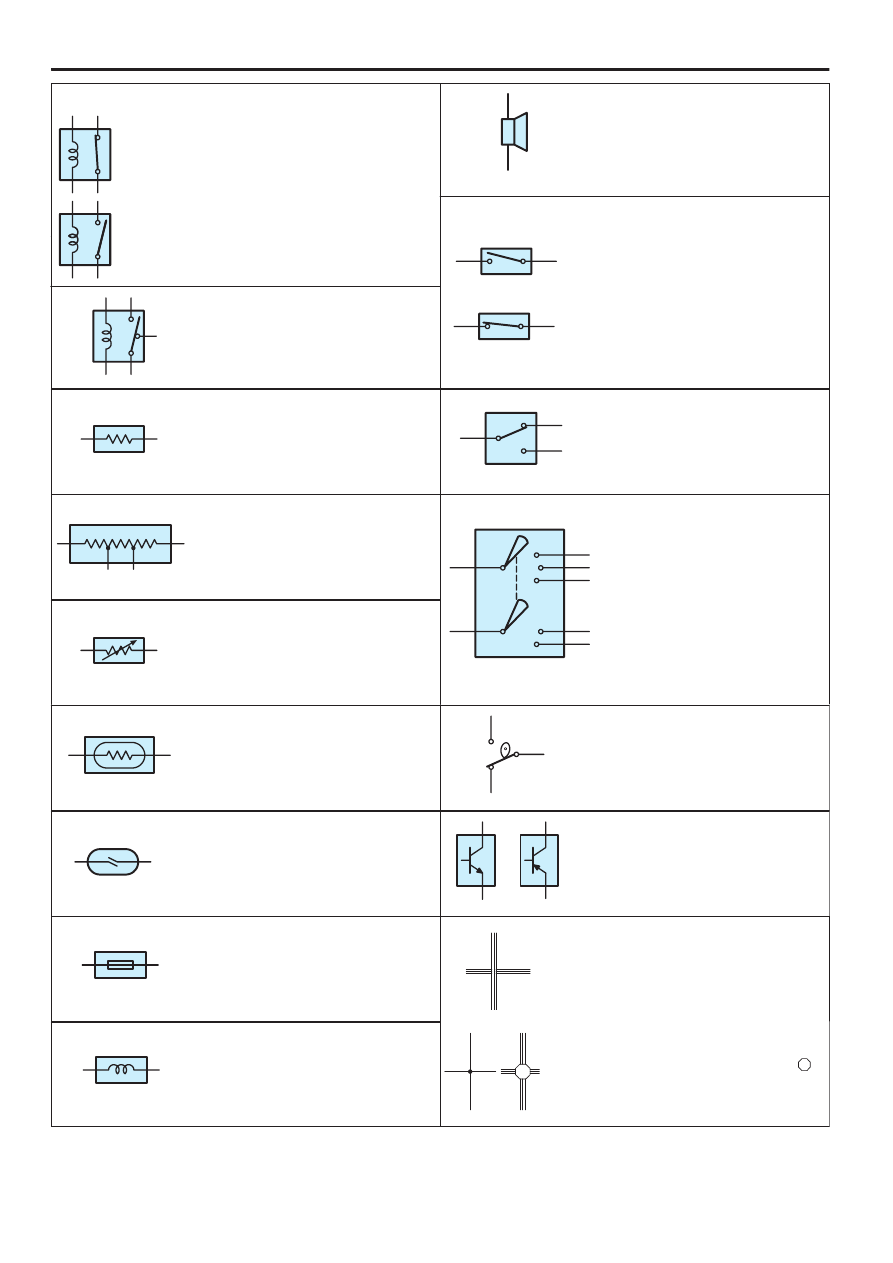

RELAY

Basically, an electrically operated
switch which may be normally
closed (1) or open (2).
Current flow through a small coil
creates a magnetic field which either
opens or closes an attached switch.

1. NORMALLY
CLOSED

2. NORMALLY
OPEN

SWITCH, MANUAL

Opens and closes
circuits, thereby

SPEAKER

An electromechanical device which
creates sound waves from current
flow.

RELAY, DOUBLE THROW

A relay which passes current
through one set of contacts or the
other.

stopping (1) or
allowing (2) current
flow.

1. NORMALLY
OPEN

2. NORMALLY
CLOSED

RESISTOR

An electrical component with a fixed
resistance, placed in a circuit to
reduce voltage to a specific value.

SWITCH, DOUBLE THROW

A switch which continuously passes
current through one set of contacts
or the other.

RESISTOR, TAPPED

A resistor which supplies two or
more different non adjustable
resistance values.

SWITCH, IGNITION

A key operated switch with several
positions which allows various
circuits, particularly the primary
ignition circuit, to become
operational.

RESISTOR, VARIABLE or RHEOSTAT

A controllable resistor with a variable
rate of resistance.
Also called a potentiometer or
rheostat.

SENSOR (Thermistor)

A resistor which varies its resistance
with temperature.

SWITCH, WIPER PARK

Automatically returns wipers to the
stop position when the wiper switch
is turned off.

(Reed Switch Type)

SENSOR, SPEED

Uses magnetic impulses to open
and close a switch to create a signal
for activation of other components.

TRANSISTOR

A solidstate device typically used as
an electronic relay; stops or passes
current depending on the voltage
applied at ”base”.

SHORT PIN

Used to provide an unbroken
connection within a junction block.

WIRES

Wires are always drawn as
straight lines on wiring
diagrams.
Crossed wires (1) without a
black dot at the junction are

(1) NOT

CONNECTED

SOLENOID

An electromagnetic coil which forms
a magnetic field when current flows,
to move a plunger, etc.

not joined;
crossed wires (2) with a
black dot or octagonal ( )
mark at the junction are
spliced (joined)
connections.

(2) SPLICED

BRZ (G4400GE)

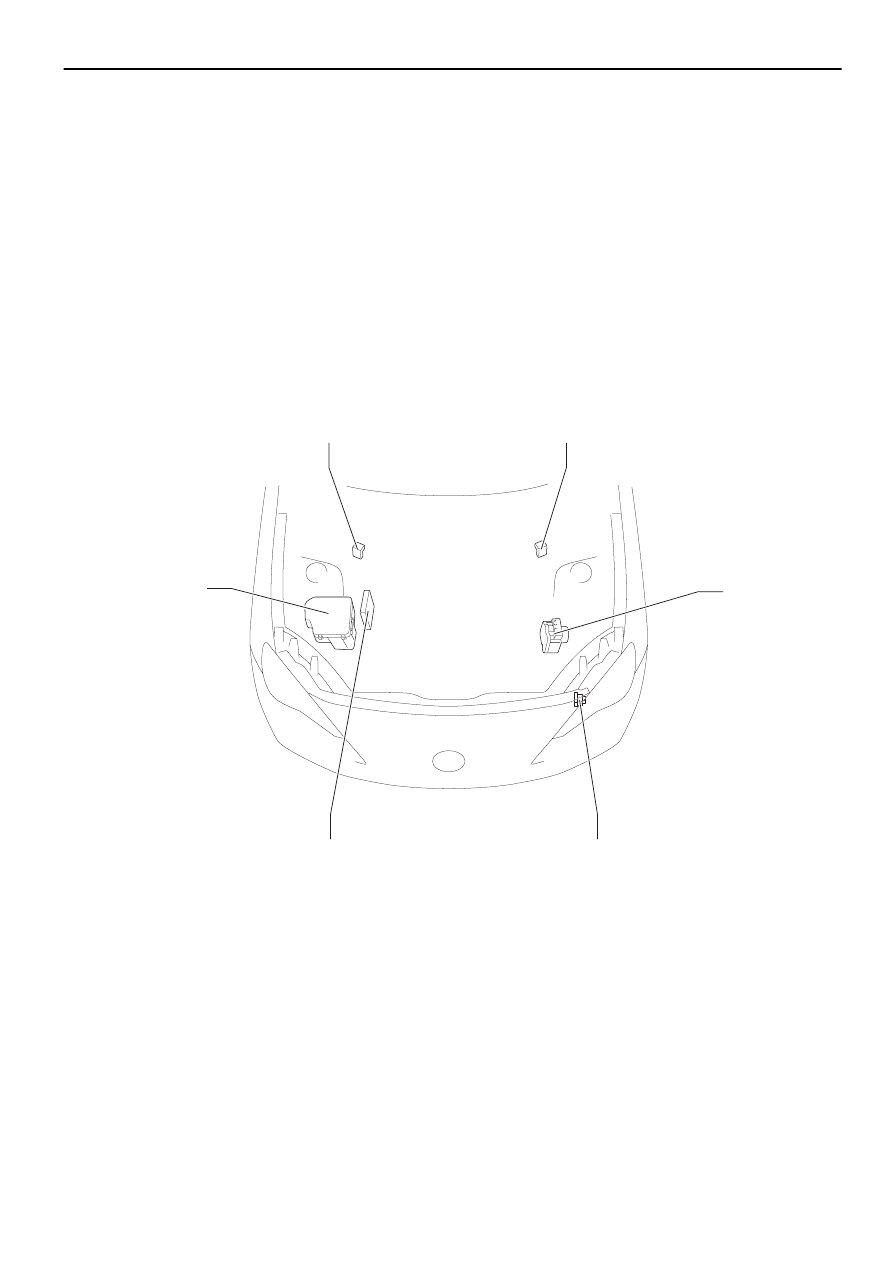

[Engine Compartment]

Engine Room J/B

Engine Room R/B

Headlight Cleaner Control Relay

VSC (VDC)
Control Module

Fusible Link Block
Assembly (LHD)

Fusible Link Block
Assembly (RHD)

Injector Driver (EDU)

F RELAY LOCATIONS
