Differential Gear Oil

PERIODIC MAINTENANCE SERVICES

6) Install the filler plug.
NOTE:

Use a new gasket.
Tightening torque:

49 N·m (5.0 kgf-m, 36.1 ft-lb)

PM-78

Brake Line

PERIODIC MAINTENANCE SERVICES

16.Brake Line

A: INSPECTION

1. BRAKE LINE

1) Check for scratches, swelling, corrosion, traces of fluid leakage on the brake hoses or pipe joints.

2) Make sure that brake pipes/hoses do not interfere with adjacent parts and there is no loose connector/

clamp during driving.

3) Check any trace of fluid leakage, scratches, etc. on master cylinder, wheel cylinder and hydraulic unit.
NOTE:

• When the brake fluid level in the reservoir tank is lower than specified limit, the brake warning light on the

combination meter will illuminate.

• Visually check the brake hose for damage. (Use a mirror where it is difficult to see.)

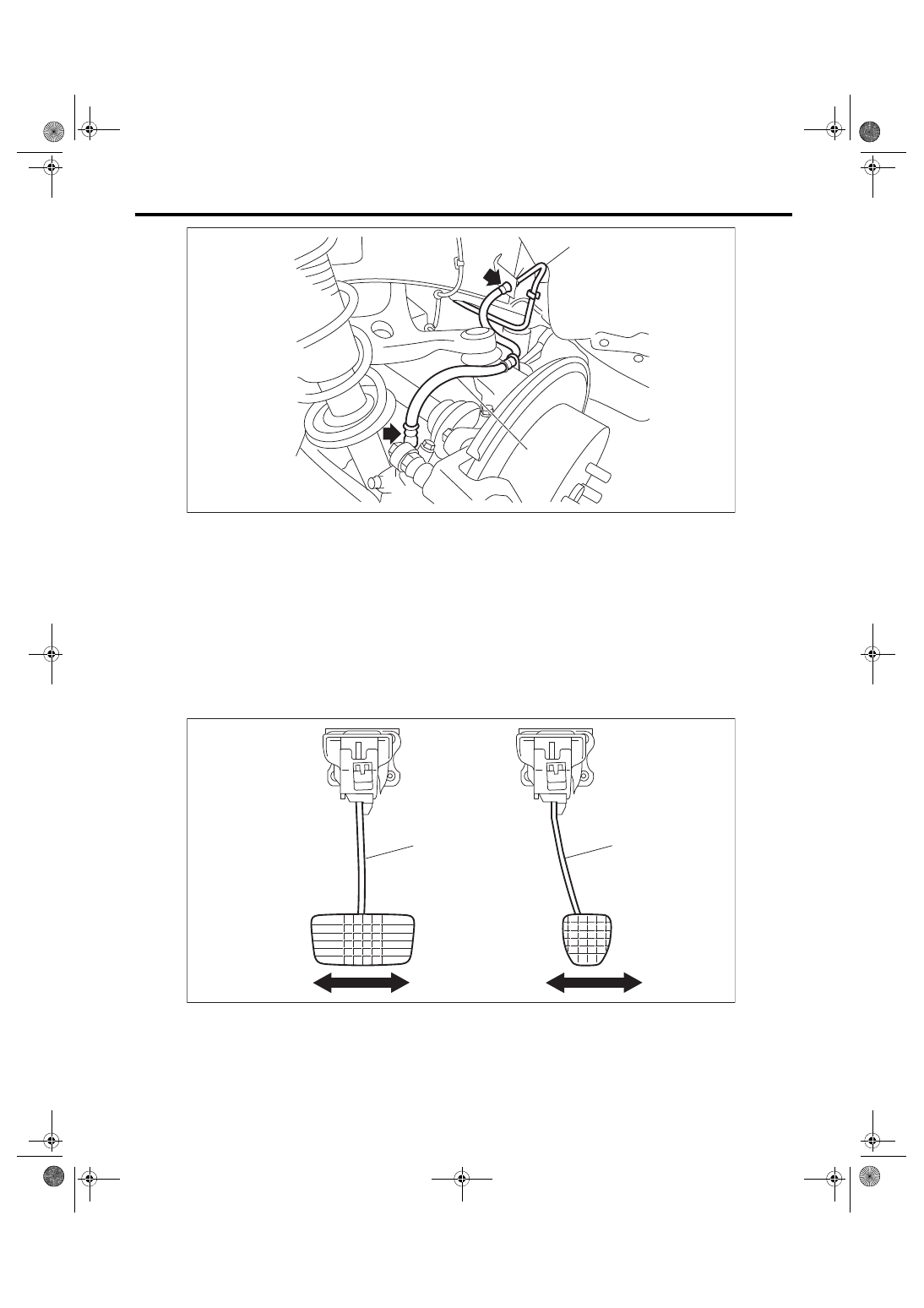

(A) Front brake hose
(B) Front brake pipe

(C) Clamp

PM-00582

(B)

(A)

(C)

PM-79

Brake Line

PERIODIC MAINTENANCE SERVICES

2. SERVICE BRAKE

1) Move the brake pedal pads in a horizontal direction with a force of approx. 10 N (1 kgf, 2 lbf), and check

that the pedal deflection is in the range of specifications.
CAUTION:

If excessive deflection is noted, replace with a new bushing.
Deflection of brake pedal:

Wear limit: 5.0 mm (0.197 in) or less

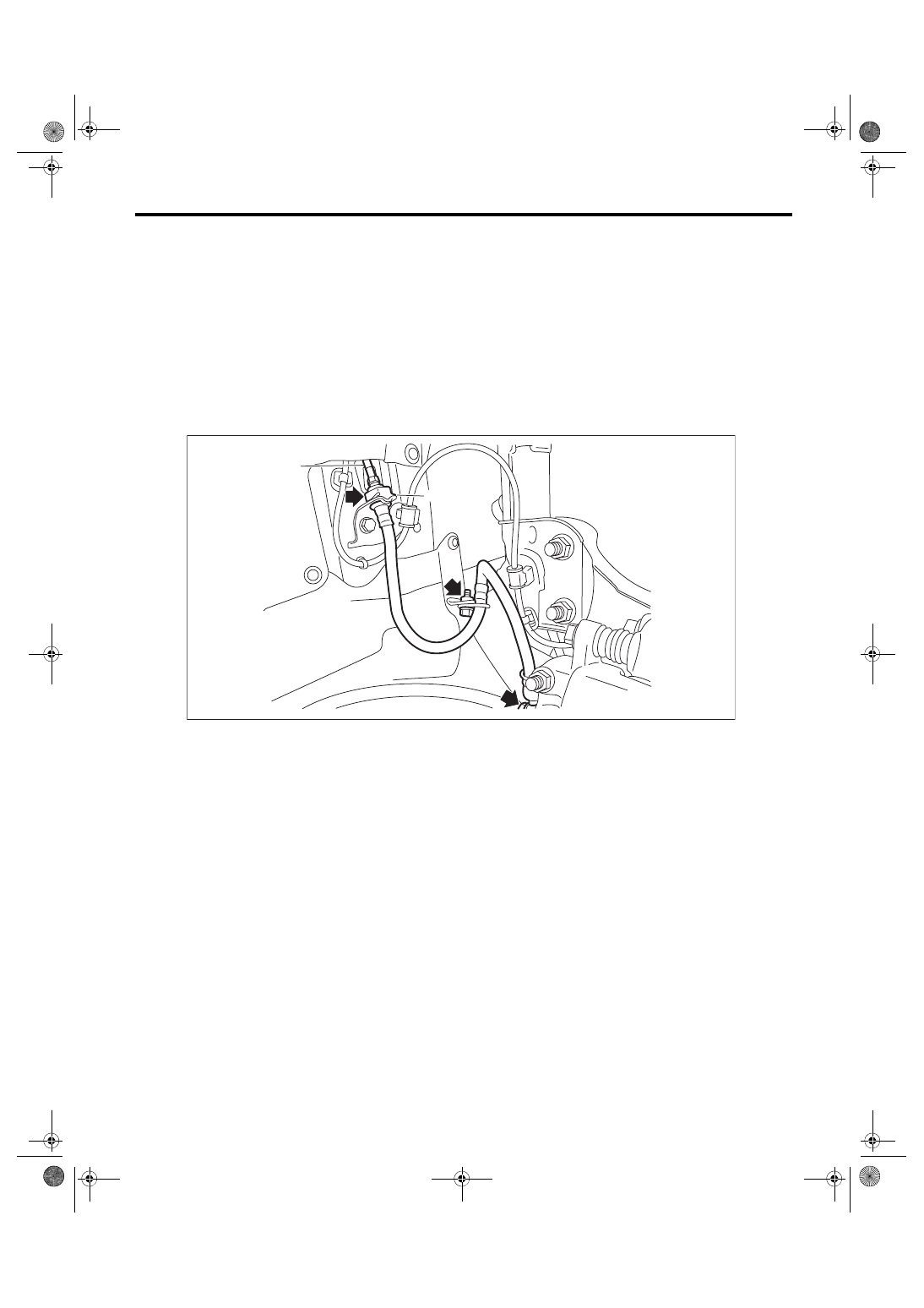

(A) Brake pipe
(B) Rear brake hose

(C) Clamp

(a)

Brake pedal (AT model)

(b)

Brake pedal (MT model)





PM-00583

(C)

(A)

(B)

(a)

(b)

BR-00959

PM-80

Brake Line

PERIODIC MAINTENANCE SERVICES

2) Check the position of the pedal pad.
Pedal height L:

AT: 150 mm (5.90 in)

MT: 145 mm (5.71 in)

Brake pedal free play A:

0.5 — 2 mm (0.020 — 0.079 in) [When pulling the brake pedal upward with a force of less than 10 N

(1 kgf, 2 lbf).]

3) If it is not within the specification, loosen the lock nuts of vacuum booster operating rod, and rotate the rod

to adjust the pedal height L within the specification.

4) Tighten the operating lock nut.
Tightening torque:

22 N·m (2.24 kgf-m, 16.2 ft-lb)

NOTE:

Check the brake pedal height. When adjusting, also adjust the switch - stop light.

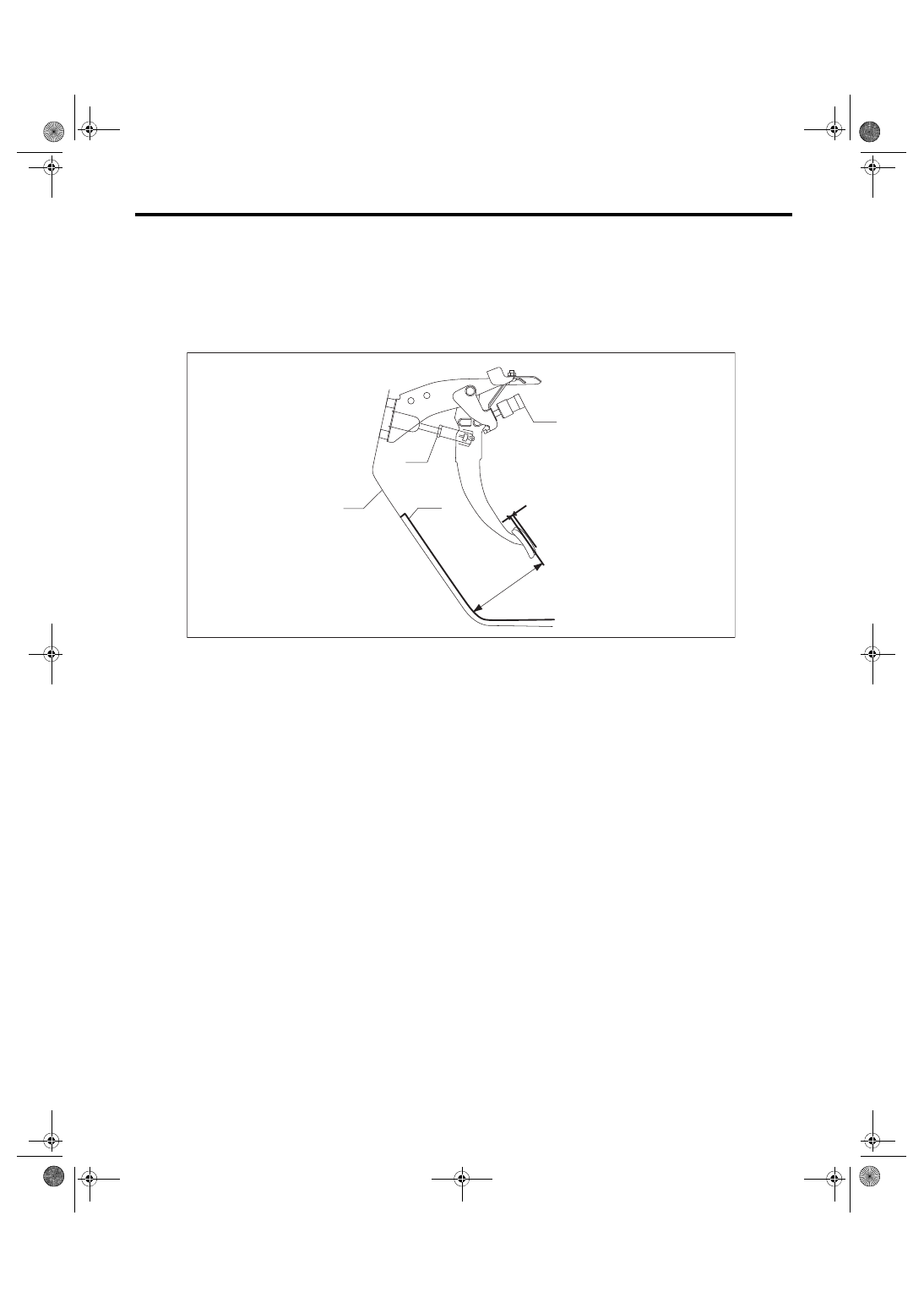

(a)

Switch - stop light

(c)

Toe board

(d)

Brake booster operating rod

(b)

Mat









(a)

(b)

(c)

(d)

L

A

BR-00960
