Subaru Legacy III (2000-2003 year). Manual - part 936

GW-4

GLASS/WINDOWS/MIRRORS

GENERAL DESCRIPTION

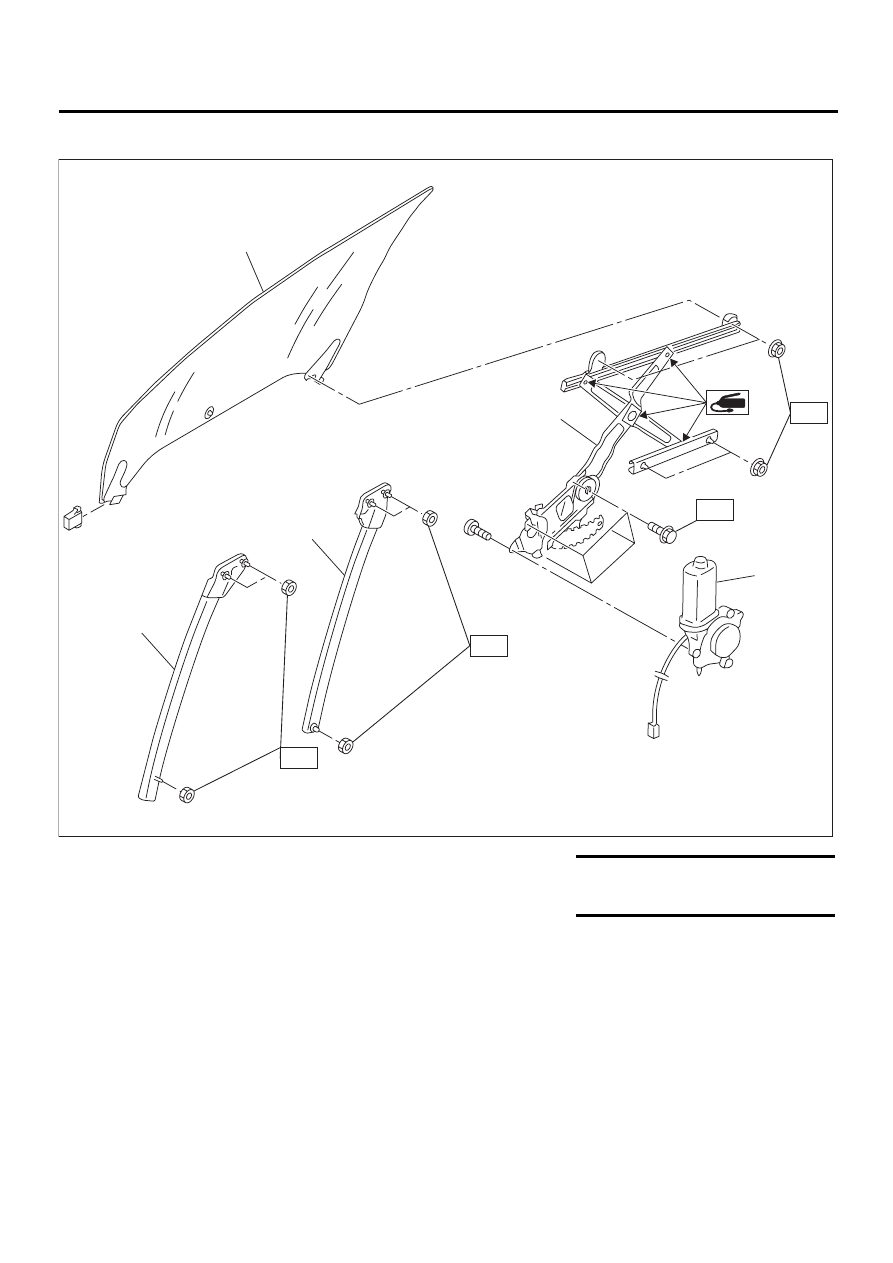

3. FRONT DOOR GLASS

(1)

Glass (4)

Regulator

ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Door sash (Front)

(5)

Motor ASSY

T1: 7.35 (0.75, 5.4)

(3)

Door sash (Rear)

T2: 14 (1.4, 10.1)

GW-00082

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

T1

T1

T2

T2

GW-5

GLASS/WINDOWS/MIRRORS

GENERAL DESCRIPTION

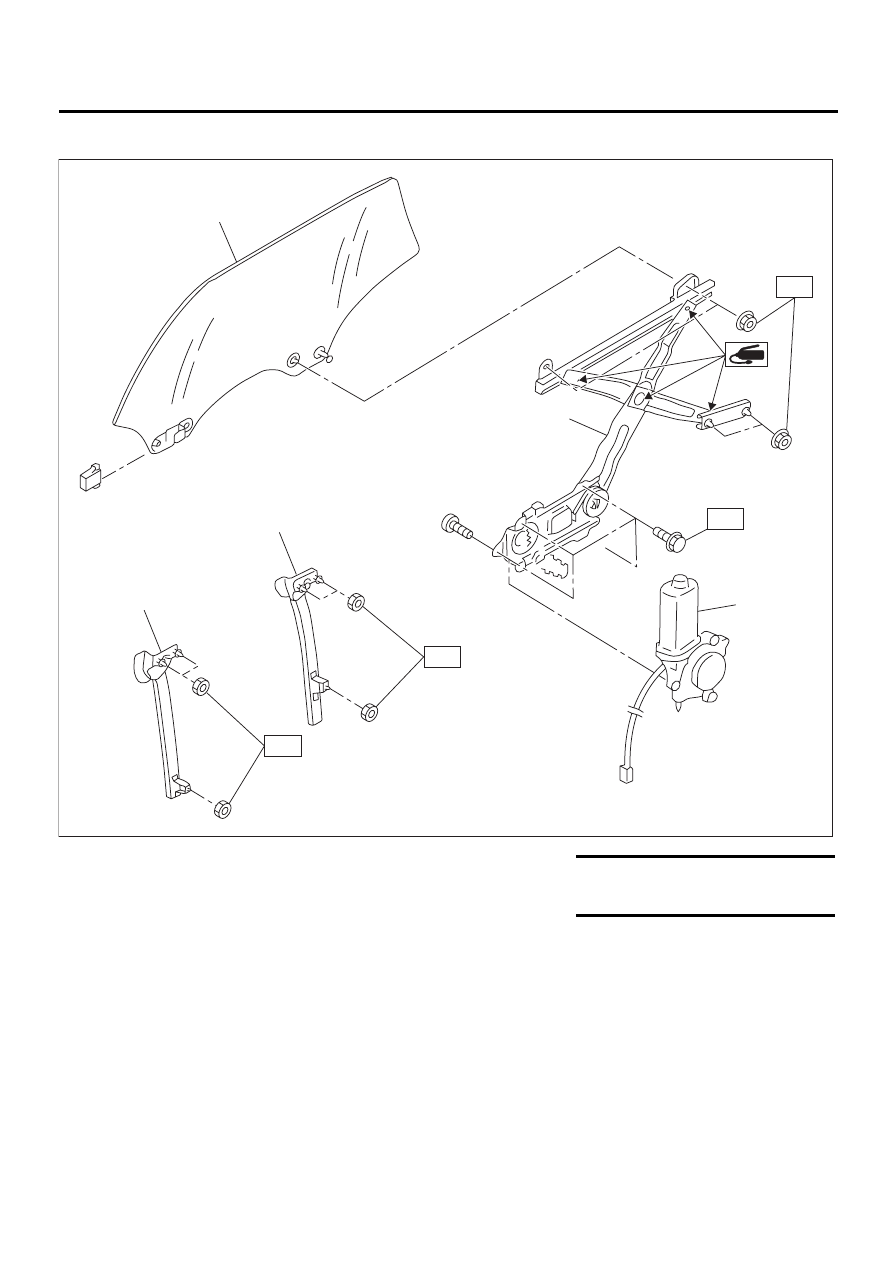

4. REAR DOOR GLASS

(1)

Glass

(4)

Regulator ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Door sash (Front)

(5)

Motor ASSY

T1: 7.35 (0.75, 5.4)

(3)

Door sash (Rear)

T2: 14 (1.4, 10.1)

GW-00083

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

T1

T1

T2

T2

GW-6

GLASS/WINDOWS/MIRRORS

GENERAL DESCRIPTION

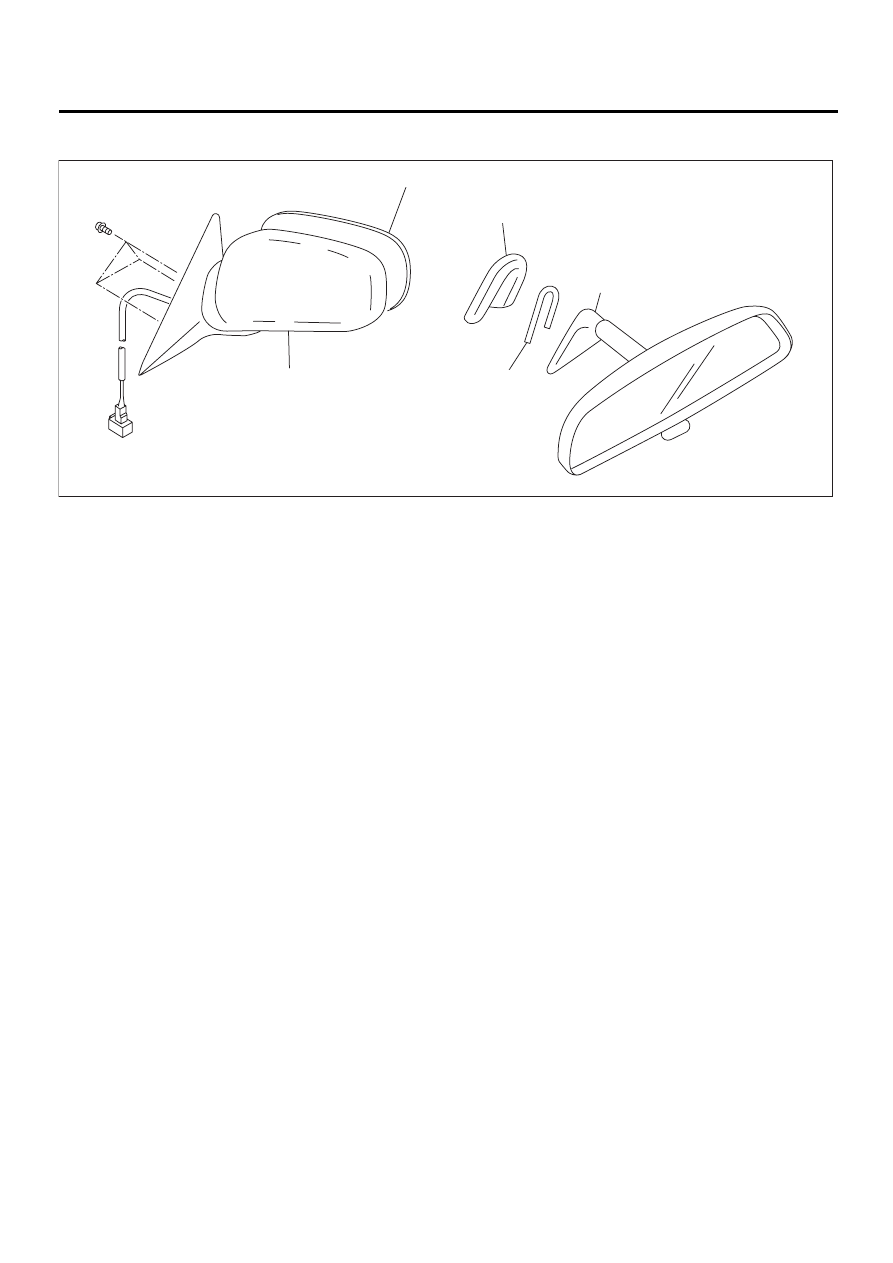

5. MIRRORS

(1)

Outer mirror

(3)

Mount

(5)

Mirror

(2)

Rearview mirror

(4)

Spring

GW-00084

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

GW-7

GLASS/WINDOWS/MIRRORS

GENERAL DESCRIPTION

B: CAUTION

• When electrical connectors are disconnected, always conduct an operational check after connecting them
again.
• Avoid impact and damage to the glass.

C: PREPARATION TOOL

TOOL NAME

REMARKS

Circuit Tester

Used for checking voltage and continuity.

Piano Wire

Used for window glass removal.

Windshield Knife

Used for window glass removal.
