AB-78

AIRBAG SYSTEM (DIAGNOSTICS)

DIAGNOSTIC CHART WITH DIAGNOSTIC TROUBLE CODE (DTC)

MEMO:

SEAT BELT SYSTEM

SB

Page

1.

General Description ....................................................................................2

2.

Inspection Locations After a Collision .........................................................6

3.

Front Seat Belt ............................................................................................7

4.

Rear Seat Belt.............................................................................................9

5.

Disposal of Pretensioner ...........................................................................12

SB-2

SEAT BELT SYSTEM

GENERAL DESCRIPTION

1. General Description

A: COMPONENT

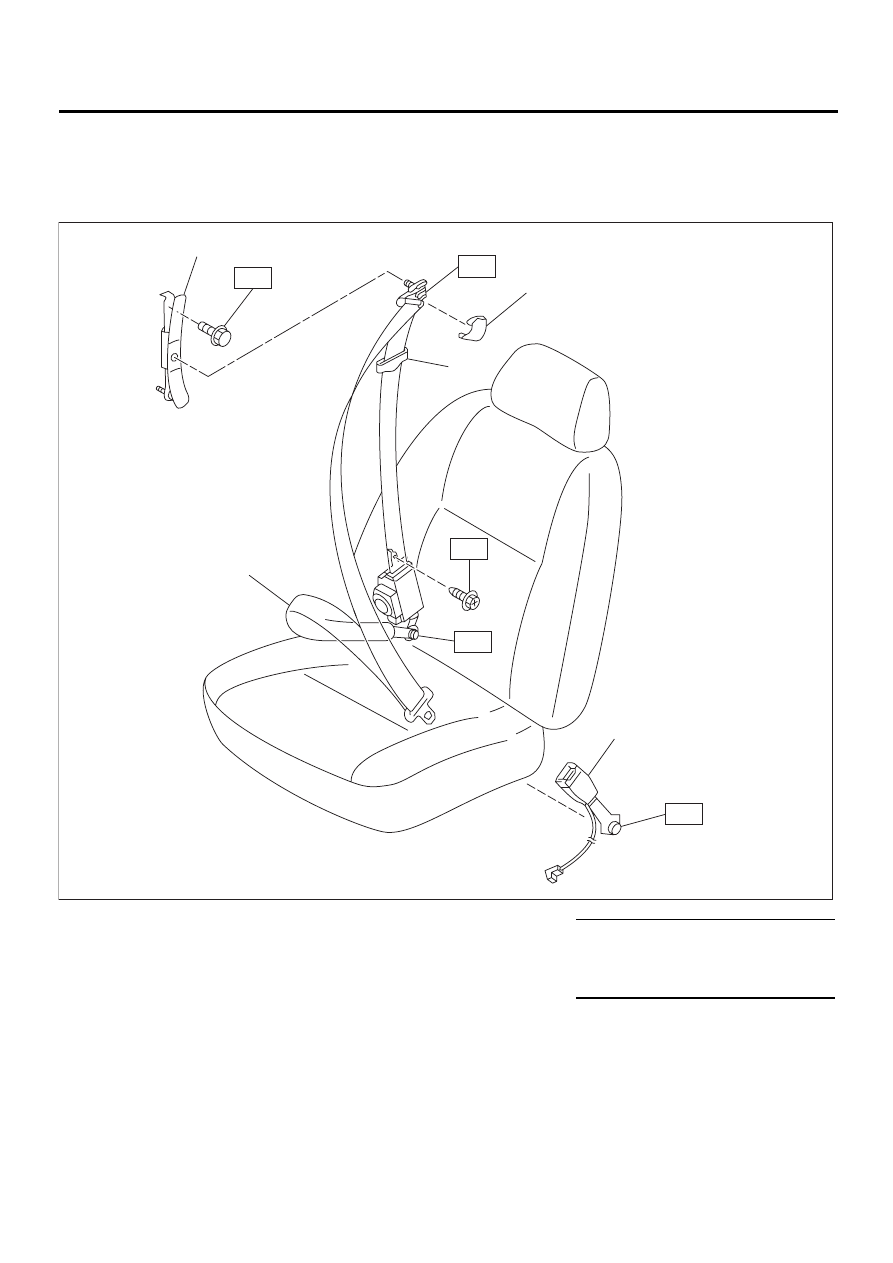

1. FRONT SEAT BELT

(1) Adjuster anchor ASSY

(5) Outer belt ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(2) Anchor cover

T1: 7.5 (0.76, 5.5)

(3) Webbing guide

T2: 30 (3.1, 22)

(4) Inner belt ASSY

T3: 53 (5.4, 39)

SB-00038

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

T2

T2

T1

T2

T3

SB-3

SEAT BELT SYSTEM

GENERAL DESCRIPTION

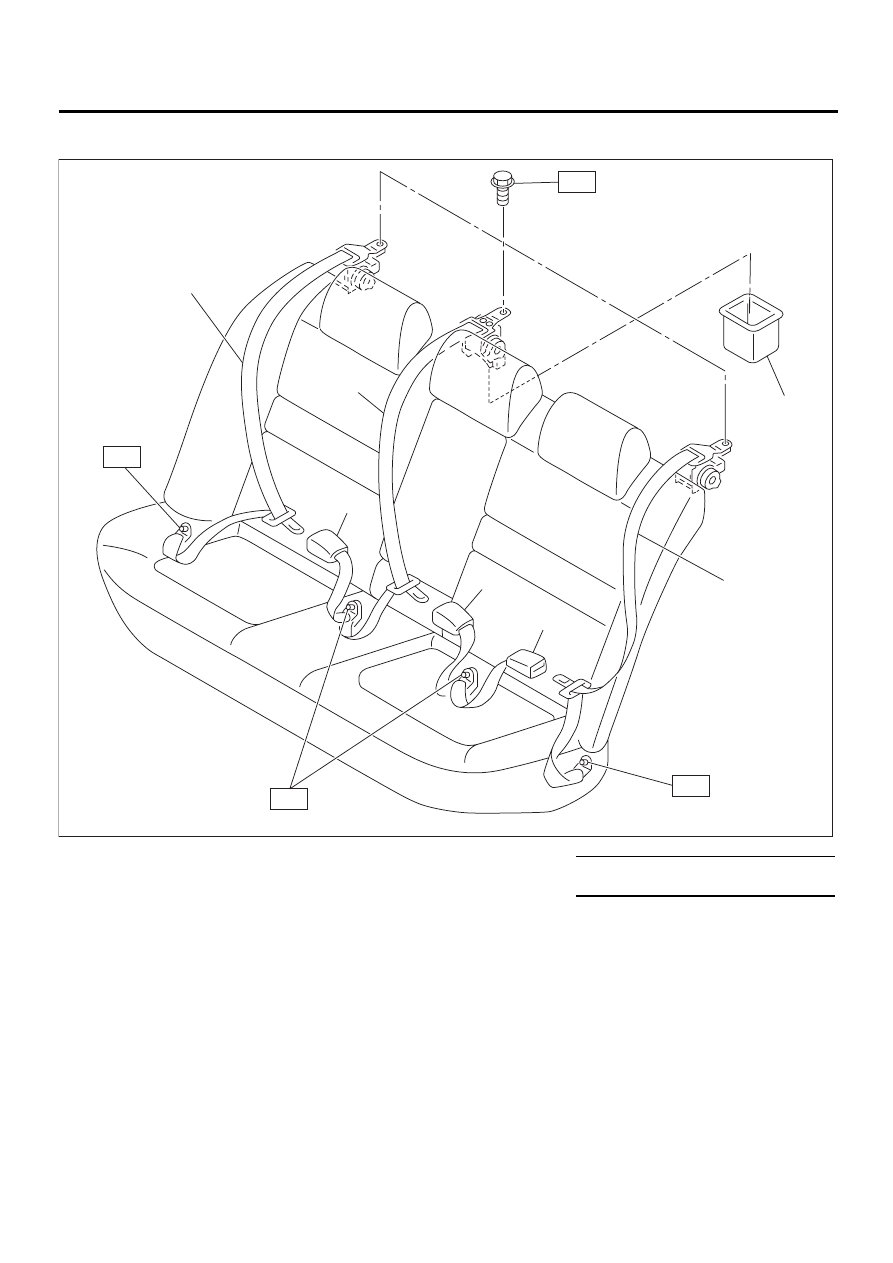

2. REAR SEAT BELT (SEDAN BODY)

(1) Outer seat belt RH

(5) Inner seat belt CENTER

Tightening torque: N·m (kgf-m, ft-lb)

(2) Outer seat belt CENTER

(6) Inner seat belt LH

T: 30 (3.1, 22)

(3) Outer seat belt LH

(7) Case center ELR

(4) Inner seat belt RH

SB-00039

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

T

T

T

T
