AB-6
AIRBAG SYSTEM (DIAGNOSTICS)
GENERAL DESCRIPTION

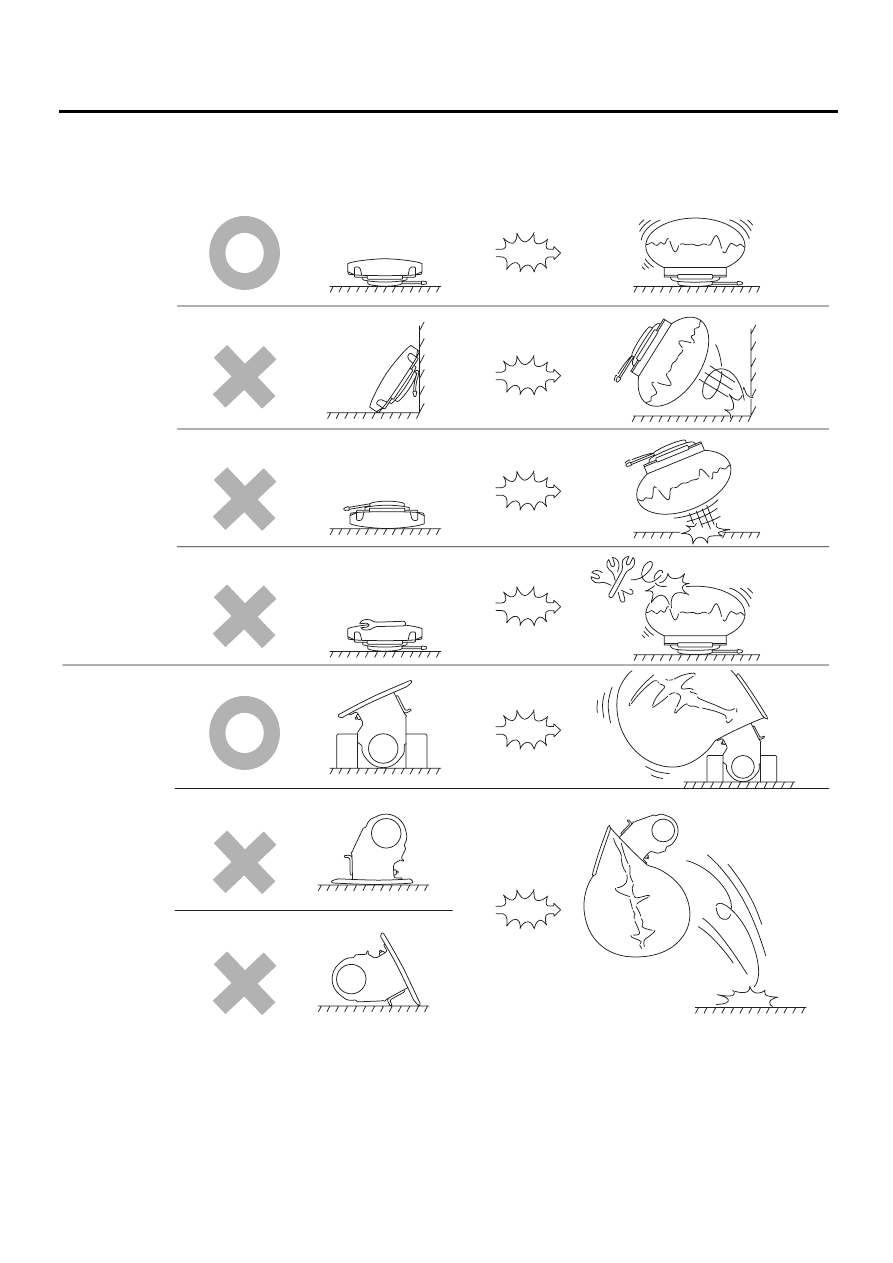

• After removal, keep the airbag module with the
pad facing upward on a dry, clean, and flat surface
away from heat and light sources, and moisture
and dust.
• Do not check continuity of the airbag module
(driver, passenger, and side, pretensioner).
• The removed front seat with the airbag module
must be kept at least 200 mm (8 in) away from walls
and other objects.
• When painting or performing sheet metal work
on the front part of the vehicle, including the front
wheel apron, front fender, and front side frame, re-
move the front sub sensors and wire harness of the
airbag system.
• When painting or performing sheet metal work
on the side of the vehicle, including the side sill,
center pillar, and front and rear doors, remove the
side airbag sensors and wire harness of the airbag
system.
• Do not discard undeployed airbag modules.
They could easily cause a serious accident if acci-
dentally deployed.
• Do not damage the airbag module or drop it.
(1) More than 200 mm (8 in)
AB-00056
AB-00006
AB-00128
( 1 )
AB-00129
