HVAC SYSTEM (AUTO A/C) (DIAGNOSTICS)

SYMPTOM RELATED DIAGNOSTIC

MEMO:

AIRBAG SYSTEM

AB

Page

1.

General Description ....................................................................................2

2.

Airbag Connector ........................................................................................8

3.

Inspection Locations After a Collision .......................................................10

4.

Driver's Airbag Module ..............................................................................12

5.

Passenger's Airbag Module ......................................................................13

6.

Side Airbag Module...................................................................................14

7.

Main Harness ............................................................................................15

8.

Side Airbag Harness .................................................................................16

9.

Airbag Control Module ..............................................................................17

10.

Side Airbag Sensor ...................................................................................18

11.

Roll Connector ..........................................................................................19

12.

Front Sub Sensor ......................................................................................20

13.

Front Sub Sensor Harness........................................................................21

14.

Disposal of Airbag Module (Deploying While Installed in Vehicle) ............22

15.

Disposal of Airbag Module (Deploying After Removal from Vehicle) ........26

AB-2

AIRBAG SYSTEM

GENERAL DESCRIPTION

1. General Description

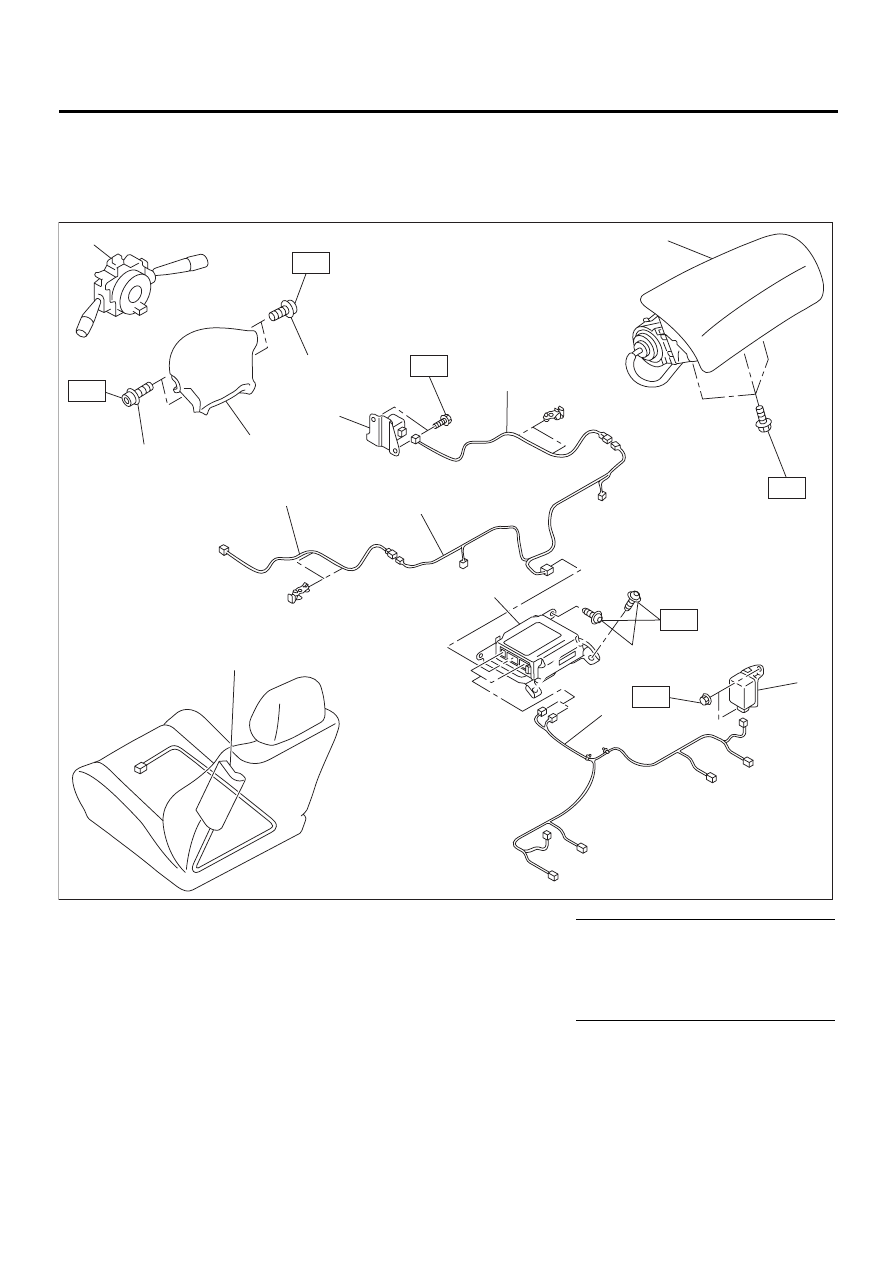

A: COMPONENT

1. SRS AIRBAG

(1) Combination switch ASSY with roll

connector

(7) Side airbag sensor

Tightening torque: N·m (kgf-m, ft-lb)

(8) Side airbag harness

T1: 7.4 (0.75, 5.4)

(2) TORX

®

 bolt T30

(9) Side airbag module

T2: 10 (1.0, 7.2)

(3) Airbag module ASSY (Driver)

(10) Airbag main harness

T3: 20 (2.0, 14.5)

(4) Airbag module ASSY (Passenger)

(11) Front sub sensor harness

T4: 25 (2.5, 18.1)

(5) Airbag control module

(12) Front sub sensor

(6) TORX

®

 bolt T40

AB-00449

( 1 )

( 2 )

( 2 )

( 3 )

( 4 )

( 5 )

( 7 )

( 8 )

( 6 )

( 9 )

(10)

(11)

(12)

T2

T3

T2

T1

T4

T1

( 9 )

AB-3

AIRBAG SYSTEM

GENERAL DESCRIPTION

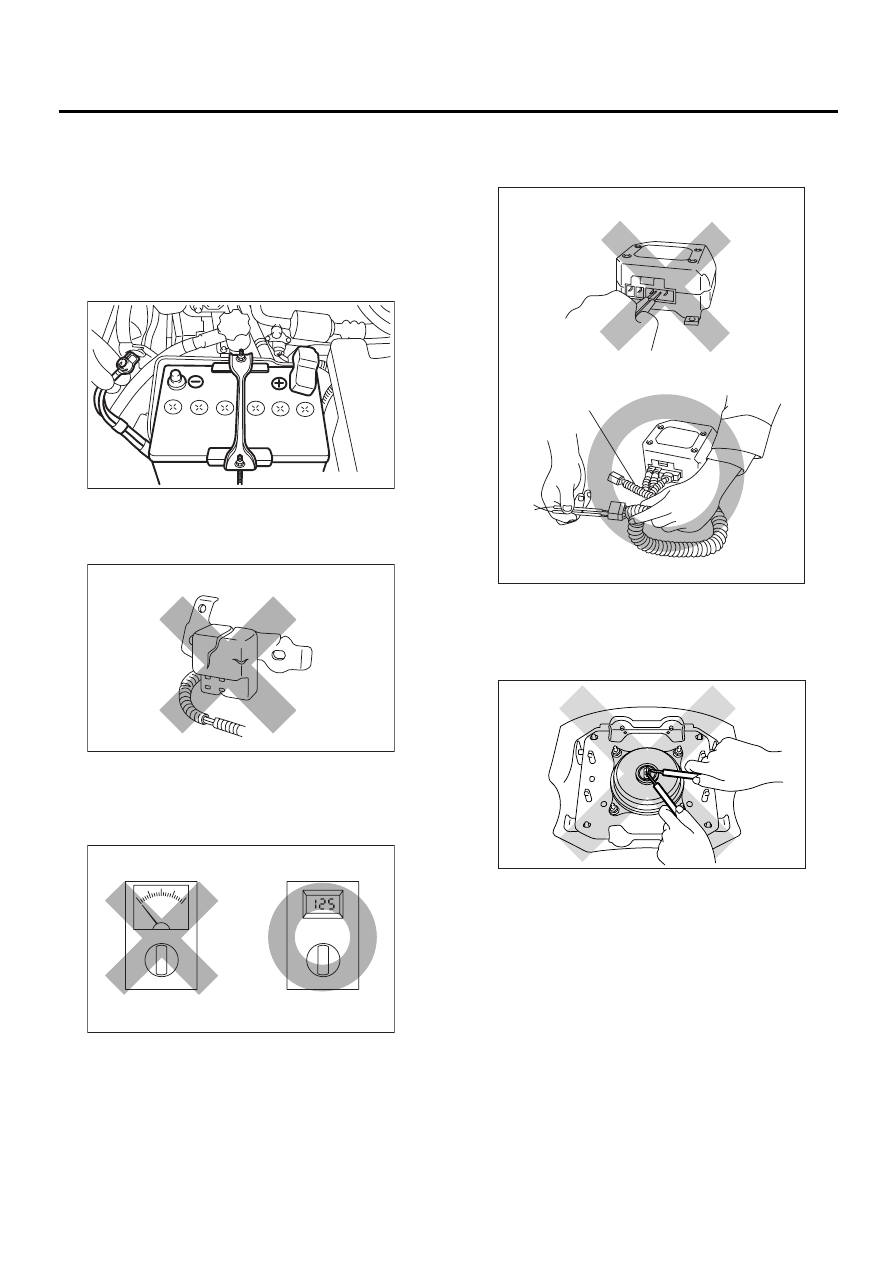

B: CAUTION

• When servicing a vehicle, be sure to turn the ig-
nition switch OFF, disconnect the ground cable
from the battery, and wait for more than 20 seconds
before starting work.
• The airbag system is fitted with a backup power
source. If the airbag system is serviced within 20
seconds after the ground cable is disconnected, it
may inflate.

• If sensors, airbag module, airbag control module,
pretensioner, and harness are deformed or dam-
aged, replace them with new genuine parts.

• When checking the system, be sure to use a dig-
ital circuit tester.
Use of an analog circuit tester may cause the air-
bag to activate erroneously.

• When checking, use a test harness. Do not di-
rectly apply the tester probe to any connector termi-
nal of the airbag.

• Do not check continuity of either of the airbag
modules for, passenger or side, or pretensioner.

AB-00002

AB-00120

AB-00121

(1) Test harness

AB-00122

( 1 )

AB-00006
