VDC (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

19

CHECK VDCCM MOTOR DRIVE TERMINAL.
1) Turn ignition switch OFF.
2) Remove VDC connector cover. <Ref. to

VDC-19, REMOVE, VDCCM Connector
Cover.>

3) Connect all connectors.
4) Install motor relay and valve relay to relay

box.

5) Operate the ABS check sequence.  <Ref.

to VDC-16, ABS Sequence Control.>

6) Measure voltage between VDCCM connec-

tor terminals.

Connector & terminal

(F87) No. 22 (+) — No. 1 (

−−−−

):

Does the voltage drop from between 10 V
and 13 V to less than 1.5 V, and rise to
between 10 V and 13 V again when carry-
ing out the check sequence?

Drop from 10 — 13 V to less
than 1.5 V, and rise to 10 — 13
V again when carrying out the
check sequence.

Go to step 20.

Replace VDCCM.
<Ref. to VDC-8,
VDC Control Mod-
ule (VDCCM).>

20

CHECK MOTOR OPERATION.
Operate the check sequence.  <Ref. to VDC-
19, VDC Sequence Control.>
Can motor revolution noise (buzz) be heard
when carrying out the check sequence?

Noise heard

Go to step 21.

Replace VDCH/U.
<Ref. to VDC-8,
VDC Control Mod-
ule (VDCCM).>

21

CHECK POOR CONTACT IN CONNECTORS.
Turn ignition switch to OFF.
Is there poor contact in connector between
VDCH/U, relay box and VDCCM?

There is poor contact.

Repair connector.

Go to step 22.

22

CHECK VDCCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the diagnostic trouble code.

Is the same diagnostic trouble code as in
the current diagnosis still being output?

Same DTC indicated.

Replace VDCCM.
<Ref. to VDC-8,
VDC Control Mod-
ule (VDCCM).>

Go to step 23.

23

CHECK ANY OTHER DIAGNOSTIC TROU-
BLE CODES APPEARANCE.
Are other diagnostic trouble codes being out-
put?

Other DTC indicated.

Proceed with the
diagnosis corre-
sponding to the
diagnostic trouble
code.

A temporary poor
contact.

Step

Value

Yes

No

VDC-113

VDC (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

MEMO:

VDC-114

VDC (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

AL:DTC 71 ABNORMAL STEERING ANGLE SENSOR

DIAGNOSIS:
• Faulty steering angle sensor
TROUBLE SYMPTOM:
• ABS does not operate.
• VDC does not operate.

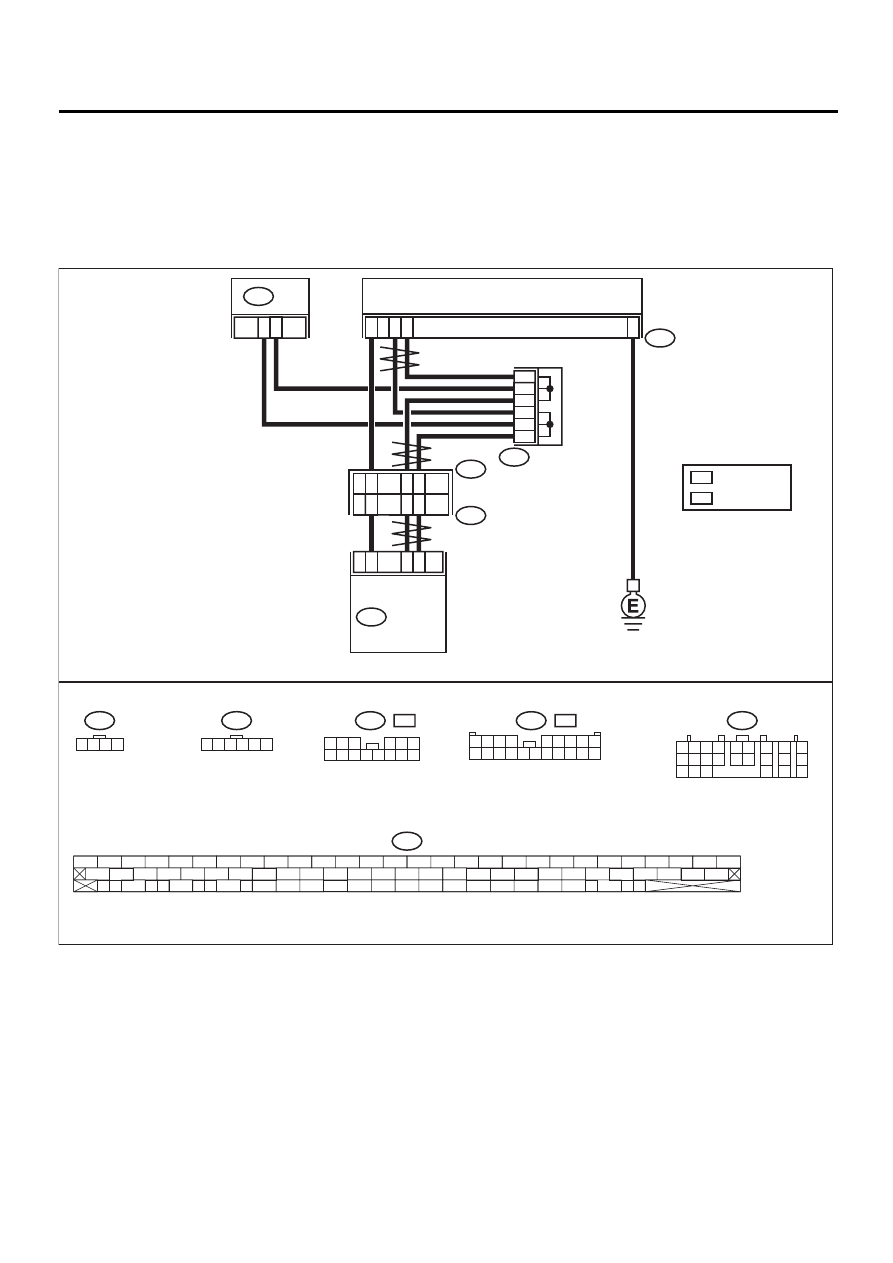

WIRING DIAGRAM:

VDC00178

B234

STEERING ANGLE SENSOR

9

18

4

2

1

3

2
3
1
5
6
4

81

27

83

1

15

R

2

5

9

L

6

B231

VDC

CONTROL

MODULE

F96

B225

F87

B56

1 2

7

8

9

5 6

3 4

10 11 12
19 20 21

13

14 15

16

17

18

22

23

24

B231

1 2 3 4

B234

1 2 3 4 5 6

F87

56 57

59 60

62 63

65

82 83

80

27

28

25

26

23

24

21

22

19

20

17

18

15

16

13

14

11

12

9

10

7

8

5

6

3

4

1

2

54

55

52

53

50

51

81

48

49

46

47

44

45

78

79

76

77

75

42

43

40

41

74

72

73

70

71

39

37

38

35

36

69

67

68

66

33

34

61

64

31

32

29

30

58

B56

TCM

1 2 3

4 5 6

7 8 9 10 11 12 13 14

F96

L

:

F96

R

:

R

L

1 2 3 4

5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20

: RHD MODEL

: LHD MODEL

VDC-115

VDC (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

Step

Value

Yes

No

1

CHECK THE STEERING WHEEL.
1) Drive the vehicle on a flat road.
2) Stop the vehicle in a straight line.
3) Check the angle of steering wheel.

Is the measured value less than the speci-
fied value?

5

°

Go to step 2.

Perform centering
alignment of steer-
ing.

2

CHECK RUNNING FIELD.
Check if the vehicle was driven on banked
road surfaces or sandy surfaces (not dirt road
surfaces).
Was the vehicle driven on banked road sur-
faces or sandy surfaces (not dirt road sur-
faces)?

Driven

Driving on banked
road surfaces or
sandy surfaces
(not dirt road sur-
faces) sometimes
results in a
VDCCM memory
trouble code.

Go to step 3.

3

CHECK POWER SUPPLY OF STEERING AN-
GLE SENSOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from steering angle

sensor.

3) Turn ignition switch to ON.
4) Measure voltage between steering angle

sensor and chassis ground.

Connector & terminal

(B231) No. 4 (

++++

) — Chassis ground (

−−−−

):

Is the measured value within the specified
range?

10 — 15 V

Go to step 6.

Go to step 4.

4

CHECK OUTPUT VOLTAGE OF VDCCM.
1) Turn ignition switch to OFF.
2) Disconnect connector from VDCCM.
3) Remove cover for VDCCM connector.

<Ref. to VDC-19, REMOVE, VDCCM Con-
nector Cover.>

4) Connect connector to VDCCM.
5) Turn ignition switch to ON.
6) Measure voltage between VDCCM and

chassis ground.

Connector & terminal

(F87) No. 27 (

++++

) — Chassis ground (

−−−−

):

Is the measured value within the specified
range?

10 — 15 V

Repair harness
between yaw rate
sensor and
VDCCM.

Go to step 5.

5

CHECK POOR CONTACT IN CONNECTORS.
Is there poor contact in yaw rate sensor con-
nector?

There is poor contact.

Repair or replace
VDCCM connec-
tor.

Replace VDCCM.
<Ref. to VDC-8,
VDC Control Mod-
ule (VDCCM).>

6

CHECK GROUND CIRCUIT OF STEERING
ANGLE SENSOR.
Measure resistance between steering sensor
and chassis ground.

Connector & terminal

(B231) No. 3 — Chassis ground:

Is the measured value less than the specified
value?

0.5

Ω

Go to step 7.

Repair steering
angle sensor
ground harness.
