VDC-28

VDC

REAR ABS SENSOR

9. Rear ABS Sensor

A: NOTE

The ABS sensor installed on VDC equipped vehi-
cles is the same as the one on ABS equipped vehi-
cles. Therefore, for removal, inspection and
installation, refer to “ABS” section.
<Ref. to ABS-15, Rear ABS Sensor.>

VDC-29

VDC

FRONT TONE WHEEL

10.Front Tone Wheel

A: NOTE

As front tone wheel is integrated with front drive
shaft, refer to “DS section” for removal, installation,
and inspection procedures.
<Ref. to DS-28, Front Drive Shaft.>

VDC-30

VDC

REAR TONE WHEEL

11.Rear Tone Wheel

A: NOTE

As rear tone wheel is integrated with rear drive
shaft, refer to “DS section” for removal, installation,
and inspection procedures.
<Ref. to DS-34, Rear Drive Shaft.>

VDC-31

VDC

VDC OFF SWITCH

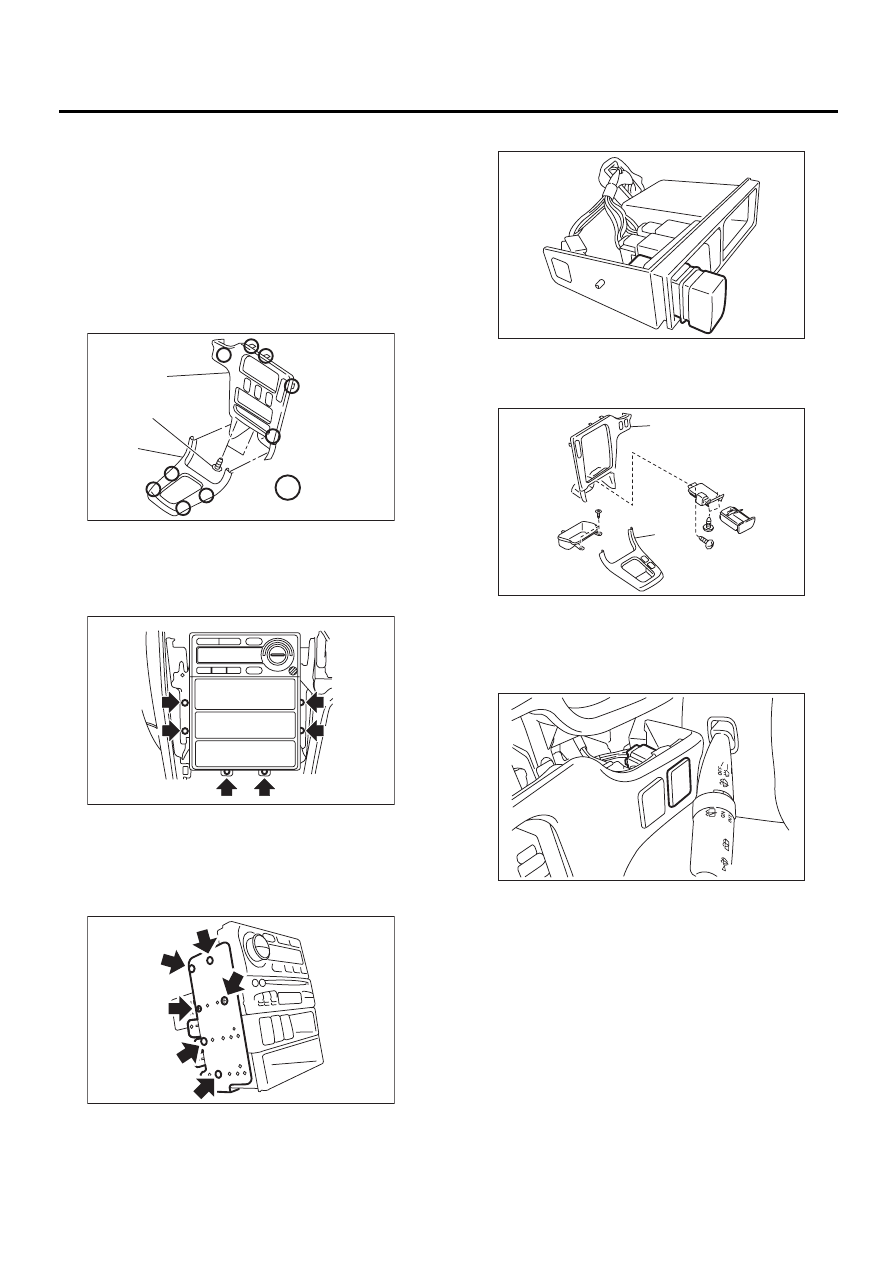

12.VDC Off Switch

A: REMOVAL

1. LHD MODEL

1) Remove screws and clip from instrument panel
lower cover.
2) Remove front cover (A) while disconnecting con-
nector.
3) Remove two screws (B) and then remove center
panel (C) while disconnecting connector.

4) Remove fitting screws, and slightly pull radio and
switch assembly out from center console.

5) Disconnect electric connectors and antenna
feeder cord and then disconnect heater control
unit.
6) Remove screw and detach the bracket and then
remove switch panel.

7) Remove VDC off switch by pushing it outward.

2. RHD MODEL

1) Remove front cover, ash tray and center panel.

2) Remove VDC off switch by pushing it outward.

B: INSTALLATION

Install is in the reverse order of removal.

(1) Hook pawl

VDC00099

:

( A )

( B )

( C )

( 1 )

VDC00100

VDC00101

(1) Center panel

(2) Front cover

VDC00102

VDC00162

( 1 )

( 2 )

VDC00163
