ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH SUBARU SELECT MONITOR

AG:DTC 56 ABNORMAL G SENSOR HIGH

Μ

Μ

Μ

Μ

 OUTPUT

DIAGNOSIS:
• Faulty G sensor output voltage
TROUBLE SYMPTOM:
• ABS does not operate.

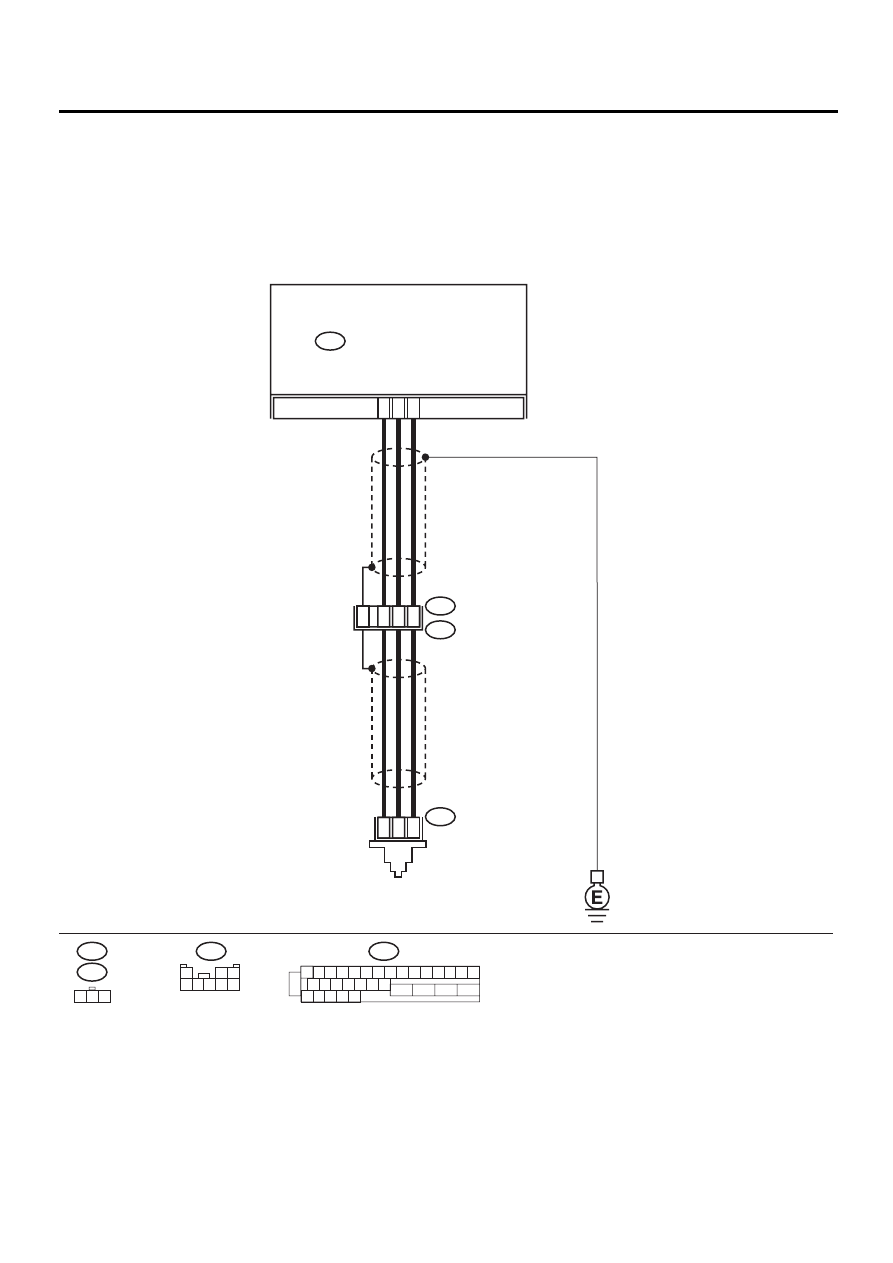

WIRING DIAGRAM:

ABS00312

F55

R70

F62

ABS CONTROL MODULE AND
HYDRAULIC  CONTROL UNIT

ABS

G SENSOR

F49

2

1

3

F49

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22

27 28 29 30 31

23

24

25

26

3

7

6

28

1

2

3

F55

R49

R70

2

8

30

1

2 3

4 5 6 7 8

ABS-143

ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH SUBARU SELECT MONITOR

Step

Value

Yes

No

1

CHECK OUTPUT OF G SENSOR USING SE-
LECT MONITOR.
1) Select “Current data display & Save” on the

select monitor.

2) Read G sensor output on the select monitor

display.
Is the G sensor output on monitor display
within the specified range  when the G sen-
sor is in horizontal position?

2.1 - 2.5 V

Go to step 2.

Go to step 6.

2

CHECK POOR CONTACT IN CONNECTORS.
Turn ignition switch to OFF.
Is there poor contact in connector between
ABSCM&H/U and G sensor?

There is no poor contact.

Go to step 3.

Repair connector.

3

CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the DTC.

Is the same DTC still being output?

Same DTC is not indicated.

Go to step 4.

Replace
ABSCM&H/U.
<Ref. to ABS-6,
ABS Control Mod-
ule and Hydraulic
Control Unit
(ABSCM&H/U).>

4

CHECK ANY OTHER DTC APPEARANCE.
Are other DTC being output?

Other DTC is not indicated.

A temporary poor
contact.

Proceed with the
diagnosis corre-
sponding to the
DTC.

5

CHECK OPEN CIRCUIT IN G SENSOR OUT-
PUT HARNESS AND GROUND HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM&H/U.
3) Measure resistance between ABSCM&H/U

connector terminals.

Connector & terminal

(F49) No. 6 — No. 28:

Is the measured value within the specified
range?

5.0 - 5.6 k

Ω

Go to step 6.

Repair harness/
connector
between G sensor
and ABSCM&H/U.

6

CHECK GROUND SHORT OF HARNESS.
Measure resistance between ABSCM&H/U
connector and chassis ground.

Connector & terminal

(F49) No. 28 — Chassis ground:

Does the measured value exceed the specified
value?

1 M

Ω

Go to step 7.

Repair harness
between G sensor
and ABSCM&H/U.
Replace
ABSCM&H/U.
<Ref. to ABS-6,
ABS Control Mod-
ule and Hydraulic
Control Unit
(ABSCM&H/U).>

7

CHECK G SENSOR.
1) Remove console box.
2) Remove G sensor from vehicle.
3) Connect connector to G sensor.
4) Connect connector to ABSCM&H/U.
5) Turn ignition switch to ON.
6) Measure voltage between G sensor con-

nector terminals.

Connector & terminal

(R70) No. 2 (+) — No. 3 (

−−−−

):

Is the voltage within the specified range
when G sensor is horizontal?

2.1 - 2.5 V

Go to step 8.

Replace G sen-
sor.  <Ref. to ABS-
21, G Sensor.>

ABS-144

ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH SUBARU SELECT MONITOR

8

CHECK G SENSOR.
Measure voltage between G sensor connector
terminals.

Connector & terminal

(R70) No. 2 (+) — No. 3 (

−−−−

):

Is the voltage within the specified range  when
G sensor is inclined forwards to 90

°

?

3.7 - 4.1 V

Go to step 9.

Replace G sen-
sor.  <Ref. to ABS-
21, G Sensor.>

9

CHECK G SENSOR.
Measure voltage between G sensor connector
terminals.

Connector & terminal

(R70) No. 2 (+) — No. 3 (

−−−−

):

Is the voltage within the specified range  when
G sensor is inclined backwards to 90

°

?

0.5 - 0.9 V

Go to step 10.

Replace G sen-
sor.  <Ref. to ABS-
21, G Sensor.>

10

CHECK ABSCM&H/U.
1) Turn ignition switch to OFF.
2) Connect all connectors.
3) Erase the memory.
4) Perform inspection mode.
5) Read out the DTC.

Is the same DTC still being output?

Same DTC is not indicated.

Go to step 11.

Replace
ABSCM&H/U.
<Ref. to ABS-6,
ABS Control Mod-
ule and Hydraulic
Control Unit
(ABSCM&H/U).>

11

CHECK ANY OTHER DTC APPEARANCE.
Are other DTC being output?

Other DTC is not indicated.

A temporary poor
contact.

Proceed with the
diagnosis corre-
sponding to the
DTC.
