ABS-22

ABS (DIAGNOSTICS)

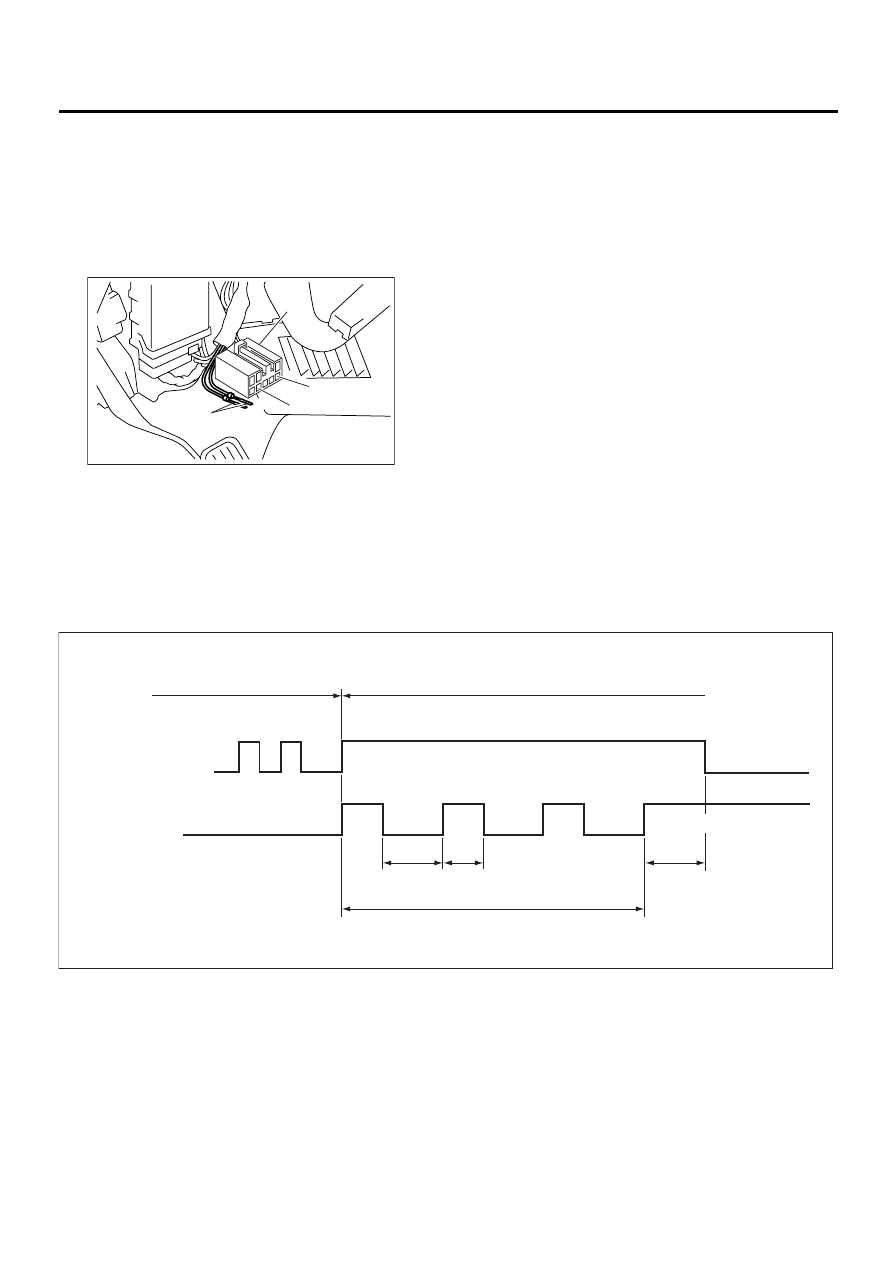

CLEAR MEMORY MODE

9. Clear Memory Mode

A: OPERATION

1. WITHOUT SUBARU SELECT MONITOR

1) After calling up a diagnostic trouble code (DTC),
disconnect diagnosis connector terminal 8 from di-
agnosis terminal.

2) Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 8 and diagnosis termi-
nal for at least 0.2 seconds each time.

NOTE:
After diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after
memory is cleared.

2. WITH SUBARU SELECT MONITOR

Refer to SUBARU SELECT MONITOR for information about how to clear diagnostic trouble codes (DTC).
<Ref. to ABS-16, Subaru Select Monitor.>

(1) Diagnosis connector

(2) Diagnosis terminal

(3) 8 terminal

(4) 5 terminal

( 1 )

( 2 )

( 3 )

( 4 )

ABS00291

ABS00117

0.2 sec
or more

0.2 sec or more

GND(Low level)

1.5 sec

12 sec or less

Terminal 8

ABS warning lamp

Diagnostic trouble code (DTC) indication mode

Memory erase mode

GND open (High level)

ABS-23

ABS (DIAGNOSTICS)

ABS WARNING LIGHT ILLUMINATION PATTERN

10.ABS Warning Light Illumination Pattern

A: INSPECTION

1) When the ABS warning light does not illuminate in accordance with this illumination pattern, there must be
an electrical malfunction.
2) When the ABS warning light remains constantly OFF, repair the ABS warning light circuit or diagnosis cir-
cuit. <Ref. to ABS-28, Diagnostics Chart with Diagnosis Connector.>

NOTE:
Even though the ABS warning light does not go out 1.5 seconds after it illuminates, the ABS system operates
normally when the warning light goes out while driving at approximately 12 km/h (7 MPH). However, the Anti-
lock brakes do not work while the ABS warning light is illuminated.

ABS00118

OFF

Ignition key switch

ABS warning light

Goes out.

Goes out.

Illuminates.

1.5 s

ON

ON

START

ABS-24

ABS (DIAGNOSTICS)

LIST OF DIAGNOSTICS TROUBLE CODE (DTC)

11.List of Diagnostics Trouble Code (DTC)

A: LIST

1. WITHOUT SUBARU SELECT MONITOR

DTC No.

Contents of diagnosis

Index No.

11

Start code
• DTC is shown after start code.
• Only start code is shown in normal condition.

—

21

Abnormal ABS sensor
(Open circuit or input
voltage too high)

Front right ABS sensor

<Ref. to ABS-38, DTC 21 ABNORMAL ABS SENSOR (OPEN
CIRCUIT OR INPUT VOLTAGE TOO HIGH) (FRONT RH),
Diagnostics Chart with Diagnosis Connector.>

23

Front left ABS sensor

<Ref. to ABS-38, DTC 23 ABNORMAL ABS SENSOR (OPEN
CIRCUIT OR INPUT VOLTAGE TOO HIGH) (FRONT LH),
Diagnostics Chart with Diagnosis Connector.>

25

Rear right ABS sensor

<Ref. to ABS-38, DTC 25 ABNORMAL ABS SENSOR (OPEN
CIRCUIT OR INPUT VOLTAGE TOO HIGH) (REAR RH), Diag-
nostics Chart with Diagnosis Connector.>

27

Rear left ABS sensor

<Ref. to ABS-40, DTC 27 ABNORMAL ABS SENSOR (OPEN
CIRCUIT OR INPUT VOLTAGE TOO HIGH) (REAR LH), Diag-
nostics Chart with Diagnosis Connector.>

22

Abnormal ABS sensor
(Abnormal ABS sensor
signal)

Front right ABS sensor

<Ref. to ABS-44, DTC 22 ABNORMAL ABS SENSOR (FRONT
RH), Diagnostics Chart with Diagnosis Connector.>

24

Front left ABS sensor

<Ref. to ABS-44, DTC 24 ABNORMAL ABS SENSOR (FRONT
LH), Diagnostics Chart with Diagnosis Connector.>

26

Rear right ABS sensor

<Ref. to ABS-44, DTC 26 ABNORMAL ABS SENSOR (REAR
RH), Diagnostics Chart with Diagnosis Connector.>

28

Rear left ABS sensor

<Ref. to ABS-46, DTC 28 ABNORMAL ABS SENSOR (REAR
LH), Diagnostics Chart with Diagnosis Connector.>

29

Any one of four

<Ref. to ABS-50, DTC 29 ABNORMAL ABS SENSOR SIGNAL
(ANY ONE OF FOUR), Diagnostics Chart with Diagnosis Con-
nector.>

31

Abnormal solenoid
valve circuit(s) in ABS
control module and
hydraulic unit

Front right inlet valve

<Ref. to ABS-54, DTC 31 ABNORMAL INLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (FRONT RH), Diagnos-
tics Chart with Diagnosis Connector.>

32

Front right outlet valve

<Ref. to ABS-58, DTC 32 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (FRONT RH), Diagnos-
tics Chart with Diagnosis Connector.>

33

Front left inlet valve

<Ref. to ABS-54, DTC 33 ABNORMAL INLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (FRONT LH), Diagnostics
Chart with Diagnosis Connector.>

34

Front left outlet valve

<Ref. to ABS-58, DTC 34 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (FRONT LH), Diagnostics
Chart with Diagnosis Connector.>

35

Rear right inlet valve

<Ref. to ABS-54, DTC 35 ABNORMAL INLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR RH), Diagnostics
Chart with Diagnosis Connector.>

36

Rear right outlet valve

<Ref. to ABS-58, DTC 36 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR RH), Diagnostics
Chart with Diagnosis Connector.>

37

Rear left inlet valve

<Ref. to ABS-56, DTC 37 ABNORMAL INLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR LH), Diagnostics
Chart with Diagnosis Connector.>

38

Rear left outlet valve

<Ref. to ABS-60, DTC 38 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR LH), Diagnostics
Chart with Diagnosis Connector.>

ABS-25

ABS (DIAGNOSTICS)

LIST OF DIAGNOSTICS TROUBLE CODE (DTC)

2. WITH SUBARU SELECT MONITOR

41

Abnormal ABS control module

<Ref. to ABS-62, DTC 41 ABNORMAL ABS CONTROL MOD-
ULE, Diagnostics Chart with Diagnosis Connector.>

42

Source voltage is abnormal.

<Ref. to ABS-64, DTC 42 SOURCE VOLTAGE IS ABNOR-
MAL., Diagnostics Chart with Diagnosis Connector.>

44

A combination of AT control abnormal

<Ref. to ABS-66, DTC 44 A COMBINATION OF AT CONTROL
ABNORMAL, Diagnostics Chart with Diagnosis Connector.>

51

Abnormal valve relay

<Ref. to ABS-70, DTC 51 ABNORMAL VALVE RELAY, Diag-
nostics Chart with Diagnosis Connector.>

52

Abnormal motor and/or motor relay

<Ref. to ABS-72, DTC 52 ABNORMAL MOTOR AND/OR
MOTOR RELAY, Diagnostics Chart with Diagnosis Connec-
tor.>

54

Abnormal stop light switch

<Ref. to ABS-74, DTC 54 ABNORMAL STOP LIGHT SWITCH,
Diagnostics Chart with Diagnosis Connector.>

56

Abnormal G sensor output voltage

<Ref. to ABS-76, DTC 56 ABNORMAL G SENSOR OUTPUT
VOLTAGE, Diagnostics Chart with Diagnosis Connector.>

DTC No.

Display screen

Contents of diagnosis

Index No.

—

Communication for ini-
tializing impossible

Select monitor commu-
nication failure

<Ref. to ABS-80, COMMUNICATION FOR INITIALIZING
IMPOSSIBLE, Diagnostics Chart with Subaru Select Monitor.>

—

No trouble code

Although no diagnostic
trouble code appears
on the select monitor
display, the ABS warn-
ing light remains on.

<Ref. to ABS-83, NO TROUBLE CODE, Diagnostics Chart with
Subaru Select Monitor.>

21

Open or short circuit in
front right ABS sensor
circuit

Open or short circuit in
front right ABS sensor
circuit

<Ref. to ABS-86, DTC 21 OPEN OR SHORT CIRCUIT IN
FRONT RIGHT ABS SENSOR CIRCUIT, Diagnostics Chart
with Subaru Select Monitor.>

22

Front right ABS sensor
abnormal signal

Front right ABS sensor
abnormal signal

<Ref. to ABS-93, DTC 22 FRONT RIGHT ABNORMAL ABS
SENSOR SIGNAL, Diagnostics Chart with Subaru Select Moni-
tor.>

23

Open or short circuit in
front left ABS sensor
circuit

Open or short circuit in
front left ABS sensor
circuit

<Ref. to ABS-86, DTC 23 OPEN OR SHORT CIRCUIT IN
FRONT LEFT ABS SENSOR CIRCUIT, Diagnostics Chart with
Subaru Select Monitor.>

24

Front left ABS sensor
abnormal signal

Front left ABS sensor
abnormal signal

<Ref. to ABS-93, DTC 24 FRONT LEFT ABNORMAL ABS
SENSOR SIGNAL, Diagnostics Chart with Subaru Select Moni-
tor.>

25

Open or short circuit in
rear right ABS sensor
circuit

Open or short circuit in
rear right ABS sensor
circuit

<Ref. to ABS-86, DTC 25 OPEN OR SHORT CIRCUIT IN
REAR RIGHT ABS SENSOR CIRCUIT, Diagnostics Chart with
Subaru Select Monitor.>

26

Rear right ABS sensor
abnormal signal

Rear right ABS sensor
abnormal signal

<Ref. to ABS-93, DTC 26 REAR RIGHT ABNORMAL ABS
SENSOR SIGNAL, Diagnostics Chart with Subaru Select Moni-
tor.>

27

Open or short circuit in
rear left ABS sensor cir-
cuit

Open or short circuit in
rear left ABS sensor cir-
cuit

<Ref. to ABS-88, DTC 27 OPEN OR SHORT CIRCUIT IN
REAR LEFT ABS SENSOR CIRCUIT, Diagnostics Chart with
Subaru Select Monitor.>

28

Rear left ABS sensor
abnormal signal

Rear left ABS sensor
abnormal signal

<Ref. to ABS-94, DTC 28 REAR LEFT ABNORMAL ABS SEN-
SOR SIGNAL, Diagnostics Chart with Subaru Select Monitor.>

29

Abnormal ABS sensor
signal on any one of
four sensor

Abnormal ABS sensor
signal on any one of
four

<Ref. to ABS-100, DTC 29 ABNORMAL ABS SENSOR SIG-
NAL ON ANY ONE OF FOUR SENSOR, Diagnostics Chart
with Subaru Select Monitor.>

31

Front right inlet valve
malfunction

Front right inlet valve
malfunction

<Ref. to ABS-104, DTC 31 FRONT RIGHT INLET VALVE MAL-
FUNCTION, Diagnostics Chart with Subaru Select Monitor.>

32

Front right outlet valve
malfunction

Front right outlet valve
malfunction

<Ref. to ABS-108, DTC 32 FRONT RIGHT OUTLET VALVE
MALFUNCTION, Diagnostics Chart with Subaru Select Moni-
tor.>

DTC No.

Contents of diagnosis

Index No.
