Subaru Legacy III (2000-2003 year). Manual - part 695





ABS-20

ABS

REAR TONE WHEEL

7. Rear Tone Wheel

A: REMOVAL

Refer to Rear Drive Shaft, because rear tone wheel
is integrated with rear drive shaft.
<Ref. to DS-34, REMOVAL, Rear Drive Shaft.>

B: INSTALLATION

Refer to Rear Drive Shaft, because rear tone wheel
is integrated with rear drive shaft.
<Ref. to DS-34, INSTALLATION, Rear Drive
Shaft.>

C: INSPECTION

Visually check tone wheels teeth (44 pieces) for
cracks or dents. If necessary, replace tone wheel
with a new one.

NOTE:
Replace BJ assembly with new one as a single unit
if there are any defects found on tone wheel is unit-
ized with BJ assembly of drive shaft.

ABS-21

ABS

G SENSOR

8. G Sensor

A: REMOVAL

1) Disconnect battery ground cable.

2) Remove console cover.
<Ref. to EI-34, REMOVAL, Console Box.>
3) Disconnect connector from G sensor.
4) Remove G sensor from body.

CAUTION:
Do not drop or bump G sensor.

B: INSTALLATION

1) Install in the reverse order of removal.

NOTE:
Do not install G sensor in the wrong direction.
There is an arrow mark on the sensor showing
which side faces the vehicle front.

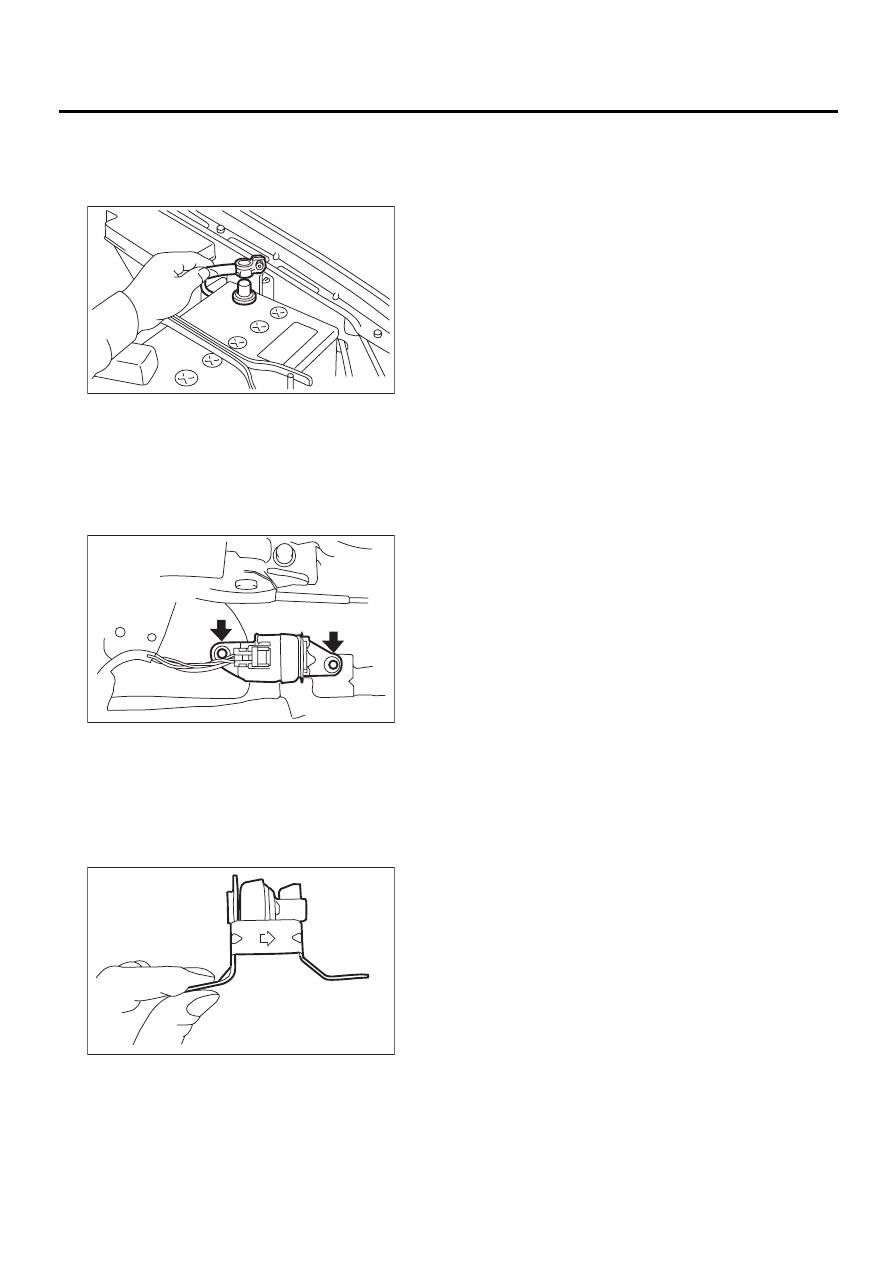

ABS00150

ABS00171

FRONT

ABS00172

ABS-22

ABS

G SENSOR

C: INSPECTION

Step

Value

Yes

No

1

DO YOU HAVE SUBARU SELECT
MONITOR?

Available.

Go to step 5.

Go to step 2.

2

CHECK G SENSOR.
1) Turn ignition switch to OFF.
2) Remove G sensor from vehicle.
3) Connect connector to G sensor.
4) Turn ignition switch to ON.
5) Measure voltage between G sensor con-

nector terminals.

Connector & terminal:

(R70) No. 2 (+) — No. 3 (

−−−−

)

Is the voltage within the specified value
when G sensor is horizontal?

2.1  —  2.5 V

Go to step 3.

Replace G sensor.

3

CHECK G SENSOR.
Measure voltage between G sensor connector
terminals.

Connector & terminal:

(R70) No. 2 (+) — No. 3 (

−−−−

)

Is the voltage within the specified value when
G sensor is inclined forwards to 90

°

?

3.7  — 4.1 V

Go to step 4.

Replace G sensor.

4

CHECK G SENSOR.
Measure voltage between G sensor connector
terminals.

Connector & terminal:

(R70) No. 2 (+) — No. 3 (

−−−−

)

Is the voltage within the specified value when
G sensor is inclined backwards to 90

°

?

0.5 — 0.9 V

G sensor is nor-
mal.

Replace G sensor.

5

CHECK G SENSOR.
1) Turn ignition switch to OFF.
2) Connect select monitor connector to data

link connector.

3) Turn select monitor into {BRAKE CON-

TROL} mode.

4) Set the display in the {Current Data Display

& Save} mode.

5) Read the G sensor output voltage.

Is the indicated reading within the specified
value when the vehicle is in horizontal posi-
tion?

 201 — 2.5 V

Go to step 6.

Replace G sensor.

6

CHECK G SENSOR.
1) Remove console box.
2) Remove G sensor from vehicle. (Do not

disconnect connector.)

3) Read the select monitor display.

Is the voltage within the specified vaue
when G sensor is inclined forwards to 90

°

?

3.7 — 4.1 V

Go to step 7.

Replace G sensor.

7

CHECK G SENSOR.
Read the select monitor display.
Is the voltage within the specified value when
G sensor is inclined backwards to 90

°

?

0.5 — 0.9 V

G sensor is nor-
mal.

Replace G sensor.
