Subaru Legacy III (2000-2003 year). Manual - part 663

DI-6

DIFFERENTIALS

GENERAL DESCRIPTION

B: COMPONENT

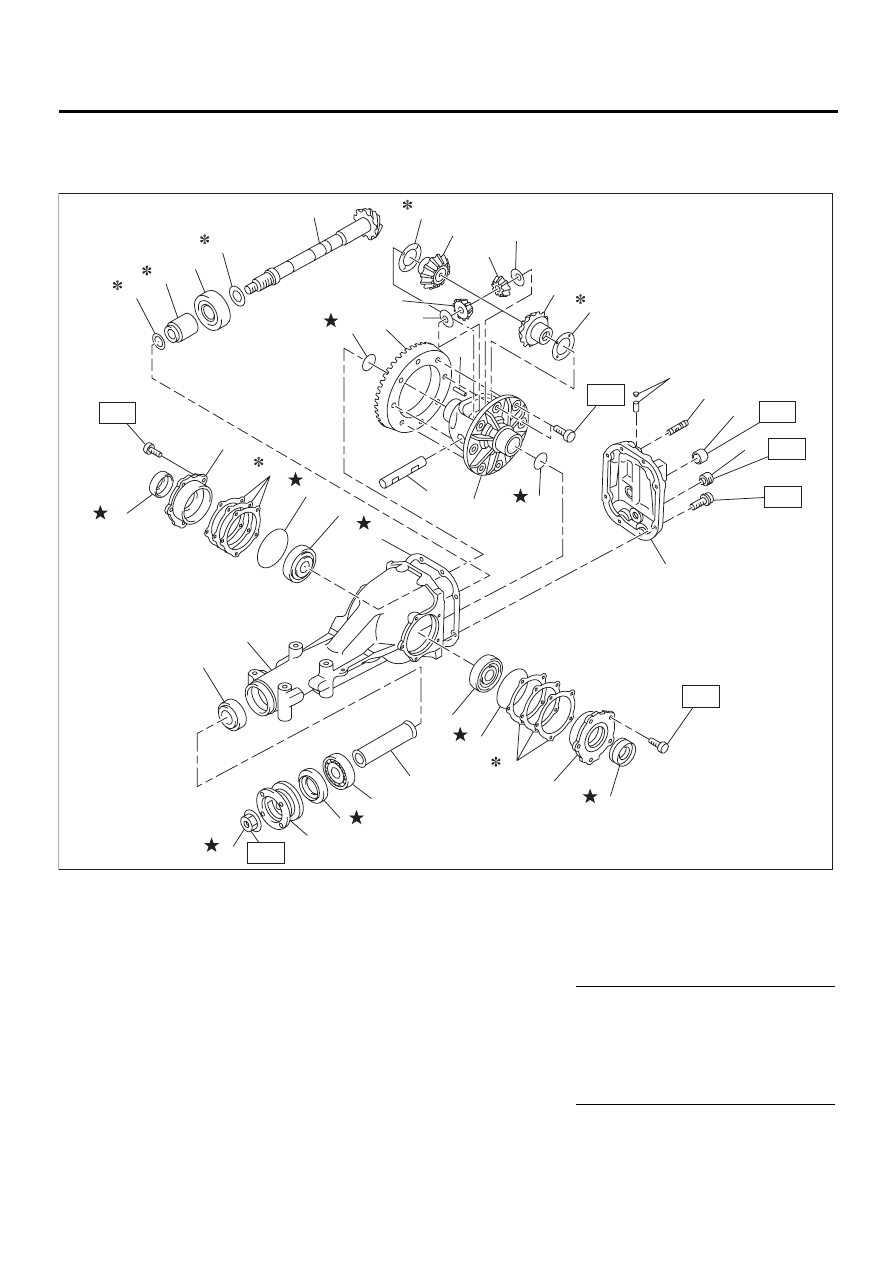

1. REAR DIFFERENTIAL FOR T-TYPE WITHOUT LSD

(1) Pinion crown gear and drive pin-

ion set

(14) O-ring

(28) Oil drain plug

(15) Side bearing retainer shim

(29) Rear cover

(2) Pinion height adjusting washer

(16) Side bearing retainer

(30) Differential case

(3) Rear bearing

(17) Side oil seal

(31) Gasket

(4) Bearing preload adjusting spacer

(18) Side gear thrust washer

(5) Bearing preload adjusting washer

(19) Side gear

Tightening torque: N·m (kgf-m, ft-lb)

(6) Differential carrier

(20) Pinion mate gear

T1: 10.3 (1.05, 7.6)

(7) Front bearing

(21) Pinion mate gear washer

T2: 29.4 (3.00, 21.7)

(8) Collar

(22) Pinion shaft lock pin

T3: 49.0 (5.0, 36.2)

(9) Pilot bearing

(23) Circlip

T4: 103.0 (10.50, 75.9)

(10) Front oil seal

(24) Pinion mate shaft

T5: 181.4 (18.50, 133.8)

(11) Companion flange

(25) Air breather cap

(12) Self-locking nut

(26) Stud bolt

(13) Side bearing

(27) Oil filler plug

DI-00260

( 1 )

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(13)

(14)

(14)

(15)

(15)

(16)

(16)

(17)

(17)

(18)

(18)

(19)

(19)

(20)

(20)

(23)

(21)

(21)

(22)

(24)

(30)

(23)

(25)

(26)

(27)

(28)

(29)

(31)

T1

T2

T3

T3

T4

T5

T1

DI-7

DIFFERENTIALS

GENERAL DESCRIPTION

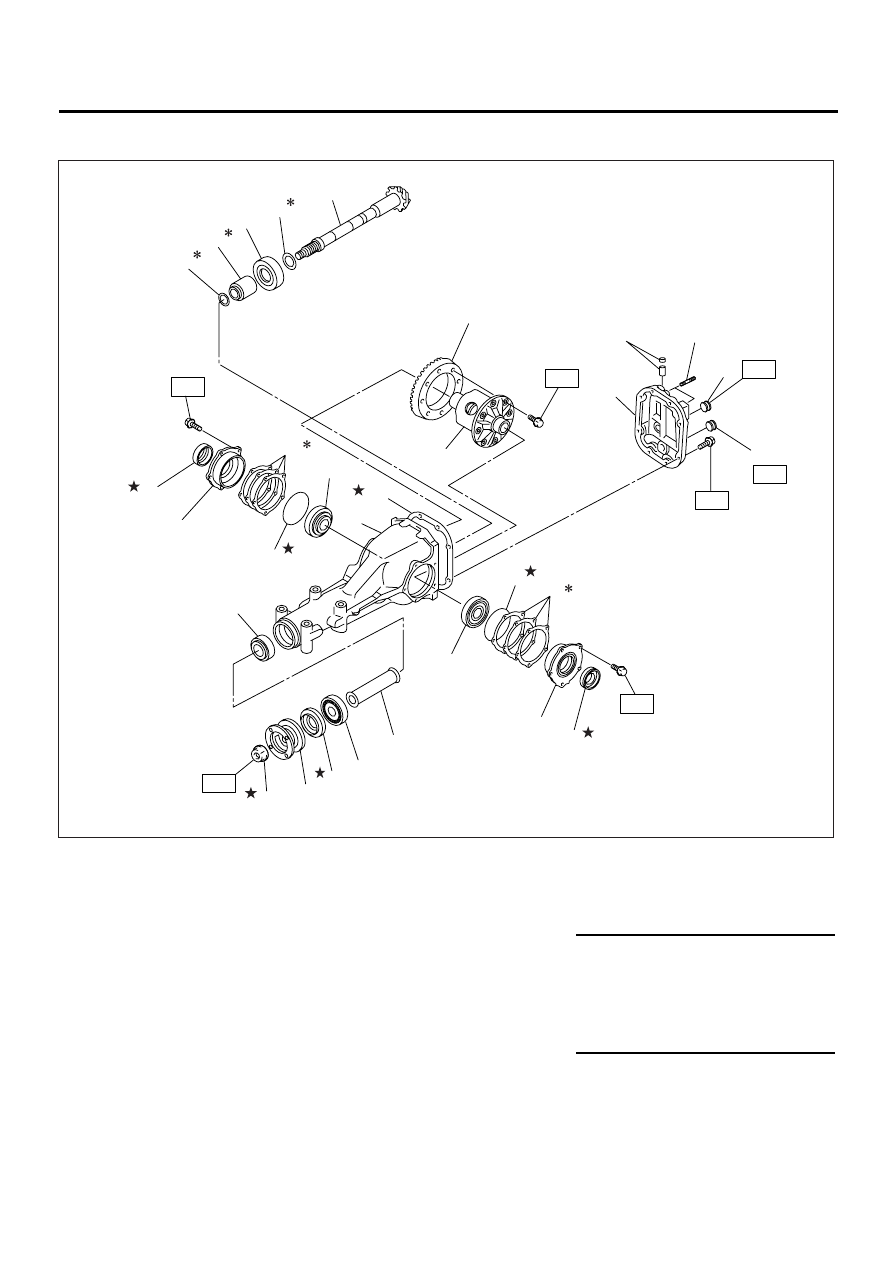

2. REAR DIFFERENTIAL FOR T-TYPE WITH LSD

(1) Pinion crown gear and drive pin-

ion set

(11) Companion flange

(22) Stud bolt

(12) Self-locking nut

(23) Oil filler plug

(2) Pinion height adjusting shim

(13) Side bearing

(24) Oil drain plug

(3) Rear bearing

(14) O-ring

(4) Bearing preload adjusting spacer

(15) Side bearing retainer shim

Tightening torque:N·m (kgf-m, ft-lb)

(5) Bearing preload adjusting washer

(16) Side bearing retainer

T1: 10.3 (1.05, 7.6)

(6) Differential carrier

(17) Side oil seal

T2: 29.4 (3.00, 21.7)

(7) Front bearing

(18) Gasket

T3: 49.0 (5.00, 36.2)

(8) Collar

(19) Differential case

T4: 103.0 (10.50, 75.9)

(9) Pilot bearing

(20) Rear cover

T5: 181.4 (18.50, 133.8)

(10) Front oil seal

(21) Air breather cap

DI-00002

T4

T1

T2

T3

T3

(18)

(14)

(5)

(4)

(1)

(21)

(22)

(23)

(24)

(20)

(19)

(6)

(13)

(16)

(3)

(2)

(1)

(17)

(15)

T1

T5

(13)

(16)

(17)

(12)

(11)

(10)

(9)

(8)

(7)

(14)

(15)

DI-8

DIFFERENTIALS

GENERAL DESCRIPTION

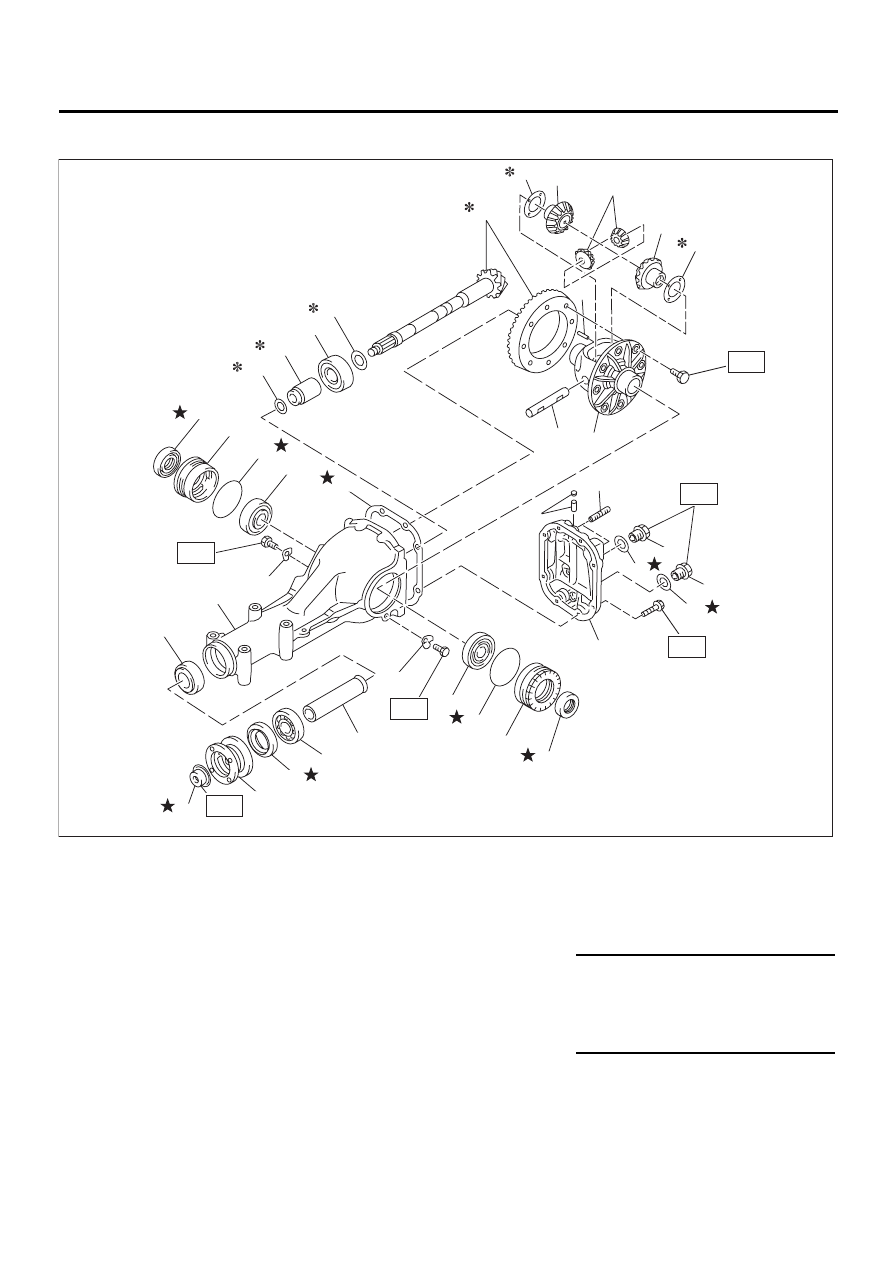

3. REAR DIFFERENTIAL FOR VA-TYPE

(1) Pinion crown gear set

(14) Side bearing

(27) Oil filler plug

(2) Pinion height adjusting shim

(15) O-ring

(28) Oil drain plug

(3) Rear bearing

(16) Axle shaft holder

(29) Rear cover

(4) Bearing preload adjusting spacer

(17) Side oil seal

(30) Gasket

(5) Bearing preload adjusting washer

(18) Side gear thrust washer

(6) Differential carrier

(19) Side gear

Tightening torque:N·m (kgf-m, ft-lb)

(7) Front bearing

(20) Pinion mate gear

T1: 25 (2.5, 18.1)

(8) Collar

(21) Pinion shaft lock pin

T2: 34 (3.5, 25.3)

(9) Pilot bearing

(22) Differential case

T3: 62 (6.3, 45.6)

(10) Front oil seal

(23) Pinion mate shaft

T4: 188 (19.2, 139)

(11) Companion flange

(24) Air breather cap

(12) Self-locking nut

(25) Stud bolt

(13) Lock plate

(26) Gasket

DI-00296

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(13)

(14)

(15)

(16)

(17)

(29)

(26)

(28)

(27)

(26)

(25)

(22)

(23)

(21)

(24)

(14)

(30)

(15)

(16)

(17)

(18)

(18)

(19)

(19)

(20)

T1

T1

T1

T2

T3

T4

DI-9

DIFFERENTIALS

GENERAL DESCRIPTION

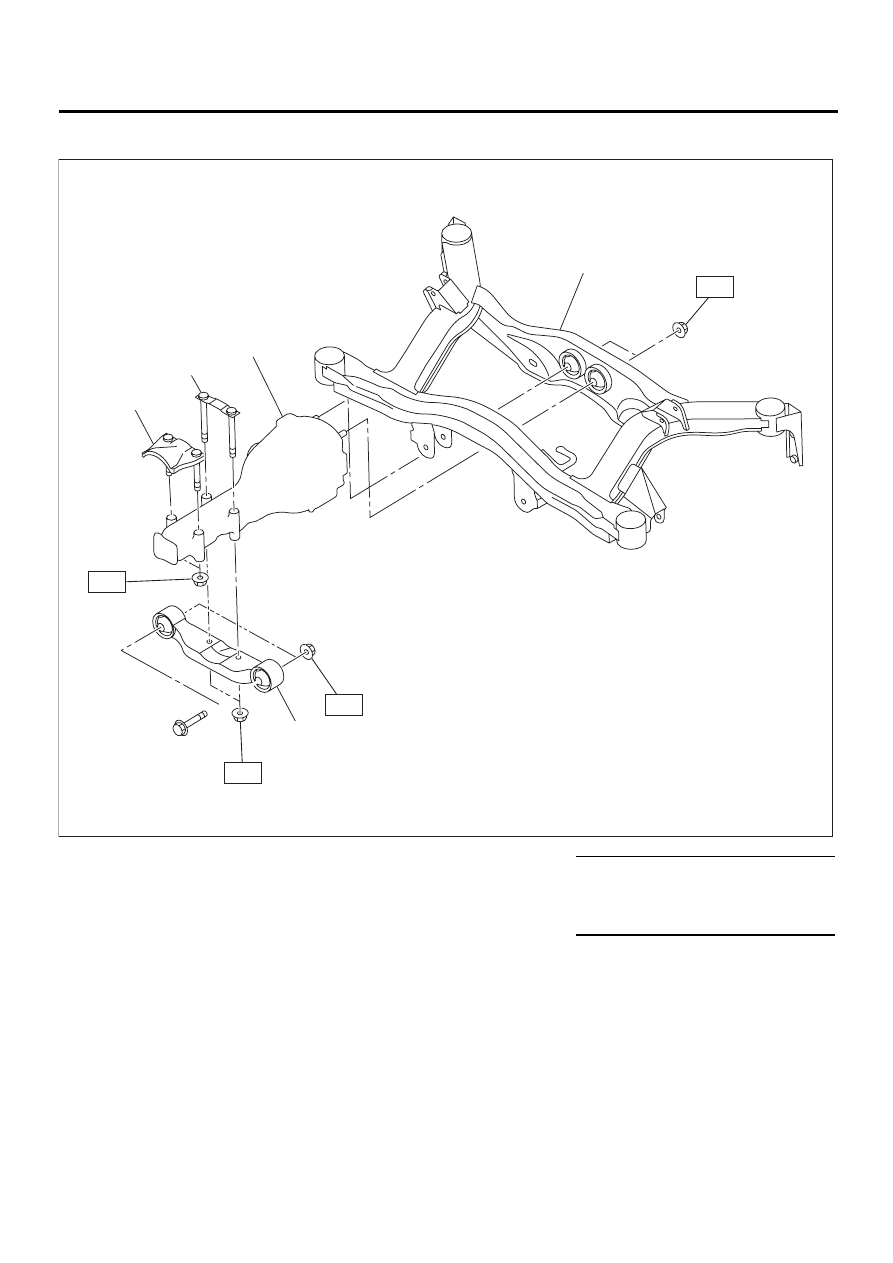

4. REAR DIFFERENTIAL MOUNTING SYSTEM

(1) Rear differential front member

(5) Sub frame

Tightening torque: N·m (kgf-m, ft-lb)

(2) Protector

T1: 65 (6.6, 48)

(3) Rear differential member plate

T2: 70 (7.1, 51)

(4) Rear differential ASSY

T3: 110 (11.2, 81)

DI-00297

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

T2

T3

T1

T1
