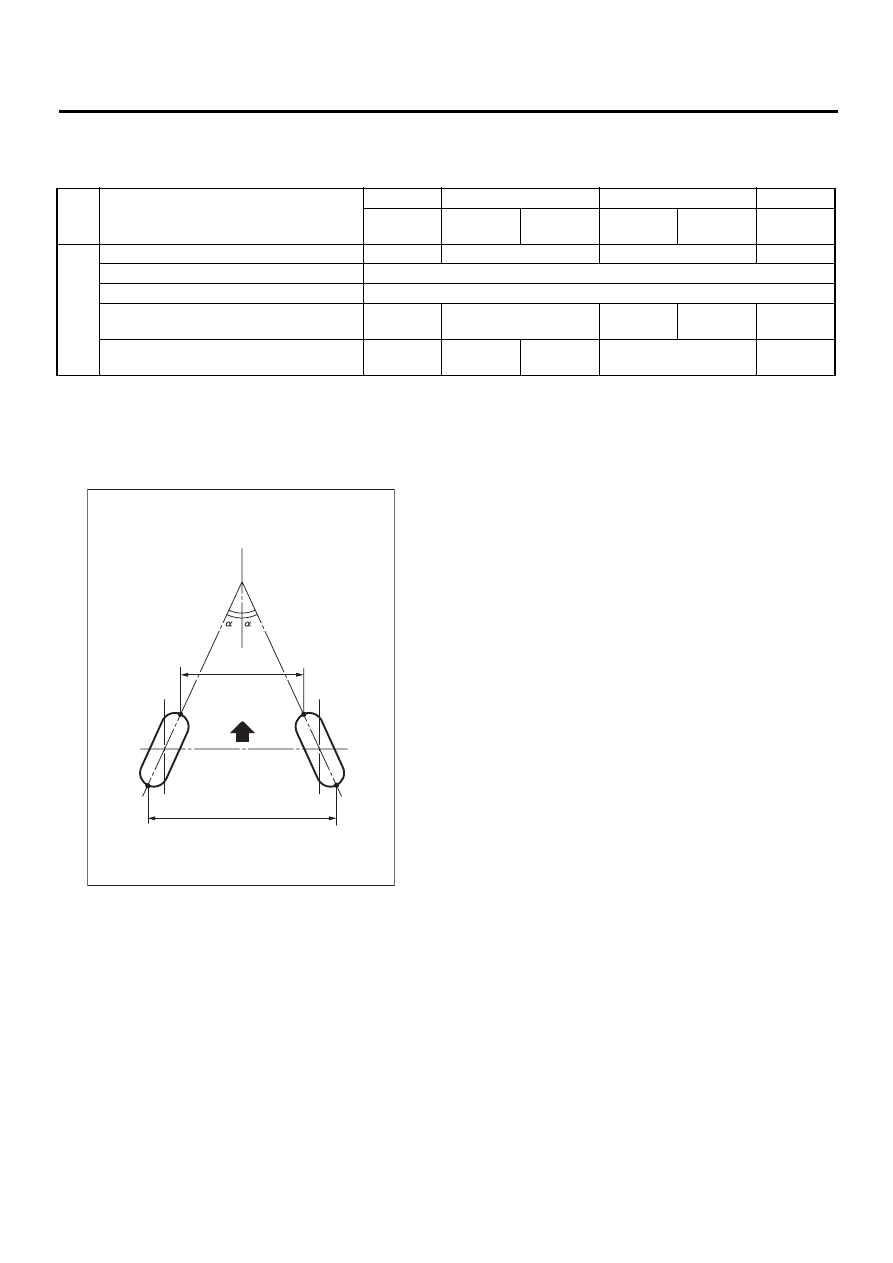

FS-24 FRONT SUSPENSION GENERAL DIAGNOSTIC TABLE 9. General Diagnostic Table A: INSPECTION 1. IMPROPER VEHICLE POSTURE OR IMPROPER WHEEL ARCH HEIGHT 2. POOR RIDE COMFORT 1) Large rebound shock 3. NOISE Possible causes Countermeasures (1) Permanent distortion or breakage of coil spring Replace. (2) Unsmooth operation of damper strut and/or shock absorber Replace. (3) Installation of wrong strut and/or shock absorber Replace with proper parts. (4) Installation of wrong coil spring Replace with proper parts. Possible causes Countermeasures (1) Breakage of coil spring Replace. (2) Overinflation pressure of tire Adjust. (3) Improper wheel arch height Adjust or replace coil springs with new ones. (4) Fault in operation of damper strut and/or shock absorber Replace. (5) Damage or deformation of strut mount and/or shock absorber mount Replace. (6) Unsuitability of maximum and/or minimum length of damper strut and/or Replace with proper parts. (7) Deformation or loss of bushing Replace. (8) Deformation or damage of helper in strut assembly and/or shock Replace. (9) Oil leakage of damper strut and/or shock absorber Replace. Possible causes Countermeasures (1) Wear or damage of damper strut and/or shock absorber component Replace. (2) Loosening of suspension link installing bolt Retighten to the specified torque. (3) Deformation or loss of bushing Replace. (4) Unsuitability of maximum and/or minimum length of damper strut and/or Replace with proper parts. (5) Breakage of coil spring Replace. (6) Wear or damage of ball joint Replace. (7) Deformation of stabilizer clamp Replace. |
