REVERSE CHECK SLEEVE

13.Reverse Check Sleeve

A: REMOVAL

1) Remove the manual transmission assembly
from vehicle. <Ref. to MT-32, REMOVAL, Manual
Transmission Assembly.>
2) Remove the transfer case with extension case
assembly. <Ref. to MT-47, REMOVAL, Transfer
Case and Extension Case Assembly.>
3) Remove shifter arm.
4) Remove plug, spring washer and reverse check
ball.

5) Remove the reverse check sleeve.

B: INSTALLATION

1) Install the reverse check sleeve.

Tightening torque:

6.4 N·m (0.65 kgf-m, 4.7 ft-lb)

2) Install ball, spring, washer and plug to transfer
case.

Tightening torque:

10 N·m (1.0 kgf-m, 7.2 ft-lb)

3) Install the shifter arm to transfer case assembly.
4) Install the transfer case with extension case as-
sembly. <Ref. to MT-47, INSTALLATION, Transfer
Case and Extension Case Assembly.>
5) Install the manual transmission assembly to ve-
hicle. <Ref. to MT-35, INSTALLATION, Manual
Transmission Assembly.>

C: DISASSEMBLY

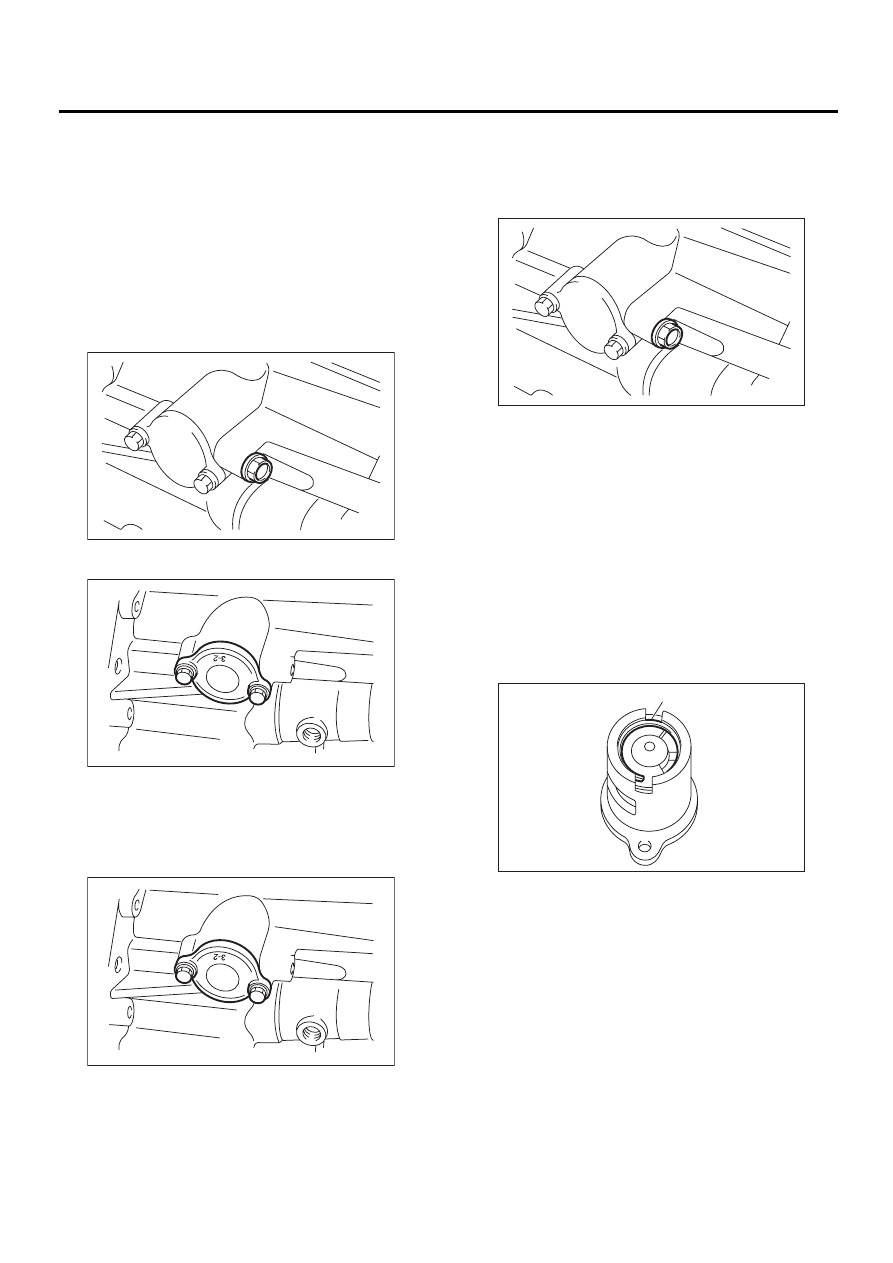

1) Cover the reverse check sleeve with a rag, and
remove snap ring using a screwdriver.

NOTE:
Replace snap ring with a new one if deformed or
weakened.

MT-00149

MT-00150

MT-00151

(A) Snap ring

MT-00152

MT-00153

( A )

MT-57

MANUAL TRANSMISSION AND DIFFERENTIAL

REVERSE CHECK SLEEVE

2) Remove reverse check plate, reverse check
spring, reverse check cam, return spring (5th-Rev),
reverse accent shaft, return spring cap and return
spring (1st-2nd).

3) Remove O-ring.

NOTE:
• Reverse check sleeve assembly uses an O-ring
which should not be scratched.
• Be careful not to break adjustment shim placed
between reverse check sleeve assembly and case.

D: ASSEMBLY

1) Install return spring (1st-2nd), return spring cap,
reverse accent shaft, check cam, return spring and
check spring onto reverse check sleeve.

NOTE:
Be sure the bent section of reverse check spring is
positioned in the groove in check cam.

2) Hook the bent section of reverse check spring
over reverse check plate.
3) Rotate cam so that the protrusion of reverse
check cam is at the opening in plate.
4) With cam held in that position, install plate onto
reverse check sleeve and hold with snap ring.
5) Position new O-ring in groove in sleeve.

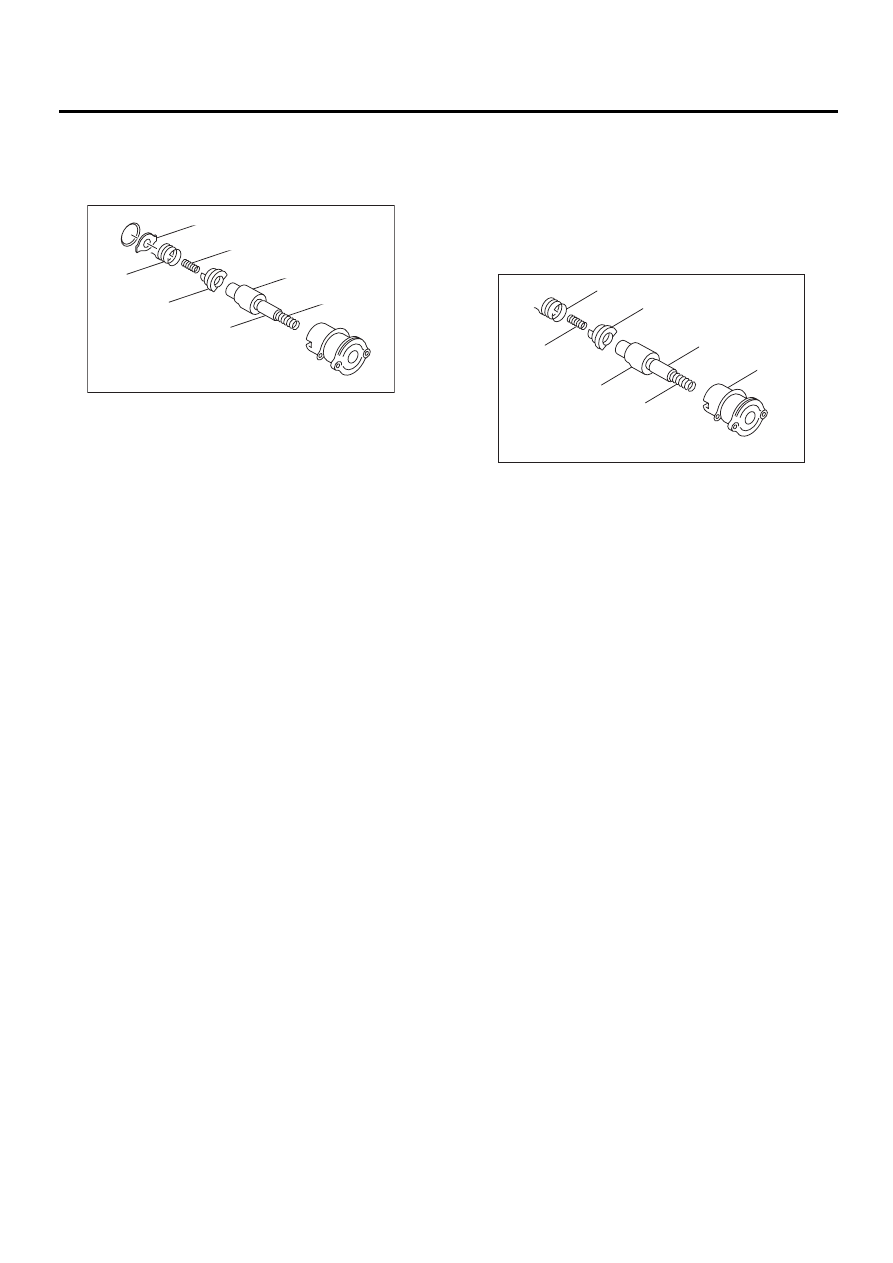

(A) Reverse check plate

(B) Reverse check spring

(C) Return spring (5th-Rev)

(D) Reverse check cam

(E) Reverse accent shaft

(F) Return spring cap

(G) Return spring (1st-2nd)

MT-00154

( A )

( B )

( C )

( D )

( E )

( F )

( G )

(A) Reverse check sleeve

(B) Return spring (1st-2nd)

(C) Return spring cap

(D) Reverse accent shaft

(E) Return spring (5th-Rev)

(F) Reverse check cam

(G) Reverse check spring

MT-00361

( A )

( C )

( D )

( B )

( E )

( F )

( G )

MT-58

MANUAL TRANSMISSION AND DIFFERENTIAL

REVERSE CHECK SLEEVE

E: INSPECTION

• Make sure the cutout section of reverse accent
shaft is aligned with the opening in reverse check
sleeve.
• Spin cam by hand for smooth rotation.
• Move cam and shaft all the way toward plate and
release.
If cam does not return properly, replace reverse
check spring; if shaft does not, check for scratches
on the inner surface of sleeve. If sleeve is in good
order, replace spring.

• Select a suitable reverse accent shaft and re-
verse check plate. <Ref. to MT-58, ADJUSTMENT,
Reverse Check Sleeve.>

F: ADJUSTMENT

1. NEUTRAL POSITION ADJUSTMENT

1) Shift gear into 3rd gear position.
2) Shifter arm turns lightly toward the 1st/2nd gear
side but heavily toward the reverse gear side be-
cause of the function of the return spring, until arm
contacts the stopper.
3) Make adjustment so that the heavy stroke (re-
verse side) is a little more than the light stroke (1st/
2nd side).
4) To adjust, remove bolts holding reverse check
sleeve assembly to the case, move sleeve assem-
bly outward, and place adjustment shim (0 to 1 ea.)
between sleeve assembly and case to adjust the
clearance.

NOTE:
• Be careful not to break O-ring when placing
shim(s).
• When shim is removed, the neutral position will
move closer to reverse; when shim is added, the
neutral position will move closer to 1st gear.
• If shims alone cannot adjust the clearance, re-
place reverse accent shaft and re-adjust.

2. REVERSE CHECK PLATE ADJUST-
MENT

1) Shift shifter arm to “5th” and then to reverse to
see if reverse check mechanism operates properly.
2) Also check to see if arm returns to  neutral when
released from the reverse position. If arm does not
return  properly, replace reverse check plate.

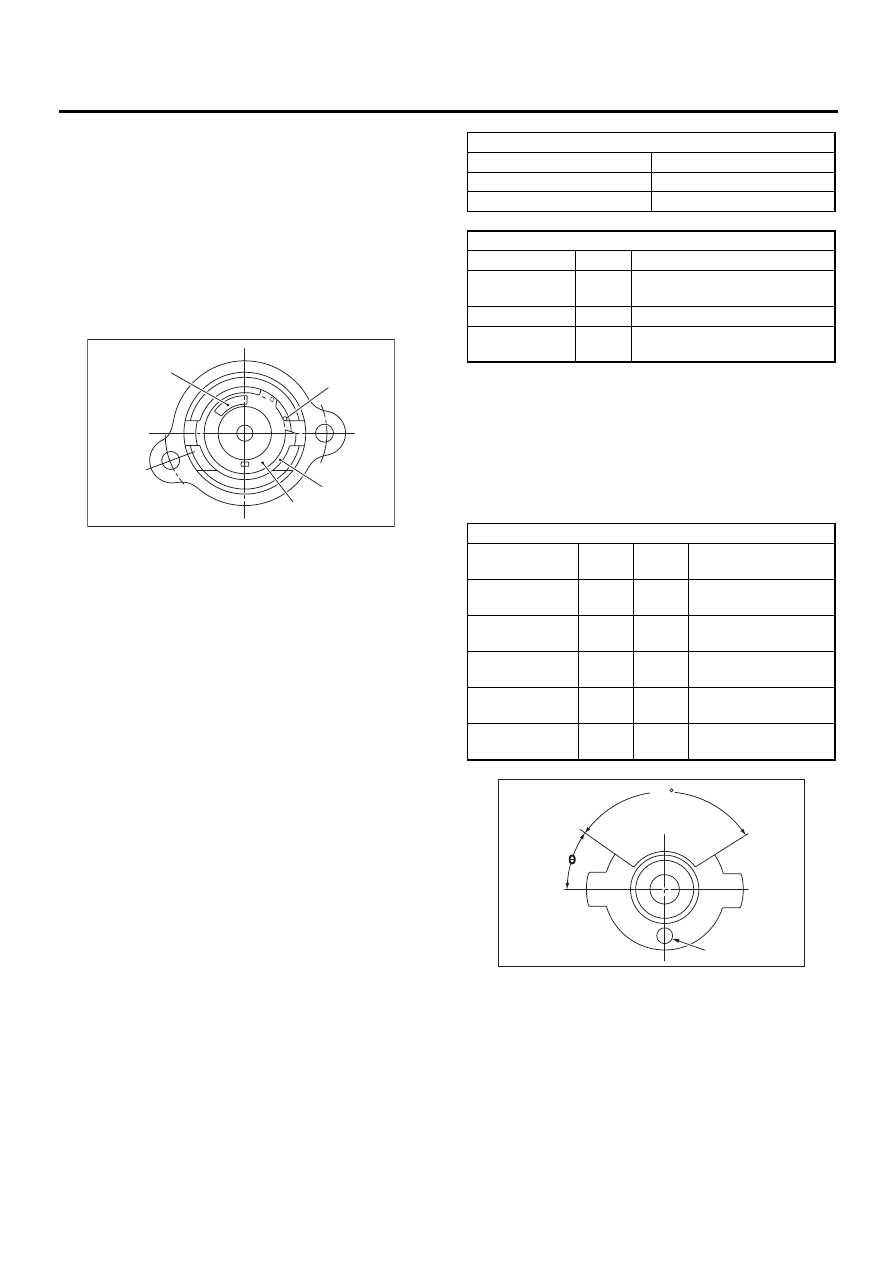

(A) Snap ring

(B) Reverse check plate

(C) Check spring

(D) Check cam

MT-00156

( A )

( D )

( C )

( B )

Adjustment shim

Part No.

Thickness mm (in)

32190AA000

0.15 (0.0059)

32190AA010

0.30 (0.0118)

Reverse accent shaft

Part No.

Mark

Remarks

32188AA090

3

Neutral position is closer to 1st
gear.

32188AA100

0

Standard

32188AA110

1

Neutral position is closer to
reverse gear.

Reverse check plate

Part No.

(A):
No.

Angle

θ

Remarks

32189AA000

0

28

°

Arm stops closer to
5th gear.

32189AA010

1

31

°

Arm stops closer to
5th gear.

32189AA020

2

34

°

Arm stops in the cen-
ter.

32189AA030

3

37

°

Arm stops closer to
reverse gear.

32189AA040

4

40

°

Arm stops closer to
reverse gear.

MT-00157

120

( A )

MT-59

MANUAL TRANSMISSION AND DIFFERENTIAL

TRANSMISSION CASE

14.Transmission Case

A: REMOVAL

1. SINGLE-RANGE

1) Remove the manual transmission assembly
from vehicle. <Ref. to MT-32, REMOVAL, Manual
Transmission Assembly.>
2) Remove clutch release lever. <Ref. to CL-22,
REMOVAL, Release Bearing and Lever.>
3) Remove transfer case with extension case as-
sembly. <Ref. to MT-47, REMOVAL, Transfer
Case and Extension Case Assembly.>
4) Remove bearing mounting bolts.

5) Remove main shaft rear plate.

6) Put vinyl tape around splines of right and left
axle drive shafts to prevent damage to oil seal.

7) Separate transmission case into right and left
cases by loosening coupling bolts and nuts.

8) Remove drive pinion shaft assembly from left
side transmission case.

NOTE:
Use a hammer handle, etc. to remove if too tight.

9) Remove main shaft assembly.
10) Remove differential assembly.

NOTE:
• Be careful not to confuse right and left roller
bearing outer races.
• Be careful not to damage retainer oil seal.

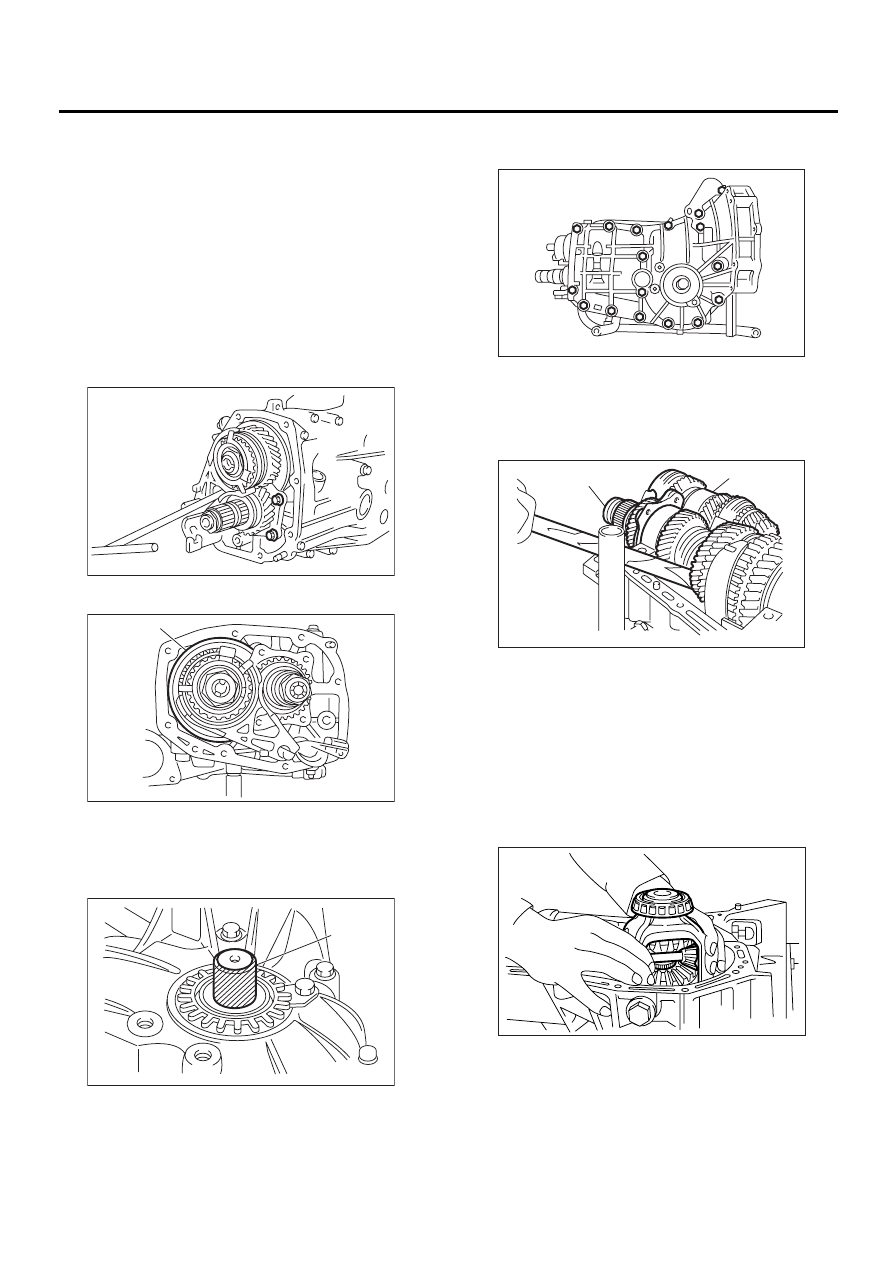

(A) Main shaft rear plate

(A) Vinyl tape

MT-00158

MT-00159

( A )

MT-00362

( A )

(A) Main shaft assembly

(B) Drive pinion shaft assembly

MT-00160

MT-00161

( A )

( B )

MT-00162
