Subaru Legacy III (2000-2003 year). Manual - part 562

AT-142

AUTOMATIC TRANSMISSION

PLANETARY GEAR AND LOW CLUTCH

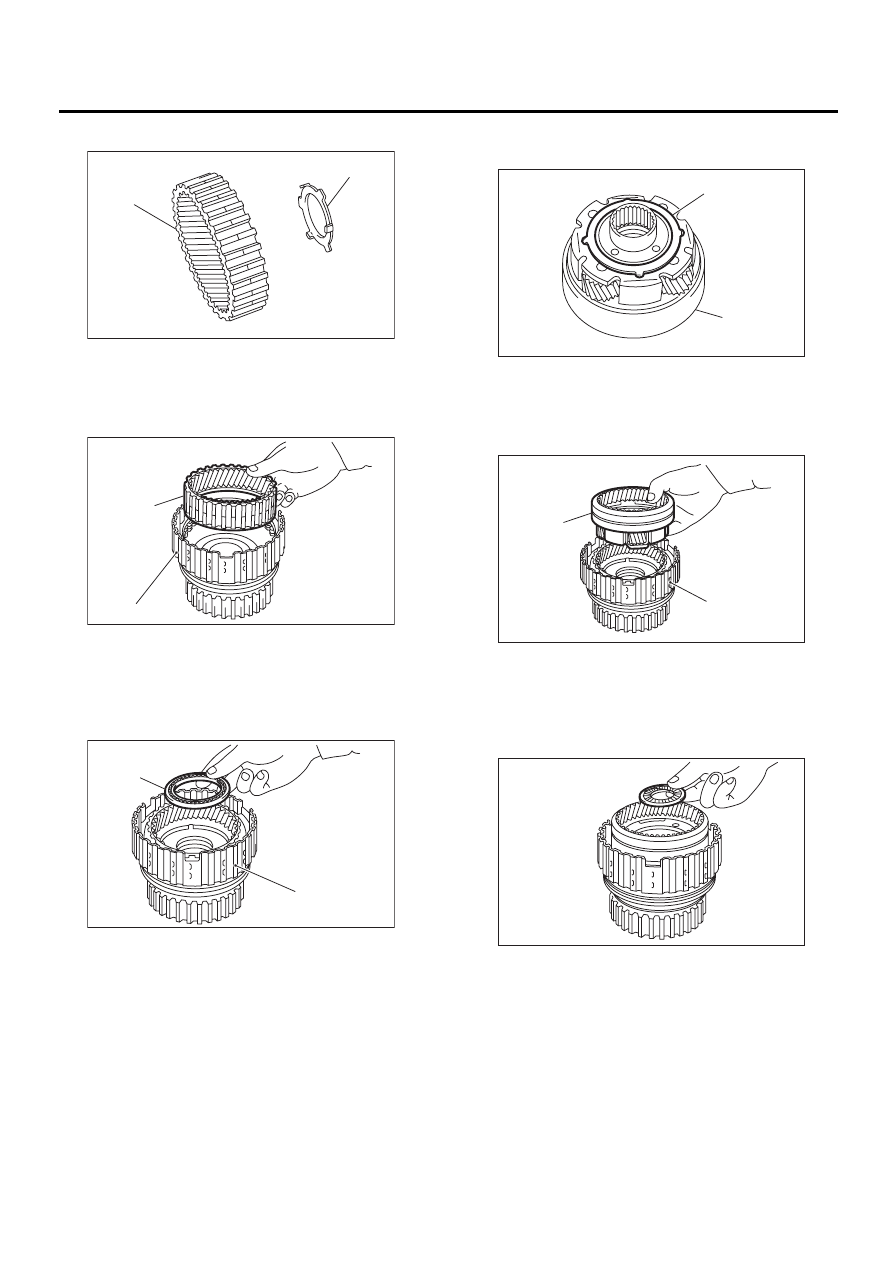

9) Install washer to rear internal gear.

10) Install rear internal gear.

11) Install thrust needle bearing in the correct di-
rection.

12) Install the washer by aligning protrusion of
washer and hole of rear planetary carrier.

13) Install rear planetary carrier to low clutch drum.

14) Install thrust needle bearing in the correct di-
rection.

(A) Rear internal gear

(B) Washer

(A) Rear internal gear

(B) Low clutch drum

(A) Thrust needle bearing

(B) Low clutch drum

AT-00275

( A )

( B )

AT-00276

( A )

( B )

AT-00277

( A )

( B )

(A) Washer

(B) Rear planetary carrier

(A) Rear planetary carrier

(B) Low clutch drum

AT-00278

( A )

( B )

AT-00262

( A )

( B )

AT-00279

AT-143

AUTOMATIC TRANSMISSION

PLANETARY GEAR AND LOW CLUTCH

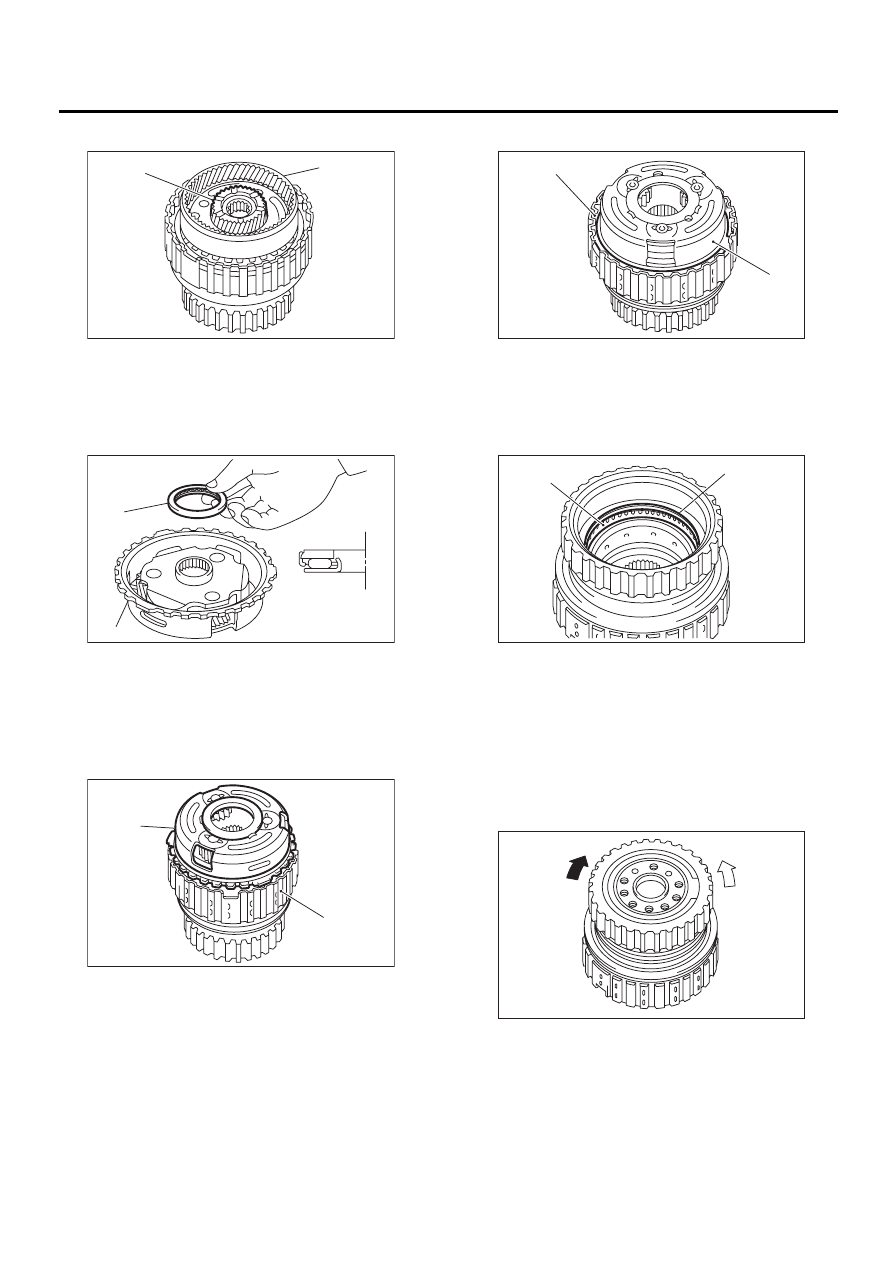

15) Install the rear sun gear in proper direction.

16) Install the thrust needle bearing in proper direc-
tion.

17) Install front planetary carrier to low clutch drum.

18) Install snap ring to low clutch drum.

19) Install the needle bearing, and secure with the
snap ring.

20) Install the one-way clutch, one-way clutch inner
race and plate, and secure with the snap ring.
21) Set the inner race. Make sure that the forward
clutch is free in the clockwise direction and locked
in the counterclockwise direction, as viewed from
the front of the vehicle.

(A) Rear sun gear

(B) Rear planetary carrier

(A) Thrust needle bearing

(B) Front planetary carrier

(C) Rear sun gear side

(D) Front planetary carrier side

(A) Front planetary carrier

(B) Low clutch drum

AT-00261

( A )

( B )

AT-00280

( A )

( B )

( C )

( D )

AT-00260

( A )

( B )

(A) Snap ring

(B) Front planetary carrier

(A) Needle bearing

(B) Snap ring

(A) Locked

(B) Free

AT-00281

( A )

( B )

AT-00268

( A )

( B )

AT-00282

( A )

( B )

AT-144

AUTOMATIC TRANSMISSION

PLANETARY GEAR AND LOW CLUTCH

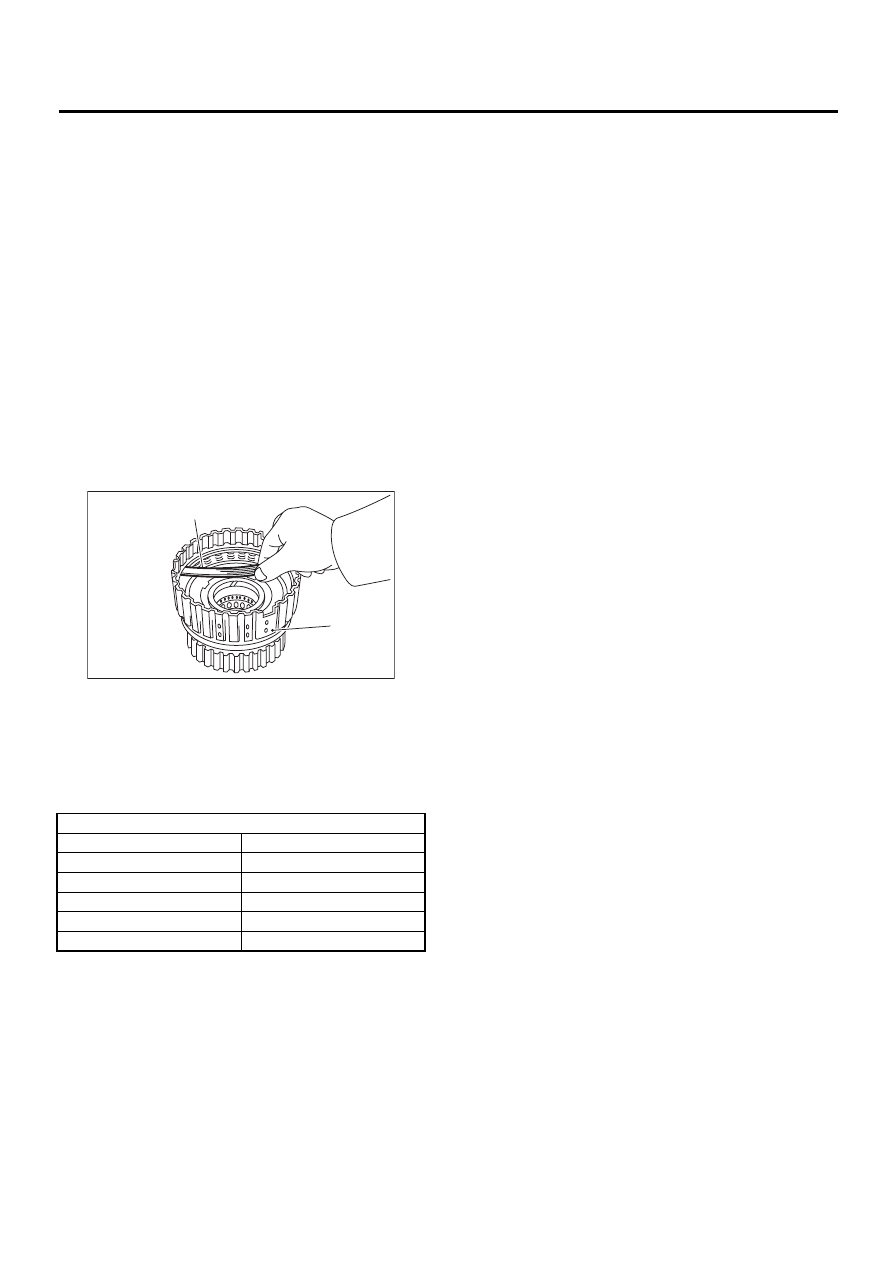

E: INSPECTION

1) Inspect the following items.
• Drive plate facing for wear and damage
• Snap ring for wear, return spring for breakage or
setting, and spring retainer for deformation
• Lip seal and D-ring for damage
• Piston check ball for operation
• Measure the total end play and adjust to within
specifications.
<Ref. to AT-117, ADJUSTMENT, Oil Pump.>
2) Place the same thickness of shim on both sides
to prevent retaining plate from tilting.
3) Inspect clearance between retaining plate and
operation of the low clutch.

Standard value:

0.7 — 1.1 mm (0.028 — 0.043 in)

Allowable limit:

1.6 mm (0.063 in)

4) If the clearance is out of the specified range, se-
lect a proper retaining plate so that the standard
clearance can be obtained.

(A) Thickness gauge

(B) Low clutch drum

Available retaining plates

Part No.

Thickness mm (in)

31567AA830

3.8 (0.150)

31567AA840

4.0 (0.157)

31567AA850

4.2 (0.165)

31567AA860

4.4 (0.173)

31567AA870

4.6 (0.181)

AT-00283

( A )

( B )

AT-145

AUTOMATIC TRANSMISSION

2-4 BRAKE

39.2-4 Brake

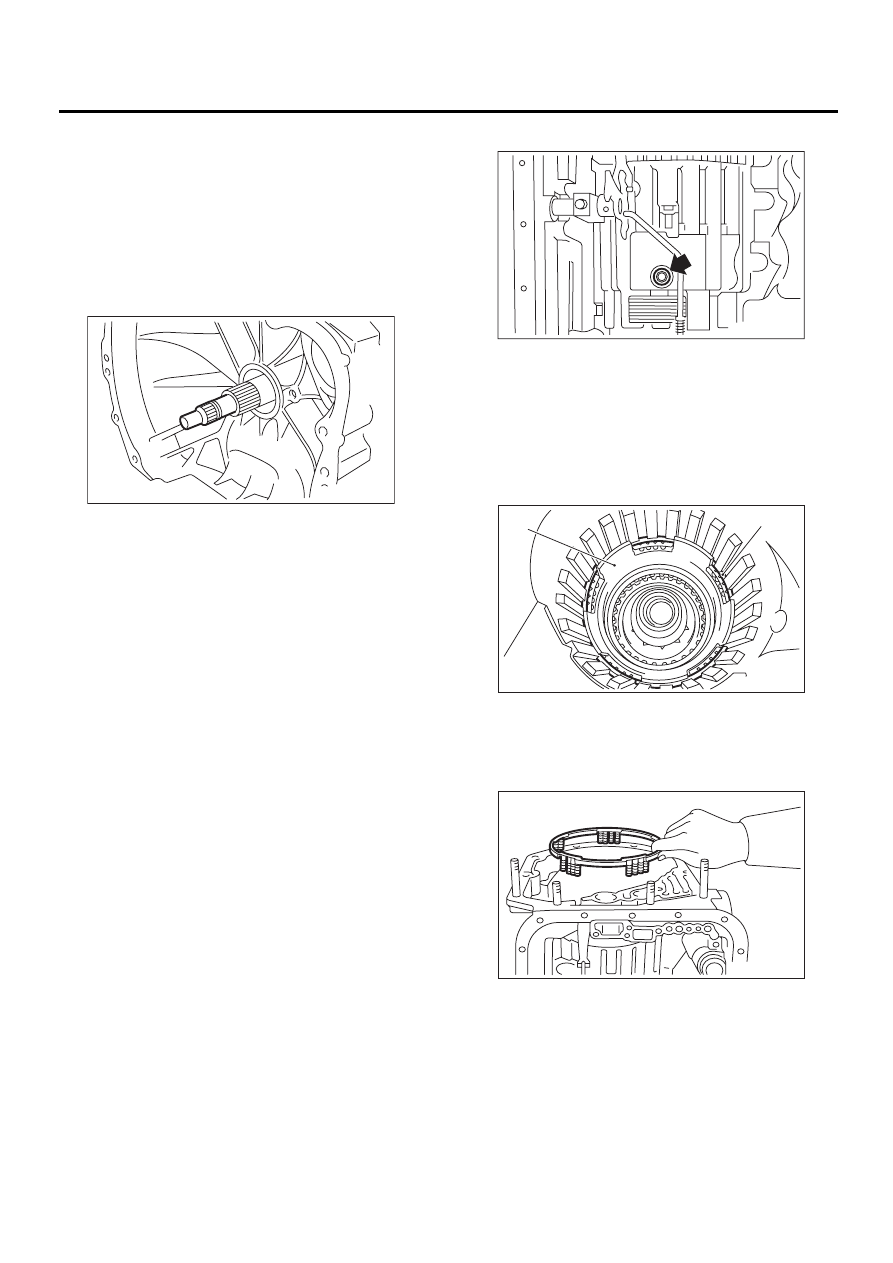

A: REMOVAL

1) Remove the transmission assembly from the ve-
hicle. <Ref. to AT-39, REMOVAL, Automatic
Transmission Assembly.>
2) Extract the torque converter clutch assembly.
<Ref. to AT-85, REMOVAL, Torque Converter
Clutch Assembly.>
3) Remove the input shaft.

4) Disconnect the air breather hose. <Ref. to AT-
83, REMOVAL, Air Breather Hose.>
5) Lift-up lever behind the transmission harness
connector and disconnect it from stay.
6) Disconnect inhibitor switch connector from stay.
7) Remove the oil charger pipe. <Ref. to AT-84,
REMOVAL, Oil Charger Pipe.>
8) Remove the oil cooler inlet and outlet pipes with
washers. <Ref. to AT-78, REMOVAL, ATF Cooler
Pipe and Hose.>
9) Remove rear vehicle speed sensor, and sepa-
rate the transmission case and extension case.
<Ref. to AT-86, REMOVAL, Extension Case.>
10) Remove the reduction drive gear. (MPT model)
<Ref. to AT-104, REMOVAL, Reduction Drive
Gear.>
11) Remove the center differential carrier. (VTD
model) <Ref. to AT-106, REMOVAL, Center Differ-
ential Carrier.>
12) Remove reduction driven gear.
<Ref. to AT-101, REMOVAL, Reduction Driven
Gear.>
13) Separation of torque converter clutch case and
transmission case.<Ref. to AT-109, REMOVAL,
Torque Converter Clutch Case.>
14) Remove the oil pan and control valve body.
<Ref. to AT-60, REMOVAL, Control Valve Body.>
15) Remove the oil pump housing. <Ref. to AT-
112, REMOVAL, Oil Pump.>

16) Remove 2-4 brake seal.

17) Take out the high clutch and reverse clutch as-
sembly. <Ref. to AT-130, REMOVAL, High Clutch
and Reverse Clutch.>
18) Take out the thrust needle bearing, planetary
gear assembly and the low clutch assembly. <Ref.
to AT-136, REMOVAL, Planetary Gear and Low
Clutch.>
19) Remove snap ring.

20) Take out 2-4 brake return spring.

AT-00114

(A) Snap ring

(B) 2-4 brake piston

AT-00284

AT-00285

( A )

( B )

AT-00286
