ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

6

CHECK POOR CONTACT.
Check poor contact in relief valve control sole-
noid valve 1 and ECM connectors.
Are there poor contact in relief valve control
solenoid valve 1 and ECM connectors?

There are poor contacts.

Repair the poor
contact in relief
valve control sole-
noid valve 1 and
ECM connectors.

Contact SUBARU
distributor service.

NOTE:
Inspection by DTM
is required, be-
cause probable
cause is deteriora-
tion of multiple
parts.

Step

Value

Yes

No

EN(H4DOSTC)-223

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

MEMO:

EN(H4DOSTC)-224

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

BG:DTC P1248 — RELIEF VALVE CONTROL SOLENOID VALVE 1 CIRCUIT

HIGH —

• TROUBLE SYMPTOM:

• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4DOSTC)-35,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4DOSTC)-33, Inspection
Mode.> .

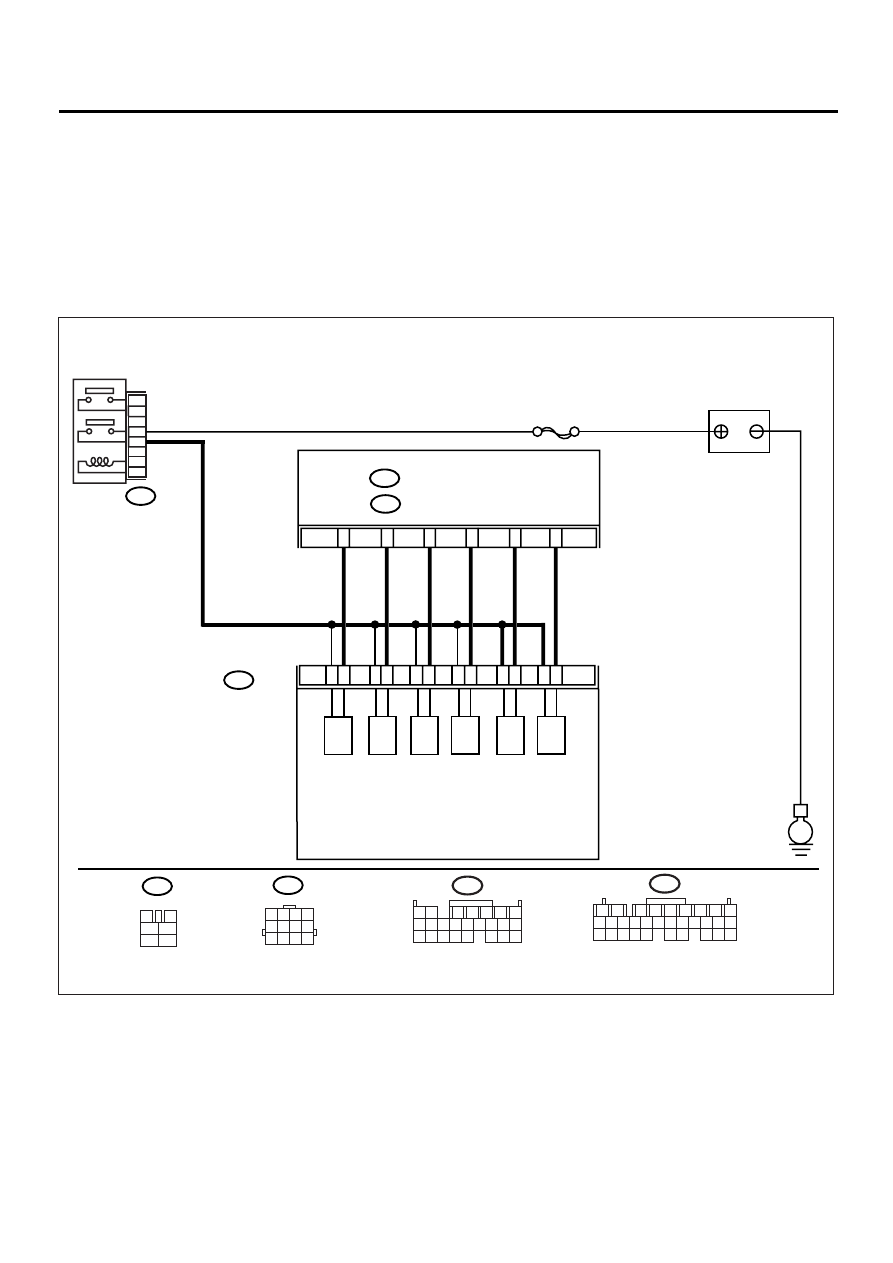

• WIRING DIAGRAM:

EN-00939

B220

B47

E

BATTERY

MAIN RELAY

3

B136

ECM

SBF-5

5

2
1

4

6

B47

3

4

1

2

5

6

B220

SOLENOID
BOX ASSY

1

2

3

4

5

6

7

8

9

10

11

12

(A)

(B)

(C)

(D)

(E)

(F)

(A): RELIEF VALVE SOLENOID 2
(B): RELIEF VALVE SOLENOID 1
(C): EXHAUST VALVE CONTROL SOLENOID VALVE
       (NEGATIVE PRESSURE)
(D): EXHAUST VALVE CONTROL SOLENOID VALVE
       (POSITIVE PRESSURE)
(E): INTAKE AIR CONTROL SOLENOID VALVE
(F): EXHAUST VALVE CONTROL DUTY SOLENOID VALVE

C:

B137

D:

C11

C12

C3

C1

D22

D11

1 2 3 4
5 6 7 8
9 10 11 12

B136

1 2

7

8 9

5

6

3

4

10 11 12
19 20 21

13 14 15 16

17 18

22 23 24

B137

1

2

7

8

9

5

6

3

4

10 11 12

19 20 21
29 30 31

13 14 15 16 17

27 28

18

22 23 24 25 26
