EN(H4DOSTC)-198

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

AX:DTC P1235 — INTAKE CONTROL SOLENOID VALVE CIRCUIT LOW —

• TROUBLE SYMPTOM:

• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4DOSTC)-35,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4DOSTC)-33, Inspection
Mode.> .

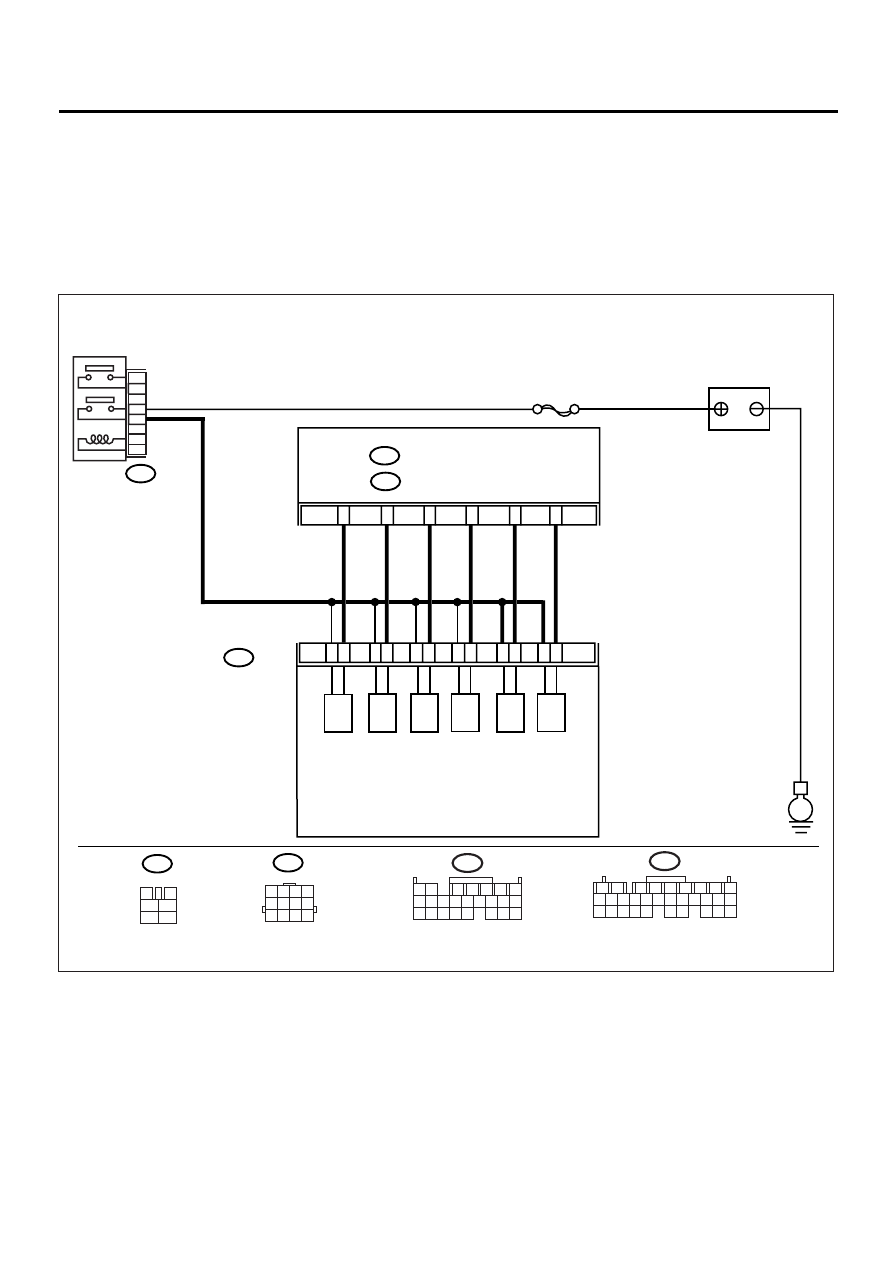

• WIRING DIAGRAM:

EN-00939

B220

B47

E

BATTERY

MAIN RELAY

3

B136

ECM

SBF-5

5

2
1

4

6

B47

3

4

1

2

5

6

B220

SOLENOID
BOX ASSY

1

2

3

4

5

6

7

8

9

10

11

12

(A)

(B)

(C)

(D)

(E)

(F)

(A): RELIEF VALVE SOLENOID 2
(B): RELIEF VALVE SOLENOID 1
(C): EXHAUST VALVE CONTROL SOLENOID VALVE
       (NEGATIVE PRESSURE)
(D): EXHAUST VALVE CONTROL SOLENOID VALVE
       (POSITIVE PRESSURE)
(E): INTAKE AIR CONTROL SOLENOID VALVE
(F): EXHAUST VALVE CONTROL DUTY SOLENOID VALVE

C:

B137

D:

C11

C12

C3

C1

D22

D11

1 2 3 4
5 6 7 8
9 10 11 12

B136

1 2

7

8 9

5

6

3

4

10 11 12
19 20 21

13 14 15 16

17 18

22 23 24

B137

1

2

7

8

9

5

6

3

4

10 11 12

19 20 21
29 30 31

13 14 15 16 17

27 28

18

22 23 24 25 26

EN(H4DOSTC)-199

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK INPUT SIGNAL TO ECM.
1) Turn the ignition switch to ON.
2) Measure the voltage between ECM and

chassis ground.

Connector & terminal

(B137) No. 22 (+) — Chassis ground (

−−−−

):

Does the measured value exceed the spec-
ified value?

10 V

Even if MI lights
up, the circuit has
returned to a nor-
mal condition at
this time. Contact
SUBARU distribu-
tor service.

NOTE:
Inspection by DTM
is required, be-
cause probable
cause is deteriora-
tion of multiple
parts.

Go to step 2.

2

CHECK HARNESS BETWEEN INTAKE AIR
VALVE CONTROL SOLENOID VALVE AND
ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from intake air

valve control solenoid valve and ECM.

3) Measure the resistance of harness

between intake air valve control solenoid
valve connector and engine ground.

Connector & terminal

(B220) No. 10 — Engine ground:

Does the measured value exceed the spec-
ified value?

1 M

Ω

Go to step 3.

Repair the ground
short circuit in har-
ness between
ECM and intake
air valve control
solenoid valve
connector.

3

CHECK HARNESS BETWEEN INTAKE AIR
VALVE CONTROL SOLENOID VALVE AND
ECM CONNECTOR.
Measure the resistance of harness between
ECM and intake air valve control solenoid
valve of harness connector.

Connector & terminal

(B137) No. 22 — (B220) No. 10:

Is the measured value less than the specified
value?

1

Ω

Go to step 4.

Repair the open
circuit in harness
between ECM and
intake air valve
control solenoid
valve connector.

4

CHECK INTAKE AIR VALVE CONTROL SO-
LENOID VALVE.
Measure the resistance between intake air
valve control solenoid valve terminals.

Terminals

No. 9 — No. 10:

Is the measured value within the specified
value?

37 — 44

Ω

Go to step 5.

Replace the intake
air valve control
solenoid valve.
<Ref. to
IN(H4DOSTC)-19,
Solenoid Box
Assembly.>

5

CHECK POWER SUPPLY TO INTAKE AIR
VALVE CONTROL SOLENOID VALVE.
1) Turn the ignition switch to ON.
2) Measure the voltage between intake air

valve control solenoid valve and engine
ground.

Connector & terminal

(B220) No. 9 (+) — Engine ground (

−−−−

):

Does the measured value exceed the spec-
ified value?

10 V

Go to step 6.

Repair the open
circuit in harness
between main
relay and intake air
valve control sole-
noid valve connec-
tor.

EN(H4DOSTC)-200

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

6

CHECK POOR CONTACT.
Check poor contact in intake air valve control
solenoid valve and ECM connectors.
Is there poor contact in intake air valve control
solenoid valve and ECM connectors?

There is poor contact.

Repair the poor
contact in intake
air valve control
solenoid valve and
ECM connectors.

Contact SUBARU
distributor service.

NOTE:
Inspection by DTM
is required, be-
cause probable
cause is deteriora-
tion of multiple
parts.
