ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

AA:DTC P0328 — KNOCK SENSOR 1 CIRCUIT HIGH INPUT (BANK 1 OR SIN-

GLE SENSOR) —

• TROUBLE SYMPTOM:

• Poor driving performance
• Knocking occurs.

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4DOSTC)-35,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4DOSTC)-33, Inspection
Mode.> .

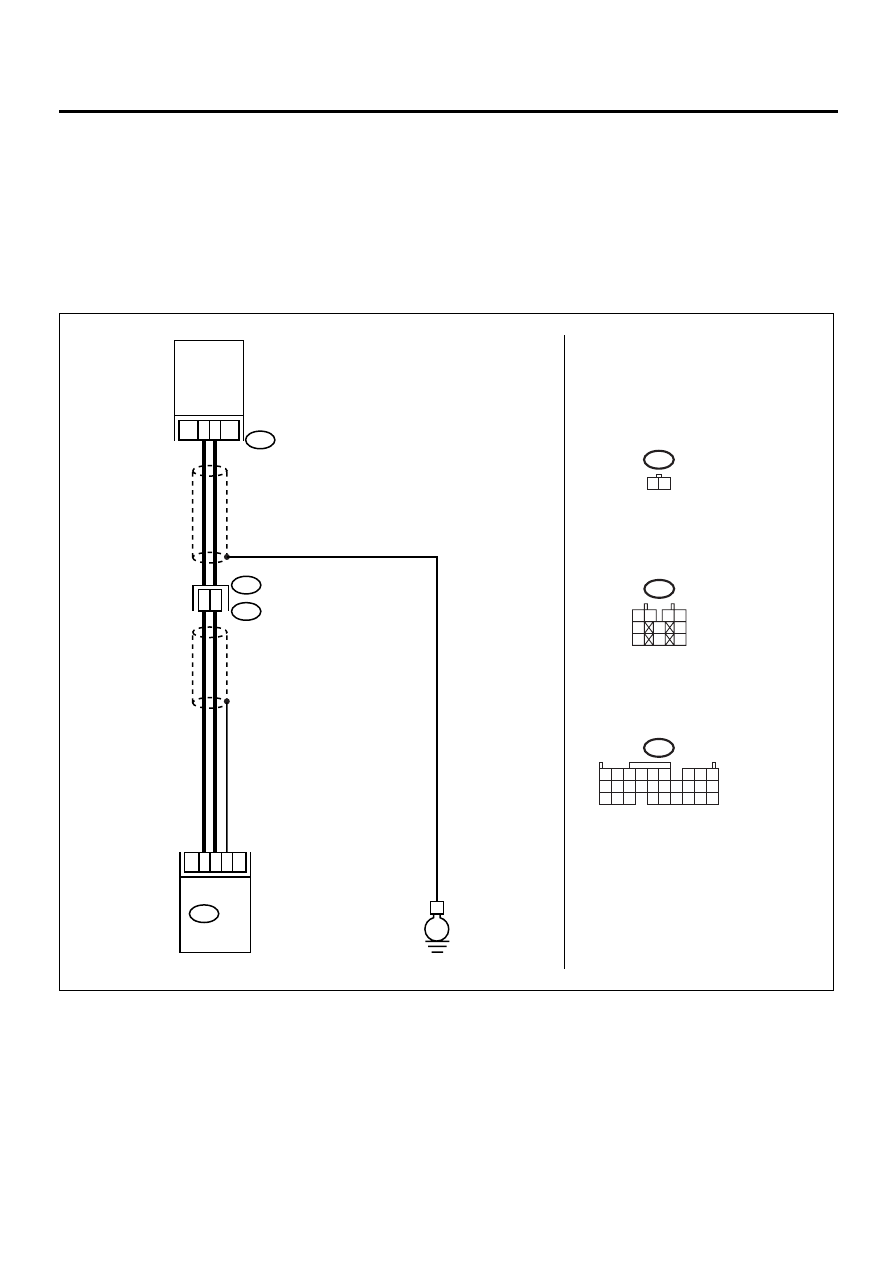

• WIRING DIAGRAM:

E1

E14

B20

 KNOCK
SENSOR

2

6

B135 ECM

22

4

E

E14

1 2

1 2

3 4

5

6

7

8

9

10

B20

B135

5 6

7 8

2

1

9

4

3

10

24

22

23

25

11 12 13 14 15

26 27 28

16 17 18 19

20 21

EN-00941

EN(H4DOSTC)-139

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK HARNESS BETWEEN KNOCK SEN-
SOR AND ECM CONNECTOR.
Measure the resistance of harness between
ECM connector and chassis ground.

Connector & terminal

(B135) No. 4 — Chassis ground:

Is the measured value less than the specified
value?

400 k

Ω

Go to step 2.

Go to step 3.

2

CHECK KNOCK SENSOR.
1) Disconnect the connector from knock sen-

sor.

2) Measure the resistance between knock

sensor connector terminal and engine
ground.

Terminal

No. 2 — Engine ground:

Is the measured value less than the speci-
fied value?

400 k

Ω

Replace the knock
sensor.  <Ref. to
FU(H4DOSTC)-
31, Knock Sen-
sor.>

Repair the ground
short circuit in har-
ness between
knock sensor con-
nector and ECM
connector.

NOTE:
The harness be-
tween both con-
nectors is
shielded. Repair
the short circuit of
harness together
with shield.

3

CHECK INPUT SIGNAL FOR ECM.
1) Connect the connectors to ECM and knock

sensor.

2) Turn the ignition switch to ON.
3) Measure the voltage between ECM and

chassis ground.

Connector & terminal

(B135) No. 4 (+) — Chassis ground (

−−−−

):

Does the measured value exceed the spec-
ified value?

2 V

Even if MI lights
up, the circuit has
returned to a nor-
mal condition at
this time. (How-
ever, the possibil-
ity of poor contact
still remains.)

NOTE:
In this case, repair
the following:
• Poor contact in
knock sensor con-
nector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

Repair the poor
contact in ECM
connector.

EN(H4DOSTC)-140

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

AB:DTC P0335 — CRANKSHAFT POSITION SENSOR “A” CIRCUIT —

• TROUBLE SYMPTOM:

• Engine stalls.
• Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4DOSTC)-35,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4DOSTC)-33, Inspection
Mode.> .

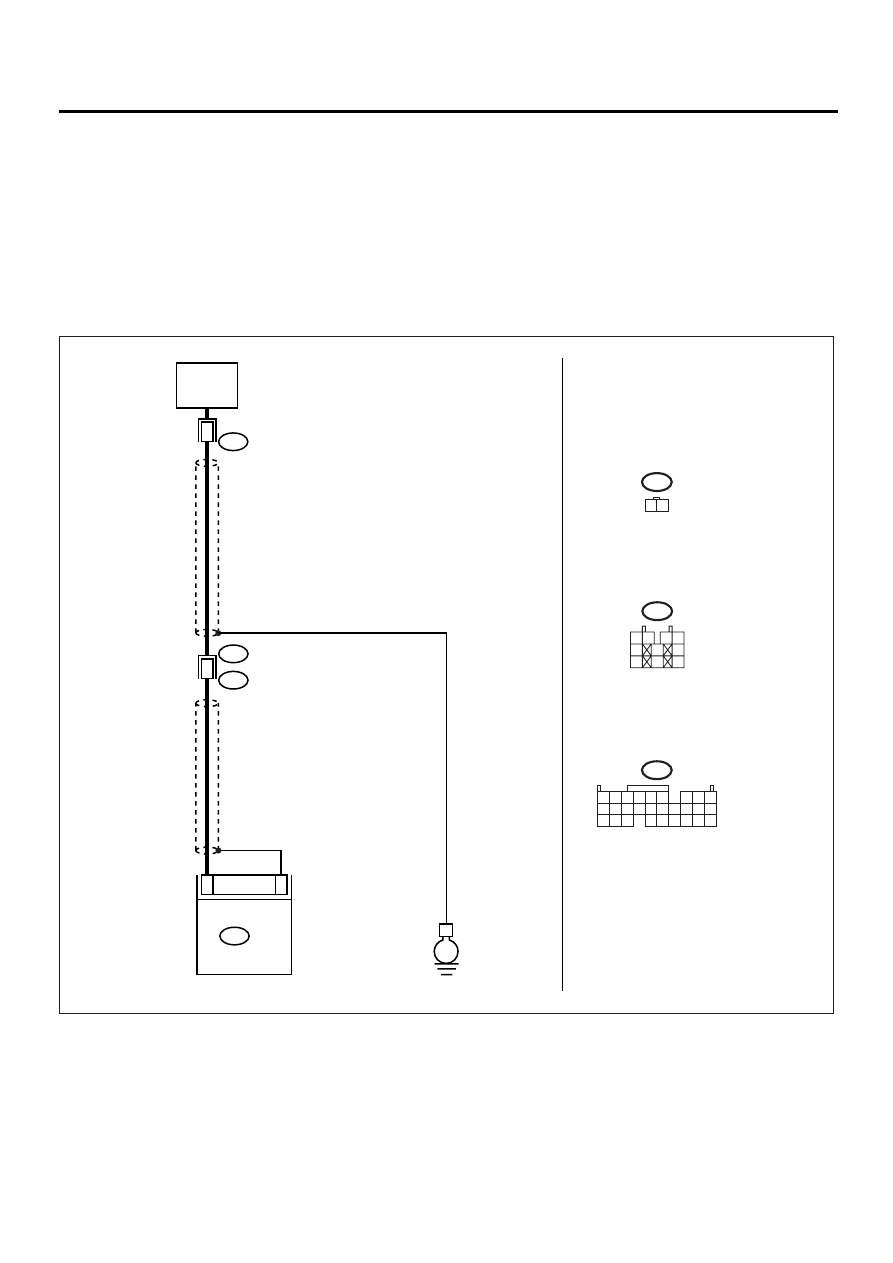

• WIRING DIAGRAM:

2

1

E1

E10

B20

CRANKSHAFT
   POSITION
    SENSOR

2

1

B135 ECM

11

21

2

E

E10

1 2

1 2

3 4

5

6

7

8

9

10

B20

B135

5 6

7 8

2

1

9

4

3

10

24

22

23

25

11 12 13 14 15

26 27 28

16 17 18 19

20 21

EN-00942

EN(H4DOSTC)-141

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK HARNESS BETWEEN CRANK-
SHAFT POSITION SENSOR AND ECM CON-
NECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from crankshaft

position sensor.

3) Measure the resistance of harness

between crankshaft position sensor con-
nector and engine ground.

Connector & terminal

(E10) No. 1 — Engine ground:

Does the measured value exceed the spec-
ified value?

100 k

Ω

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
crankshaft posi-
tion sensor and
ECM connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

Go to step 2.

2

CHECK HARNESS BETWEEN CRANK-
SHAFT POSITION SENSOR AND ECM CON-
NECTOR.
Measure the resistance of harness between
crankshaft position sensor connector and
engine ground.

Connector & terminal

(E10) No. 1 — Engine ground:

Is the measured value less than the specified
value?

10

Ω

Repair the ground
short circuit in har-
ness between
crankshaft posi-
tion sensor and
ECM connector.

NOTE:
The harness be-
tween both con-
nectors are
shielded. Repair
the ground short
circuit in harness
together with
shield.

Go to step 3.

3

CHECK HARNESS BETWEEN CRANK-
SHAFT POSITION SENSOR AND ECM CON-
NECTOR.
Measure the resistance of harness between
crankshaft position sensor connector and
engine ground.

Connector & terminal

(E10) No. 2 — Engine ground:

Is the measured value less than the specified
value?

5

Ω

Go to step 4.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
crankshaft posi-
tion sensor and
ECM connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

4

CHECK CONDITION OF CRANKSHAFT PO-
SITION SENSOR.
Is the crankshaft position sensor installation
bolt tightened securely?

Tightened securely.

Go to step 5.

Tighten the crank-
shaft position sen-
sor installation bolt
securely.

5

CHECK CRANKSHAFT POSITION SENSOR.
1) Remove the crankshaft position sensor.
2) Measure the resistance between connector

terminals of crankshaft position sensor.

Terminals

No. 1 — No. 2:

Is the measured value within the specified
value?

1 — 4 k

Ω

Repair the poor
contact in crank-
shaft position sen-
sor connector.

Replace the crank-
shaft position sen-
sor.  <Ref. to
FU(H4DOSTC)-
29, Crankshaft
Position Sensor.>
