EX(H4DOSTC)-8

EXHAUST

CENTER EXHAUST PIPE

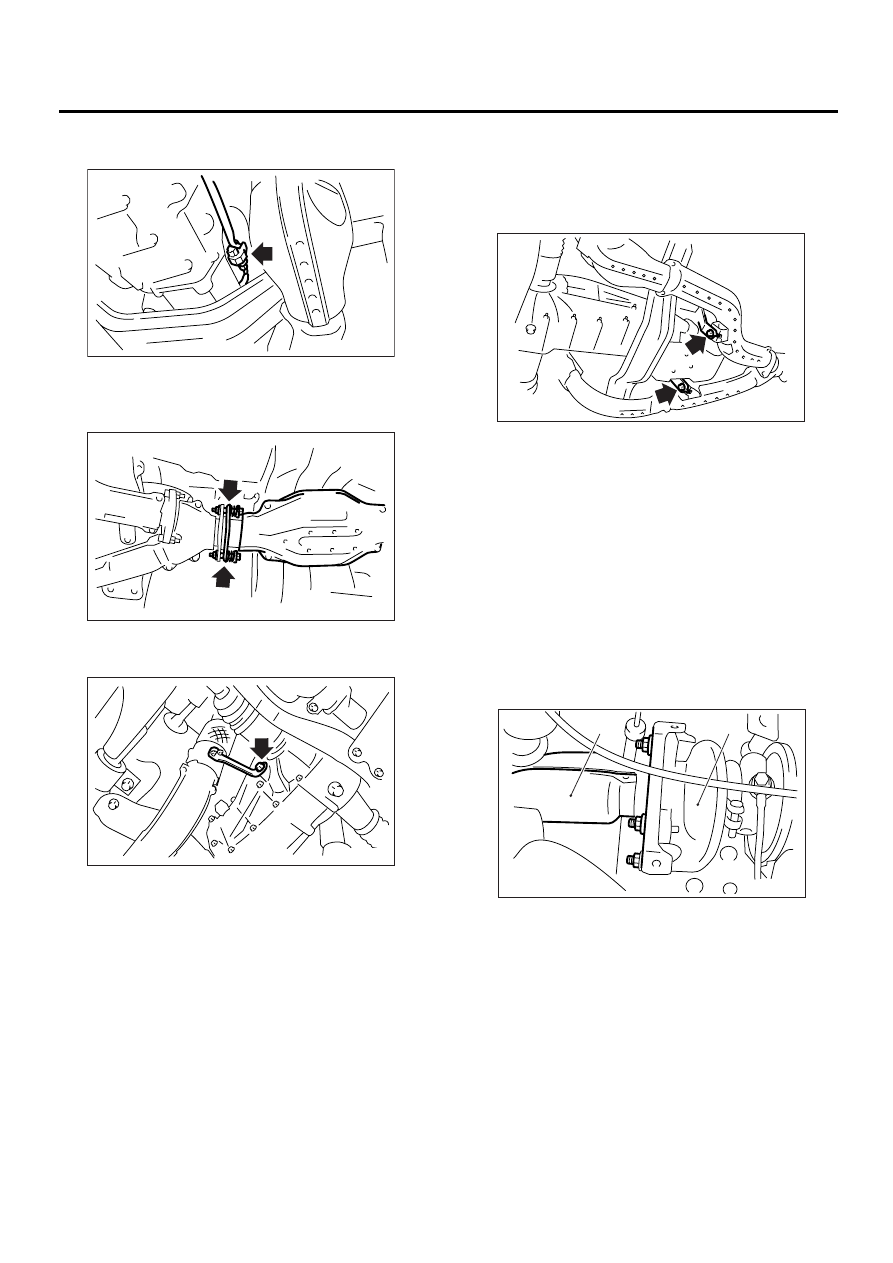

14) Disconnect the connector from rear oxygen
sensor.

15) Vertically draw out the clip from crossmember.
16) Separate the center exhaust pipe from rear ex-
haust pipe.

17) Remove the bolt which holds center exhaust
pipe bracket to transmission.

18) Remove the bolts which hold center exhaust
pipe to hanger bracket.

CAUTION:
Be careful not to pull down the center exhaust
pipe.

19) Remove the center exhaust pipe.

B: INSTALLATION

NOTE:
Replace the gaskets with new ones.
1) Install the center exhaust pipe and temporarily
tighten the bolt which holds center exhaust pipe to
hanger bracket.
2) Temporarily tighten the bolt which holds center
pipe to transmission.
3) Connect the center exhaust pipe (RH) to sec-
ondary turbocharger.

Tightening torque:

35 N·m (3.6 kgf-m, 26.0 ft-lb)

FU-00669

EX-00085

EX-00086

(A) Center exhaust pipe (RH)

(B) Secondary turbocharger

EX-00087

(A)

(B)

EX-00083

EX(H4DOSTC)-9

EXHAUST

CENTER EXHAUST PIPE

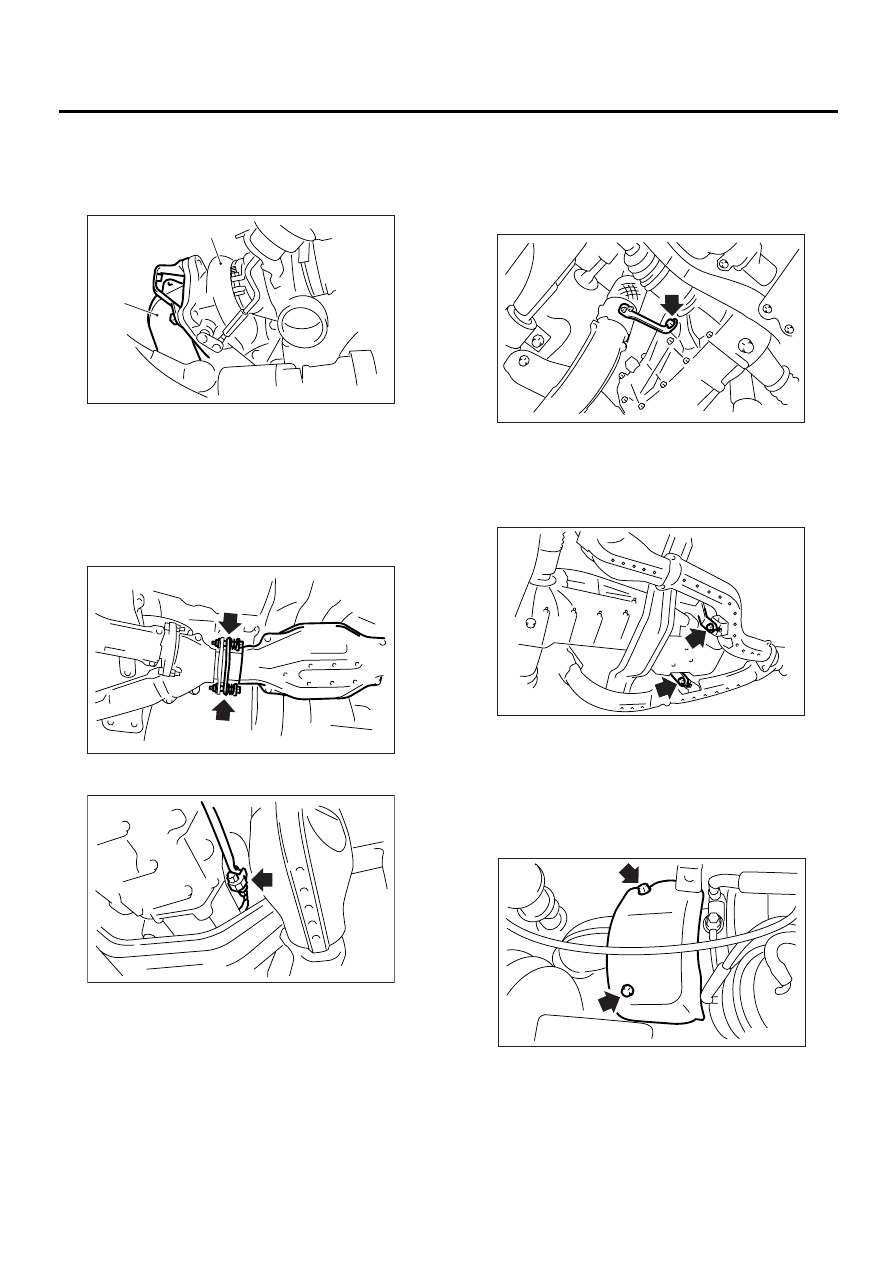

4) Connect the center exhaust pipe (LH) to primary
turbocharger.

Tightening torque:

35 N·m (3.6 kgf-m, 26.0 ft-lb)

5) Install the center exhaust pipe to rear exhaust
pipe.

Tightening torque:

18 N·m (1.8 kgf-m, 13.0 ft-lb)

6) Connect the connector to rear oxygen sensor.

7) Secure clip on the crossmember.
8) Tighten the bolt which holds center exhaust pipe
bracket to transmission.

Tightening torque:

30 N·m (3.1 kgf-m, 22.4 ft-lb)

9) Tighten the bolts which hold center exhaust pipe
to hanger bracket.

Tightening torque:

35 N·m (3.6 kgf-m, 26.0 ft-lb)

10) Lower the vehicle.
11) Place the turbocharger cover (RH), and then
tighten the bolts which install turbocharger cover
(RH).

Tightening torque:

7.4 N·m (0.75 kgf-m, 5.4 ft-lb)

(A) Center exhaust pipe (LH)

(B) Primary turbocharger

EX-00084

(A)

(B)

EX-00085

FU-00669

EX-00086

EX-00087

EX-00081

EX(H4DOSTC)-10

EXHAUST

CENTER EXHAUST PIPE

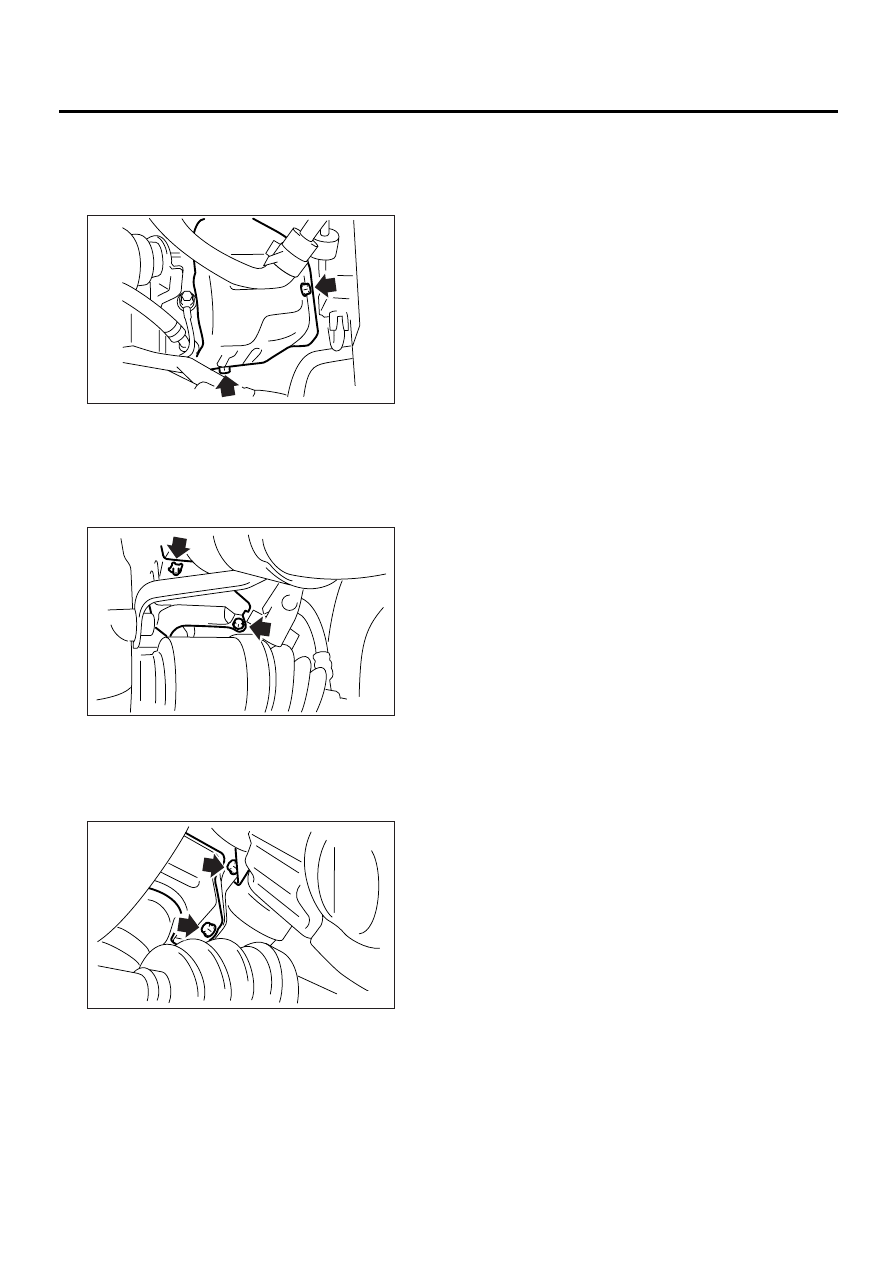

12) Place the turbocharger cover (LH), and tighten
the bolts which install turbocharger cover (LH).

Tightening torque:

7.4 N·m (0.75 kgf-m, 5.4 ft-lb)

13) Lift-up the vehicle.
14) Tighten the bolts which install under side of tur-
bocharger cover (RH).

Tightening torque:

7.4 N·m (0.75 kgf-m, 5.4 ft-lb)

15) Tighten the bolts which install under side of tur-
bocharger cover (LH).

Tightening torque:

7.4 N·m (0.75 kgf-m, 5.4 ft-lb)

16) Install the under cover.
17) Lower the vehicle.
18) Install the intercooler. <Ref. to IN(H4DOSTC)-
14, INSTALLATION, Intercooler.>

EX-00082

EX-00079

EX-00080

EX(H4DOSTC)-11

EXHAUST

JOINT PIPE

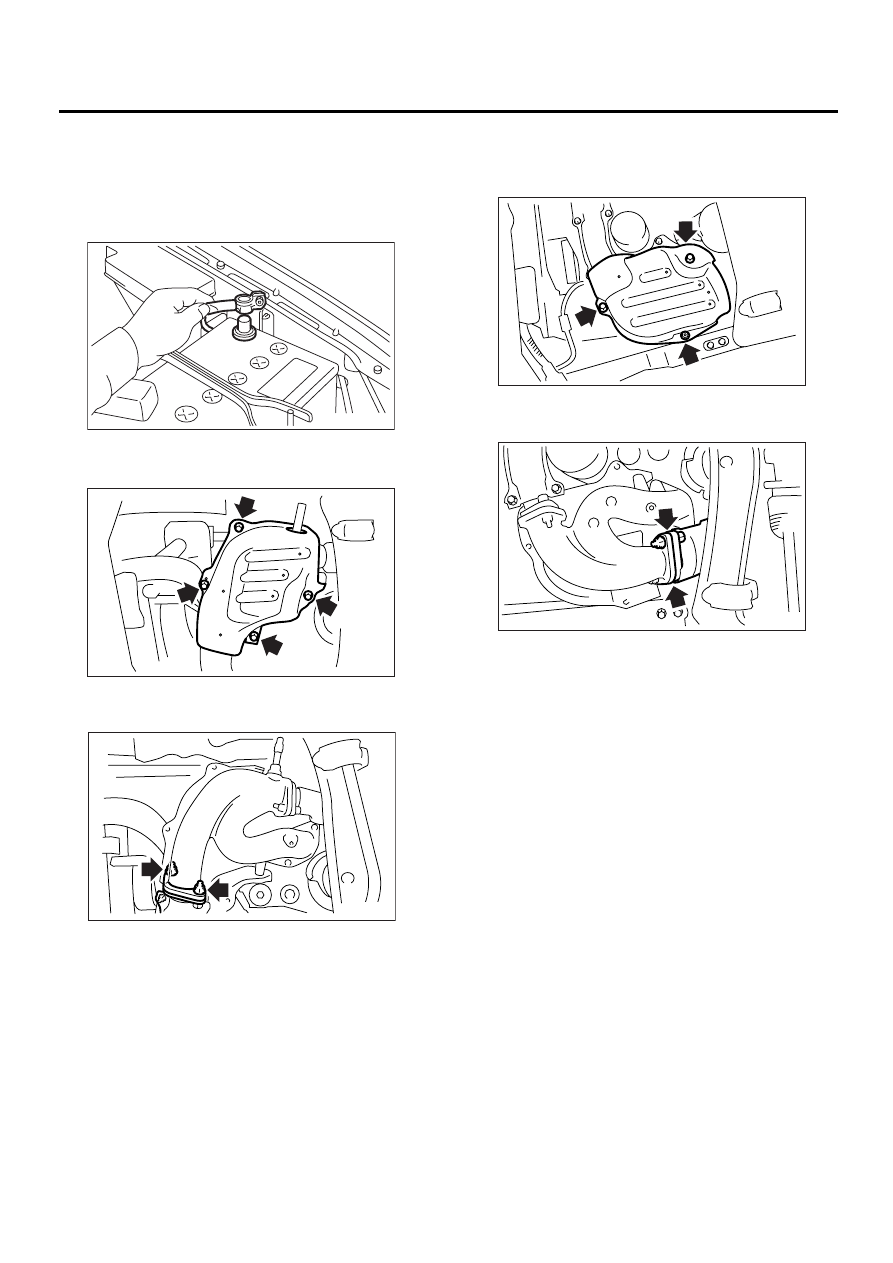

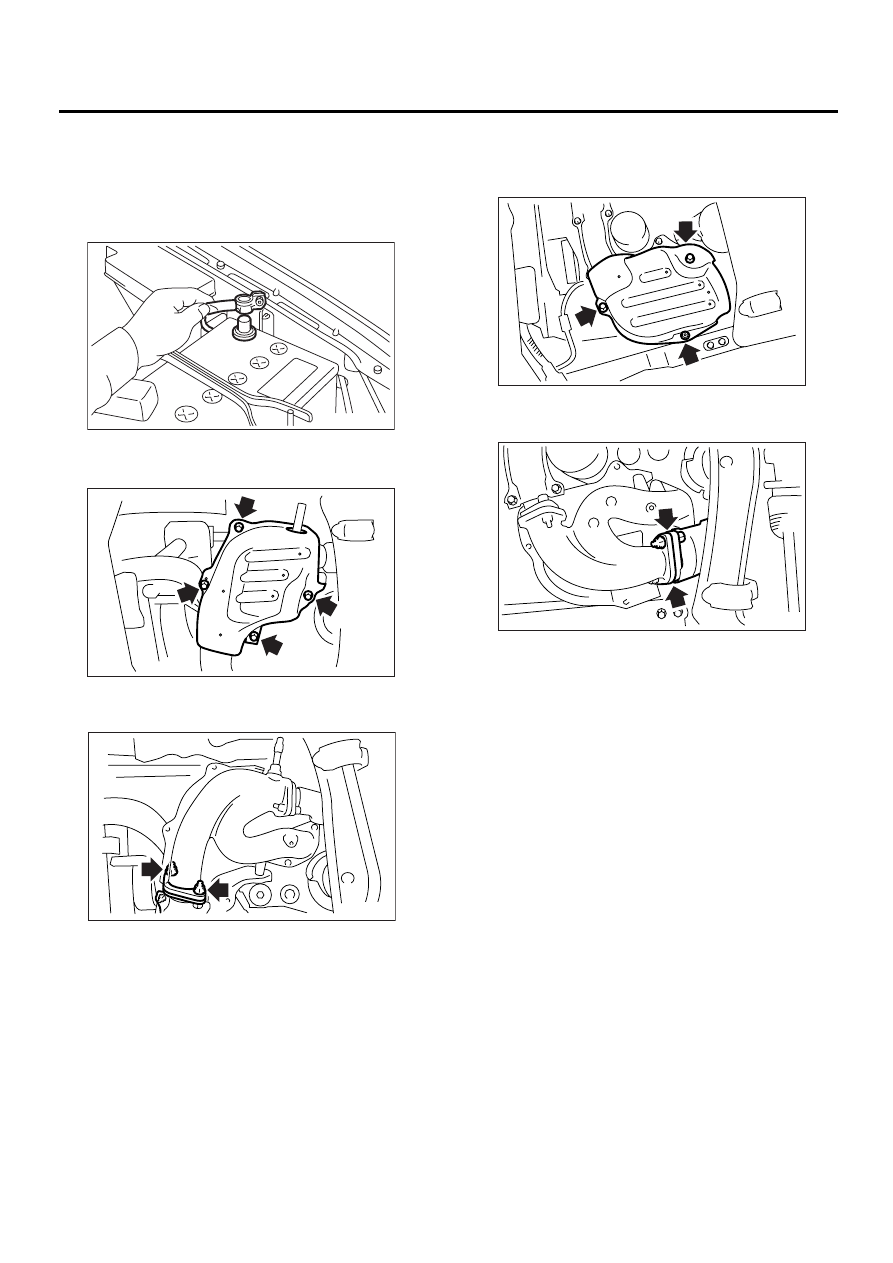

4. Joint Pipe

A: REMOVAL

1. PRIMARY SIDE

1) Disconnect the ground cable from battery.

2) Remove the under cover.
3) Remove the lower exhaust manifold cover (LH).

4) Remove the nuts which hold front exhaust man-
ifold to joint pipe.

5) Remove the center exhaust pipe. <Ref. to
EX(H4DOSTC)-7, REMOVAL, Center Exhaust
Pipe.>
6) Remove the turbocharger.

<Ref. to

IN(H4DOSTC)-15,

REMOVAL, Turbocharger.>

7) Take off the joint pipe in the upward direction.

2. SECONDARY SIDE

1) Remove the under cover.
2) Remove the lower exhaust manifold cover (RH).

3) Remove the nuts which hold front exhaust man-
ifold to joint pipe.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Replace the gaskets with new ones.

Tightening torque:

T: 35 N·m (3.6 kgf-m, 26.0 ft-lb)

FU-00009

EX-00076

EX-00088

EX-00075

EX-00089
