IN(H4DOSTC)-4

INTAKE (INDUCTION)

GENERAL DESCRIPTION

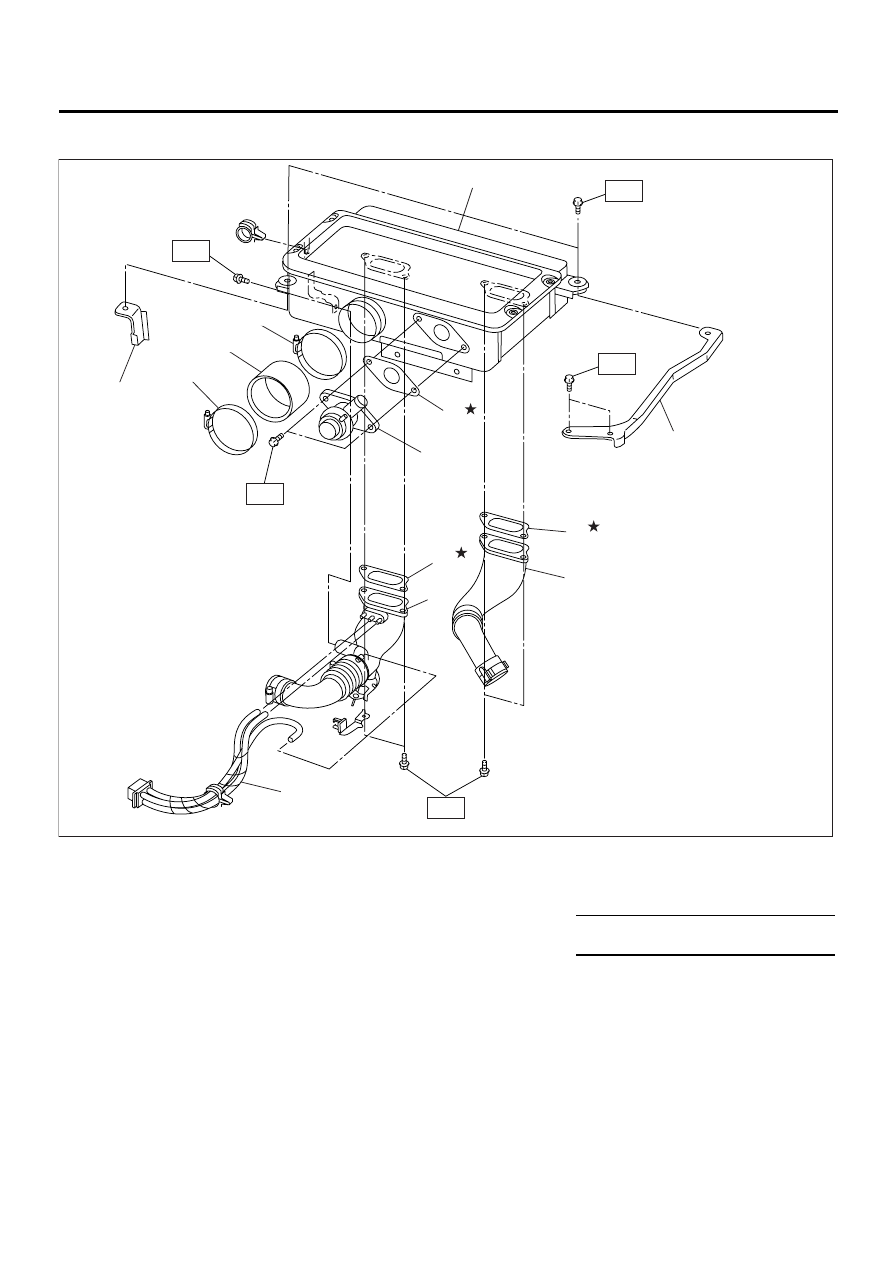

3. INTERCOOLER

(1) Intercooler

(6) Air by-pass valve

(11) Gasket

(2) Intercooler bracket RH

(7) Gasket

(12) Hose connector

(3) Intercooler bracket LH

(8) Intercooler duct (Primary)

(4) Clamp

(9) Gasket

Tightening torque: N·m (kgf-m, ft-lb)

(5) Air intake duct

(10) Intercooler duct (Secondary)

T: 16 (1.6, 11.7)

IN-00079

( 1 )

( 2 )

( 3 )

( 4 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

T

T

T

T

T

IN(H4DOSTC)-5

INTAKE (INDUCTION)

GENERAL DESCRIPTION

MEMO:

IN(H4DOSTC)-6

INTAKE (INDUCTION)

GENERAL DESCRIPTION

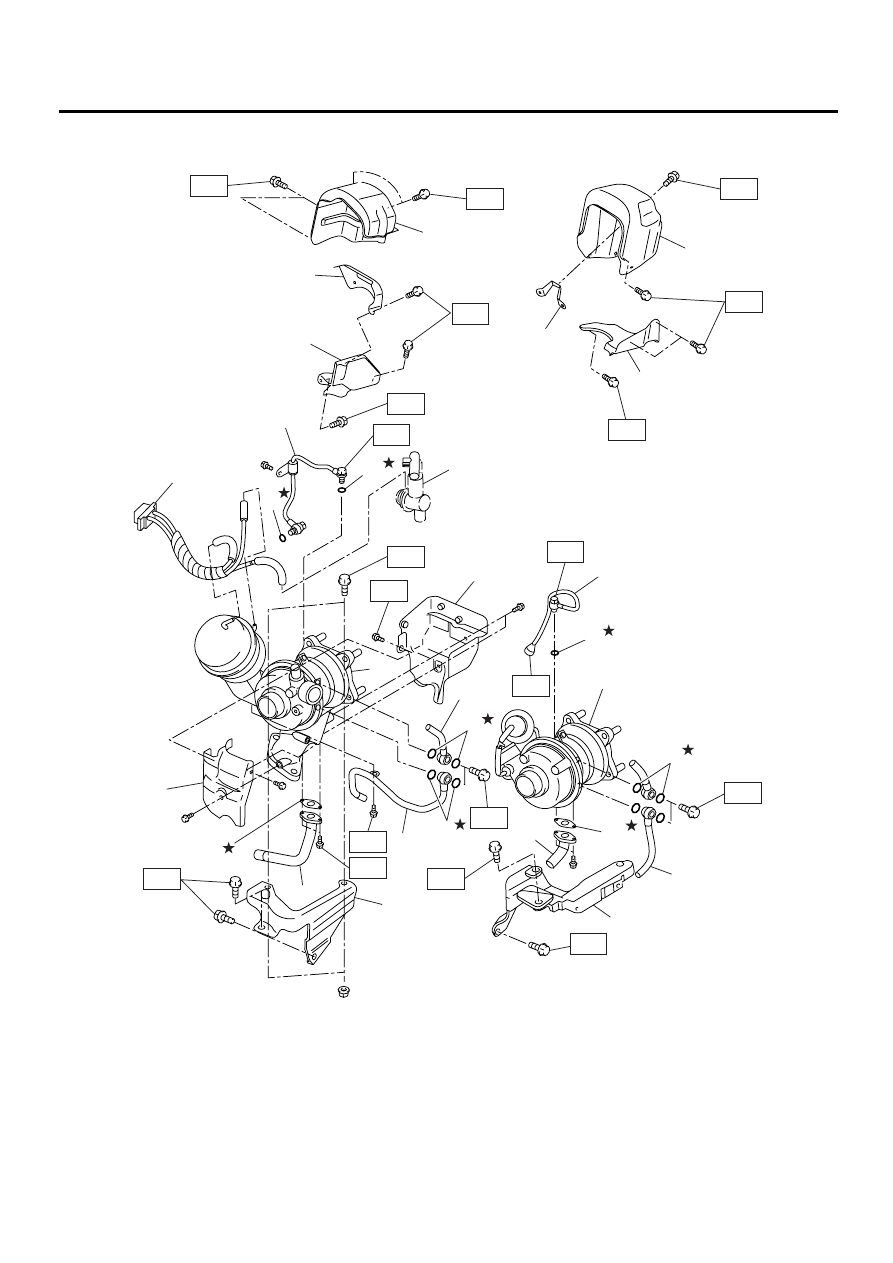

4. TURBOCHARGER

IN-00080

( 1 )

( 2 )

( 2 )

( 2 )

( 2 )

( 2 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(10)

(11)

(12)

(13)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(21)

(22)

T4

T4

T5

T1

T1

T3

T5

T1

T2

T2

T1

T1

T1

T1

T1

T1

T1

T5

T5

IN(H4DOSTC)-7

INTAKE (INDUCTION)

GENERAL DESCRIPTION

(1) Oil inlet pipe (Secondary)

(13) Gasket

(21) Turbocharger cover bracket (Sec-

ondary)

(2) Metal gasket

(14) Oil outlet pipe (Primary)

(3) Hose assembly

(15) Water pipe (Primary)

(22) Turbocharger lower cover (Sec-

ondary)

(4) Relief valve

(16) Turbocharger bracket LH

(5) Secondary turbocharger ASSY

(17) Turbocharger upper cover (Pri-

mary)

(6) Turbocharger cover

Tightening torque: N·m (kgf-m, ft-lb)

(7) Turbocharger cover

(18) Turbocharger lower cover (Pri-

mary)

T1: 6.5 (0.66, 4.8)

(8) Oil outlet pipe (Secondary)

T2: 16 (1.6, 11.8)

(9) Turbocharger bracket RH

(19) Turbocharger cover bracket (Pri-

mary)

T3: 19.5 (1.99, 14.4)

(10) Water pipe (Secondary)

T4: 29 (3.0, 21.4)

(11) Oil inlet pipe (Primary)

(20) Turbocharger upper cover (Sec-

ondary)

T5: 33 (3.4, 24.3)

(12) Primary turbocharger ASSY
