Subaru Legacy III (2000-2003 year). Manual - part 361

EN(H6DO)-246

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

6

CHECK FUEL TANK CORD.
1) Disconnect connector from fuel level sen-

sor.

2) Measure resistance between fuel level sen-

sor and coupling connector.

Connector & terminal

(R57) No. 6 — (R58) No. 3:

Is the measured value less than the speci-
fied value?

10

Ω

Go to step 7.

Repair open circuit
between coupling
connector and fuel
level sensor.

7

CHECK FUEL TANK CORD.
1) Disconnect connector from fuel sub level

sensor.

2) Measure resistance between fuel level sen-

sor and fuel sub level sensor.

Connector & terminal

(R58) No. 6 — (R59) No. 2:

Is the measured value less than the speci-
fied value?

10

Ω

Go to step 8.

Repair open circuit
between fuel level
sensor and fuel
sub level sensor.

8

CHECK FUEL TANK CORD.
Measure resistance between fuel sub level
sensor and coupling connector.

Connector & terminal

(R57) No. 2 — (R59) No. 1:

Is the measured value less than the specified
value?

10

Ω

Go to step 9.

Repair open circuit
between coupling
connector and fuel
sub level sensor.

9

CHECK FUEL LEVEL SENSOR.

Warning:

During work procedures, if fuel tank is more
than 3/4 full, be careful because fuel may
spill.

1) Remove fuel pump assembly. <Ref. to

FU(H6DO)-65, Fuel Pump.>

2) While moving fuel level sensor float up and

down, measure resistance between fuel
level sensor terminals.

Terminals

No. 3 — No. 6:

Does the measured value exceed the spec-
ified value?

54.5

Ω

Replace fuel level
sensor. <Ref. to
FU(H6DO)-67,
Fuel Level Sen-
sor.>

Go to step 10.

10

CHECK FUEL SUB LEVEL SENSOR.

Warning:

During work procedures, if fuel tank is more
than 3/4 full, be careful because fuel may
spill.

1) Remove fuel sub level sensor. <Ref. to

FU(H6DO)-68, Fuel Sub Level Sensor.>

2) While moving fuel sub level sensor float up

and down, measure resistance between
fuel sub level sensor terminals.

Terminals

No. 1 — No. 2:

Does the measured value exceed the spec-
ified value?

41.5

Ω

Replace fuel sub
level sensor. <Ref.
to FU(H6DO)-68,
Fuel Sub Level
Sensor.>

Replace combina-
tion meter. <Ref.
to IDI-14, Combi-
nation Meter
Assembly.>

Step

Value

Yes

No

EN(H6DO)-247

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

MEMO:

EN(H6DO)-248

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

BE:DTC P0483 — COOLING FAN RATIONALITY CHECK —

• DTC DETECTING CONDITION:

• Two consecutive driving cycles with fault

• TROUBLE SYMPTOM:

• Occurrence of noise
• Overheating

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H6DO)-54, OP-
ERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H6DO)-47, OPERATION, Inspec-
tion Mode.>.

NOTE:
If the vehicle, with the engine idling, is placed very close to a wall or another vehicle, preventing normal cool-
ing function, the OBD system may detect malfunction.

EN(H6DO)-249

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

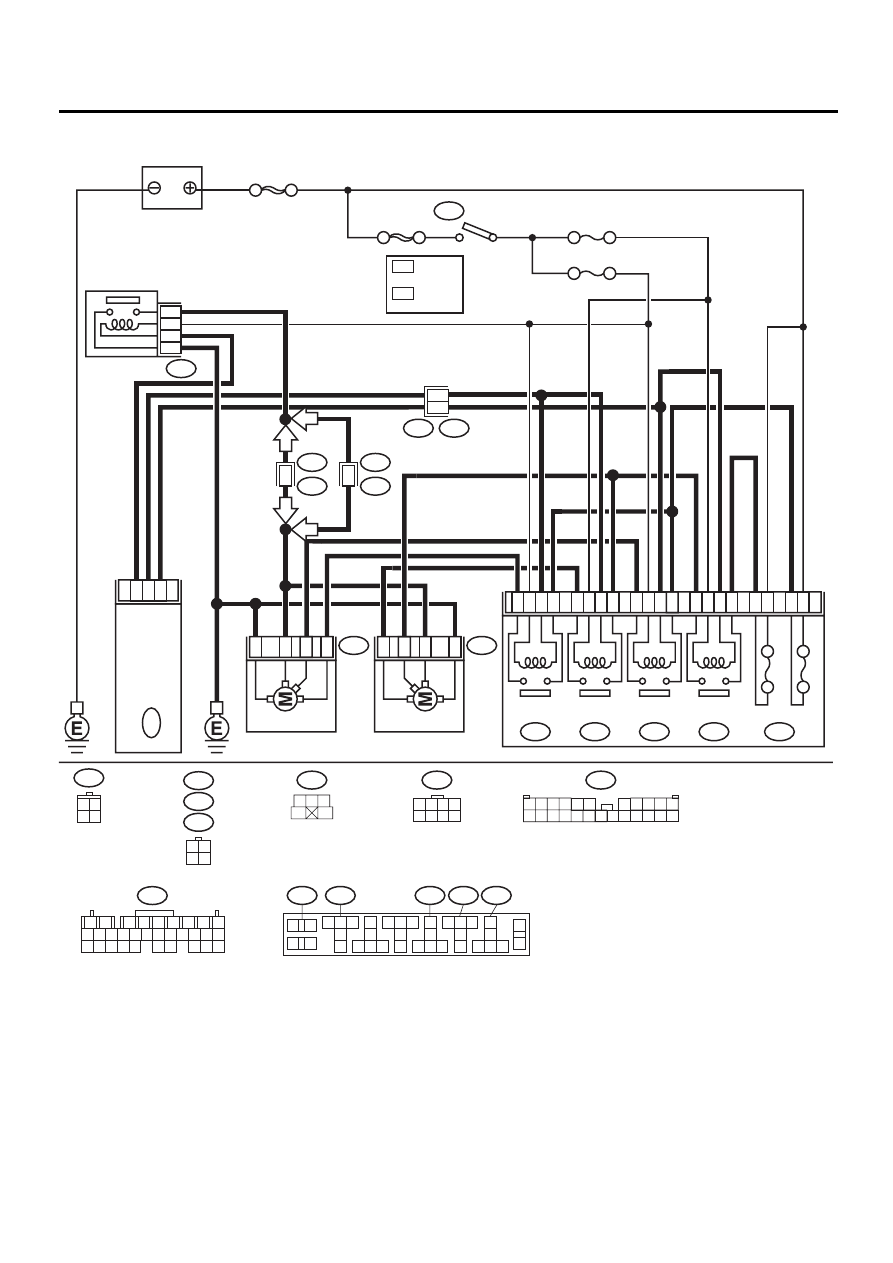

• WIRING DIAGRAM:

CO-00167
