CO(H6DO)-26

COOLING

THERMOSTAT

C: INSPECTION

Replace the thermostat if the valve does not close
completely at an ambient temperature or if the fol-
lowing test shows unsatisfactory results.

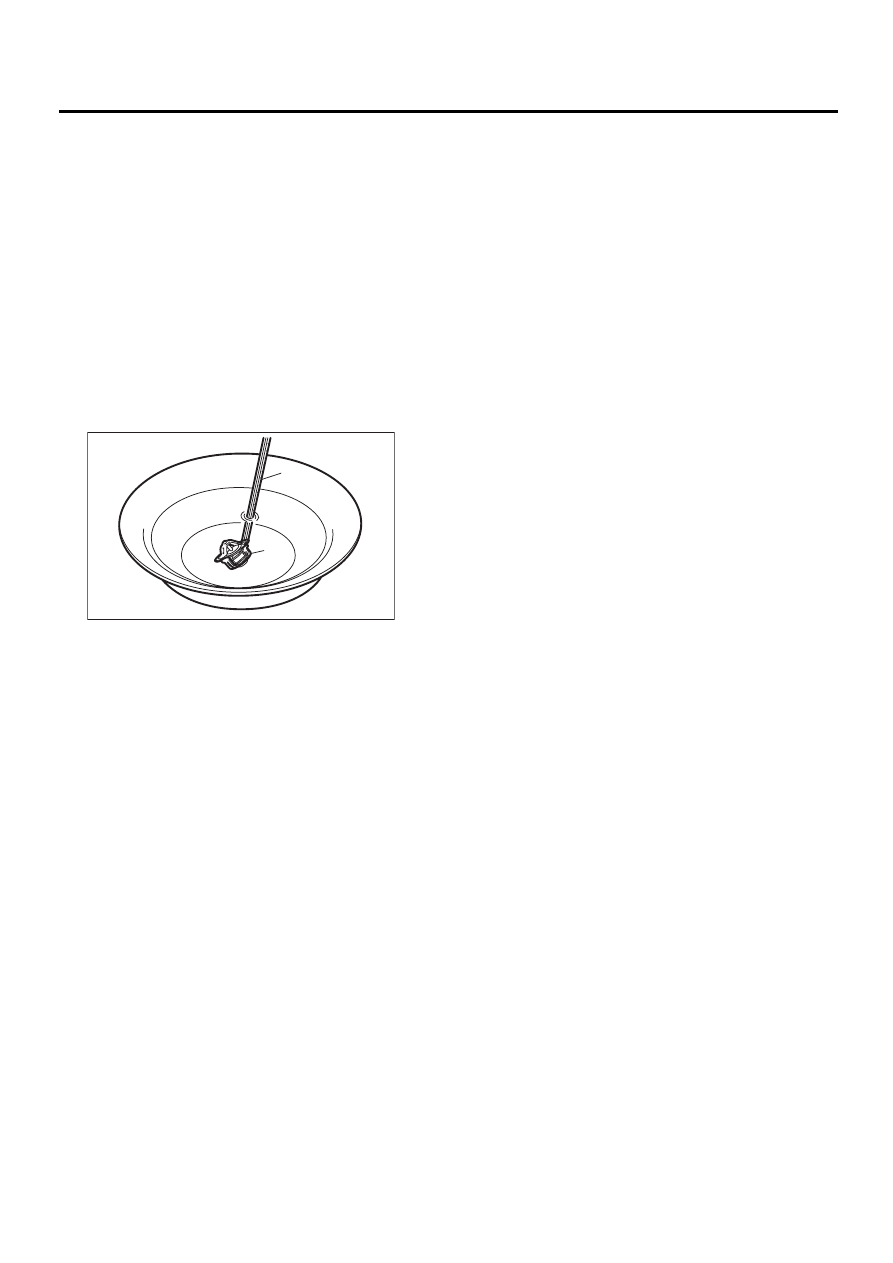

Immerse the thermostat and a thermometer in wa-
ter. Raise water temperature gradually, and mea-
sure the temperature and valve lift when the valve
begins to open and when the valve is fully opened.
During the test, agitate the water for even temper-
ature distribution. The measurement should be to
the specification.

Starts to open:

80 — 84

°°°°

C (176 —



183

°°°°

F)

Fully opens:

95

°°°°

C (203

°°°°

F)

(A) Thermometer

(B) Thermostat

CO-00117

( A )

( B )

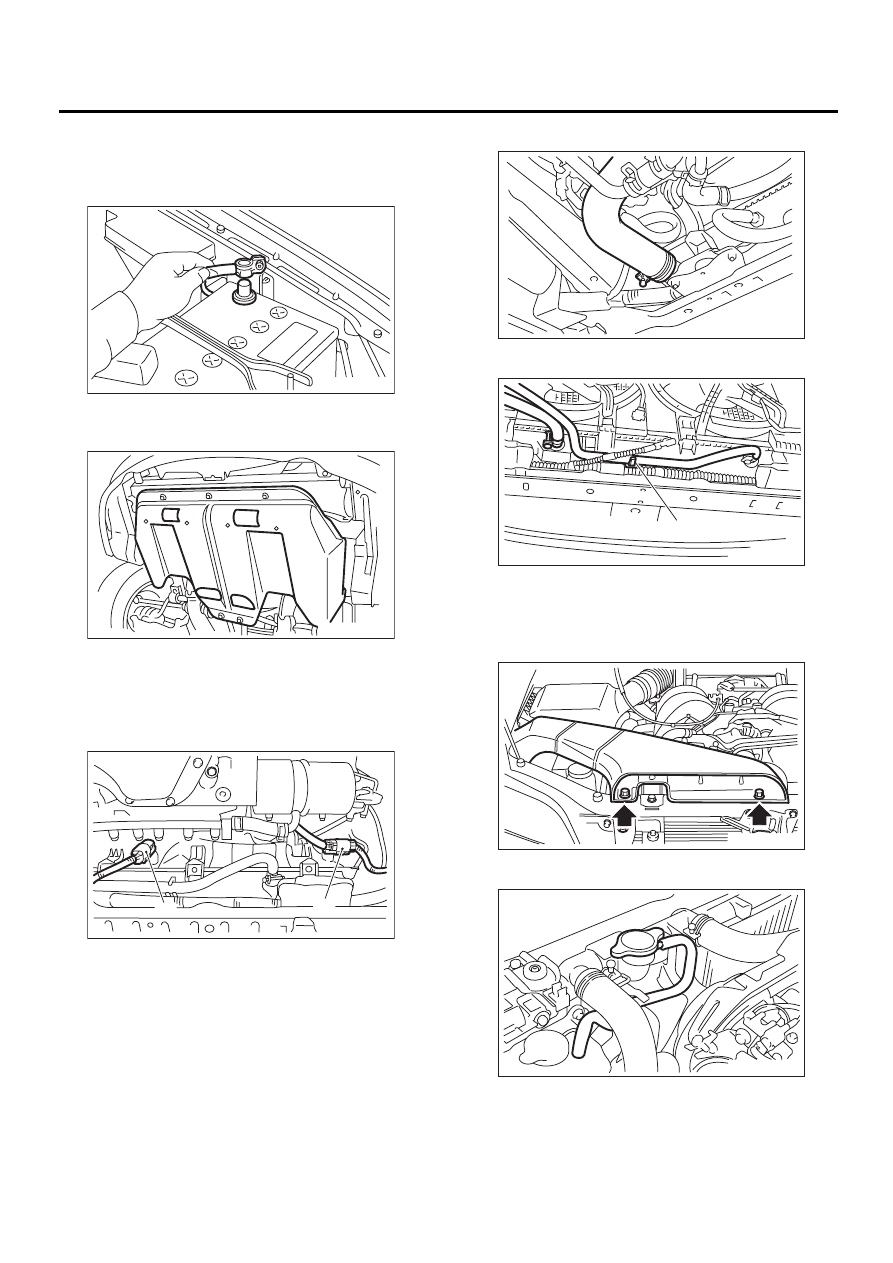

CO(H6DO)-27

COOLING

RADIATOR

7. Radiator

A: REMOVAL

1) Disconnect battery ground cable.

2) Lift-up the vehicle.
3) Remove under cover.

4) Drain engine coolant completely. <Ref. to
CO(H6DO)-22, DRAINING OF ENGINE COOL-
ANT, REPLACEMENT, Engine Coolant.>
5) Disconnect connectors of radiator main fan mo-
tor (A) and sub fan motor (B).

6) Disconnect radiator outlet hose from radiator.

7) Disconnect ATF cooler hoses from radiator.

8) Lower the vehicle.
9) Remove air intake duct.

10) Disconnect over flow hose.

FU-00009

LU-00095

CO-00118

( A )

( B )

(A) Clip

CO-00115

CO-00088

( A )

IN-00071

CO-00120

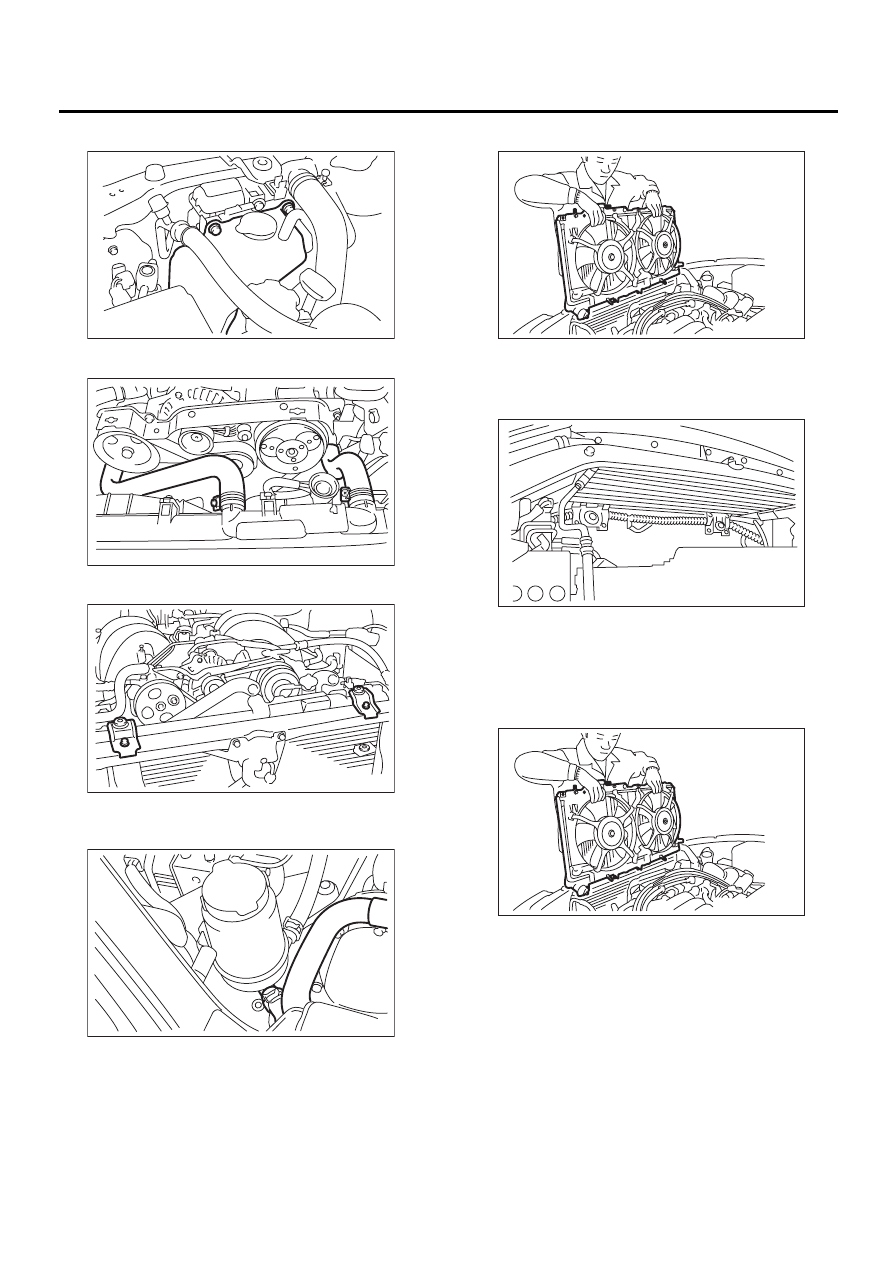

CO(H6DO)-28

COOLING

RADIATOR

11) Remove reservoir tank.

12) Disconnect radiator inlet hoses from radiator.

13) Remove radiator upper brackets.

14) Detach power steering hose from the clip on
the radiator.

15) While slightly lifting radiator, slide it to left.

16) Lift radiator up and away from vehicle.

B: INSTALLATION

1) Attach radiator mounting cushions to holes on
the vehicle.

2) Install radiator while fitting radiator pins to cush-
ions.

NOTE:
Fit pins on lower side of radiator into cushions on
body side.

CO-00121

CO-00122

CO-00123

CO-00124

CO-00125

CO-00126

CO-00125

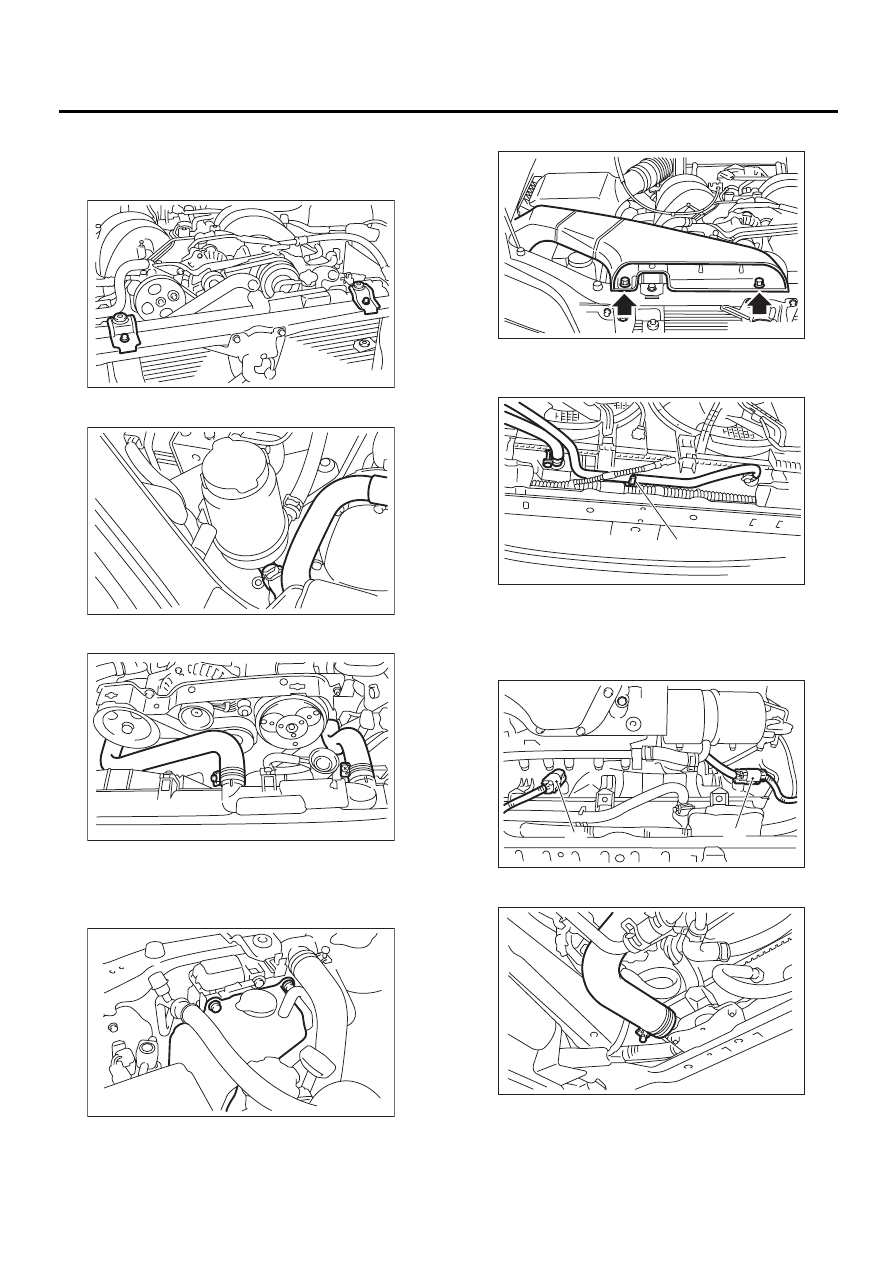

CO(H6DO)-29

COOLING

RADIATOR

3) Install radiator brackets and tighten bolts.

Tightening torque:

12 N·m (1.2 kgf-m, 8.7 ft-lb)

4) Attach power steering hose to the radiator.

5) Connect radiator inlet hoses.

6) Install reservoir tank.

Tightening torque:

4.9 N·m (0.50 kgf-m, 3.6 ft-lb)

7) Install air intake duct.

8) Lift-up the vehicle.
9) Connect ATF cooler hoses.

10) Connect connectors to radiator main fan motor
(A) and sub fan motor (B).

11) Connect radiator outlet hose.

CO-00123

CO-00124

CO-00122

CO-00121

(A) Clip

IN-00071

CO-00088

( A )

CO-00118

( A )

( B )

CO-00115
