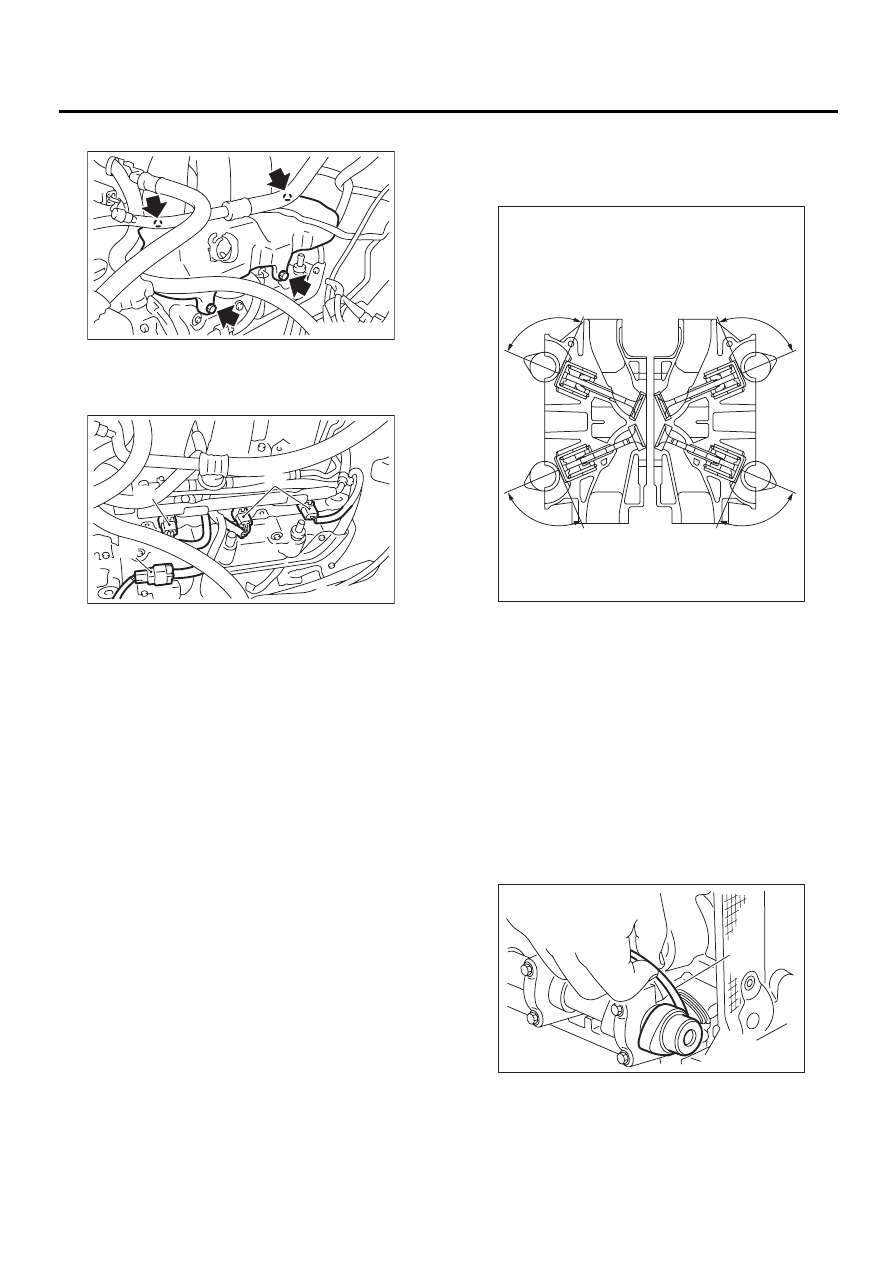

ME(H6DO)-24

MECHANICAL

VALVE CLEARANCE

(7) Remove fuel pipe protector LH.

(8) Disconnect fuel injector connectors. (A)
(9) Disconnect front oxygen (A/F) sensor con-
nector. (B)

(10)Remove ignition coils. <Ref. to IG(H6DO)-7,
REMOVAL, Ignition Coil and Ignitor Assembly.>
(11)Remove rocker cover LH. <Ref. to
ME(H6DO)-50, REMOVAL, Camshaft.>

9) Using the ST, turn the crankshaft clockwise. Ad-
just the camshaft position so that the cam lobe is
perpendicular to the shim as shown in the figure.
ST

18252AA000

CRANKSHAFT SOCKET

10) Measure intake valve and exhaust valve clear-
ances by using thickness gauge (A).

NOTE:
Insert the thickness gauge in as horizontal a direc-
tion as possible with respect to the shim.

Valve clearance:

Intake: 0.20

+0.04

/

−−−−

0.06

 mm (0.0079

+0.0016

/

−−−−

0.0024

 in)

Exhaust: 0.25

±±±±

0.05 mm (0.0098

±±±±

0.0020 in)

NOTE:
If the measured value is not within specification,
take notes of the value in order to adjust the valve
clearance later on.

11) If necessary, adjust the valve clearance. <Ref.
to ME(H6DO)-25, ADJUSTMENT, Valve Clear-
ance.>

ME-00461

ME-00462

( A )

( A )

( B )

ME-00463

90˚

90˚

90˚

90˚

( A )

ME-00464

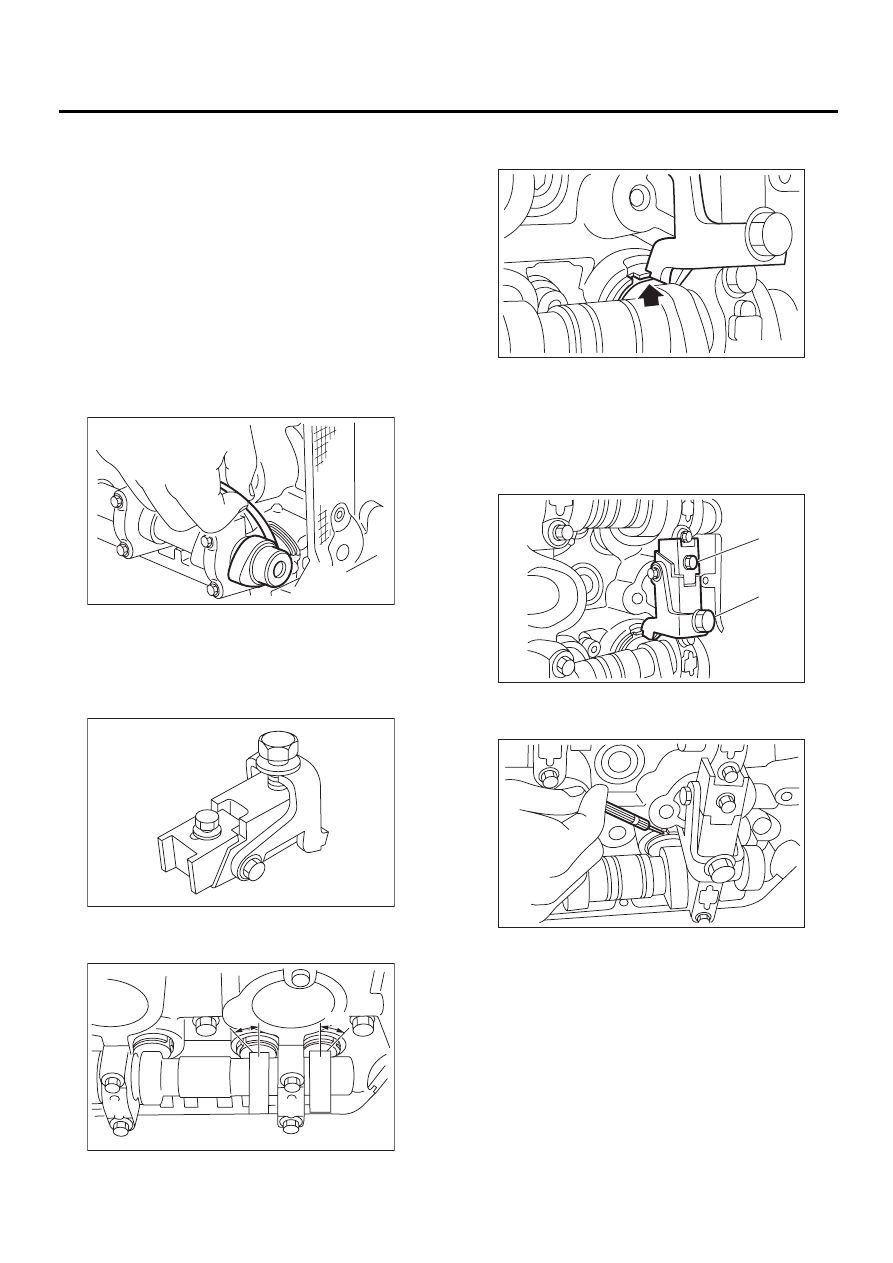

ME(H6DO)-25

MECHANICAL

VALVE CLEARANCE

12) Further turn crankshaft pulley clockwise. Using
the same procedure described previously, then
measure valve clearances again.
13) After inspection, install the related parts in the
reverse order of removal.

B: ADJUSTMENT

NOTE:
Adjustment of valve clearance should be per-
formed while engine is cold.
1) Measure all valve clearances. <Ref. to
ME(H6DO)-22, INSPECTION, Valve Clearance.>

NOTE:
Record each valve clearance after it has been
measured.

2) Remove shim from valve lifter.

(1) Prepare the ST.

ST

18329AA000

SHIM REPLACER

<Ref. to ME(H6DO)-14, PREPARATION TOOL,
General Description.>

(2) Rotate the notch of the valve lifter outward
by 45

°

.

(3) Adjust SHIM REPLACER notch to valve lift-
er and set it.

NOTE:
When setting, be careful SHIM REPLACER edge
does not touch shim.

(4) Tighten bolt (A) and install it to the cylinder
head.
(5) Tighten bolt (B) and insert the valve lifter.

(6) Insert tweezers into the notch of the valve
lifter, and take the shim out.

ME-00465

ME-00466

ME-00467

45˚

45˚

ME-00468

ME-00469

( A )

( B )

ME-00470

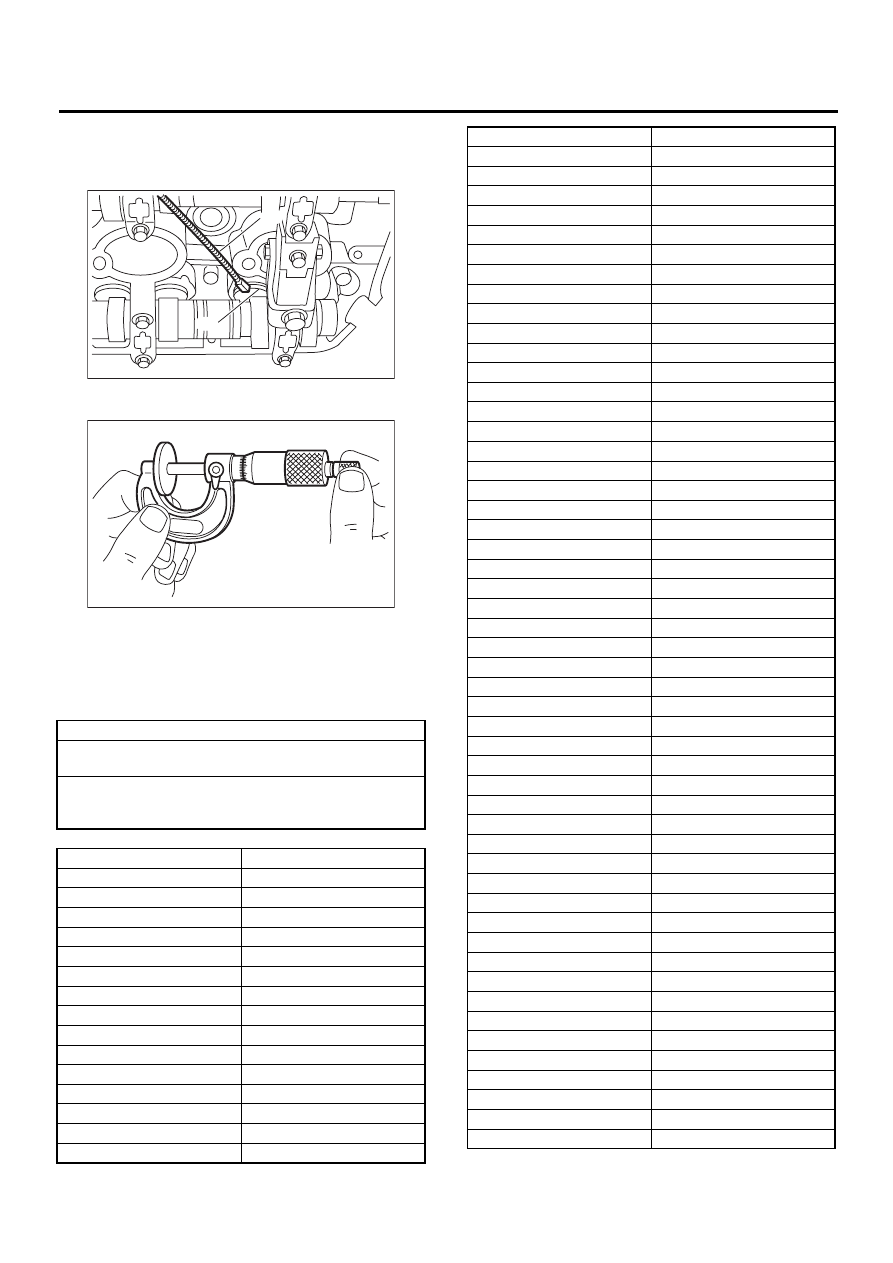

ME(H6DO)-26

MECHANICAL

VALVE CLEARANCE

NOTE:
By using a magnet (A), the shim (B) can be taken
out without dropping it.

3) Measure thickness of shim with micrometer.

4) Select a shim of suitable thickness using mea-
sured valve clearance and shim thickness, by refer-
ring to the following table.
5) Set suitable shim selected in step 4) to valve lift-
er.

Unit: mm

Intake valve: S = (V + T)

−

 0.20

Exhaust valve: S = (V + T)

−

 0.25

S: Shim thickness to be used
V: Measured valve clearance
T: Shim thickness required

Part No.

Thickness mm (in)

13218 AK010

2.00 (0.0787)

13218 AK020

2.02 (0.0795)

13218 AK030

2.04 (0.0803)

13218 AK040

2.06 (0.0811)

13218 AK050

2.08 (0.0819)

13218 AK060

2.10 (0.0827)

13218 AK070

2.12 (0.0835)

13218 AK080

2.14 (0.0843)

13218 AK090

2.16 (0.0850)

13218 AK100

2.18 (0.0858)

13218 AK110

2.20 (0.0866)

13218 AE710

2.22 (0.0874)

13218 AE720

2.23 (0.0878)

13218 AE730

2.24 (0.0882)

13218 AE740

2.25 (0.0886)

ME-00471

( A )

( B )

ME-00472

13218 AE750

2.26 (0.0890)

13218 AE760

2.27 (0.0894)

13218 AE770

2.28 (0.0898)

13218 AE780

2.29 (0.0902)

13218 AE790

2.30 (0.0906)

13218 AE800

2.31 (0.0909)

13218 AE810

2.32 (0.0913)

13218 AE820

2.33 (0.0917)

13218 AE830

2.34 (0.0921)

13218 AE840

2.35 (0.0925)

13218 AE850

2.36 (0.0929)

13218 AE860

2.37 (0.0933)

13218 AE870

2.38 (0.0937)

13218 AE880

2.39 (0.0941)

13218 AE890

2.40 (0.0945)

13218 AE900

2.41 (0.0949)

13218 AE910

2.42 (0.0953)

13218 AE920

2.43 (0.0957)

13218 AE930

2.44 (0.0961)

13218 AE940

2.45 (0.0965)

13218 AE950

2.46 (0.0969)

13218 AE960

2.47 (0.0972)

13218 AE970

2.48 (0.0976)

13218 AE980

2.49 (0.0980)

13218 AE990

2.50 (0.0984)

13218 AF000

2.51 (0.0988)

13218 AF010

2.52 (0.0992)

13218 AF020

2.53 (0.0996)

13218 AF030

2.54 (0.1000)

13218 AF040

2.55 (0.1004)

13218 AF050

2.56 (0.1008)

13218 AF060

2.57 (0.1012)

13218 AF070

2.58 (0.1016)

13218 AF090

2.60 (0.1024)

13218 AF100

2.61 (0.1028)

13218 AF110

2.62 (0.1031)

13218 AF120

2.63 (0.1035)

13218 AF130

2.64 (0.1039)

13218 AF140

2.65 (0.1043)

13218 AF150

2.66 (0.1047)

13218 AF160

2.67 (0.1051)

13218 AF170

2.68 (0.1055)

13218 AF180

2.69 (0.1059)

13218 AF190

2.70 (0.1063)

13218 AF200

2.71 (0.1067)

13218 AF210

2.72 (0.1071)

13218 AF220

2.73 (0.1075)

13218 AF230

2.74 (0.1079)

13218 AF240

2.75 (0.1083)

13218 AF250

2.76 (0.1087)

13218 AF260

2.77 (0.1091)

Part No.

Thickness mm (in)

ME(H6DO)-27

MECHANICAL

VALVE CLEARANCE

6) Inspect all valves for clearance again at this
stage. If the valve clearance is not correct, repeat
the procedure over again from the first step.
7) After inspection, install the related parts in the
reverse order of removal.

13218 AF270

2.78 (0.1094)

13218 AF280

2.79 (0.1098)

13218 AF290

2.80 (0.1102)

13218 AF300

2.81 (0.1106)

Part No.

Thickness mm (in)
