EC(H6DO)-12

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

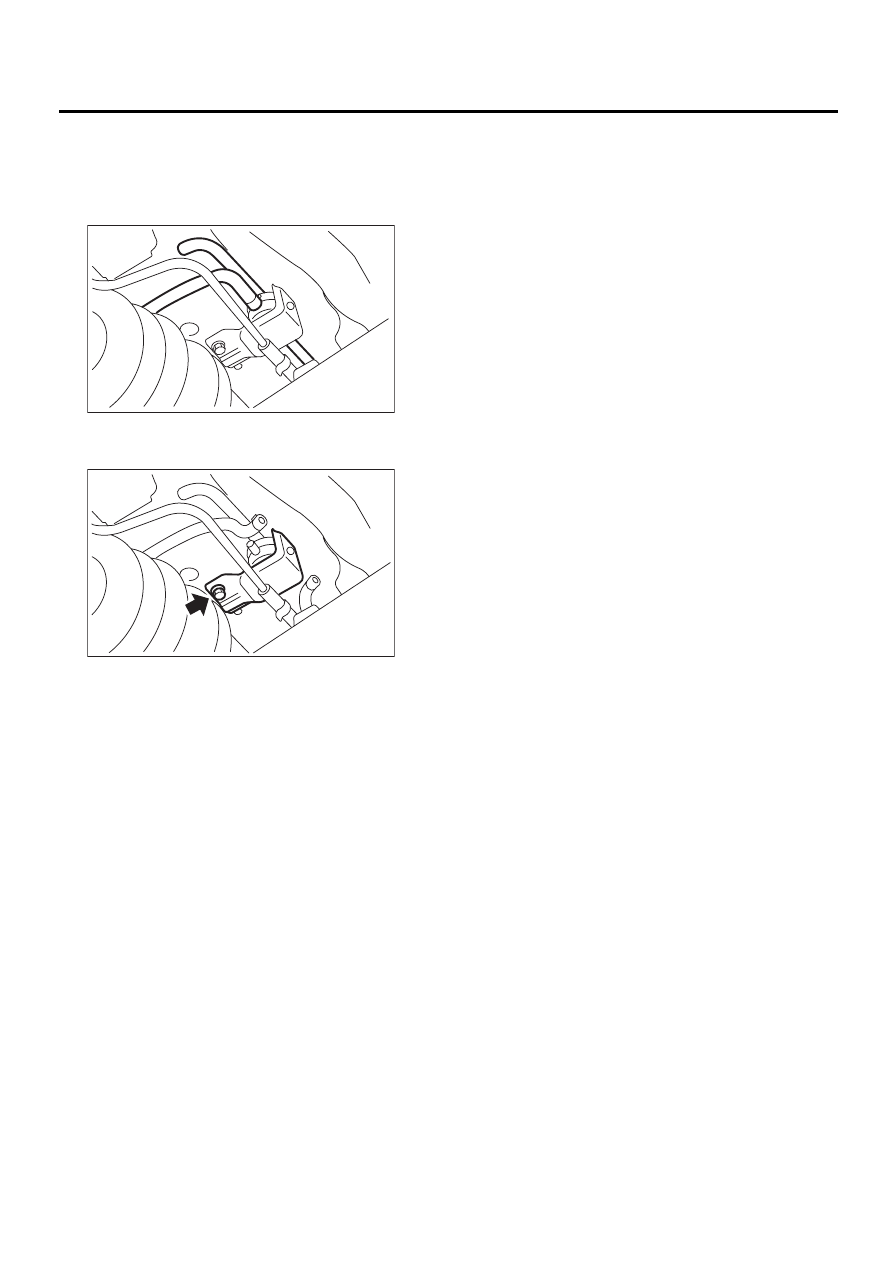

TWO-WAY VALVE

7. Two-way valve

A: REMOVAL

1) Lift-up the vehicle.
2) Disconnect hoses from two-way valve.

3) Remove two-way valve with bracket as a single
unit from body.

4) Remove two-way valve from bracket.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Make sure that hoses are not cracked or loose.

EC-00129

EC-00130

INTAKE (INDUCTION)

IN(H6DO)

Page

1.

General Description ....................................................................................2

2.

Air Cleaner ..................................................................................................5

3.

Air Intake Chamber .....................................................................................6

4.

Air Intake Duct.............................................................................................7

5.

Resonator Chamber ....................................................................................8

IN(H6DO)-2

INTAKE (INDUCTION)

GENERAL DESCRIPTION

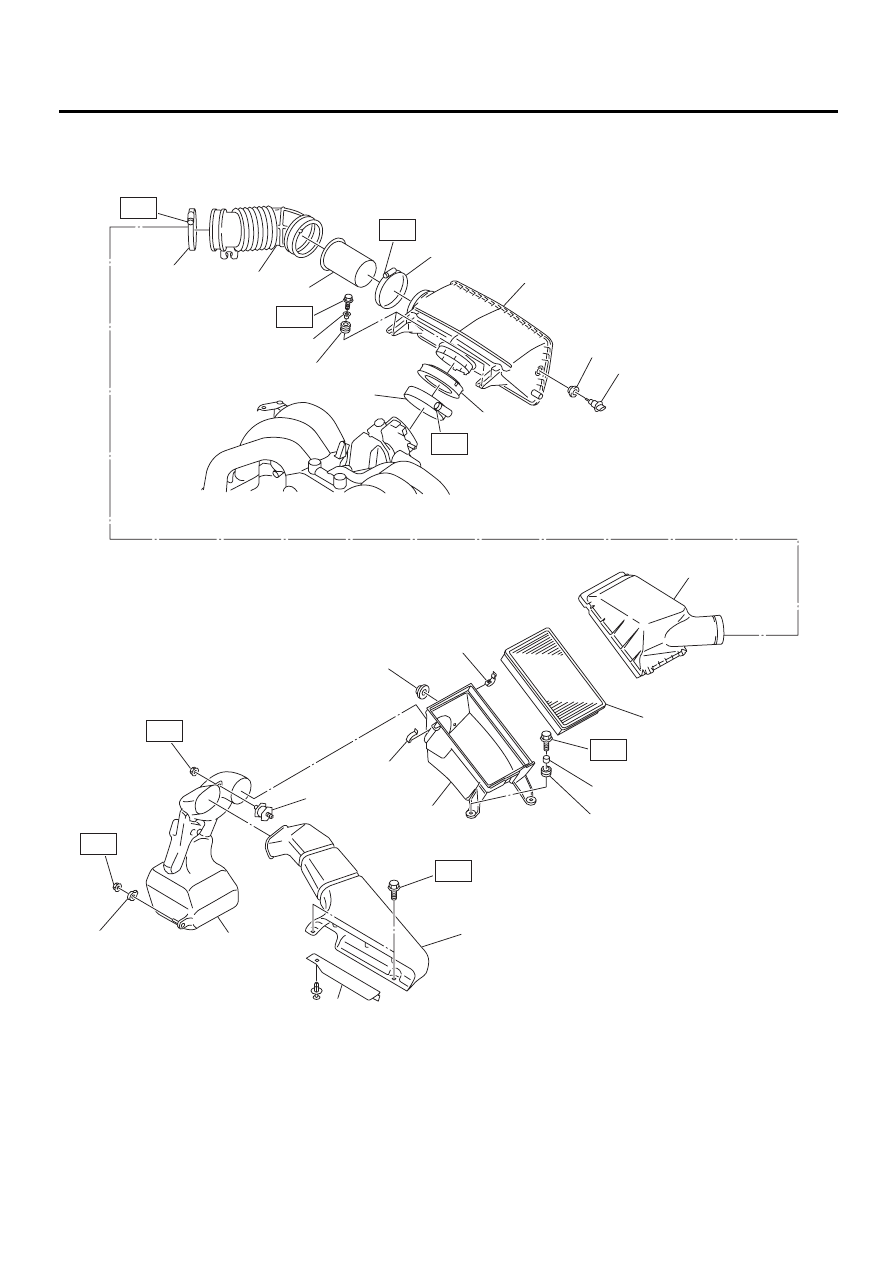

1. General Description

A: COMPONENT

IN-00064

( 1 )

( 2 )

( 3 )

( 4 )

( 4 )

( 4 )

( 4 )

( 5 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

T1

T3

T3

T4

T4

T4

T2

T3

IN(H6DO)-3

INTAKE (INDUCTION)

GENERAL DESCRIPTION

(1) Air intake duct

(10) Intake air temperature sensor

(19) Air intake boot

(2) Plate

(11) Grommet

(20) Clamp

(3) Resonator chamber

(12) Air intake chamber

(4) Cushion

(13) Grommet

Tightening torque: N·m (kgf-m, ft-lb)

(5) Clip

(14) Clamp

T1: 32.3 (3.3, 23.9)

(6) Air cleaner lower case

(15) Clamp

T2: 6.4 (0.65 4.7)

(7) Spacer

(16) Cushion

T3: 7.5 (0.76, 5.5)

(8) Air cleaner element

(17) Spacer

T4: 3 (0.3, 2.2)

(9) Air cleaner upper cover

(18) Intake duct
