FU(H6DO)-4

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

B: COMPONENT

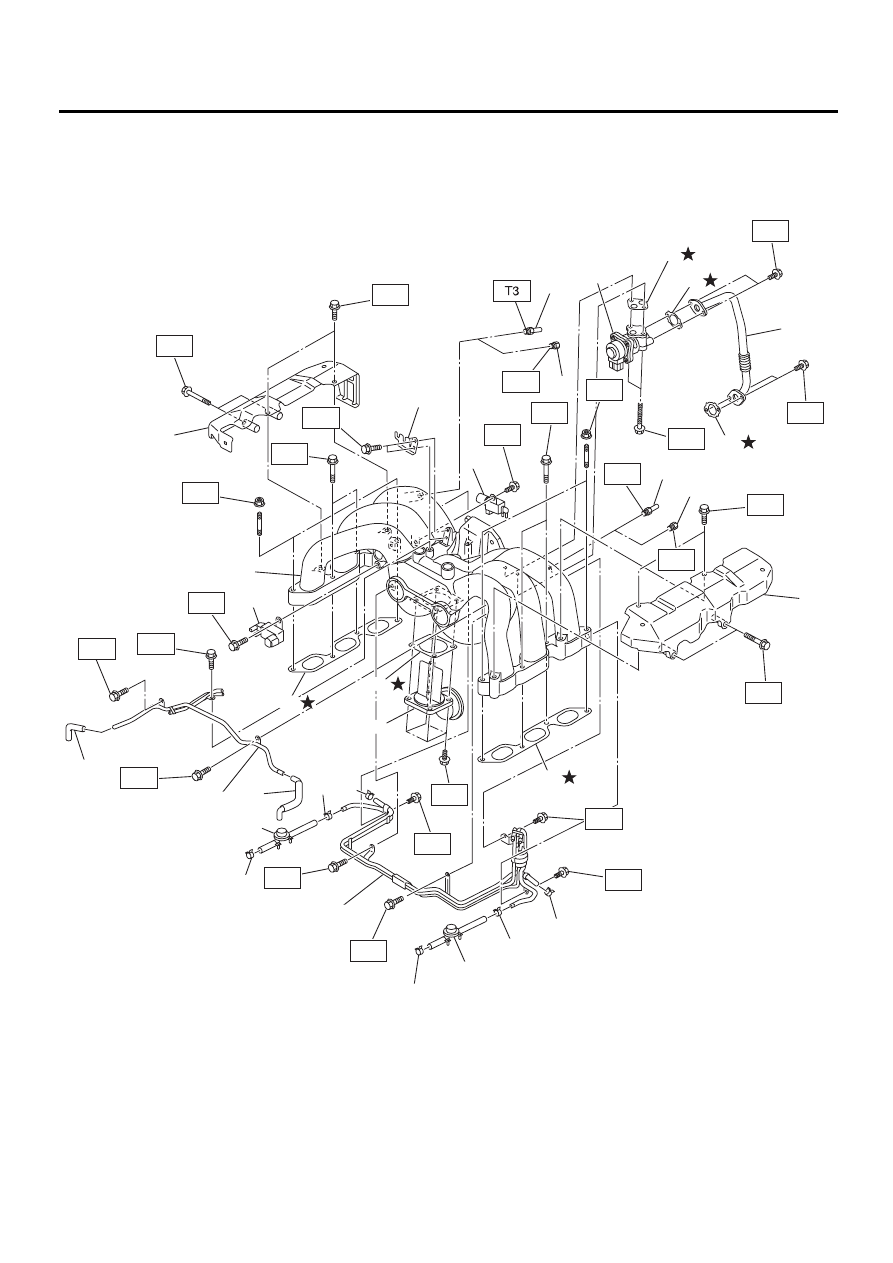

1. INTAKE MANIFOLD

FU-00531

( 1 )

( 1 )

( 2 )

( 2 ) ( 2 )

( 2 )

( 2 )

( 2 )

( 3 )

( 4 )

( 4 )

( 5 )

( 6 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(10)

(11)

(11)

(12)

(13)

(14)

(15)

(15)

(15)

(16)

(17)

(18)

(19)

T2

T2

T2

T4

T4

T5

T5

T5

T5

T4

T4

T4

T4

T4

T1

T1

T4

T3

T3

T3

T2

T2

T2

T2

T2

T2

FU(H6DO)-5

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

(1) Fuel damper valve

(10) Nipple

(19) Gasket

(2) Clamp

(11) Plug

(3) Fuel pipe ASSY

(12) Intake manifold

Tightening torque: N·m (kgf-m, ft-lb)

(4) Air assist hose

(13) Induction valve control solenoid

T1: 6.4 (0.65, 4.7)

(5) Air assist and purge pipe ASSY

(14) EGR valve

T2: 5.0 (0.51, 3.7)

(6) Gasket

(15) Gasket

T3: 17 (1.7, 12)

(7) Purge control solenoid valve

(16) EGR pipe

T4: 19 (1.9, 14)

(8) Fuel pipe protector RH

(17) Fuel pipe protector LH

T5: 25 (2.5, 18)

(9) Accelerator cable bracket

(18) Induction valve

FU(H6DO)-6

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

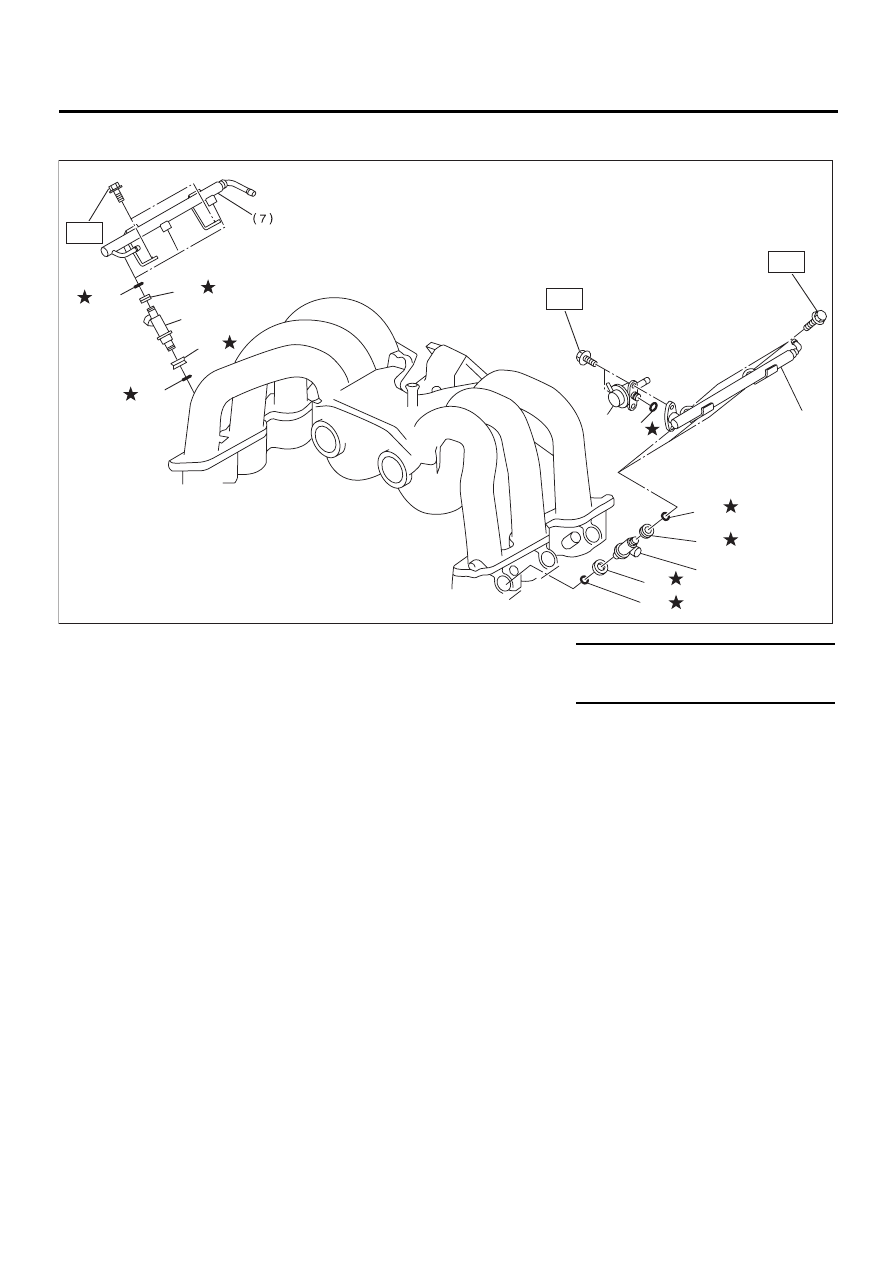

2. FUEL INJECTOR

(1) Fuel injector pipe LH

(5) Insulator

Tightening torque: N·m (kgf-m, ft-lb)

(2) Pressure regulator

(6) Fuel injector

T1: 6.4 (0.65, 4.7)

(3) O-ring

(7) Fuel injector pipe RH

T2: 19 (1.9, 14)

(4) Injection rubber

FU-00532

( 1 )

( 2 )

( 3 )

( 3 )

( 3 )

( 3 )

( 3 )

( 4 )

( 4 )

( 5 )

( 5 )

( 6 )

( 6 )

T1

T2

T2

FU(H6DO)-7

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

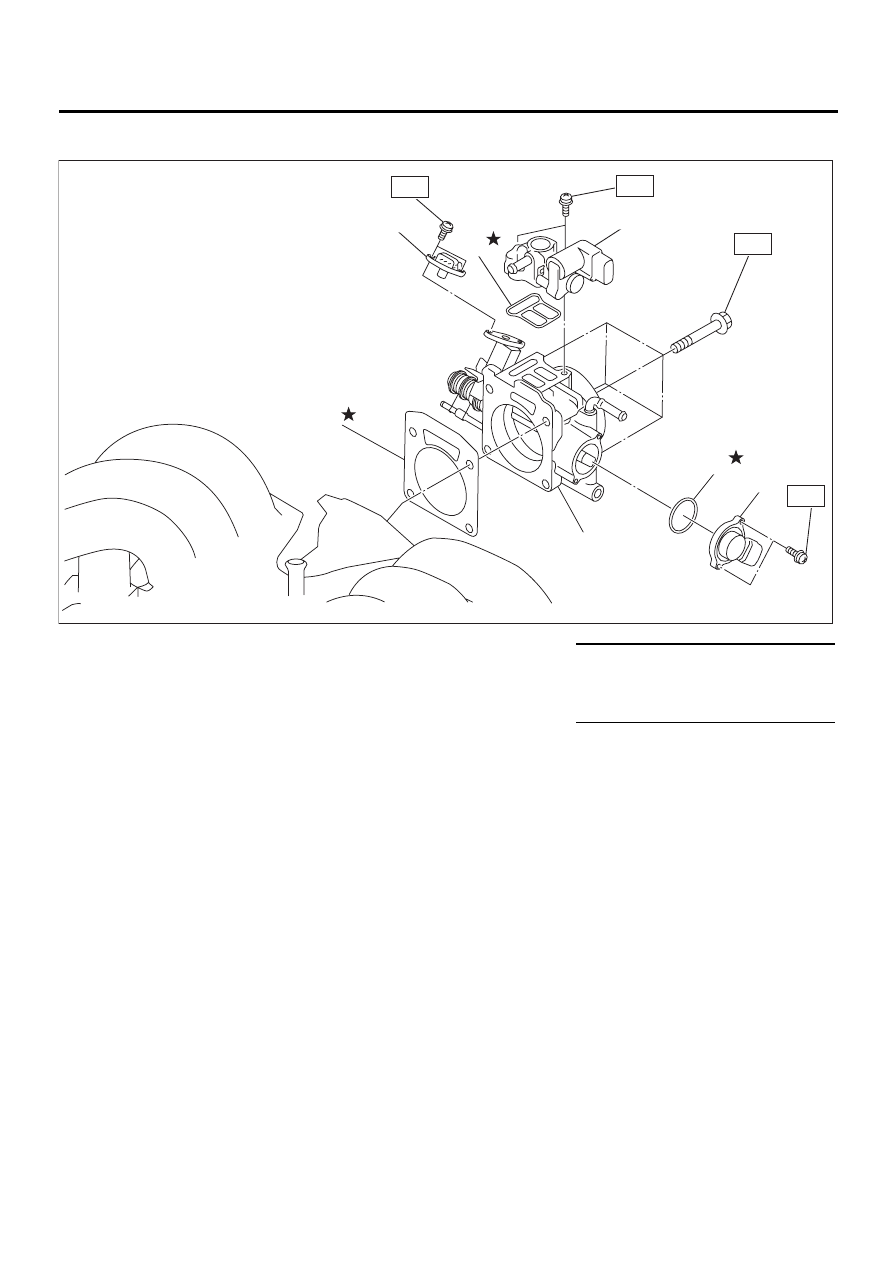

3. AIR INTAKE SYSTEM

(1) Gasket

(5) O-ring

Tightening torque: N·m (kgf-m, ft-lb)

(2) Intake manifold pressure sensor

(6) Throttle body

T1: 1.6 (0.16, 1.2)

(3) Idle air control solenoid valve

T2: 2.8 (0.29, 2.1)

(4) Throttle position sensor

T3: 22 (2.2, 15.9)

FU-00533

( 1 )

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

T1

T1

T2

T3
