Subaru Legacy III (2000-2003 year). Manual - part 205

EN(H4SOw/oOBD)-10

ENGINE (DIAGNOSTICS)

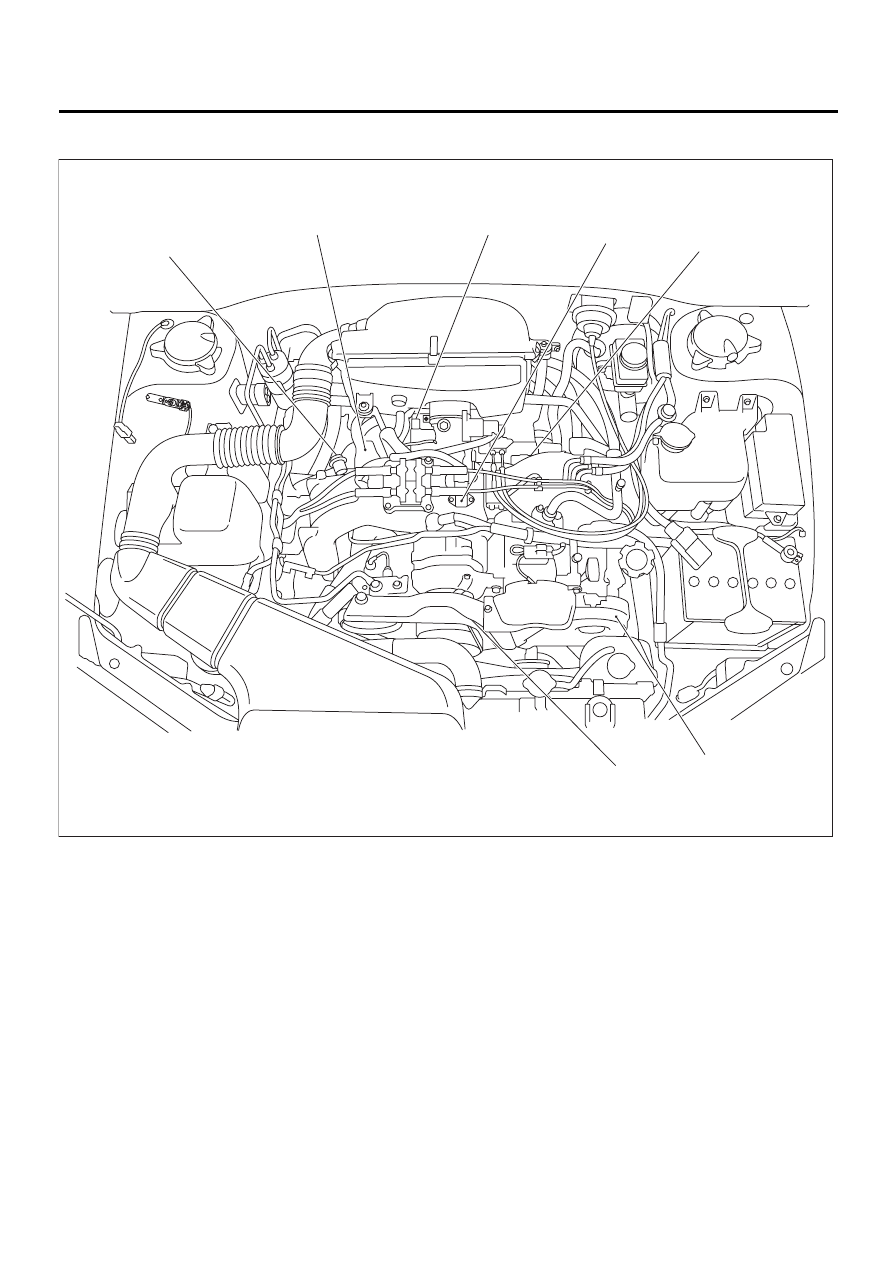

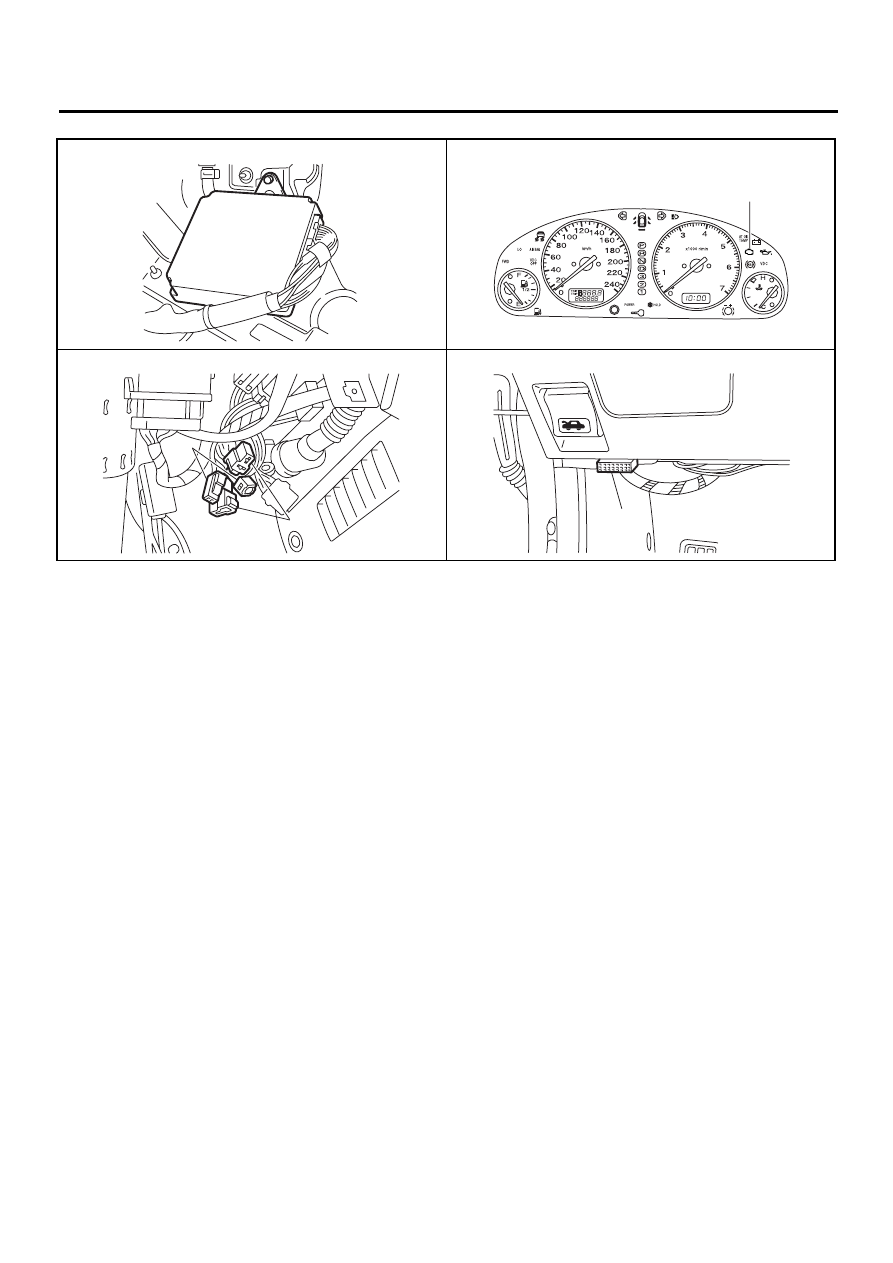

ELECTRICAL COMPONENTS LOCATION

EN-00845

( 1 )

EN-01016

( 2 )

( 3 )

( 4 )

EN-01015

EN-01017

( 5 )

EN(H4SOw/oOBD)-11

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

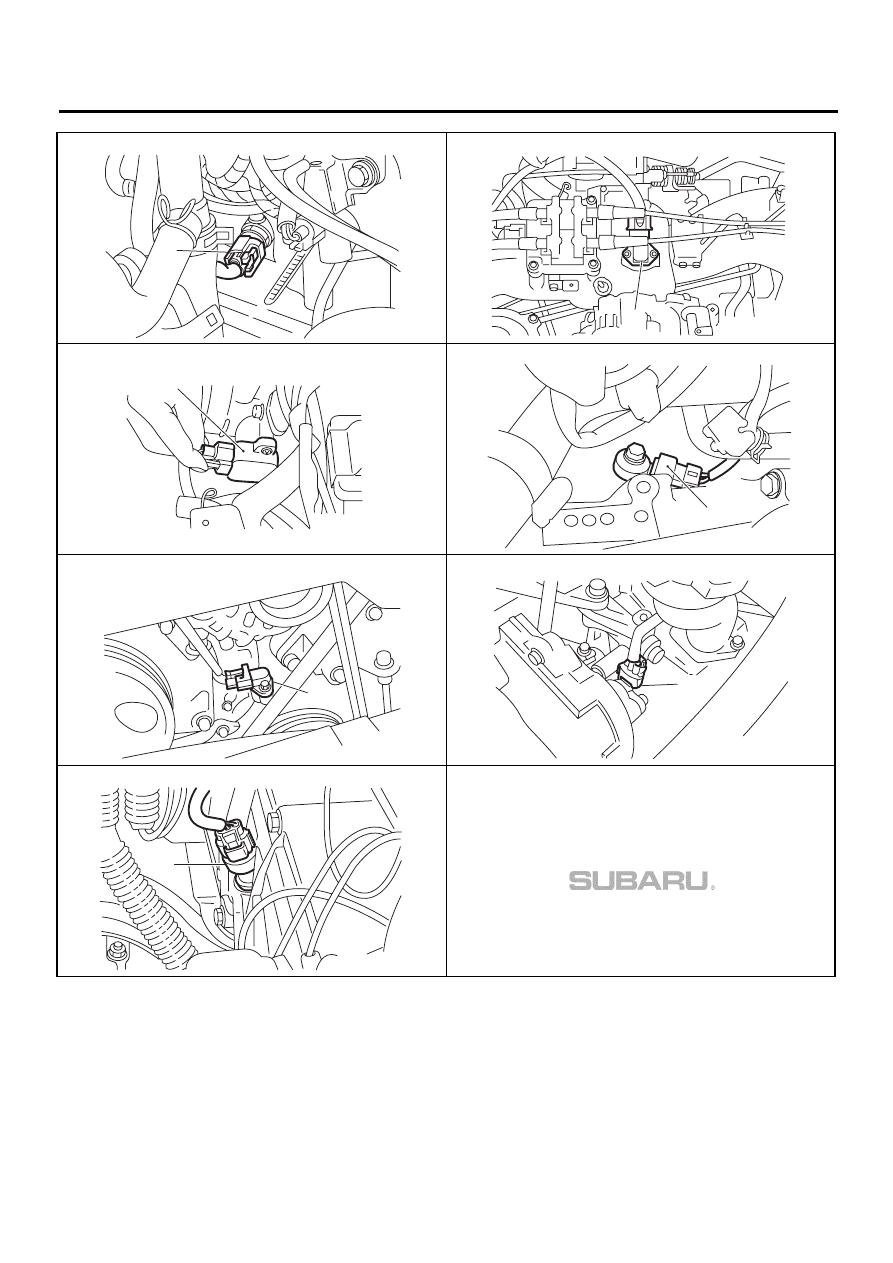

2. SENSOR

(1) Engine coolant temperature sen-

sor

(3) Throttle position sensor

(7) Vehicle speed sensor

(4) Knock sensor

(2) Intake air temperature and pres-

sure sensor

(5) Crankshaft position sensor

(6) Camshaft position sensor

( 6 )

( 4 )

( 2 )

( 3 )

( 7 )

EN-01018

( 1 )

( 5 )

EN(H4SOw/oOBD)-12

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

EN-01019

( 1 )

EN-01023

( 2 )

EN-01020

( 3 )

( 4 )

EN-01024

( 5 )

EN-01021

( 6 )

EN-01025

EN-01022

( 7 )

EN(H4SOw/oOBD)-13

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

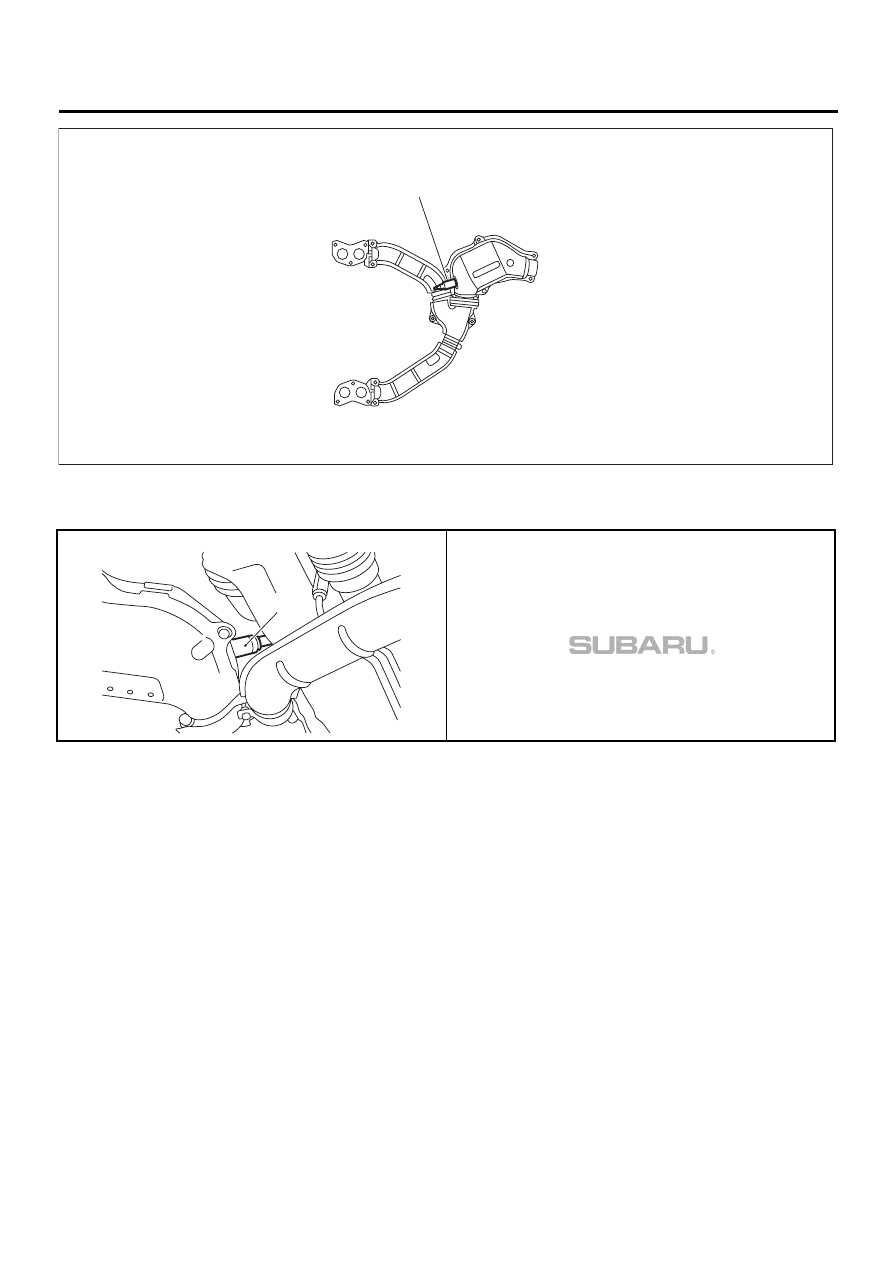

(8) Oxygen sensor (With catalyst

model)

EN-01026

( 8 )

EN-01027

( 8 )
