EX(H4SOw/oOBD)-2

EXHAUST

GENERAL DESCRIPTION

1. General Description

A: COMPONENT

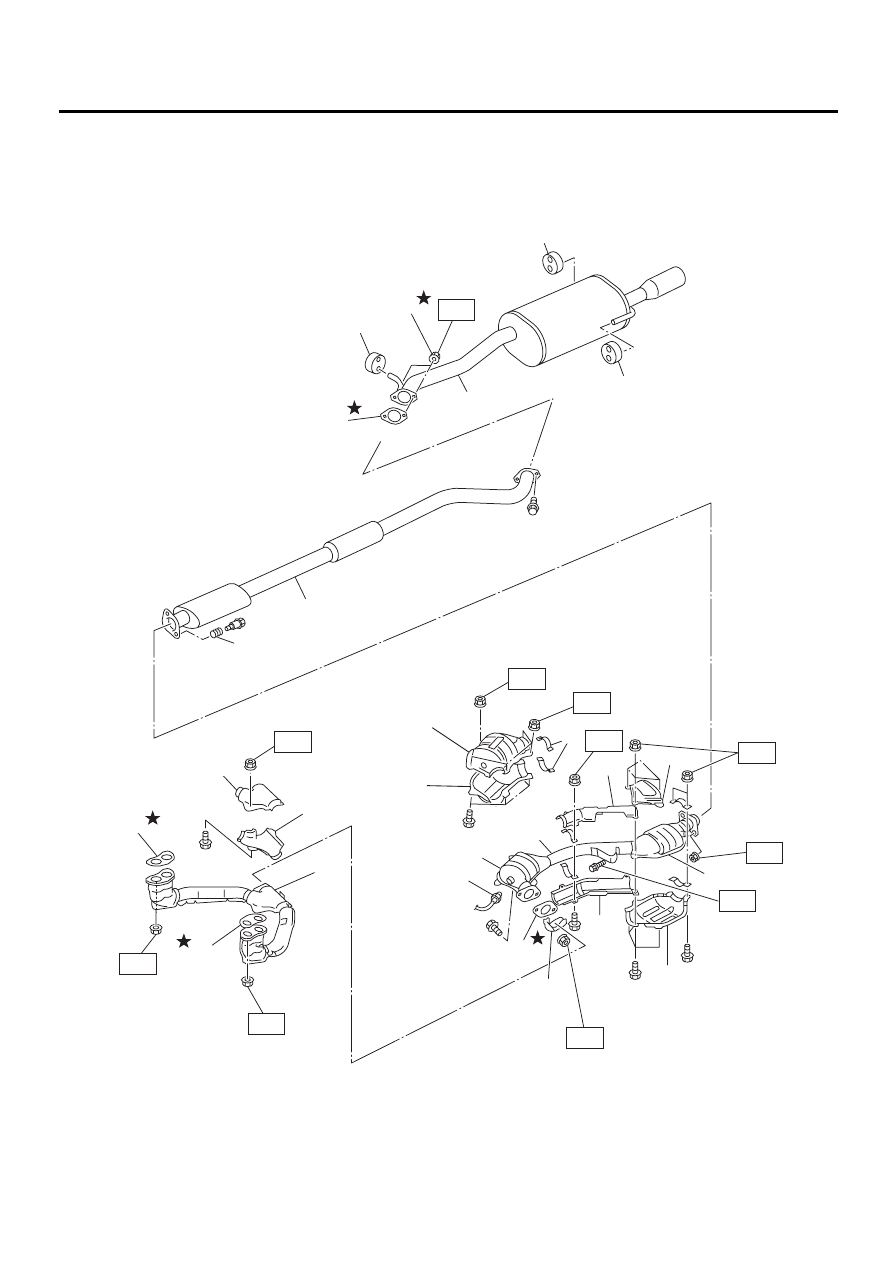

1. WITH CATALYTIC CONVERTER (EXCEPT AUSTRALIA OUTBACK MODEL)

EX-00098

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(22)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(19)

(19)

(20)

(23)

(23)

(21)

T2

T6

T1

T5

T2

T2

T3

T5

T4

T4

T4

EX(H4SOw/oOBD)-3

EXHAUST

GENERAL DESCRIPTION

(1) Upper front exhaust pipe cover

(11) Gasket

(21) Self-locking nut

(2) Lower front exhaust pipe cover

(12) Upper rear catalytic converter

cover

(22) Protector

(3) Front exhaust pipe

(23) Gasket

(4) Oxygen sensor

(13) Lower rear catalytic converter

cover

(5) Front catalytic converter

Tightening torque: N·m (kgf-m, ft-lb)

(6) Upper front catalytic converter

cover

(14) Rear catalytic converter

T1: 8 (0.8, 5.8)

(15) Center exhaust pipe

T2: 13 (1.3, 9.4)

(7) Lower front catalytic converter

cover

(16) Spring

T3: 18 (1.8, 13.0)

(17) Rear exhaust pipe

T4: 30 (3.1, 22.4)

(8) Clamp

(18) Gasket

T5: 35 (3.6, 26.0)

(9) Upper center exhaust pipe cover

(19) Cushion rubber

T6: 48 (4.9, 35.4)

(10) Lower center exhaust pipe cover

(20) Muffler

EX(H4SOw/oOBD)-4

EXHAUST

GENERAL DESCRIPTION

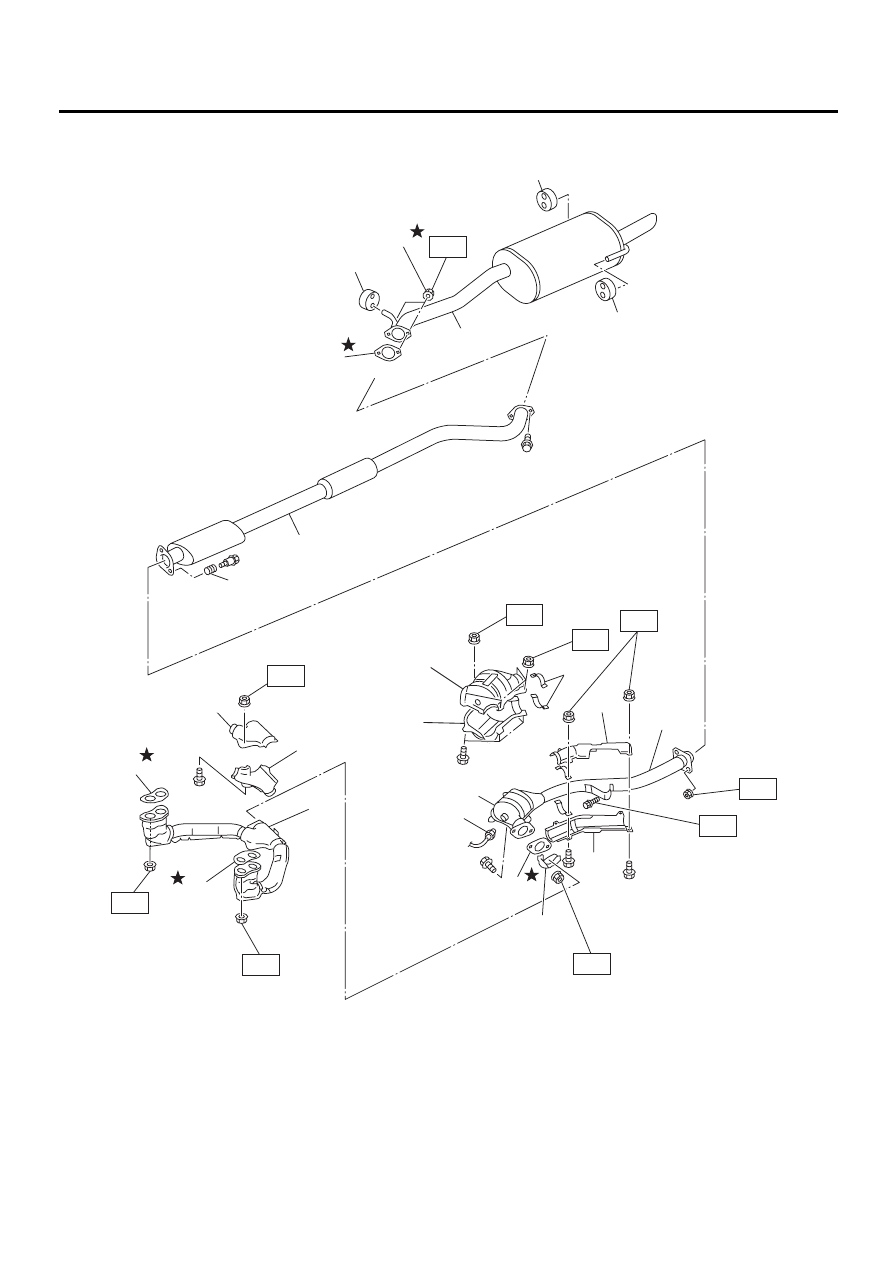

2. AUSTRALIA OUTBACK MODEL

EX-00099

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(16)

(16)

(17)

(18)

(19)

(20)

(20)

T2

T4

T4

T4

T5

T5

T1

T6

T5

T3

EX(H4SOw/oOBD)-5

EXHAUST

GENERAL DESCRIPTION

(1) Upper front exhaust pipe cover

(9) Upper center exhaust pipe cover

(19) Protector

(2) Lower front exhaust pipe cover

(10) Lower center exhaust pipe cover

(20) Gasket

(3) Front exhaust pipe

(11) Gasket

(4) Oxygen sensor

(12) Center exhaust pipe

Tightening torque: N·m (kgf-m, ft-lb)

(5) Front catalytic converter

(13) Spring

T1: 8 (0.8, 5.8)

(6) Upper front catalytic converter

cover

(14) Rear exhaust pipe

T2: 13 (1.3, 9.4)

(15) Gasket

T3: 18 (1.8, 13.0)

(7) Lower front catalytic converter

cover

(16) Cushion rubber

T4: 30 (3.1, 22.4)

(17) Muffler

T5: 35 (3.6, 26.0)

(8) Clamp

(18) Self-locking nut

T6: 48 (4.9, 35.4)
