Subaru Legacy III (2000-2003 year). Manual - part 182

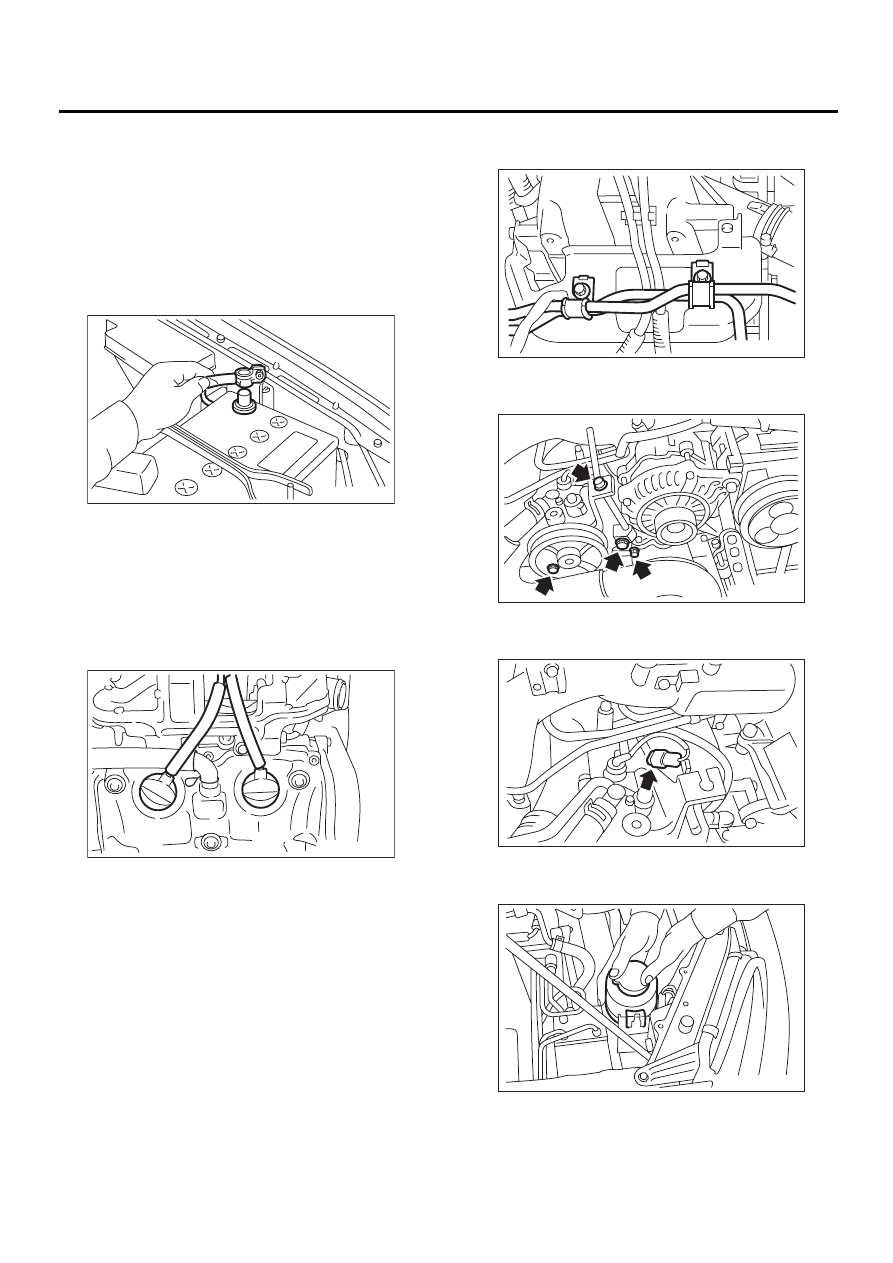

FU(H4SOw/oOBD)-34

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

11.Fuel Injector

A: REMOVAL

1. RH SIDE

1) Release fuel pressure.
<Ref. to FU(H4SOw/oOBD)-45, RELEASING OF
FUEL PRESSURE, OPERATION, Fuel.>
2) Open fuel flap lid, and remove fuel filler cap.
3) Disconnect battery ground cable.

4) Remove air intake duct and air cleaner assem-
bly.  <Ref. to IN(H4SO)-7, REMOVAL, Air Intake
Duct.> and  <Ref. to IN(H4SO)-6, REMOVAL, Air
Cleaner Case.>
5) Remove resonator chamber.  <Ref. to
IN(H4SO)-8, REMOVAL, Resonator Chamber.>
6) Remove spark plug cords from spark plugs (#1
and #3 cylinders).

7) Remove power steering pump and tank from
brackets.

(1) Remove front V-belt covers.
<Ref. to ME(H4SO)-41, REMOVAL, V-belt.>

(2) Remove bolts which hold power steering
pipes onto intake manifold protector.

(3) Remove bolts which install power steering
pump to bracket.

(4) Disconnect connector from power steering
pump switch.

(5) Remove power steering tank from the
bracket by pulling it upwards.

FU-00009

FU-00302

FU-00718

FU-00139

FU-00428

FU-00429

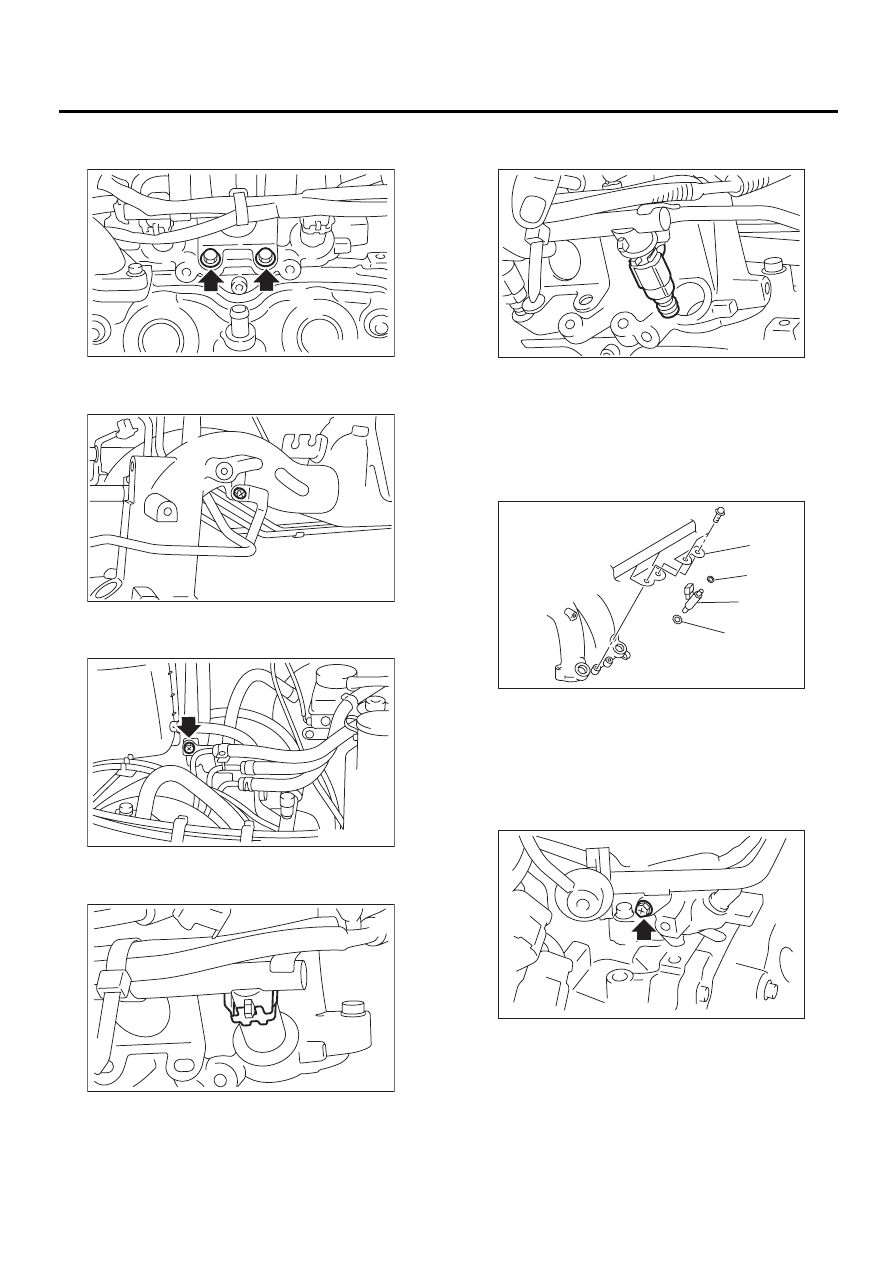

FU(H4SOw/oOBD)-35

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

(6) Place power steering pump and tank on the
right side wheel apron.

8) Remove fuel pipe protector RH. (RHD model
only)

9) Disconnect connector from fuel injector.

10) Remove bolt which holds injector pipe to intake
manifold.

11) Remove bolt which install injector pipe to intake
manifold.

12) Remove fuel injector from intake manifold.

(1) Remove fuel injector securing clip.

(2) Remove fuel injector while lifting up fuel in-
jector pipe.

2. LH SIDE

1) Release fuel pressure. <Ref. to FU(H4SOw/
oOBD)-45, RELEASING OF FUEL PRESSURE,
OPERATION, Fuel.>
2) Open fuel flap lid, and remove fuel filler cap.

FU-00430

FU-00726

FU-00303

FU-00513

FU-00304

FU-00748

FU-00749

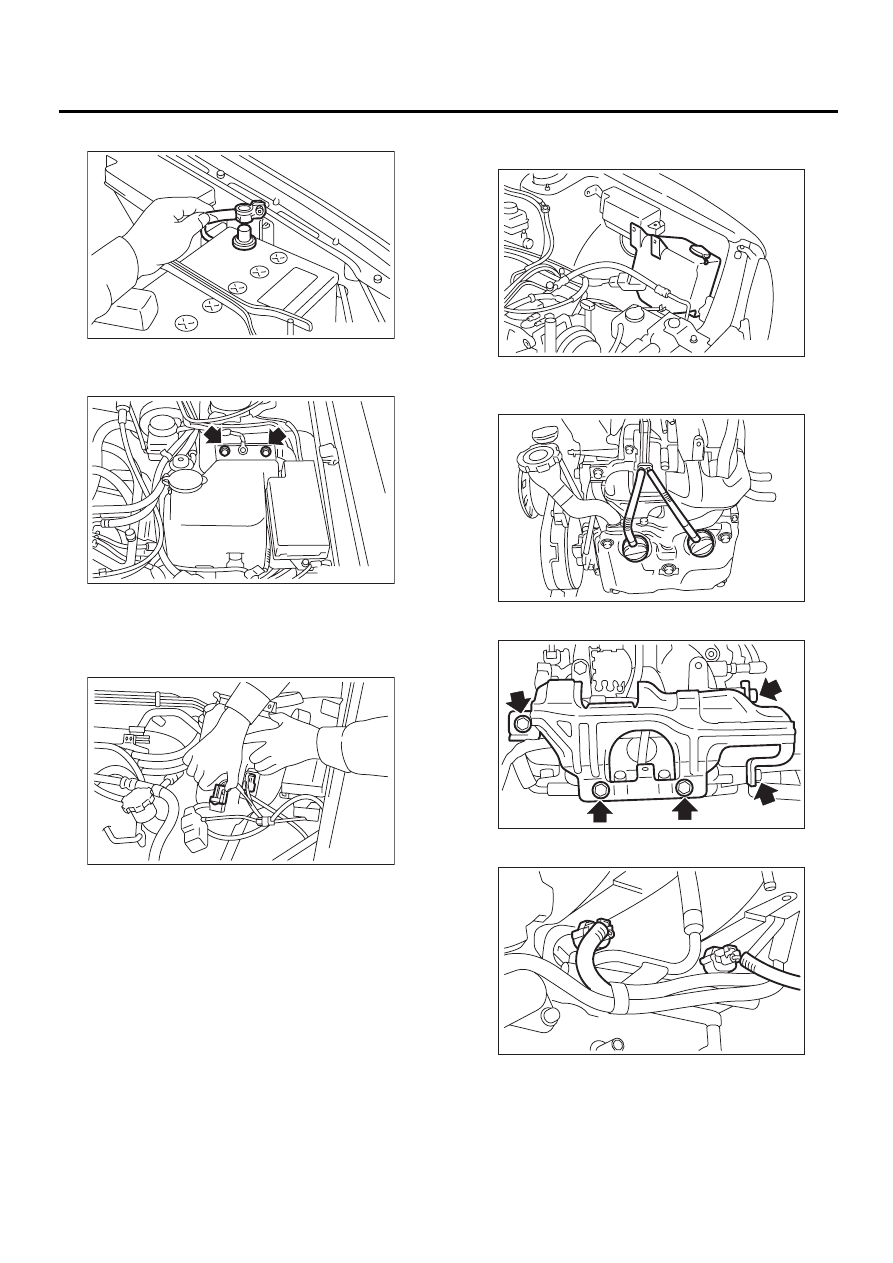

FU(H4SOw/oOBD)-36

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

3) Disconnect battery ground cable.

4) Remove two bolts which install washer tank on
body.

5) Disconnect connector from front window washer
motor.
6) Disconnect connector from rear gate glass
washer motor.

7) Disconnect rear window glass washer hose from
washer motor, then plug connection with a suitable
cap.

8) Move washer tank, and secure it away from
working area.

9) Remove spark plug cords from spark plugs (#2
and #4 cylinders).

10) Remove fuel pipe protector LH.

11) Disconnect connector from fuel injector.

FU-00009

FU-00190

FU-00191

FU-00192

FU-00750

FU-00266

FU-00751

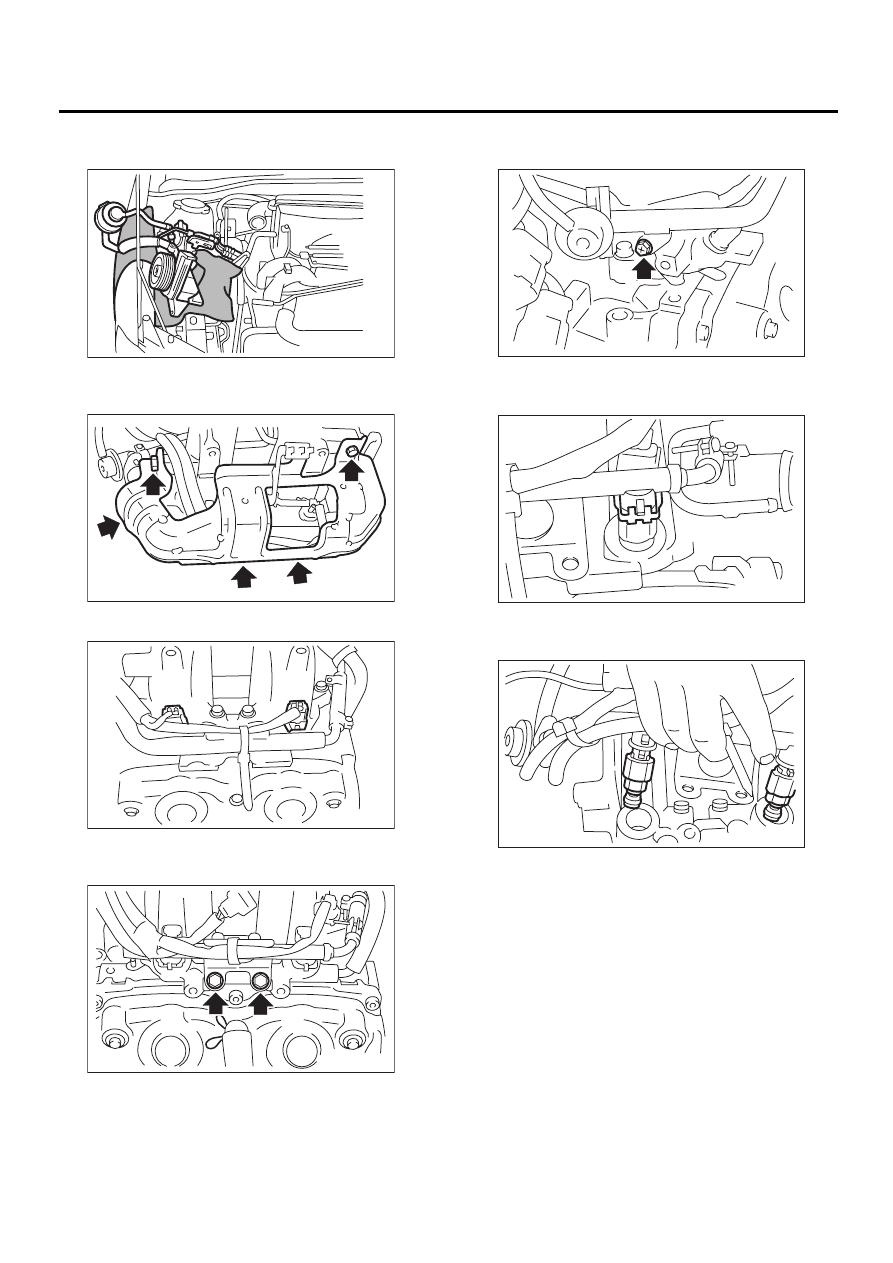

FU(H4SOw/oOBD)-37

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

12) Remove bolt which holds injector pipe to intake
manifold.

13) Remove bolt which installs injector pipe to in-
take manifold.

14) Remove bolt which holds fuel pipe on the left
side intake manifold.

15) Remove fuel injector from intake manifold.

(1) Remove fuel injector securing clip.

(2) Remove fuel injector while lifting up fuel in-
jector pipe.

B: INSTALLATION

1. RH SIDE

Install in the reverse order of removal.

NOTE:
Replace O-rings with new ones.

Tightening torque:

5.0 N·m (0.51 kgf-m, 3.7 ft-lb)

FU-00309

FU-00731

FU-00311

FU-00312

(A) O-ring

(B) Fuel injector

(C) Intake manifold protector

FU-00313

FU-00738

( A )

( A )

( B )

( C )

FU-00304
