INTAKE MANIFOLD

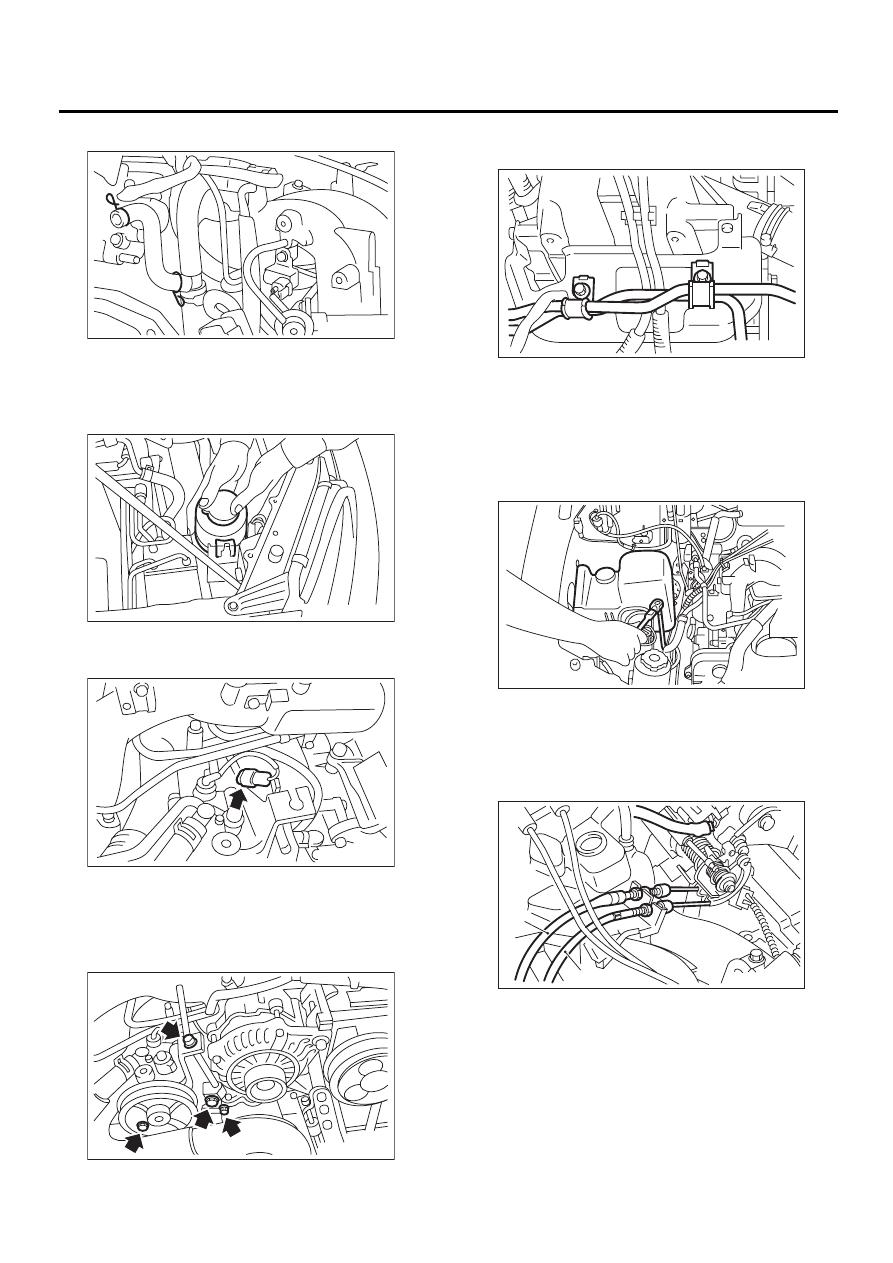

11) Connect PCV hose to intake manifold.

12) Connect spark plug cords to spark plugs.
13) Install power steering pump and tank on brack-
ets.

(1) Install power steering tank on bracket.

(2) Connect connector to power steering pump
switch.

(3) Tighten bolts which install power steering
pump on bracket.

Tightening torque:

22 N·m (2.2 kgf-m, 16 ft-lb)

(4) Install power steering pipes onto right side
intake manifold protector.

(5) Install front V-belt.
<Ref. to ME(H4SO)-42, INSTALLATION, V-
belt.>
(6) Install resonator chamber.

Tightening torque:

33 N·m (3.4 kgf-m, 24.6 ft-lb)

14) Connect accelerator cable (A).
<Ref. to SP(H4SO)-10, INSTALLATION, Accelera-
tor Control Cable.>
15) Connect cruise control cable (B). (With cruise
control models)

16) Install air intake duct and air cleaner assembly.
<Ref. to IN(H4SO)-7, INSTALLATION, Air Intake
Duct.> and  <Ref. to IN(H4SO)-6, INSTALLATION,
Air Cleaner Case.>

FU-00719

FU-00429

FU-00428

FU-00139

FU-00718

FU-00261

FU-00715

( A )

( B )

FU(H4SOw/oOBD)-19

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

17) Connect connector to fuel pump relay.

18) Connect battery ground cable.

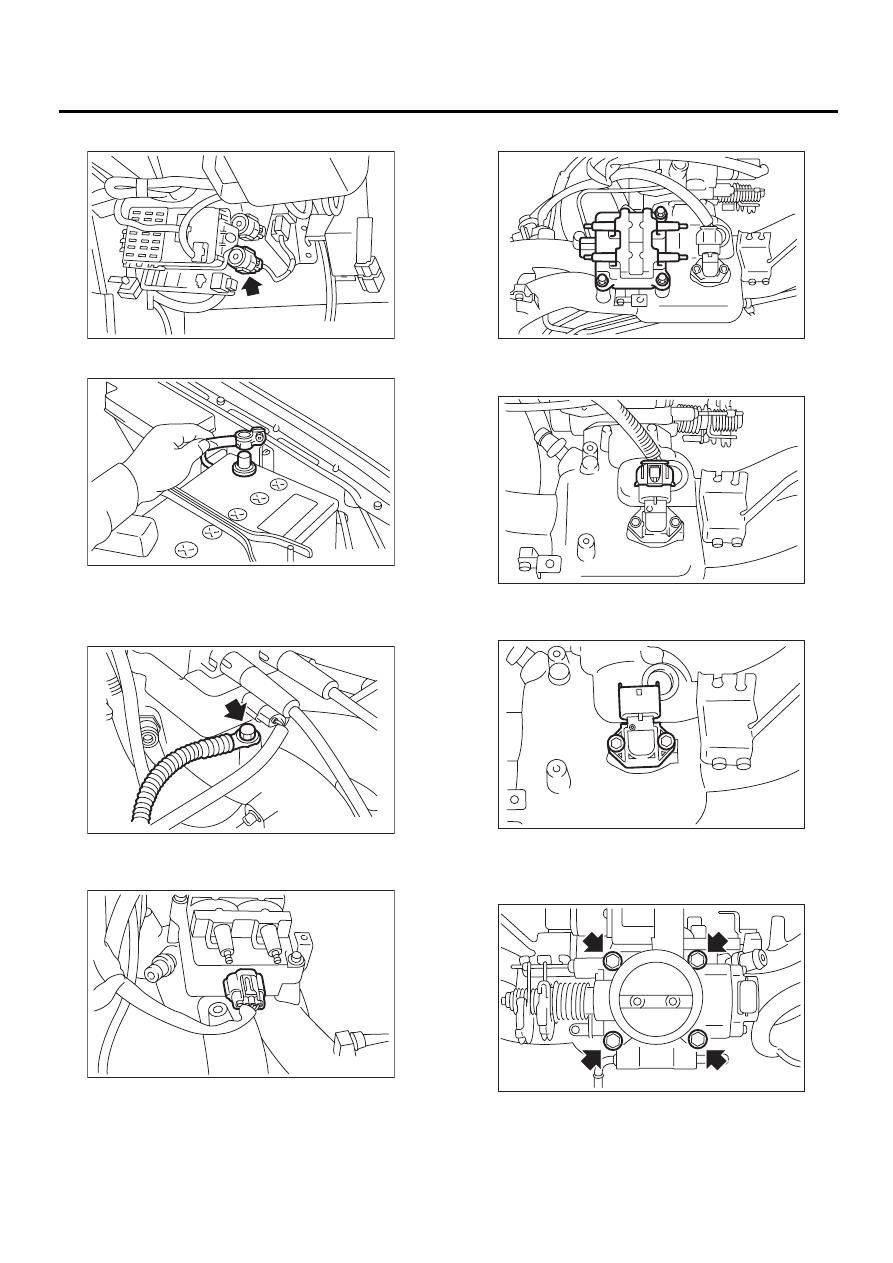

C: DISASSEMBLY

1) Disconnect engine ground terminal from intake
manifold.

2) Disconnect connector from ignition coil and igni-
tor assembly.

3) Remove ignition coil and ignitor assembly.

4) Disconnect connector from intake air tempera-
ture and pressure sensor.

5) Remove intake air temperature and pressure
sensor from intake manifold.

6) Disconnect connectors from throttle position
sensor and idle air control solenoid valve.
7) Remove throttle body.

FU-00431

FU-00009

FU-00263

FU-00721

FU-00722

FU-00723

FU-00724

FU-00725

FU(H4SOw/oOBD)-20

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

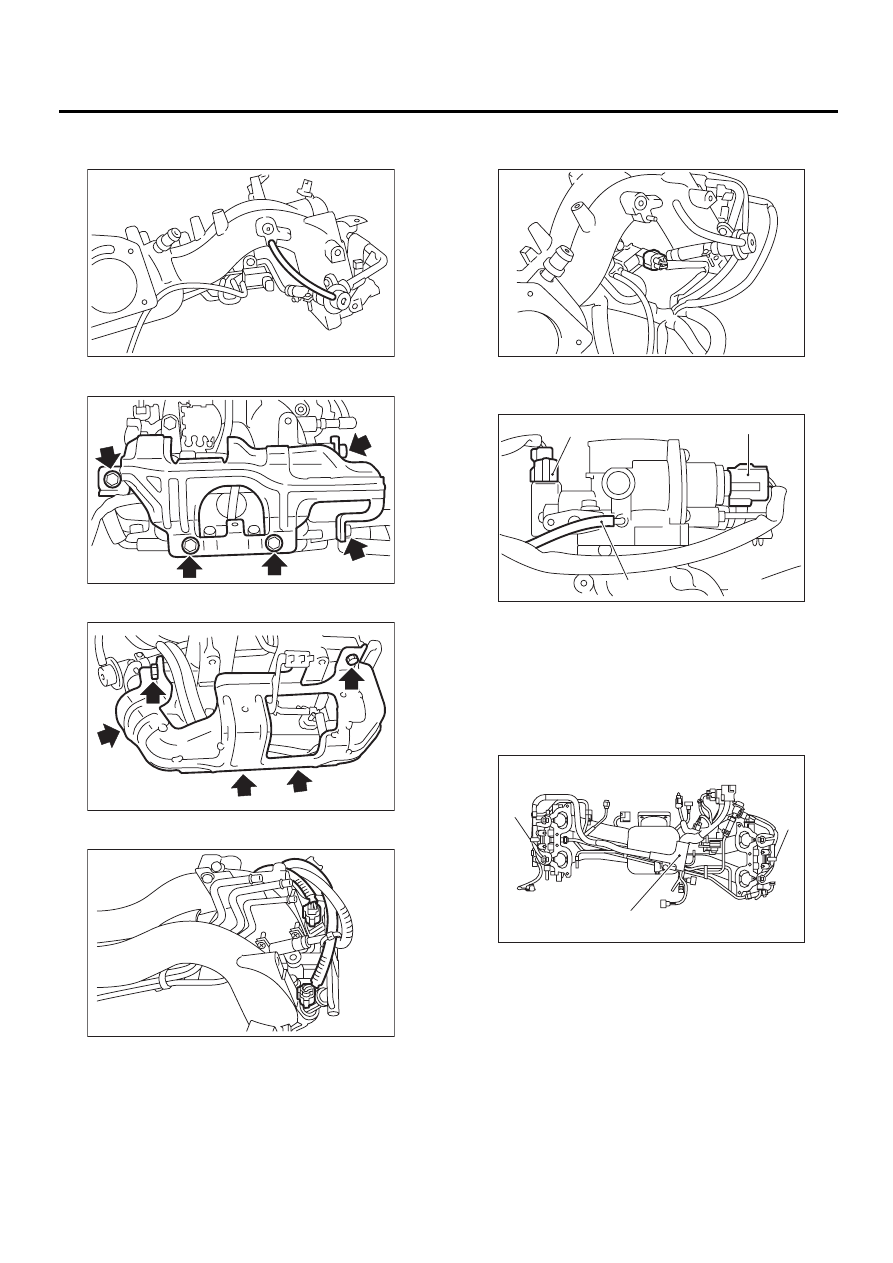

8) Disconnect pressure regulator vacuum hose
from intake manifold.

9) Remove fuel pipe protector LH.

10) Remove fuel pipe protector RH.

11) Disconnect connectors from fuel injectors.

12) Disconnect connector from purge control sole-
noid valve.

13) Disconnect air by-pass hose from purge control
solenoid valve.

14) Remove harness bands (A) and harness brack-
et (B) which hold engine harness onto intake man-
ifold.

15) Remove engine harness from intake manifold.

FU-00265

FU-00266

FU-00726

FU-00727

(A) Throttle position sensor

(B) Idle air control solenoid valve

(C) Air by-pass hose

FU-00728

FU-00716

( B )

( A )

( C )

FU-00795

( A )

( A )

( B )

FU(H4SOw/oOBD)-21

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

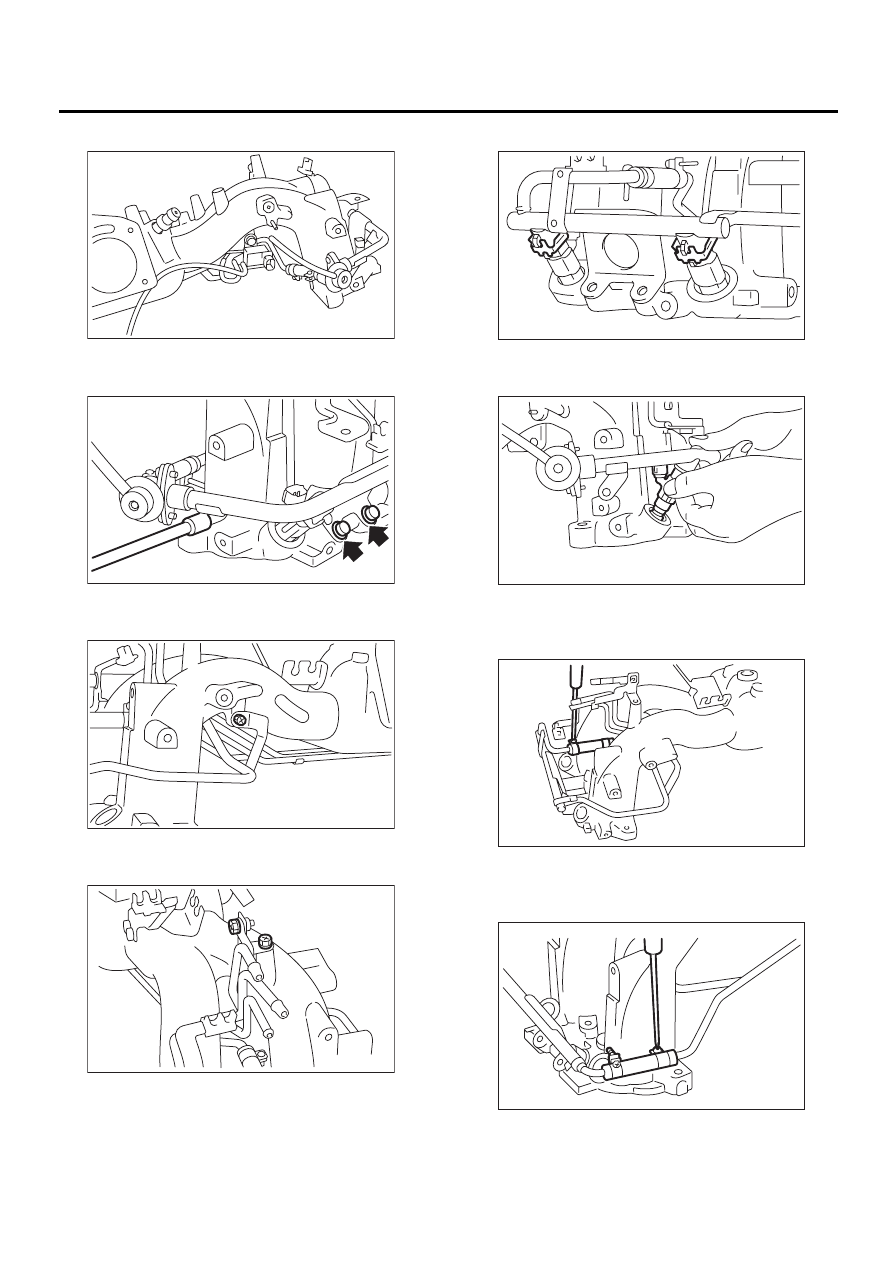

16) Remove purge control solenoid valve.

17) Remove bolt which installs injector pipe on in-
take manifold as shown in figure.

18) Remove bolt which installs injector pipe on in-
take manifold.

19) Remove two bolts which hold fuel pipes on the
left side of intake manifold.

20) Remove fuel injectors.

(1) Remove fuel injector securing clip.

(2) Remove fuel injector while lifting up fuel in-
jector pipe.

21) Loosen clamp which holds front left side fuel
hose to injector pipe and remove the pipe from
clamp.

22) Loosen clamp which holds front right side fuel
hose to injector pipe and remove the pipe from
clamp.

FU-00730

FU-00272

FU-00731

FU-00732

FU-00733

FU-00276

FU-00734

FU-00279
