EN(H4SO)-184

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

AK:DTC P0340 — CAMSHAFT POSITION SENSOR “A” CIRCUIT (BANK 1 OR

SINGLE SENSOR) —

• DTC DETECTING CONDITION:

• Immediately at fault recognition

• TROUBLE SYMPTOM:

• Engine stalls.
• Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode<Ref. to EN(H4SO)-47, OPER-
ATION, Clear Memory Mode.>
 and Inspection Mode <Ref. to EN(H4SO)-40, OPERATION, Inspection
Mode.>
 .

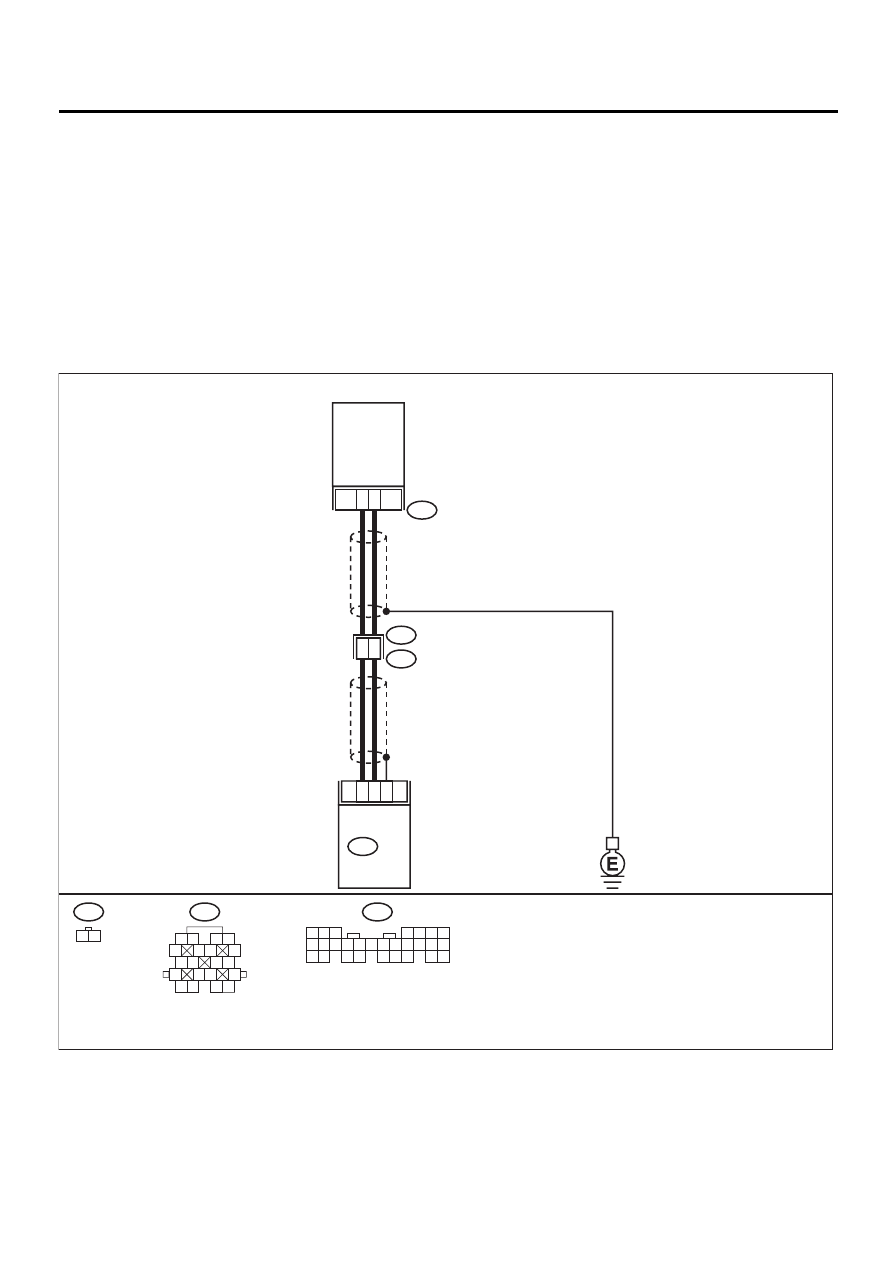

• WIRING DIAGRAM:

EN-01128

5 6 7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26

27 28

16 17 18 19

20 21

B135

B21

E15

1 2

1 2

5

6 7

8

13

14 15

16

9 10

11 12

3 4

17 18

19 20

1

2

20

18

18

7

28

B21

E2

E15

B135 ECM

CAMSHAFT

POSITION

SENSOR

EN(H4SO)-185

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from camshaft posi-

tion sensor.

3) Measure resistance of harness between

camshaft position sensor connector and
engine ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Does the measured value exceed the spec-
ified value?

100 k

Repair harness
and connector.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
camshaft position
sensor and ECM
connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

Go to step 2.

2

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
Measure resistance of harness between cam-
shaft position sensor connector and engine
ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Is the measured value less than the specified
value?

10

Repair ground
short circuit in har-
ness between
camshaft position
sensor and ECM
connector.

NOTE:
The harness be-
tween both con-
nectors are
shielded. Repair
ground short circuit
in harness togeth-
er with shield.

Go to step 3.

3

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
Measure resistance of harness between cam-
shaft position sensor connector and engine
ground.

Connector & terminal

(E15) No. 2 — Engine ground:

Is the measured value less than the specified
value?

Go to step 4.

Repair harness
and connector.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
camshaft position
sensor and ECM
connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

4

CHECK CONDITION OF CAMSHAFT POSI-
TION SENSOR.
Is the camshaft position sensor installation bolt
tightened securely?

Tightened securely.

Go to step 5.

Tighten camshaft
position sensor
installation bolt
securely.

5

CHECK CAMSHAFT POSITION SENSOR.
1) Remove camshaft position sensor.
2) Measure resistance between connector ter-

minals of camshaft position sensor.

Terminals

No. 1 — No. 2:

Is the measured value within the specified
range?

1 - 4 k

Repair poor con-
tact in camshaft
position sensor
connector.

Replace camshaft
position sensor.
<Ref. to
FU(H4SO)-28,
Camshaft Position
Sensor.>

EN(H4SO)-186

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

AL:DTC P0341 — CAMSHAFT POSITION SENSOR “A” CIRCUIT RANGE/PER-

FORMANCE (BANK 1 OR SINGLE SENSOR) —

• DTC DETECTING CONDITION:

• Immediately at fault recognition

• TROUBLE SYMPTOM:

• Engine stalls.
• Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode<Ref. to EN(H4SO)-47, OPER-
ATION, Clear Memory Mode.>
 and Inspection Mode <Ref. to EN(H4SO)-40, OPERATION, Inspection
Mode.>
 .
• WIRING DIAGRAM:

EN-01128

5 6 7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26

27 28

16 17 18 19

20 21

B135

B21

E15

1 2

1 2

5

6 7

8

13

14 15

16

9 10

11 12

3 4

17 18

19 20

1

2

20

18

18

7

28

B21

E2

E15

B135 ECM

CAMSHAFT

POSITION

SENSOR

EN(H4SO)-187

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK ANY OTHER DTC ON DISPLAY.
Does the Subaru Select Monitor or OBD-II
general scan tool indicate DTC P0340?

DTC P0340 indicated.

Inspect DTC
P0340 using “List
of Diagnostic
Trouble Code
(DTC)”. <Ref. to
EN(H4SO)-83, List
of Diagnostic
Trouble Code
(DTC).>


Go to step 2.

2

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from camshaft posi-

tion sensor.

3) Measure resistance of harness between

camshaft position sensor connector and
engine ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Does the measured value exceed the spec-
ified value?

100 k

Repair harness
and connector.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
camshaft position
sensor and ECM
connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

Go to step 3.

3

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
Measure resistance of harness between cam-
shaft position sensor connector and engine
ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Is the measured value less than the specified
value?

10

Repair ground
short circuit in har-
ness between
camshaft position
sensor and ECM
connector.

NOTE:
The harness be-
tween both con-
nectors are
shielded. Repair
ground short circuit
in harness togeth-
er with shield.

Go to step 4.

4

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
Measure resistance of harness between cam-
shaft position sensor connector and engine
ground.

Connector & terminal

(E15) No. 2 — Engine ground:

Is the measured value less than the specified
value?

Go to step 5.

Repair harness
and connector.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
camshaft position
sensor and ECM
connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

5

CHECK CONDITION OF CAMSHAFT POSI-
TION SENSOR.
Is the camshaft position sensor installation bolt
tightened securely?

Tightened securely.

Go to step 6.

Tighten camshaft
position sensor
installation bolt
securely.
