DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Y: DTC P0138 — O2 SENSOR CIRCUIT HIGH VOLTAGE (BANK 1 SENSOR 2) —

• DTC DETECTING CONDITION:

• Two consecutive driving cycles with fault

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode<Ref. to EN(H4SO)-47, OPER-
ATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO)-40, OPERATION, Inspection
Mode.> .

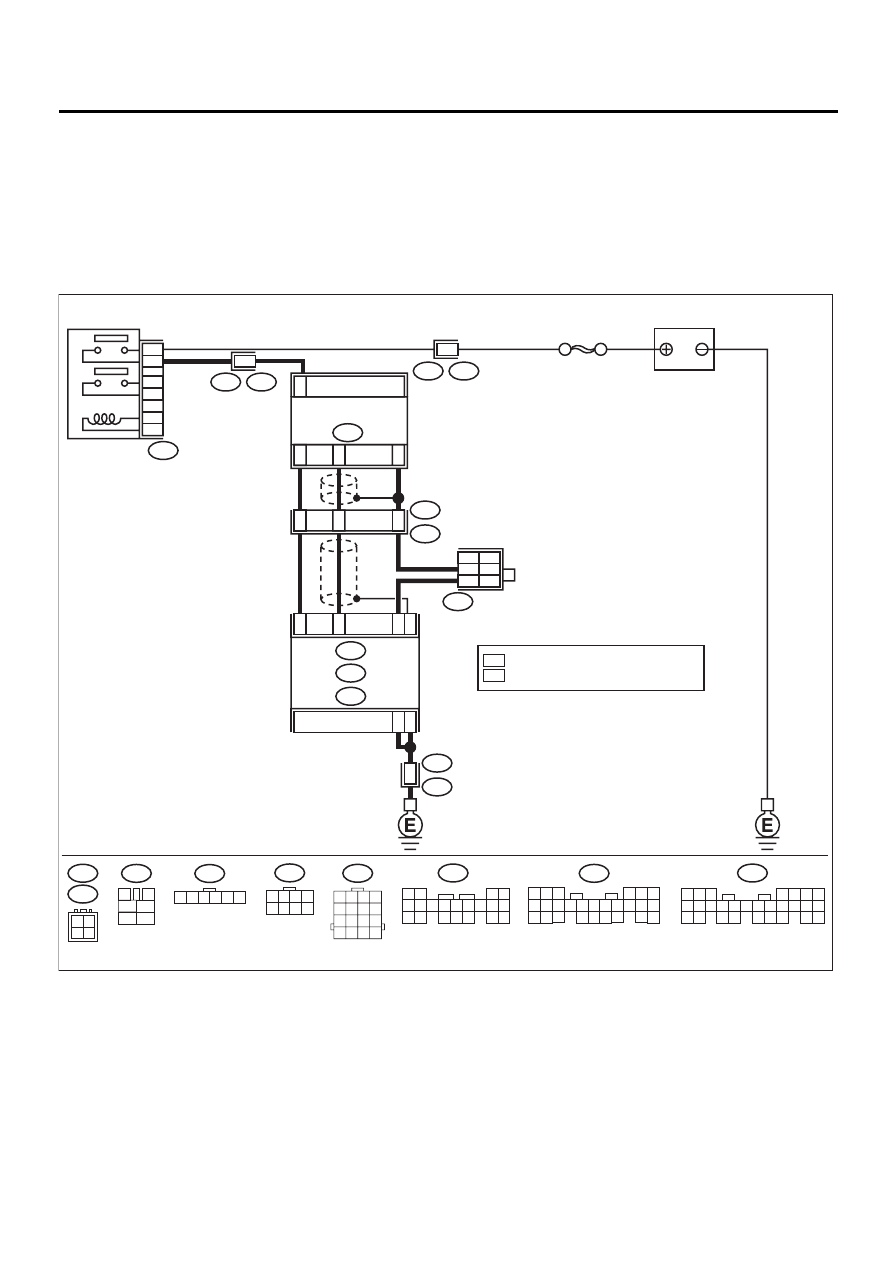

• WIRING DIAGRAM:

EN-01122

BATTERY

F44

B61

6

T5

B19

2

B47

MAIN RELAY

1

2

3

5

4

6

F44

1 2 3 4
5 6 7 8

C4

B14

B19

D15

C16

C5

REAR

OXYGEN SENSOR

ECM

4

1

3

1

4

3

2

8

B22

B83

B19

T5

T6

E3

B47

B19

B22

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

3

4

5

6

1

2

T6

4 3

2 1

2

1

FG

3

B135

B:

C: B136

D: B137

SBF-5

B136

5 6

7

2

1

9

8

4

3

23

21 22

24

10 11 12 13 14

25 26

15 16 17

18 19 20

B137

4

1
5

3

2
6

18

15

16

7 8 9 10 11

17

19 20

12 13

14

5 6 7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26

27 28

16 17 18 19

20 21

B135

B83

1 2 3 4 5 6

4

EG

: FOR G.C.C COUNTRIES MODEL

: EXCEPT FOR G.C.C COUNTRIES MODEL

FG

EG

EN(H4SO)-157

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK ANY OTHER DTC ON DISPLAY.
Does the Subaru Select Monitor or OBD-II
general scan tool indicate DTC P0130, P0131,
P0132 or P0134?

DTC indicated.

Check DTC refer-
ring "List of Diag-
nostic Trouble
Code (DTC)".
<Ref. to
EN(H4SO)-83, List
of Diagnostic
Trouble Code
(DTC).>

NOTE:
In this case,
CHECKING proce-
dure for P0138 is
not necessary.

Go to step 3.

2

CHECK REAR OXYGEN SENSOR DATA.
1) Warm-up the engine until engine coolant

temperature is above 70

°

C (158

°

F), and

race engine until the engine speed reaches
to 5,000 rpm and release accelerator pedal
rapidly.

2) Read data of rear oxygen sensor signal

using Subaru Select Monitor or OBD-II gen-
eral scan tool.
Does the value fluctuate?

NOTE:

•Subaru Select Monitor
For detailed operation procedure, refer to the
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. <Ref. to EN(H4SO)-32,
Subaru Select Monitor.>
•OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Instruction Manual.

250 mV

Go to step 5.

Go to step 3.

3

CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from ECM and rear

oxygen sensor.

3) Measure resistance of harness between

ECM and rear oxygen sensor connector.

Connector & terminal

(B135) No. 14 — (T6) No. 4:
(B135) No. 19 — (T6) No. 3:

Does the measured value exceed the spec-
ified value?

3

Ω

Repair open circuit
in harness
between ECM and
rear oxygen sen-
sor connector.

Go to step 4.

4

CHECK HARNESS BETWEEN REAR OXY-
GEN SENSOR AND ECM CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from rear oxygen

sensor.

3) Turn ignition switch to ON.
4) Measure voltage between rear oxygen sen-

sor harness connector and engine ground
or chassis ground.

Connector & terminal

(T6) No. 4 (+) — Engine ground (

−−−−

):

Is the measured value within the specified
range?

0.2 V - 0.5 V

Replace rear oxy-
gen sensor. <Ref.
to FU(H4SO)-43,
Rear Oxygen Sen-
sor.>

Repair harness
and connector.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
rear oxygen sen-
sor and ECM con-
nector
• Poor contact in
rear oxygen sen-
sor connector
• Poor contact in
ECM connector

EN(H4SO)-158
