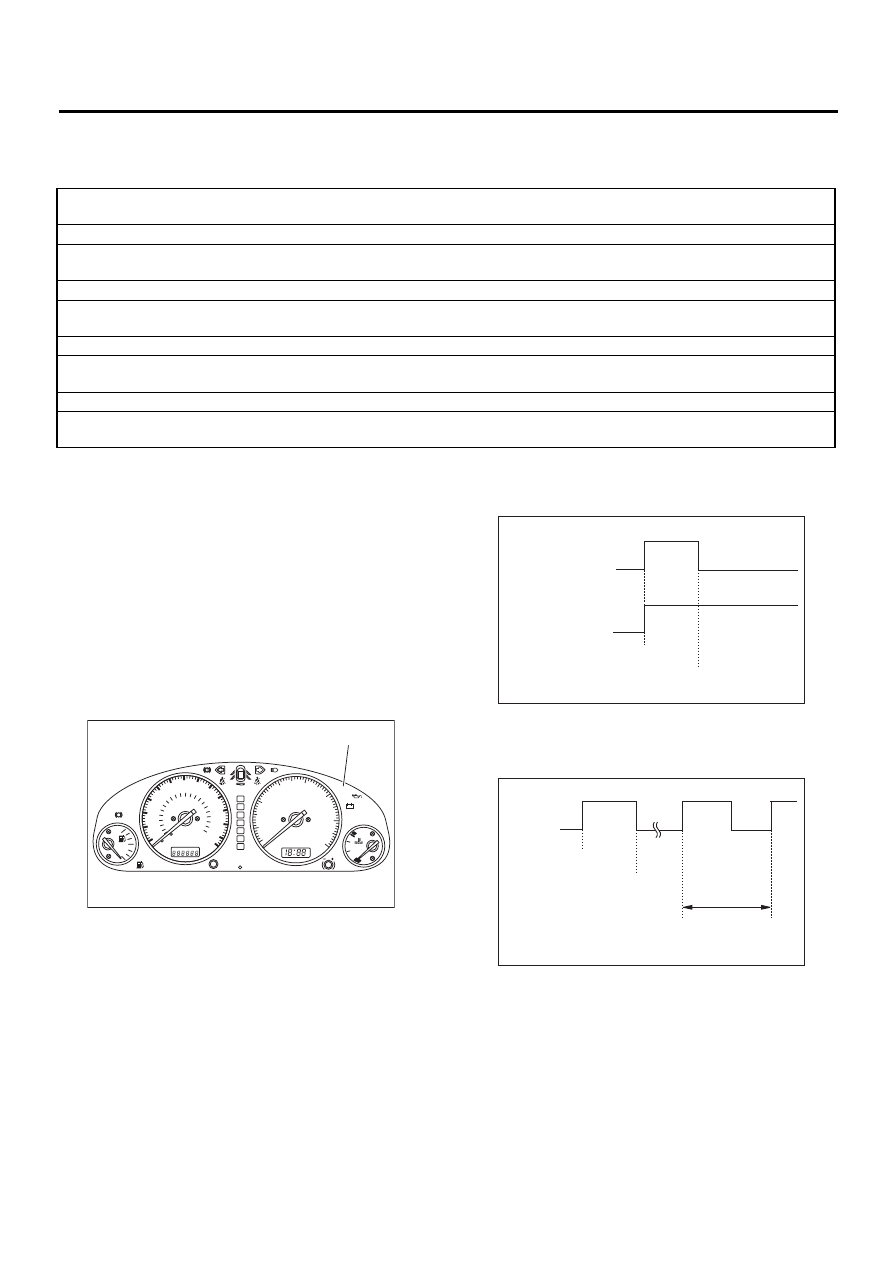

EN(H4SO)-48
ENGINE (DIAGNOSTICS)
COMPULSORY VALVE OPERATION CHECK MODE
15.Compulsory Valve Operation
Check Mode
A: OPERATION

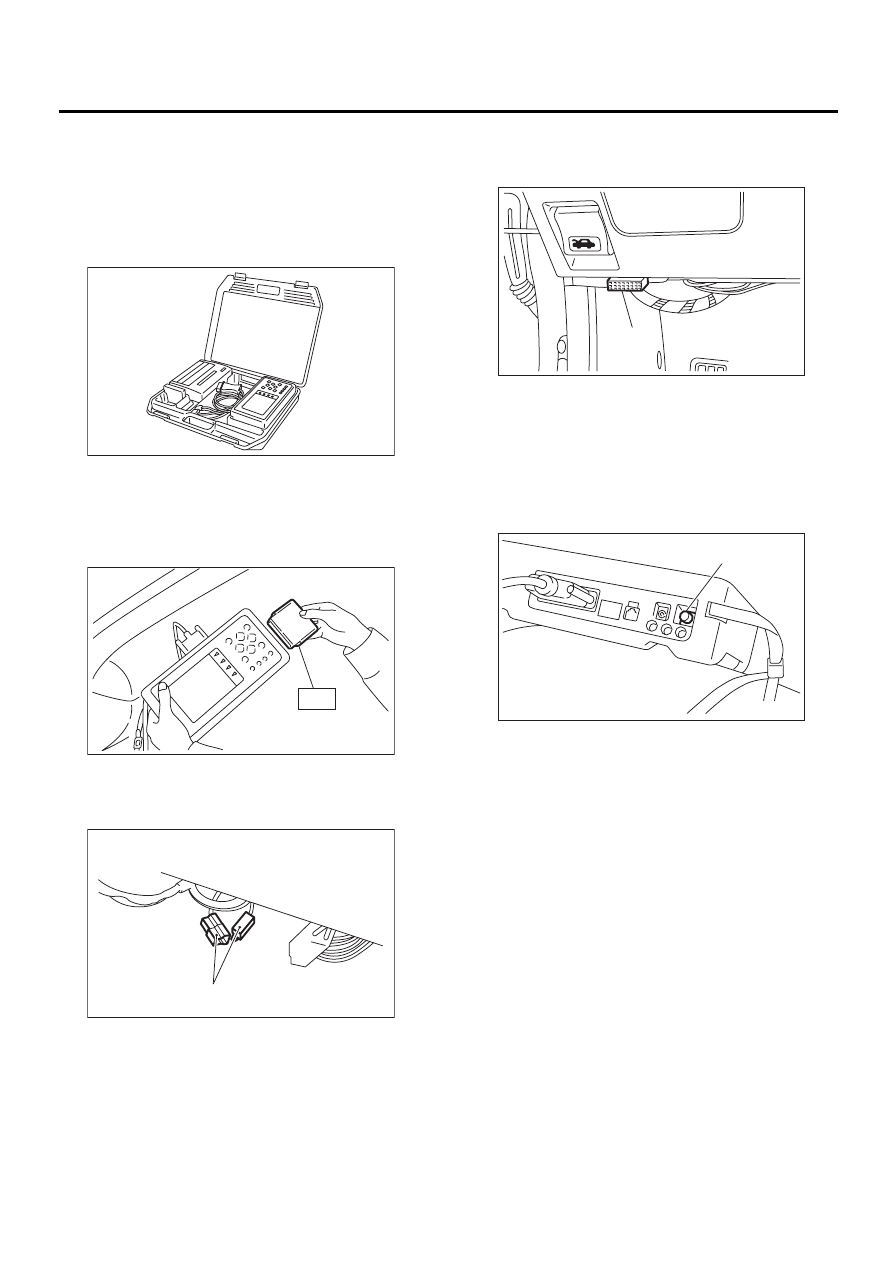

1) Prepare Subaru Select Monitor kit. <Ref. to
EN(H4SO)-8, PREPARATION TOOL, General De-
scription.>
2) Connect diagnosis cable to Subaru Select Mon-
itor.
3) Insert cartridge into Subaru Select Monitor.
<Ref. to EN(H4SO)-8, PREPARATION TOOL,
General Description.>
4) Connect test mode connector (A) at the lower
portion of instrument panel (on the driver's side), to
the side of the center console box.
5) Connect Subaru Select Monitor to data link con-
nector.
(1) Connect Subaru Select Monitor to data link
connector (A) located in the lower portion of the
instrument panel (on the driver's side).
(2) Connect diagnosis cable to data link con-
nector.
CAUTION:
Do not connect scan tools except for Subaru
Select Monitor and OBD-II general scan tool.
6) Turn ignition switch to ON (engine OFF) and
Subaru Select Monitor switch to ON.
7) On the «Main Menu» display screen, select the
{2. Each System Check} and press the [YES] key.
8) On the «System Selection Menu» display
screen, select the {Engine Control System} and
press the [YES] key.
9) Press the [YES] key after displayed the informa-
tion of engine type.
10) On the «Engine Diagnosis» display screen, se-
lect the {System Operation Check Mode} and press
the [YES] key.
11) On the «System Operation Check Mode» dis-
play screen, select the {Actuator ON/OFF Opera-
tion} and press the [YES] key.
12) Select the desired compulsory actuator on the
«Actuator ON/OFF Operation» display screen and
press the [YES] key.
EN-00038
ST
EN-00039
EN-00711
( A )
(A) Power switch
EN-00710
( A )
EN-00040
( A )
