EN(H4SO)-20

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

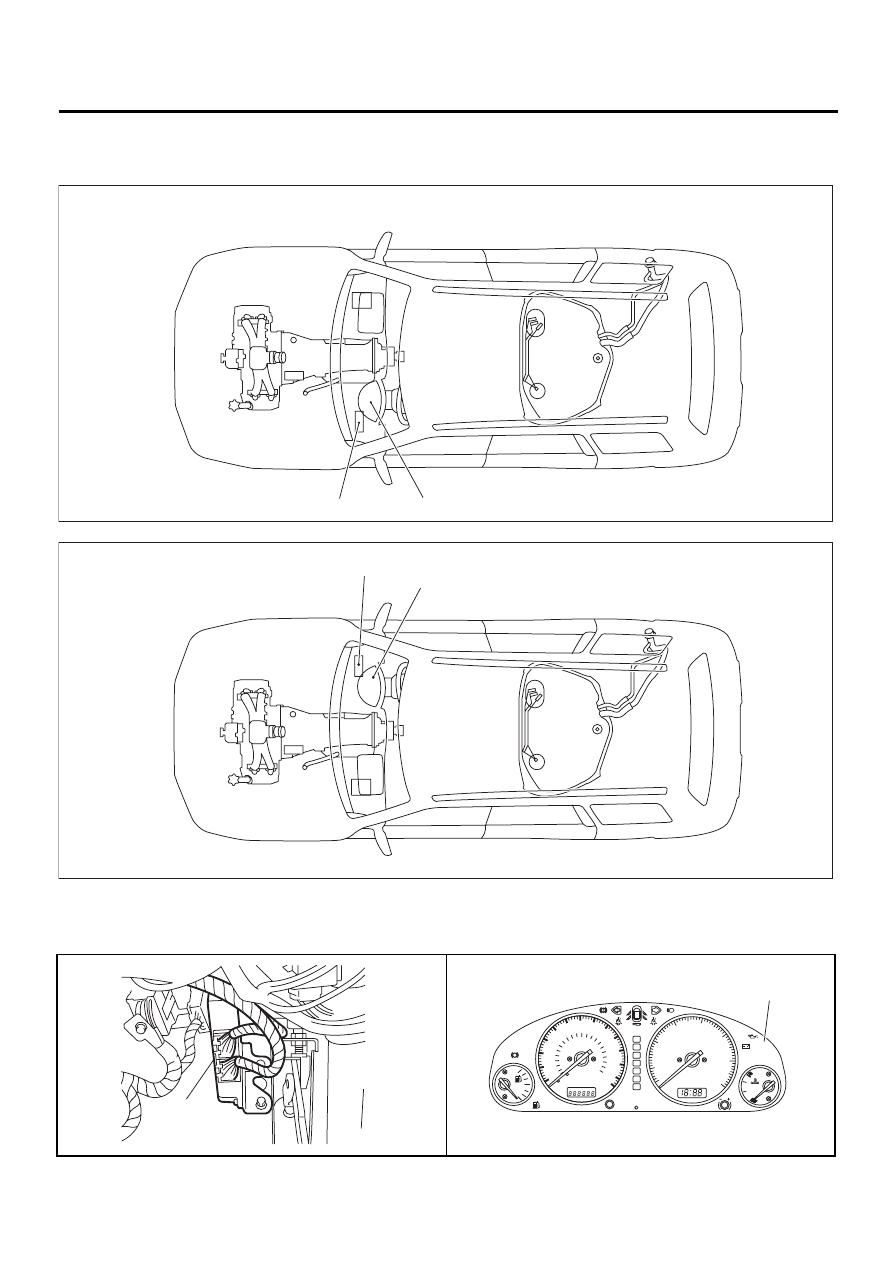

2. TRANSMISSION

• MODULE

(1)

Transmission Control Module
(TCM) (for AT vehicles)

(2)

AT diagnostic indicator light (for
AT vehicles)

EN-01114

( 1 )

( 2 )

EN-01115

( 1 )

( 2 )

EN-00879

( 1 )

( 2 )

1

1

2

3

4

5

6

H

C

7

0

2

3

D

N

R

P

CHECK
ENGINE

AT OIL
TEMP

FWD

x1000r/min

ABS

E

F

1/2

AIRBAG

0

20

40

60

80

100

120

140

km/h

MPH

20

40

60

80

100 120 140

160

180

200

220

TRIP

000

EN-00880

EN(H4SO)-21

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

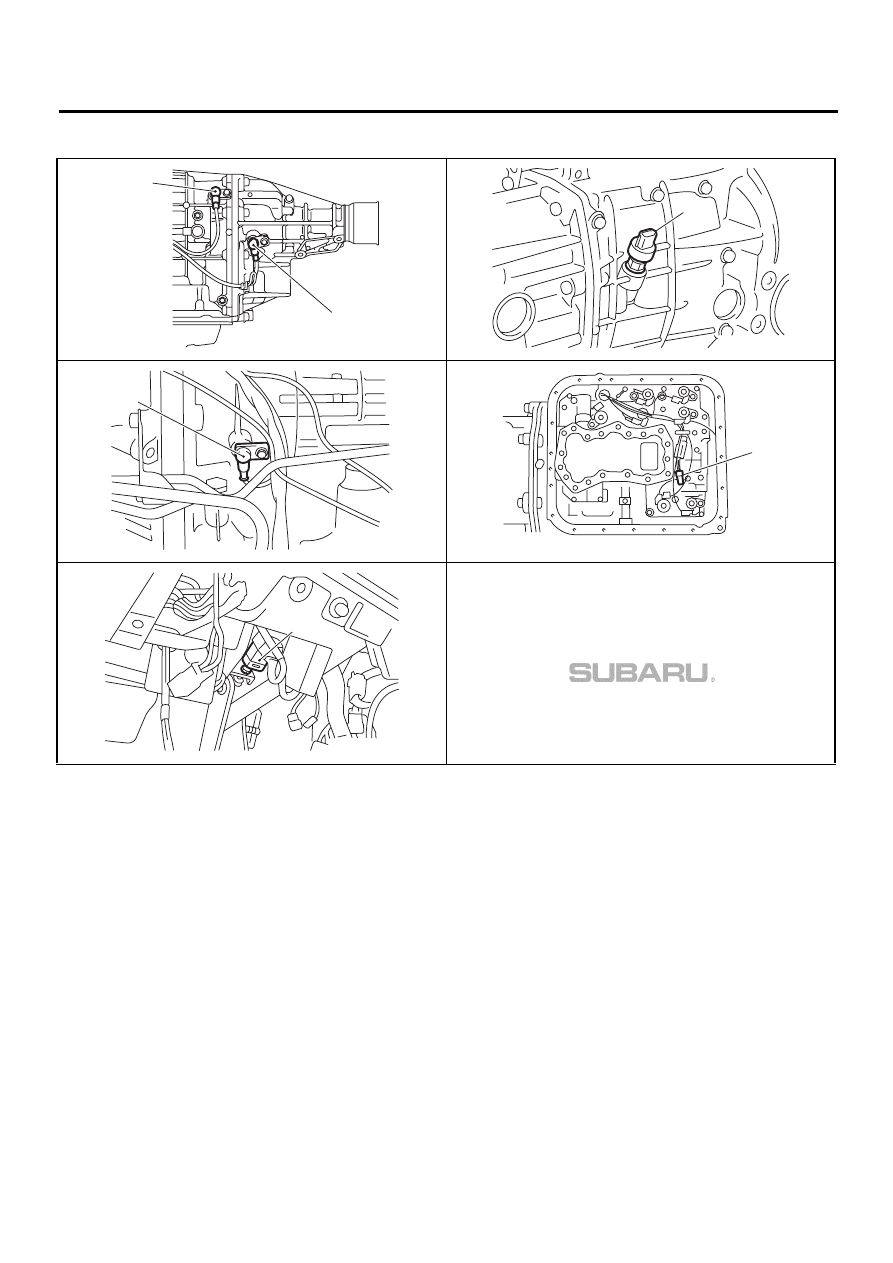

• SENSOR

(1) Rear vehicle speed sensor (for AT vehicles)
(2) Front vehicle speed sensor (for MT vehicles)
(3) Front vehicle speed sensor (for AT vehicles)
(4) Torque converter turbine speed sensor
(5) ATF temperature sensor (for AT vehicles)
(6) Brake light switch

EN-00881

( 1 )

( 3 )

EN-00882

( 2 )

EN-00883

( 4 )

EN-00884

( 5 )

EN-00885

( 6 )

EN(H4SO)-22

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

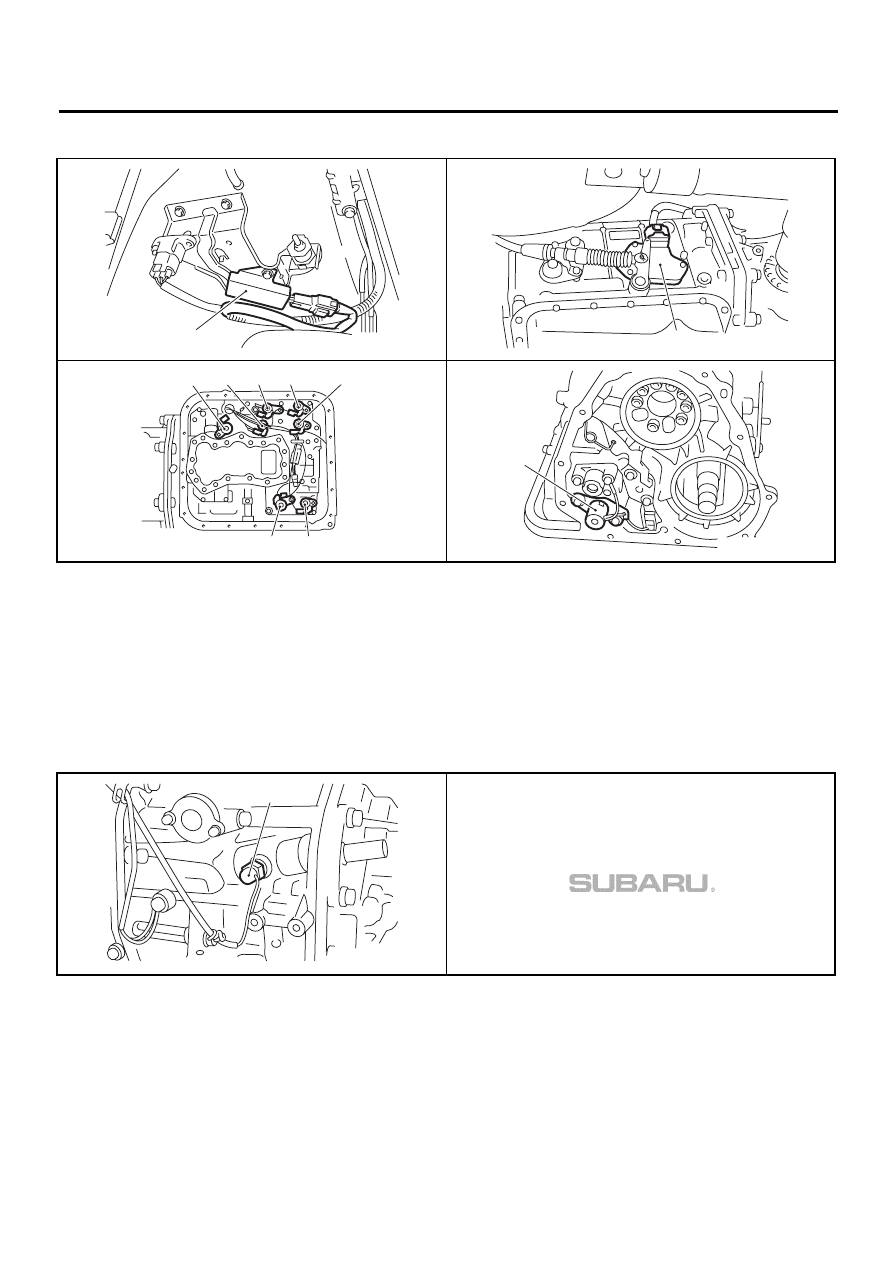

• SOLENOID VALVE AND SWITCH (AT VEHICLES)

(1) Dropping resistor
(2) Inhibitor switch
(3) Shift solenoid valve 1
(4) Shift solenoid valve 2
(5) Line pressure duty solenoid
(6) Lock-up duty solenoid
(7) Transfer duty solenoid
(8) 2-4 brake duty solenoid
(9) Low clutch timing solenoid valve
(10) 2-4 brake timing solenoid valve

• SOLENOID VALVE AND SWITCH (MT VEHICLES)

(1) Neutral position switch

EN-00886

( 1 )

EN-00887

( 2 )

EN-00888

( 3 )

( 4 )

( 5 )

( 6 )

( 8 )

( 9 )

(10)

EN-00889

( 7 )

EN-00890

( 1 )

EN(H4SO)-23

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION
