EN(H4SO)-8

ENGINE (DIAGNOSTICS)

GENERAL DESCRIPTION

• The OBD-II diagnostics procedure is different
from the usual diagnostics procedure. When trou-
bleshooting OBD-II vehicles, connect Subaru Se-
lect Monitor or the OBD-II general scan tool to the
vehicle.

2. ENGINE AND EMISSION CONTROL SYS-
TEM

• The Multipoint Fuel Injection (MFI) system is a
system that supplies the optimum air-fuel mixture
to the engine for all the various operating condi-
tions through the use of the latest electronic tech-
nology.
With this system fuel, which is pressurized at a con-
stant pressure, is injected into the intake air pas-
sage of the cylinder head. The injection quantity of
fuel is controlled by an intermittent injection system
where the electro-magnetic injection valve (fuel in-
jector) opens only for a short period of time, de-
pending on the quantity of air required for one cycle
of operation. In actual operation, the injection quan-
tity is determined by the duration of an electric
pulse applied to the fuel injector and this permits
simple, yet highly precise metering of the fuel.
• Further, all the operating conditions of the engine
are converted into electric signals, and this results
in additional features of the system, such as large

improved adaptability, easier addition of compen-
sating element, etc.
The MFI system also has the following features:

• Reduced emission of harmful exhaust gases.
• Reduced in fuel consumption.
• Increased engine output.
• Superior acceleration and deceleration.
• Superior startability and warm-up perfor-
mance in cold weather since compensation is
made for coolant and intake air temperature.

3. AUTOMATIC TRANSMISSION AND
ELECTRONIC-HYDRAULIC CONTROL SYS-
TEM

The electronic-hydraulic control system consists of
various sensors and switches, a transmission con-
trol module (TCM) and the hydraulic controller in-
cluding solenoid valves. The system controls the
transmission proper including shift control, lock-up
control, overrunning clutch control, line pressure
control and shift timing control. It also controls the
AWD transfer clutch. In other words, the system
detects various operating conditions from various
input signals and sends output signals to shift sole-
noids 1, 2 and low clutch timing solenoid and 2-4
brake timing solenoid, line pressure duty solenoid,
lock-up duty solenoid, transfer duty solenoid and 2-
4 brake duty solenoid (a total of eight solenoids).

D: PREPARATION TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

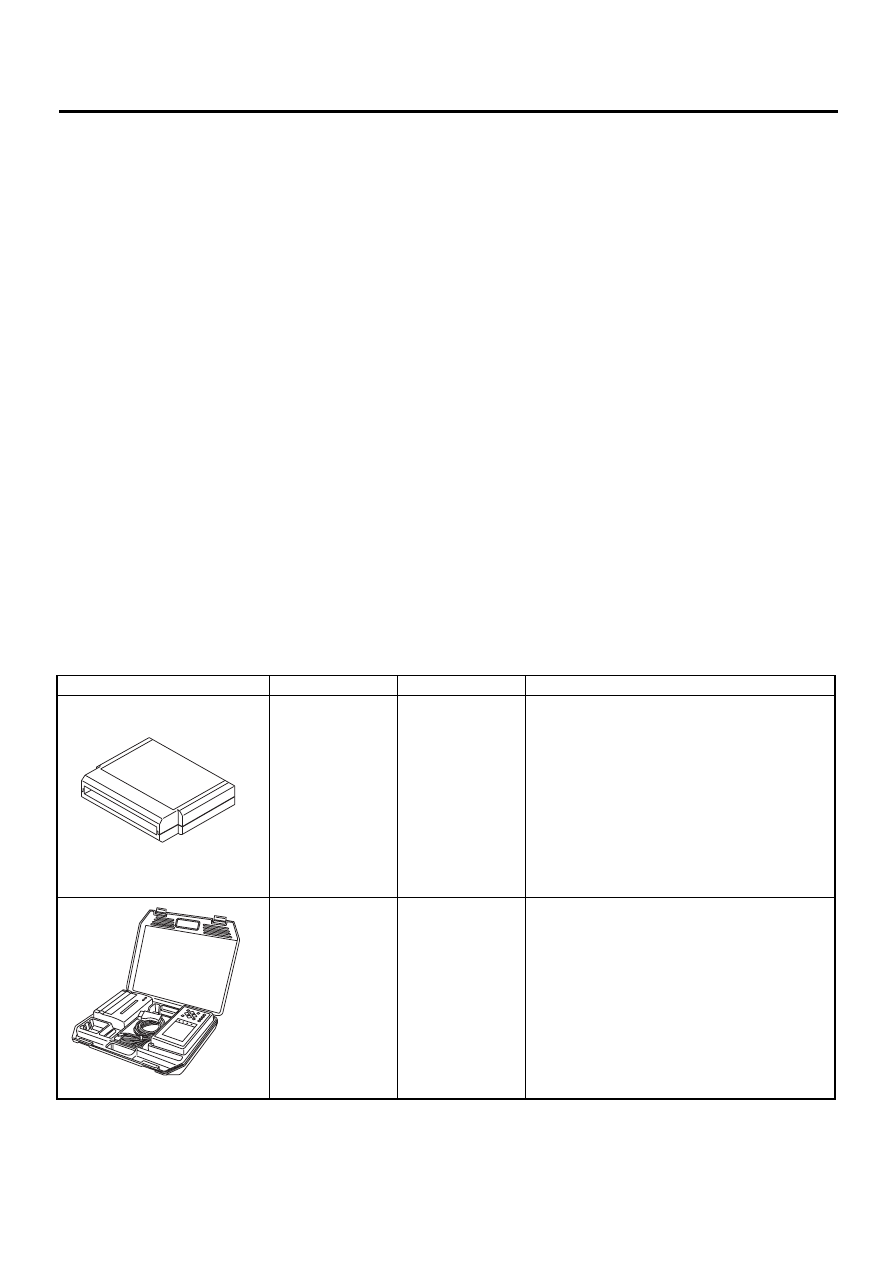

24082AA210

(Newly adopted

tool)

CARTRIDGE

Troubleshooting for electrical systems.

22771AA030

SELECT MONI-
TOR KIT

Troubleshooting for electrical systems.
• English: 22771AA030 (Without printer)
• German: 22771AA070 (Without printer)
• French: 22771AA080
(Without printer)
• Spanish: 22771AA090 (Without printer)

ST24082AA210

ST22771AA030

EN(H4SO)-9

ENGINE (DIAGNOSTICS)

GENERAL DESCRIPTION

MEMO:

EN(H4SO)-10

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

4. Electrical Components Location

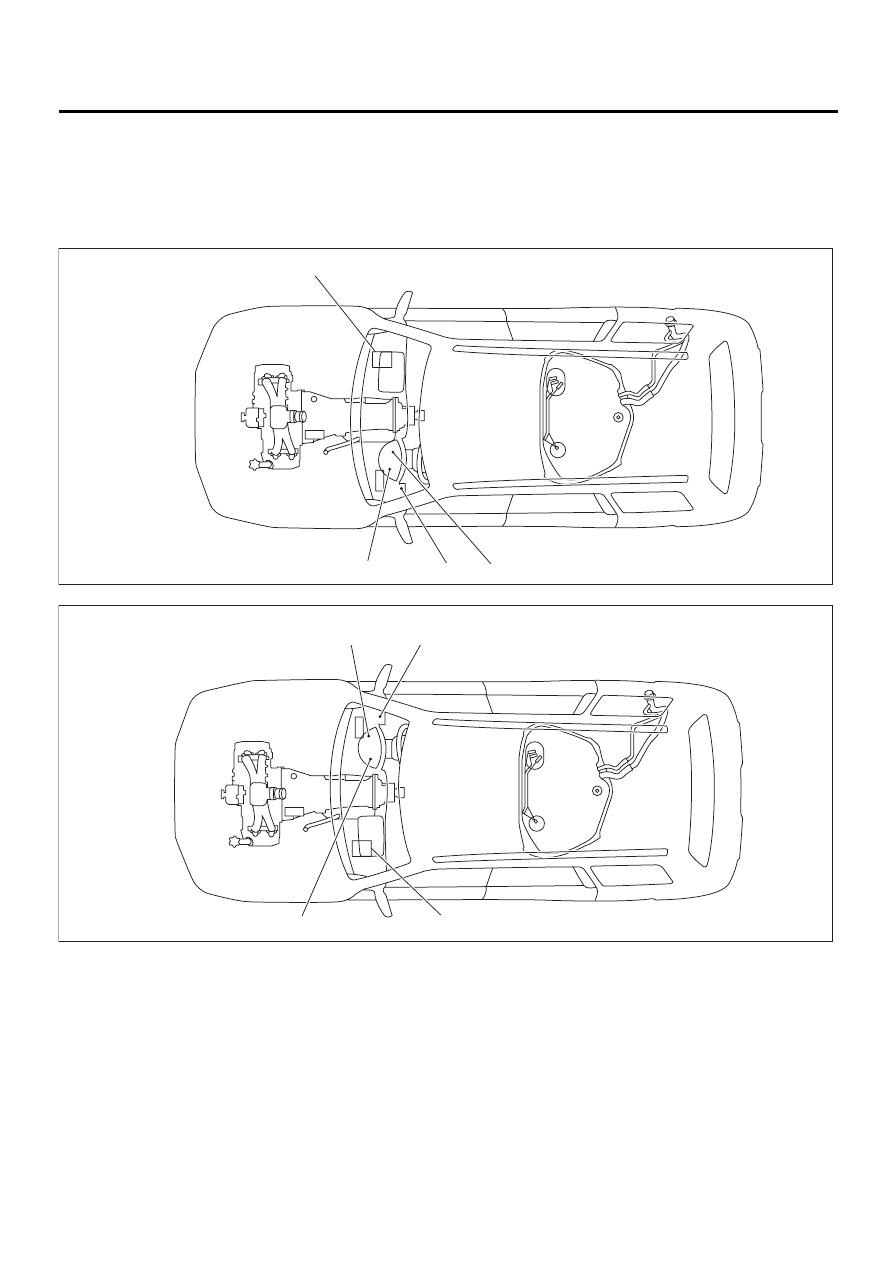

A: LOCATION

1. ENGINE

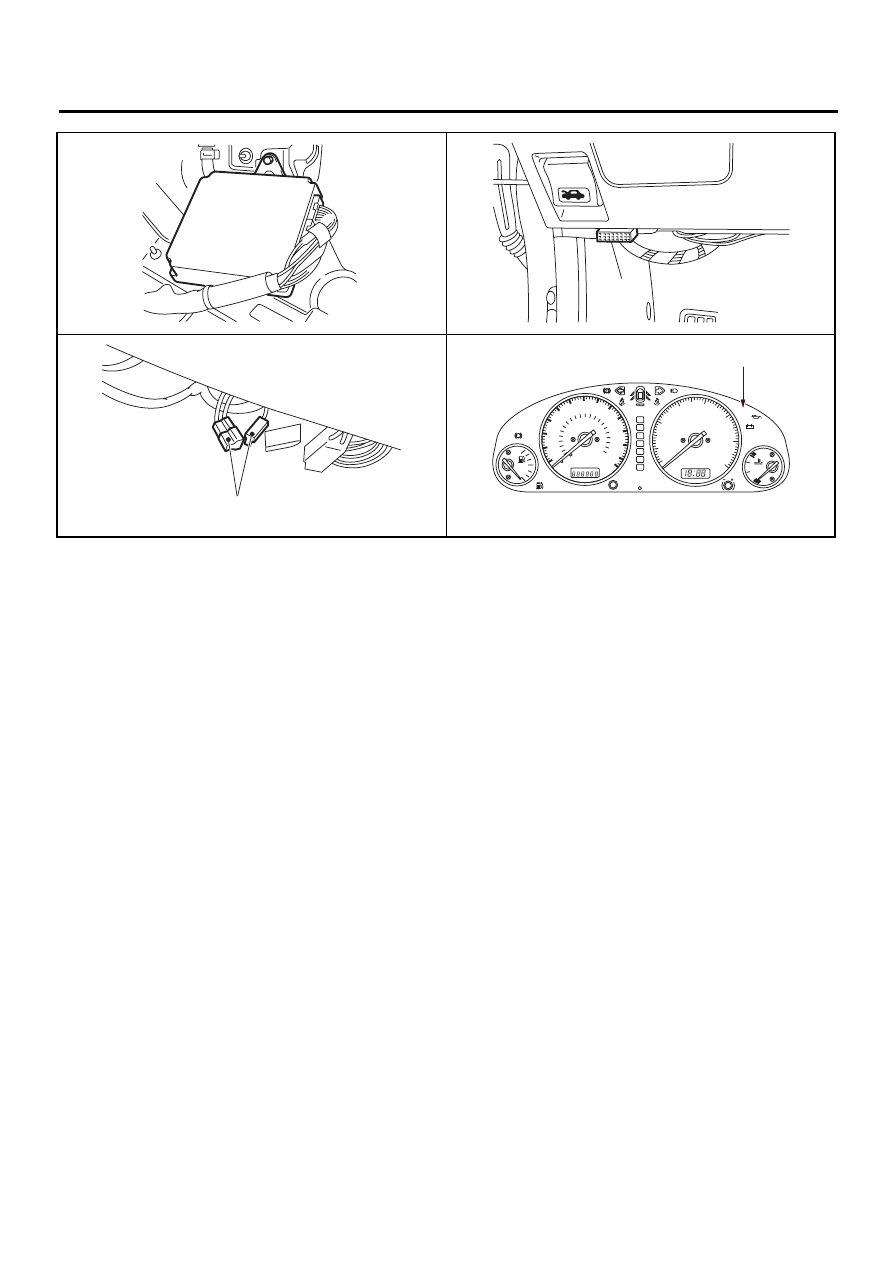

• MODULE

(1) Engine control module (ECM)

(3) Test mode connector

(2) Data link connector (for Subaru

Select Monitor and OBD-II general
scan tool)

(4) CHECK ENGINE malfunction indi-

cator lamp (MI)

EN-01103

( 1 )

( 4 )

( 3 )

( 2 )

EN-01104

( 1 )

( 3 )

( 2 )

( 4 )

EN(H4SO)-11

ENGINE (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

EN-00845

( 1 )

EN-00846

( 2 )

EN-00847

( 3 )

( 4 )

EN-00848

1

1

2

3

4

5

6

H

C

7

0

2

3

D

N

R

P

CHECK
ENGINE

AT OIL
TEMP

FWD

x1000r/min

ABS

E

F

1/2

AIRBAG

0

20

40

60

80

100

120

140

km/h

MPH

20

40

60

80

100 120 140

160

180

200

220

TRIP

000
