Subaru Legacy III (2000-2003 year). Manual - part 80

CO(H4SO)-28

COOLING

RADIATOR MAIN FAN AND FAN MOTOR

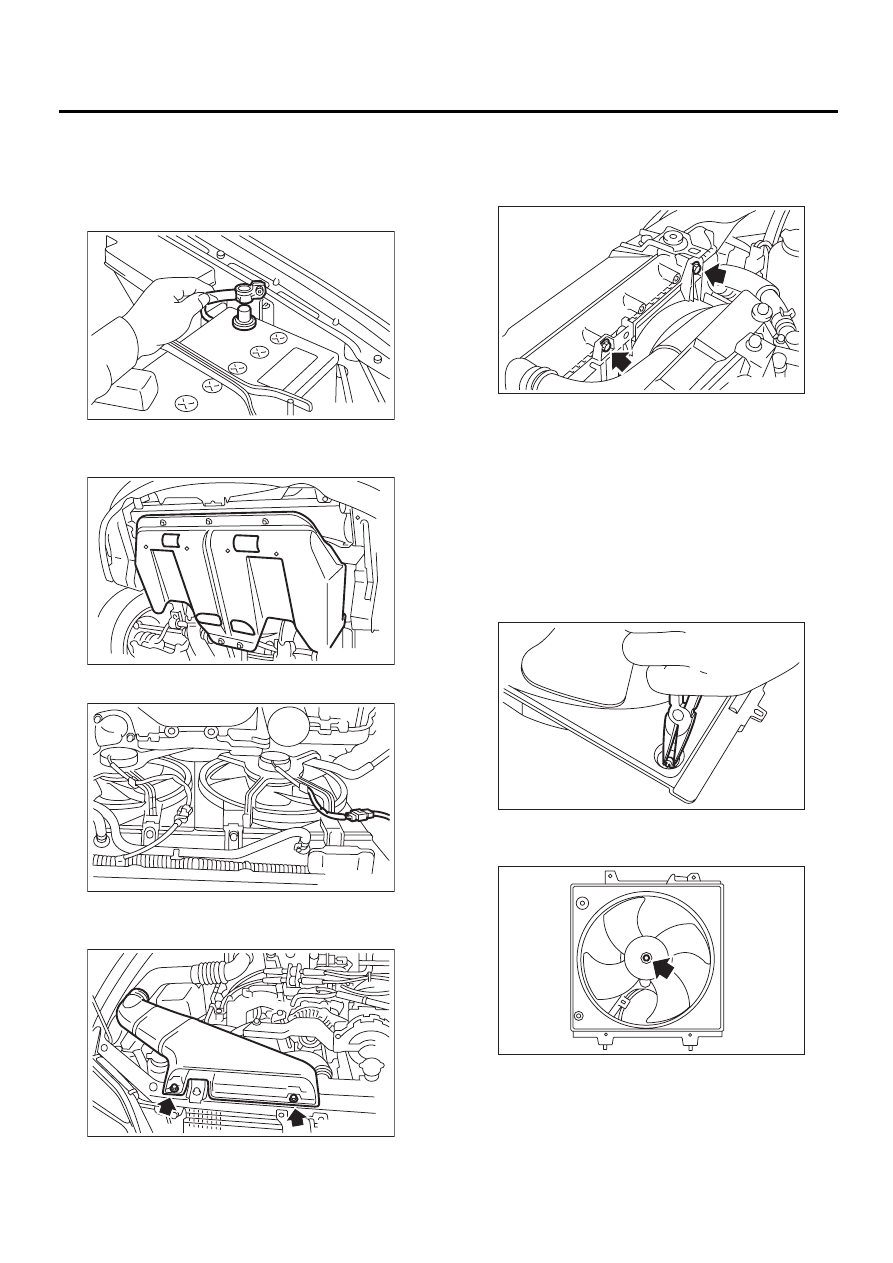

9. Radiator Main Fan and Fan

Motor

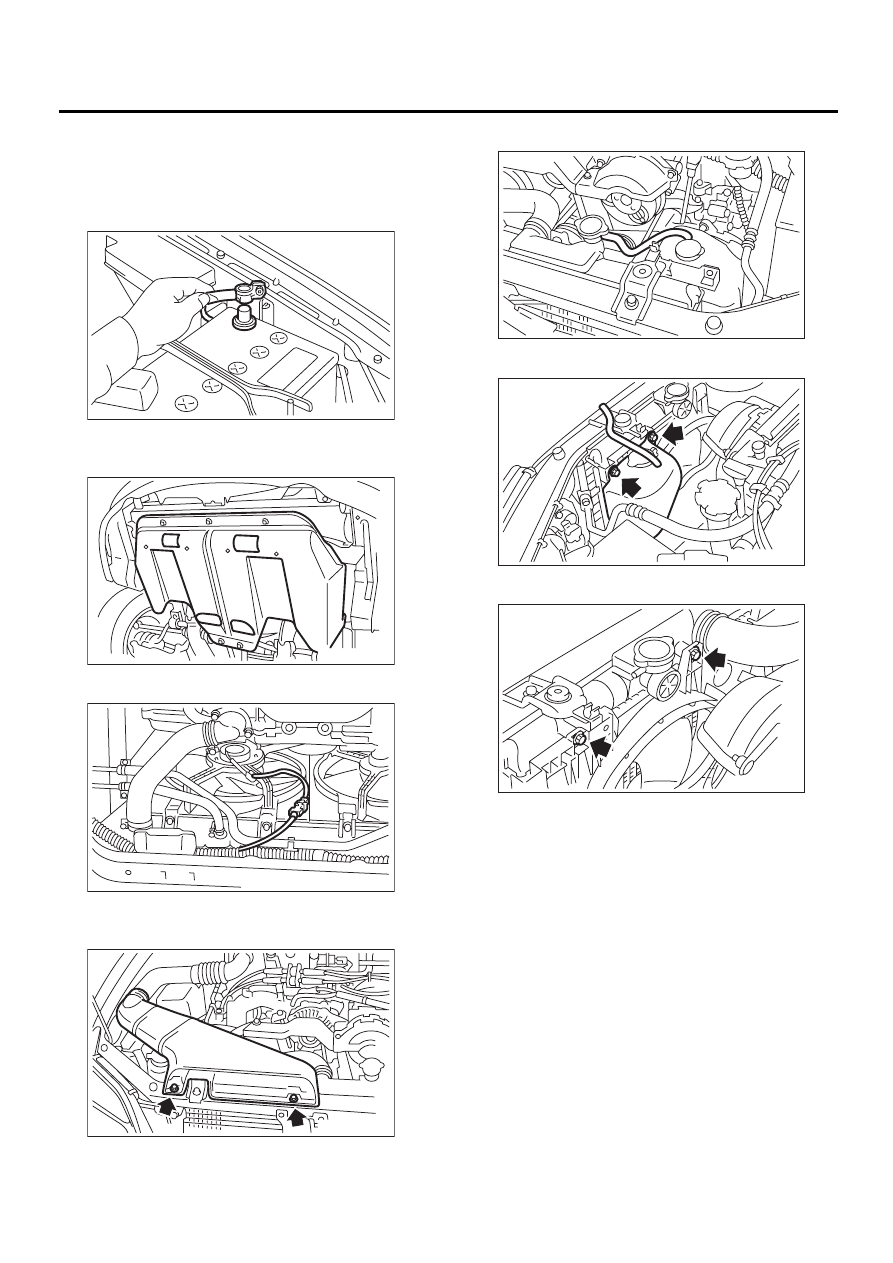

A: REMOVAL

1) Disconnect battery ground cable.

2) Lift-up the vehicle.
3) Remove under cover.

4) Disconnect connector of main fan motor.

5) Lower the vehicle.
6) Remove air intake duct.

7) Disconnect overflow hose.

8) Remove reservoir tank.

9) Remove radiator main fan motor assembly.

FU-00009

LU-00095

CO-00095

IN-00059

CO-00086

CO-00087

CO-00096

CO(H4SO)-29

COOLING

RADIATOR MAIN FAN AND FAN MOTOR

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
When the main fan motor assembly cannot be in-
stalled as is, loosen the sub fan motor assembly
securing bolts to install it.

・

Refer to “COMPONENT” for tightening torque.

<Ref. to CO(H4SO)-3, COMPONENT, General De-
scription.>

Tightening torque:

4.9 N·m (0.50 kgf-m, 3.6 ft-lb)

C: DISASSEMBLY

1) Remove clip which holds motor connector onto
shroud.

2) Remove nut which holds fan itself onto fan motor
and shroud assembly.

3) Remove bolts which install fan motor onto
shroud.

D: ASSEMBLY

Assemble in the reverse order of disassembly.

NOTE:

・

Refer to “COMPONENT” for tightening torque.

<Ref. to CO(H4SO)-3, COMPONENT, General De-
scription.>

E: INSPECTION

1) Connect battery positive (+) terminal to terminal
No. 2, and negative (

−

) terminal to terminal No. 1.

2) Make sure the main fan motor operates properly.
Replace it if it doesn't.

CO-00087

CO-00046

CO-00097

CO-00098

CO-00202

1 2

F17

To

CO(H4SO)-30

COOLING

RADIATOR SUB FAN AND FAN MOTOR

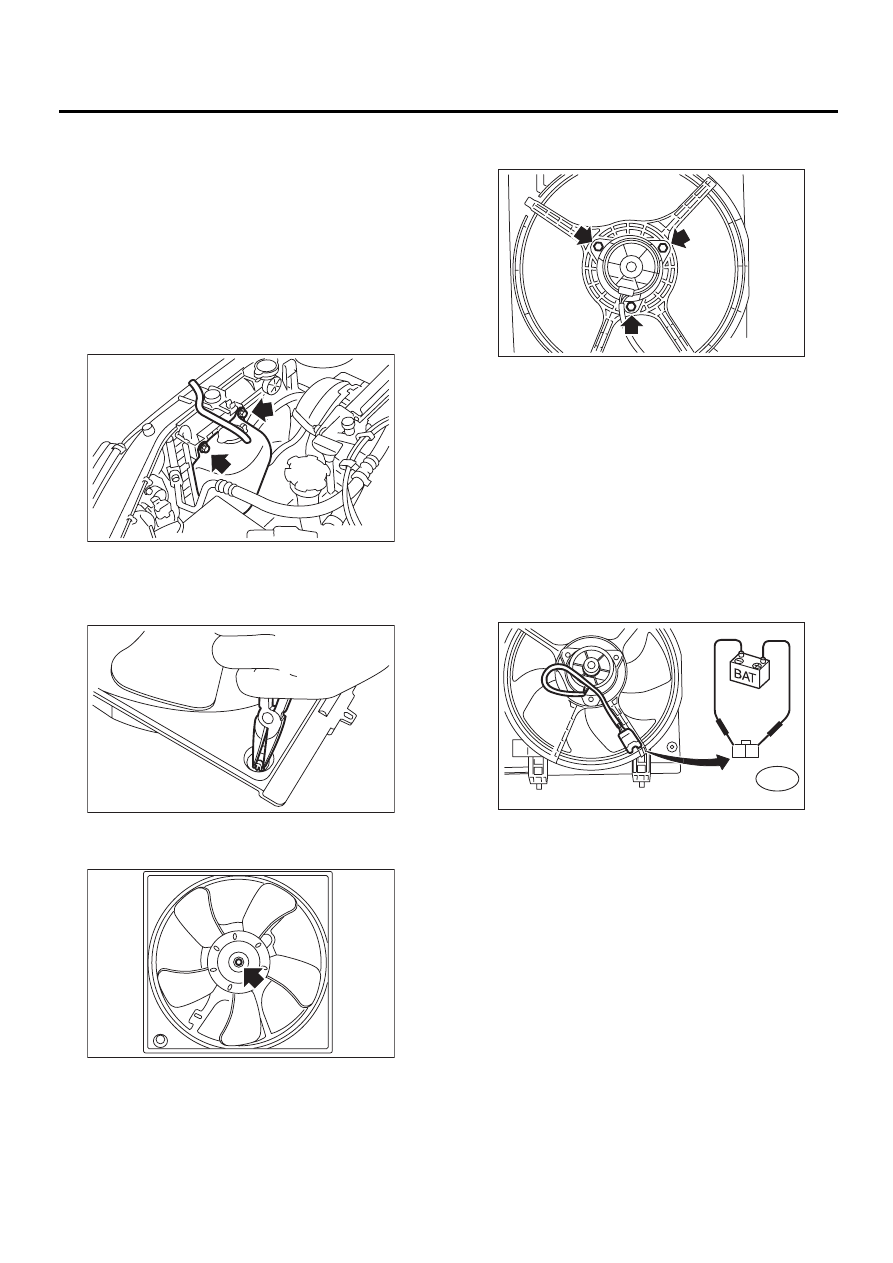

10.Radiator Sub Fan and Fan

Motor

A: REMOVAL

1) Disconnect battery ground cable.

2) Lift-up the vehicle.
3) Remove under cover.

4) Disconnect connector of sub fan motor.

5) Lower the vehicle.
6) Remove air intake duct.

7) Remove bolts which hold sub fan shroud to radi-
ator.
8) Remove radiator sub fan shroud through the un-
der side of vehicle.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:

・

Refer to “COMPONENT” for tightening torque.

<Ref. to CO(H4SO)-3, COMPONENT, General De-
scription.>

C: DISASSEMBLY

1) Remove clip which holds motor harness onto
shroud.

2) Remove nut which holds fan itself onto fan motor
and shroud assembly.

FU-00009

LU-00095

CO-00100

IN-00059

CO-00101

CO-00046

CO-00102

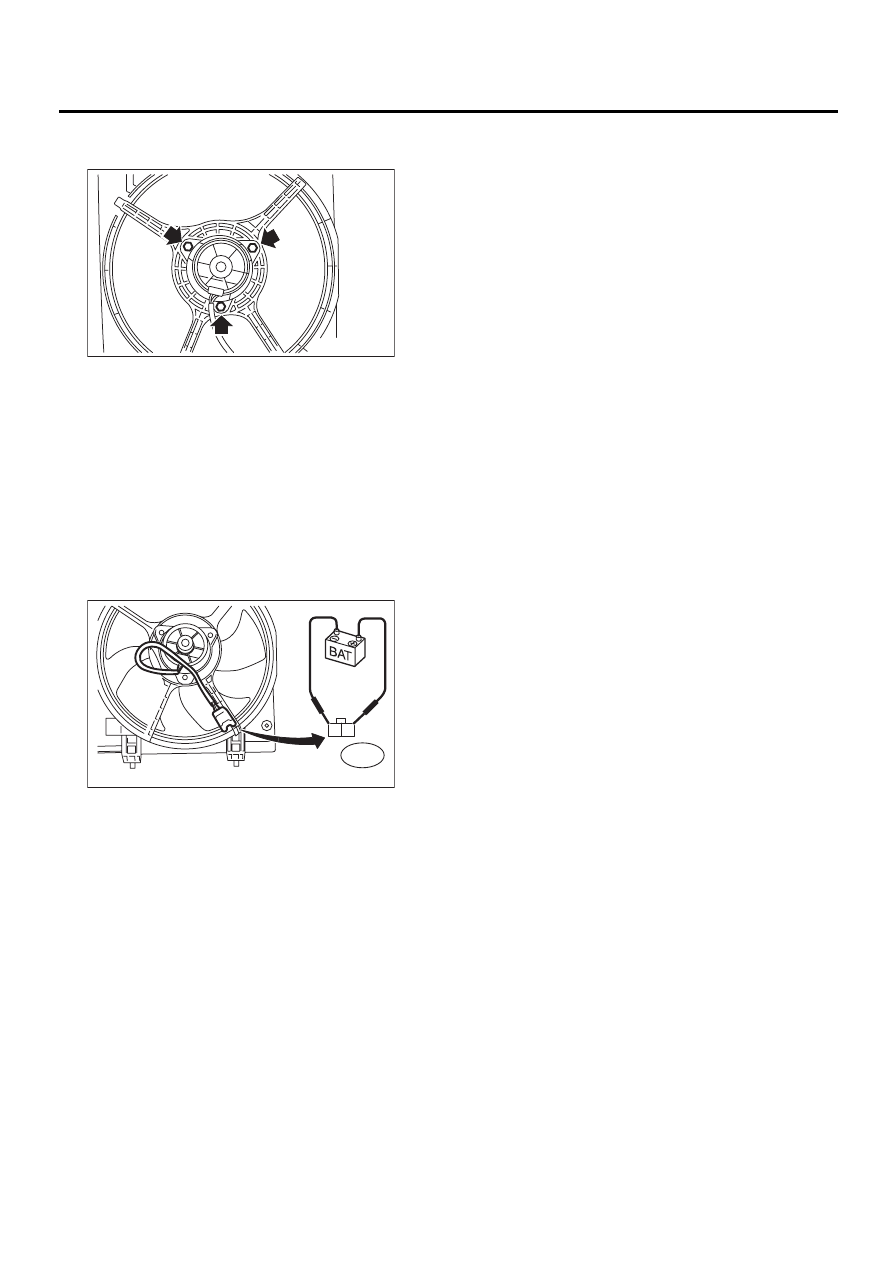

CO(H4SO)-31

COOLING

RADIATOR SUB FAN AND FAN MOTOR

3) Remove bolts which install fan motor onto
shroud.

D: ASSEMBLY

Assemble in the reverse order of disassembly.

NOTE:

・

Refer to “COMPONENT” for tightening torque.

<Ref. to CO(H4SO)-3, COMPONENT, General De-
scription.>

E: INSPECTION

1) Connect battery positive (+) terminal to terminal
No. 2, and negative (

−

) terminal to terminal No. 1.

2) Make sure the sub-fan motor operates properly.
Replace it if it doesn't.

CO-00098

CO-00203

F16

1 2

To
