Subaru Legacy III (2000-2003 year). Manual - part 57

ME(H4SO)-40

MECHANICAL

PREPARATION FOR OVERHAUL

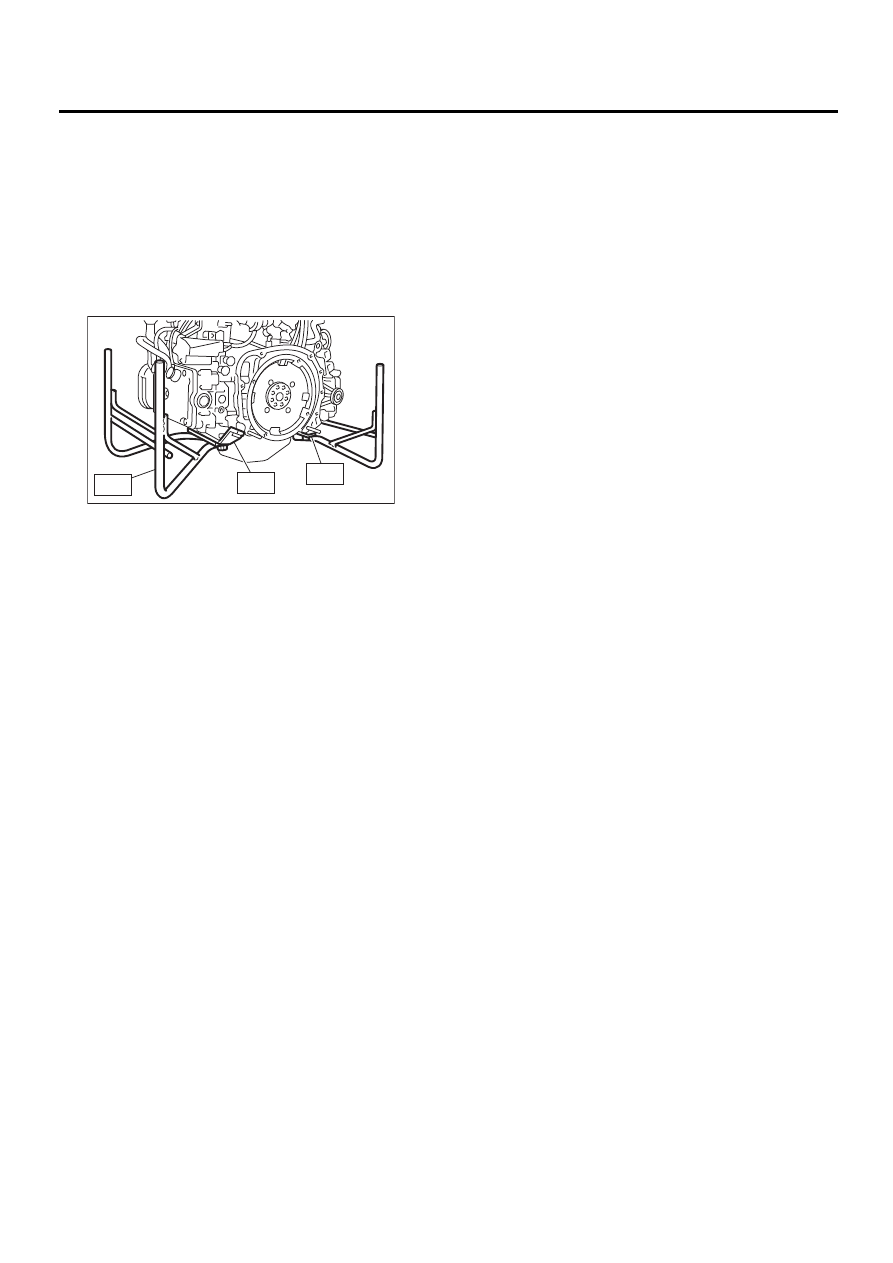

11.Preparation for Overhaul

A: PROCEDURE

1) After removing the engine from body, secure it in
the ST shown below.
ST1

498457000

ENGINE STAND ADAPTER
RH

ST2

498457100

ENGINE STAND ADAPTER
LH

ST3

499817100

ENGINE STAND

2) In this section the procedures described under
each index are all connected and stated in order. It
will be the complete procedure for overhauling of
the engine itself when you go through all steps in
the process.
Therefore, in this section, to conduct the particular
procedure within the flow of a section, you need to
go back and conduct the procedure described pre-
viously in order to do that particular procedure.

ME-00221

ST3

ST2

ST1

ME(H4SO)-41

MECHANICAL

V-BELT

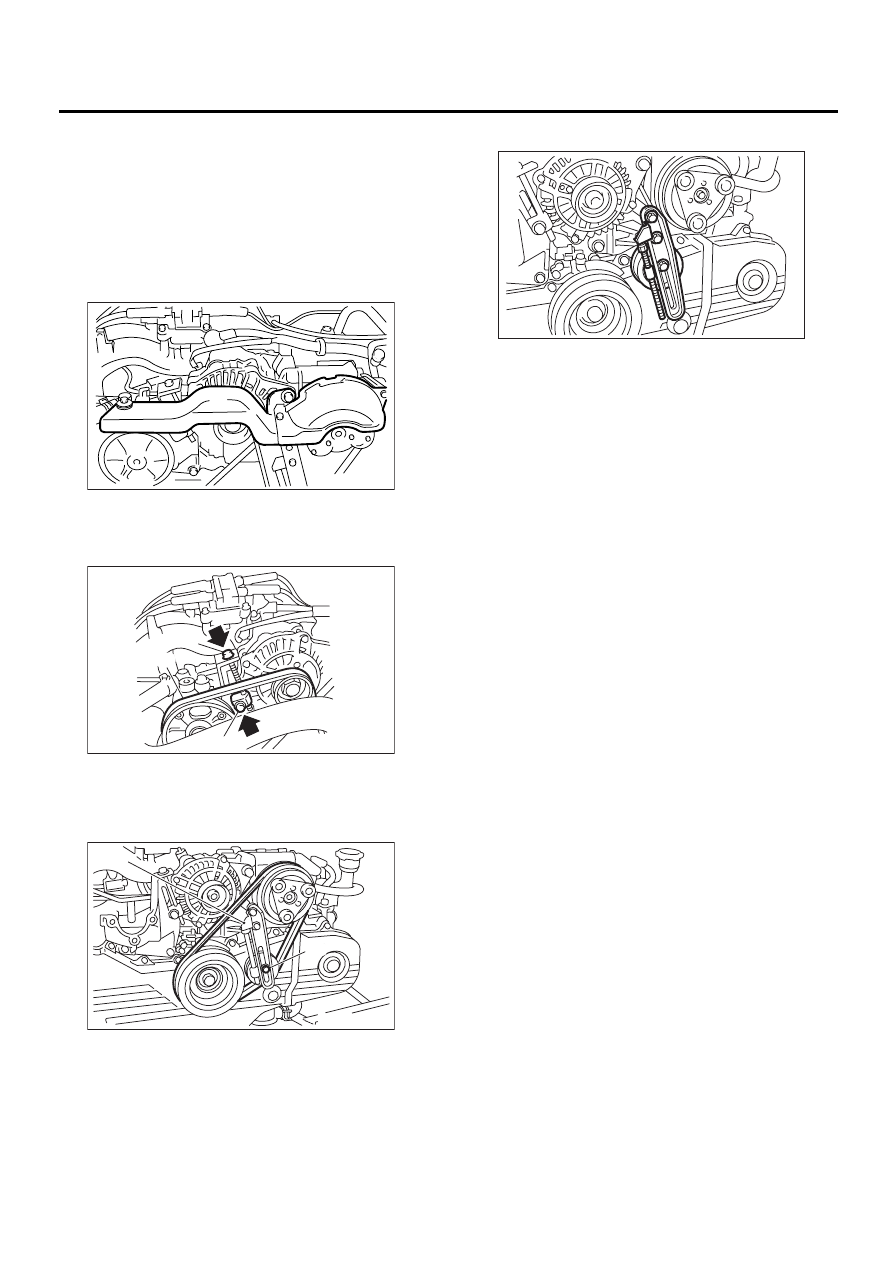

12.V-belt

A: REMOVAL

1. FRONT SIDE BELT

NOTE:
Perform the following procedures 1) to 4) with the
engine installed to body.
1) Remove the V-belt cover.

2) Loosen the lock bolt (A).
3) Loosen the slider bolt (B).
4) Remove the front side belt (C).

2. REAR SIDE BELT

1) Loosen the lock nut (A).
2) Loosen the slider bolt (B).

3) Remove the A/C belt.

4) Remove the A/C belt tensioner.

ME-00606

ME-00223

( A )

( B )

( C )

ME-00224

( A )

( B )

ME-00225

ME(H4SO)-42

MECHANICAL

V-BELT

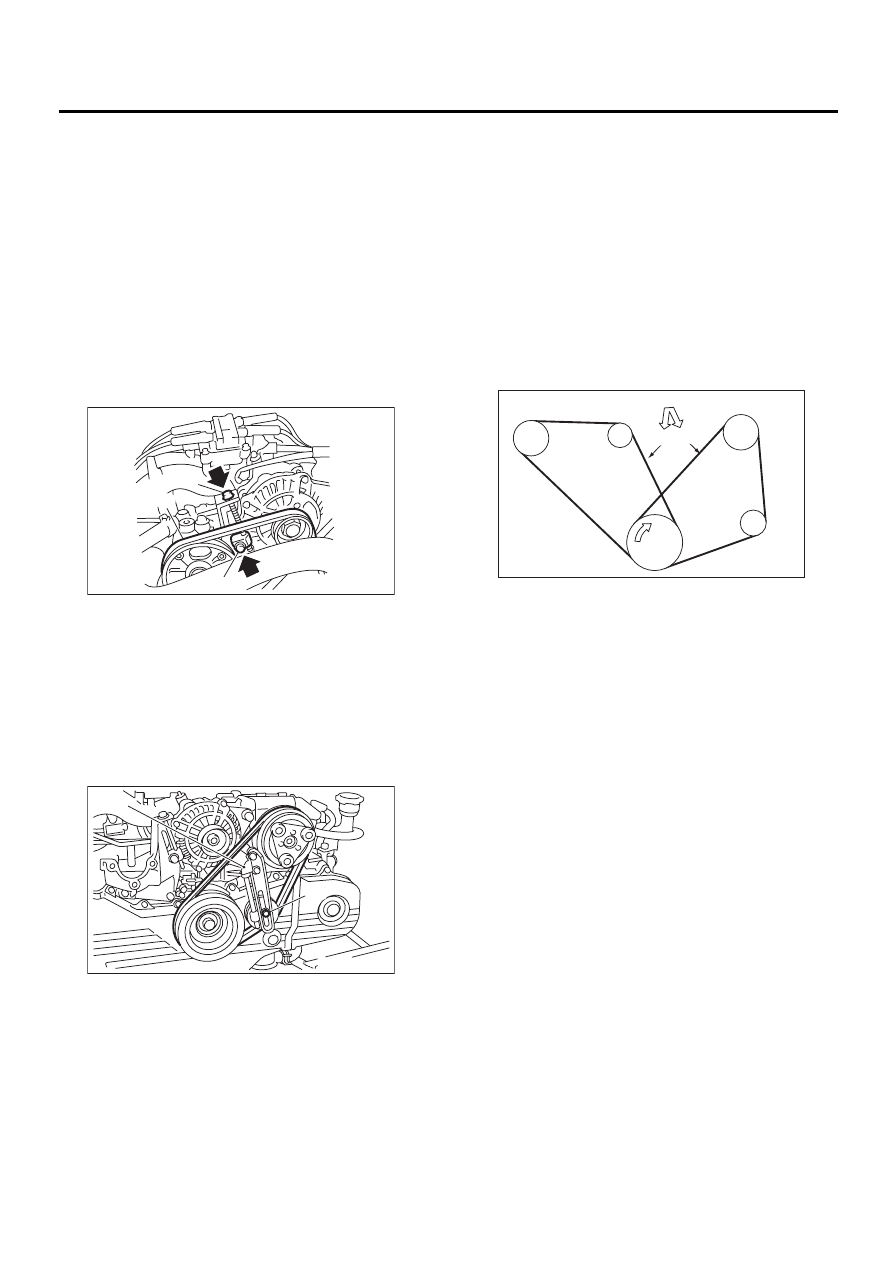

B: INSTALLATION

1. FRONT SIDE BELT

1) Wipe off any oil or water on the belt and pulley.
2) Install the belt (C), and tighten the slider bolt so
as to obtain the specified belt tension. <Ref. to
ME(H4SO)-42, INSPECTION, V-belt.>
3) Tighten the lock bolt (A).
4) Tighten the slider bolt (B).

Tightening torque:

Lock bolt through-bolt:

25 N·m (2.5 kgf-m, 18.1 ft-lb)

Slider bolt:

8 N·m (0.8 kgf-m, 5.5 ft-lb)

2. REAR SIDE BELT

1) Install the belt, and tighten the slider bolt (B) so
as to obtain the specified belt tension. <Ref. to
ME(H4SO)-42, INSPECTION, V-belt.>
2) Tighten the lock nut (A).

Tightening torque:

Lock nut (A);

22.6 N·m (2.3 kgf-m, 16.6 ft-lb)

C: INSPECTION

1) Replace the belts, if cracks, fraying or wear is
found.
2) Check the drive belt tension and adjust it if nec-
essary by changing the generator installing position
and/or idler pulley installing position.

Belt tension

(A)
replaced: 7 — 9 mm (0.276 — 0.354 in)
reused: 9 — 11 mm (0.354 — 0.433 in)
(B)
replaced: 7.5 — 8.5 mm (0.295 — 0.335 in)
reused: 9.0 — 10.0 mm (0.354 — 0.394 in)

ME-00223

( A )

( B )

( C )

ME-00224

( A )

( B )

C/P Crankshaft pulley

GEN Generator

P/S Power steering oil pump pulley

A/C Air conditioning compressor pulley

I/P Idler pulley

ME-00226

98 N (10 kgf, 22 lb)

GEN

A/C

P/S

I/P

C/P

( A ) ( B )

ME(H4SO)-43

MECHANICAL

CRANKSHAFT PULLEY

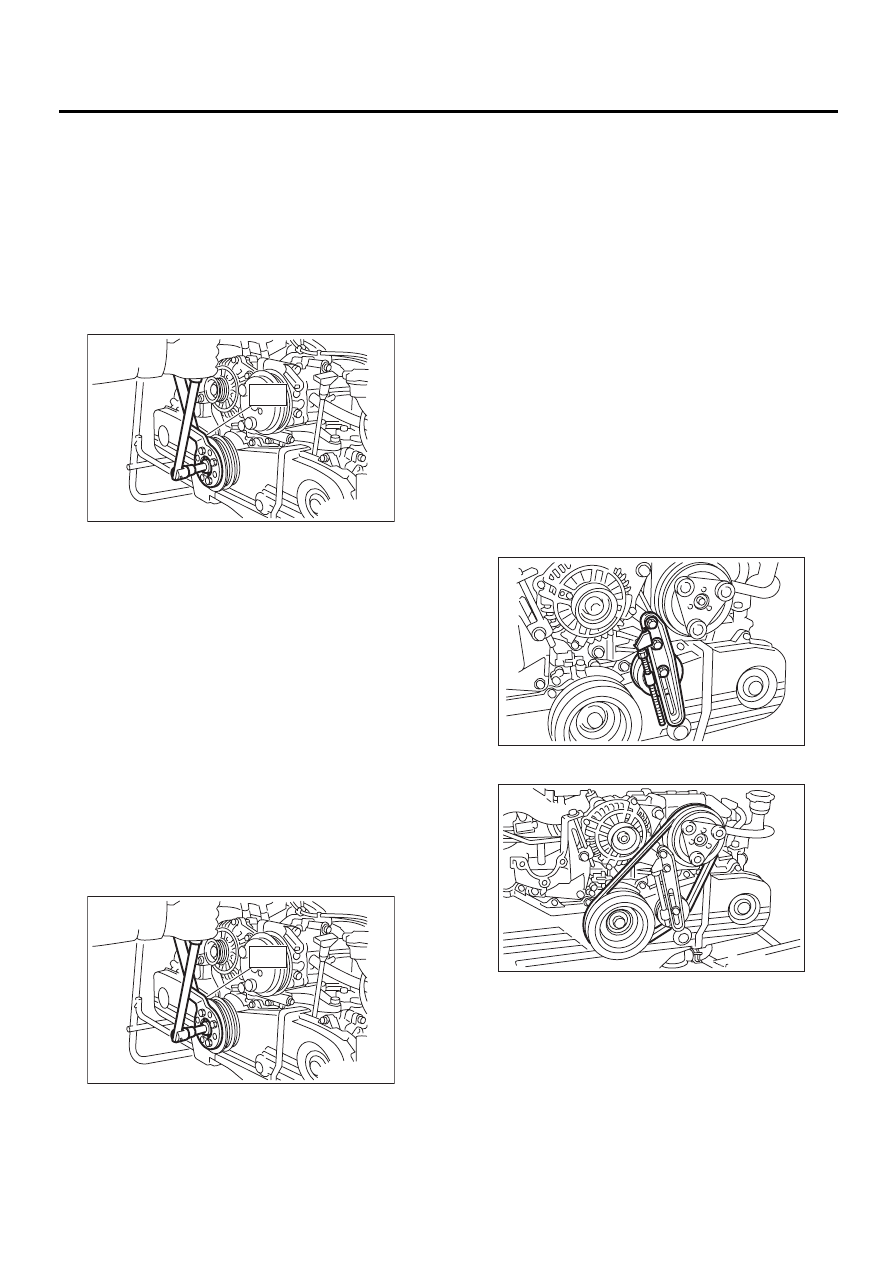

13.Crankshaft Pulley

A: REMOVAL

1) Remove the V-belt. <Ref. to ME(H4SO)-41, RE-
MOVAL, V-belt.>
2) Remove the crankshaft pulley bolt. To lock the
crankshaft, use ST.
ST

499977400

CRANKSHAFT PULLEY
WRENCH (2000 cc model)

ST

499977100

CRANKSHAFT PULLEY
WRENCH (2500 cc model)

3) Remove the crankshaft pulley.

B: INSTALLATION

1. 2000 CC MODEL

1) Install the crankshaft pulley.
2) Install the pulley bolt.
To lock the crankshaft, use ST.
ST

499977400

CRANKSHAFT PULLEY
WRENCH

(1) Clean the crankshaft pulley thread using an
air gun.
(2) Apply engine oil to the crankshaft pulley bolt
seat and thread.
(3) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 33 ft-lb).
(4) Tighten the crankshaft pulley bolts.

Tightening torque:

127 N·m (13.0 kgf-m, 94.0 ft-lb)

3) Confirm that the tightening angle of crankshaft
pulley bolt is 45 degrees or more. If the tightening
angle of crankshaft pulley bolt is less than 45 de-
grees, conduct the following procedures.

(1) Replace the crankshaft pulley bolts and
clean them.

Crankshaft pulley bolt:

12369AA011

(2) Clean the crankshaft thread using an air
gun.
(3) Apply engine oil to the crankshaft pulley bolt
seal and thread.
(4) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 33 ft-lb).
(5) Tighten the crankshaft pulley bolts keeping
them in an angle between 45 degrees and 60
degrees.

NOTE:
Conduct the tightening procedures by confirming
the turning angle of crankshaft pulley bolt referring
to the gauge indicated on belt cover.
4) Install the A/C belt tensioner.

5) Install the A/C belt.

2. 2500 CC MODEL

1) Install the crankshaft pulley.
2) Install the pulley bolt.
To lock the crankshaft, use ST.
ST

499977100

CRANKSHAFT PULLEY
WRENCH

(1) Clean the crankshaft pulley thread using an
air gun.

ME-00227

ST

ME-00227

ST

ME-00225

ME-00228
